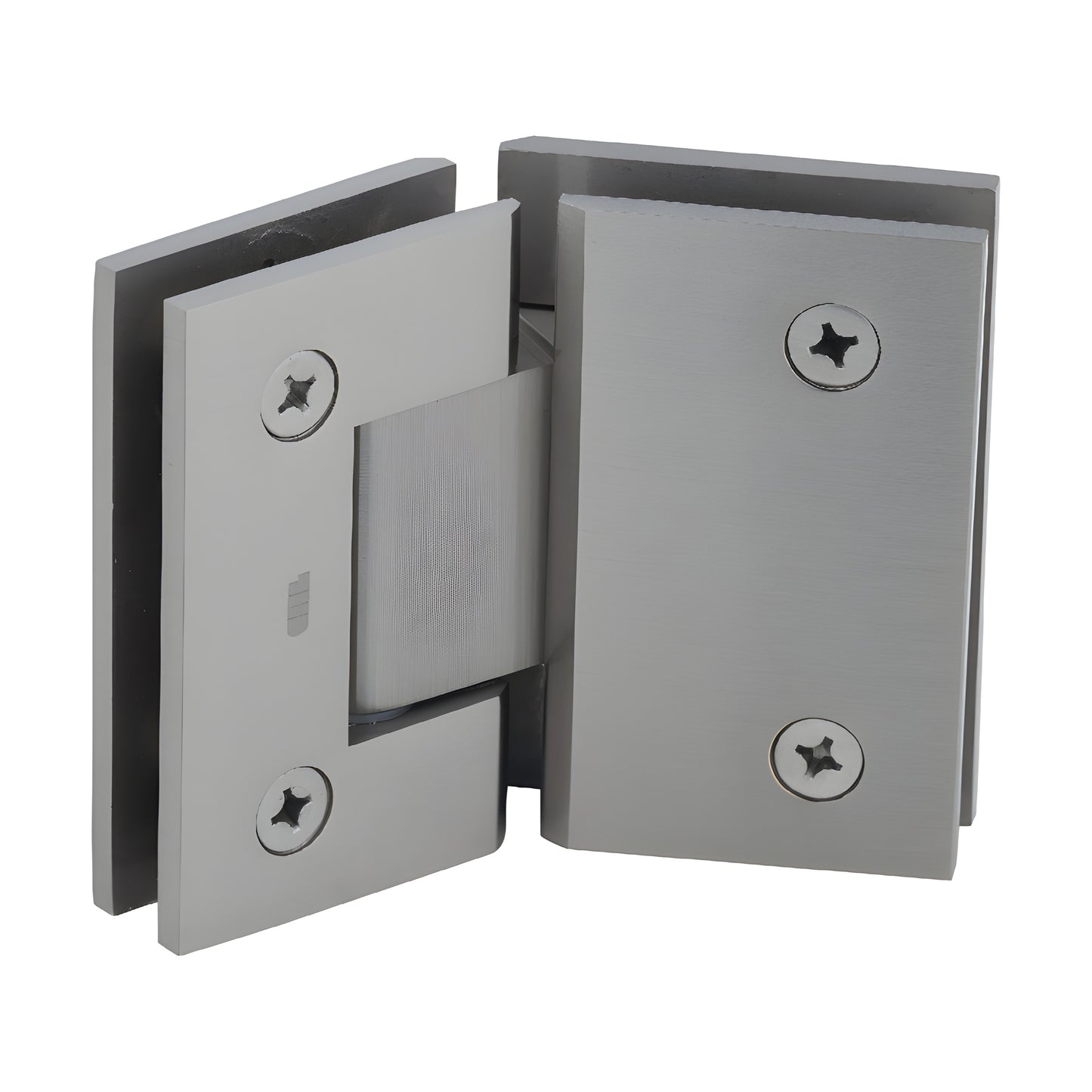

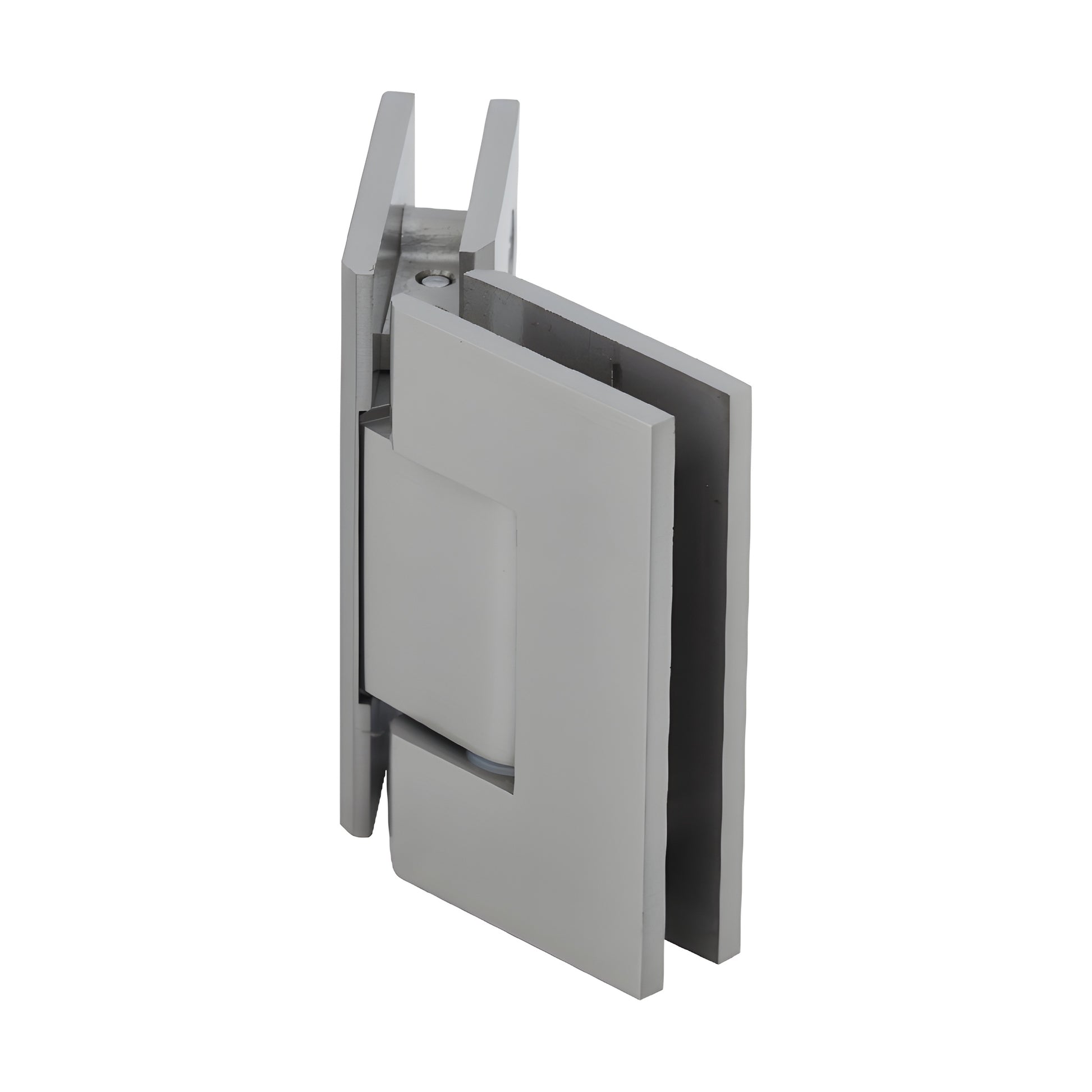

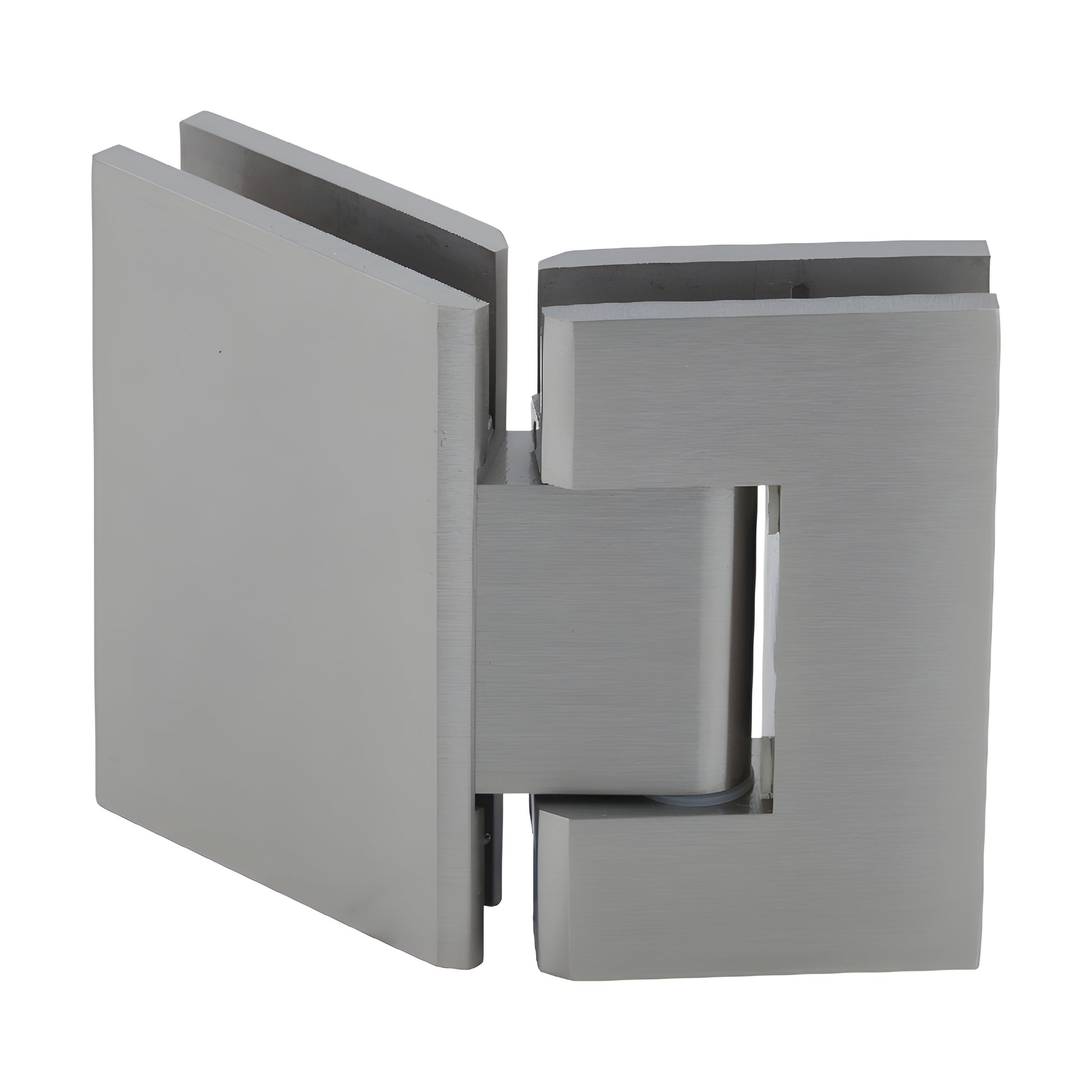

CRL Geneva 545 135° Brushed Nickel Glass-to-Glass Shower Hinge

• Self-centering hinge with reversible 5° pivot pin for tighter shower closure
• Available in multiple decorative finishes
• Three-year warranty
• Factory 5° pre-set model for inward tighter closure into shower interior
• Designed for monolithic tempered glass 5/16" (8 mm) to 1/2" (12 mm)

The CRL Geneva Series professional hinge (SKU: GEN545BN) fits 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass and is offered in six style options—three Wall-Mount and three Glass-to-Glass—giving designers flexible choices for frameless glass shower doors. Geneva Hinges are solid brass with stainless-steel pins and springs and include a reversible 5° pivot pin; custom pivot pins are available for off-angle installations.

Standard Reversible Pivot Pin: Each hinge contains a reversible pivot pin marked 90° on one side and 85° on the other. Standard hinges ship with the 90° side active. Offset (pre-set) models are factory-set to 85° to provide a 5° tighter closure into the shower. Rotate the pin (do not flip) to change the active side.

Load Capacity:

• Two hinges: holds up to 80 lb (36 kg) — maximum door width 28" (711 mm)
• Three hinges: holds up to 120 lb (54 kg) — maximum door width 32" (813 mm)

Custom Pivot Pin: Custom Pivot Pins (Cat. No. GENP1N) can be specified up to 45° for bespoke, off-angle shower door installations. Contact Technical Sales Shower Door Department for guidance—using a custom pin may affect glass sizes and enclosure aesthetics.

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
Special Feature: Choice of Standard 0° closing or 5° pre-set model for tighter inward closure
Construction: Solid brass with stainless-steel pins and springs
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. GEN13 gasket pack required separately for 5/16" (8 mm) glass.

Custom finishes available on request—contact Technical Sales, Shower Door Division for lead times and pricing.

Product Warning:
CRL shower door hinges are designed for residential and hotel shower use only. For alternative applications, obtain approval from CRL Shower Door Technical Sales. Use only the template included with this hinge—cut-outs may differ from other brands.
