CRL Geneva 545 135° Polished Chrome Glass-to-Glass Shower Hinge

• Self-centering hinge with reversible 5° pivot pin
• Available in several beautiful finishes
• Three year warranty
• 5° pre-set model available (factory-set for tighter closure into shower interior)
• For monolithic tempered safety glass, 5/16" (8 mm) to 1/2" (12 mm)

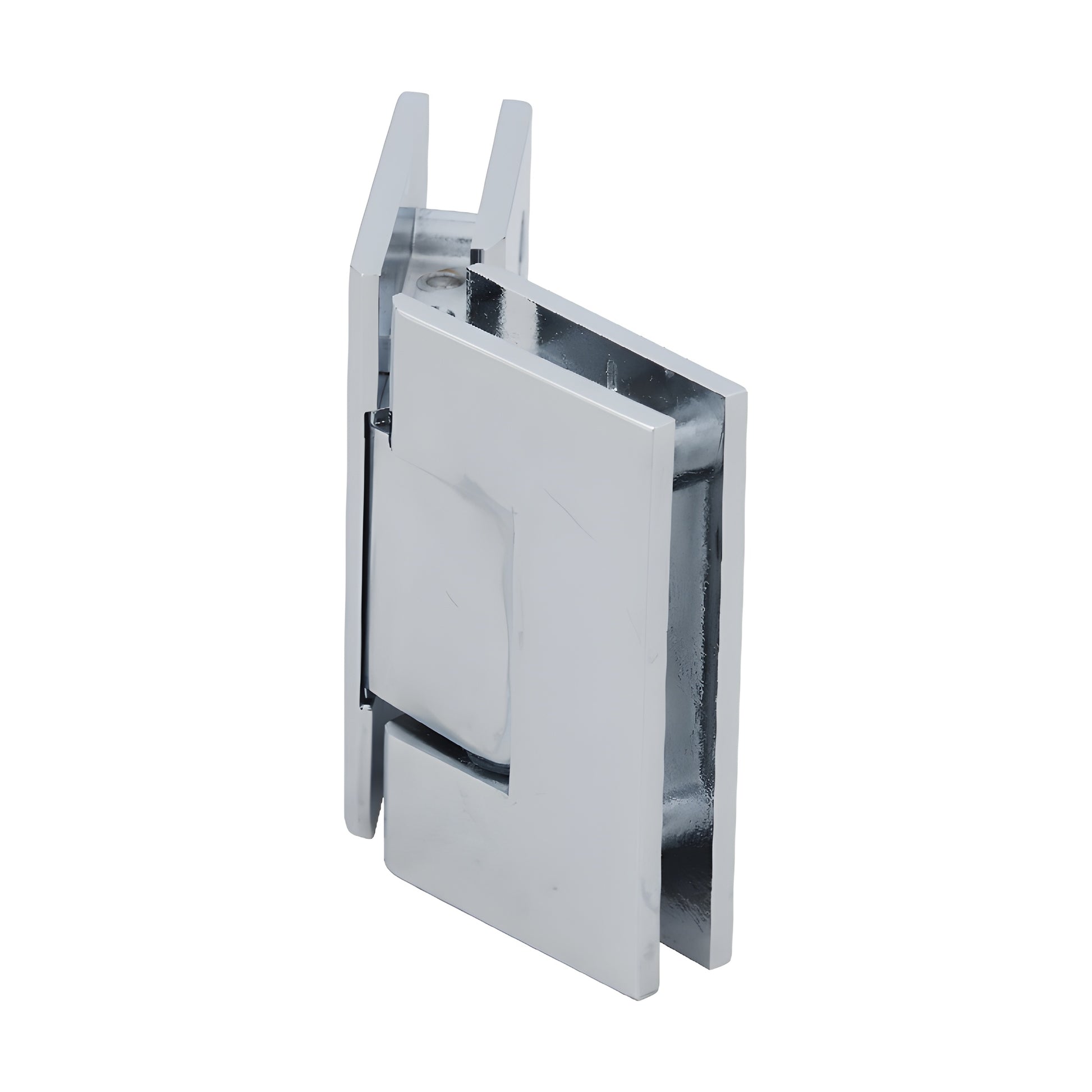

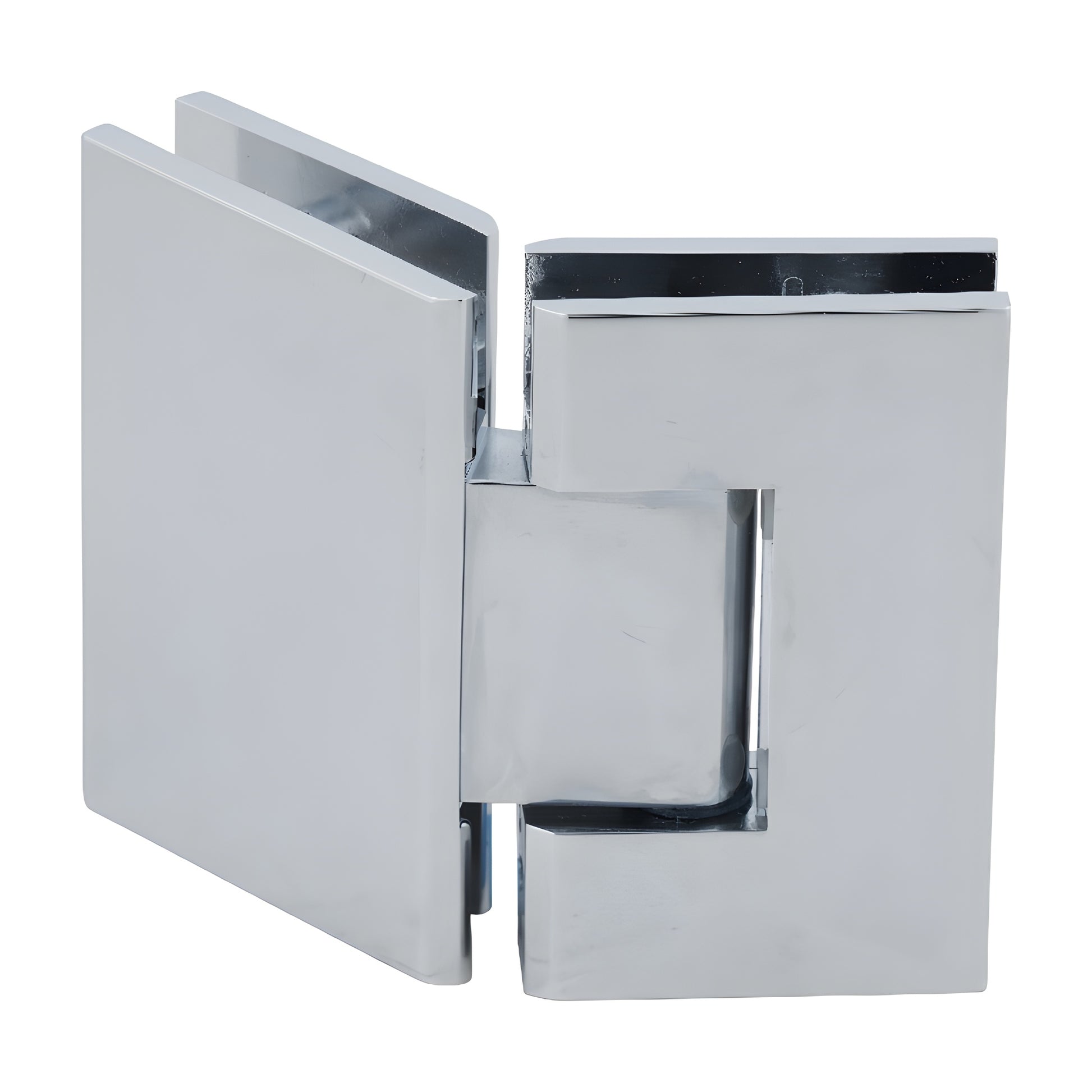

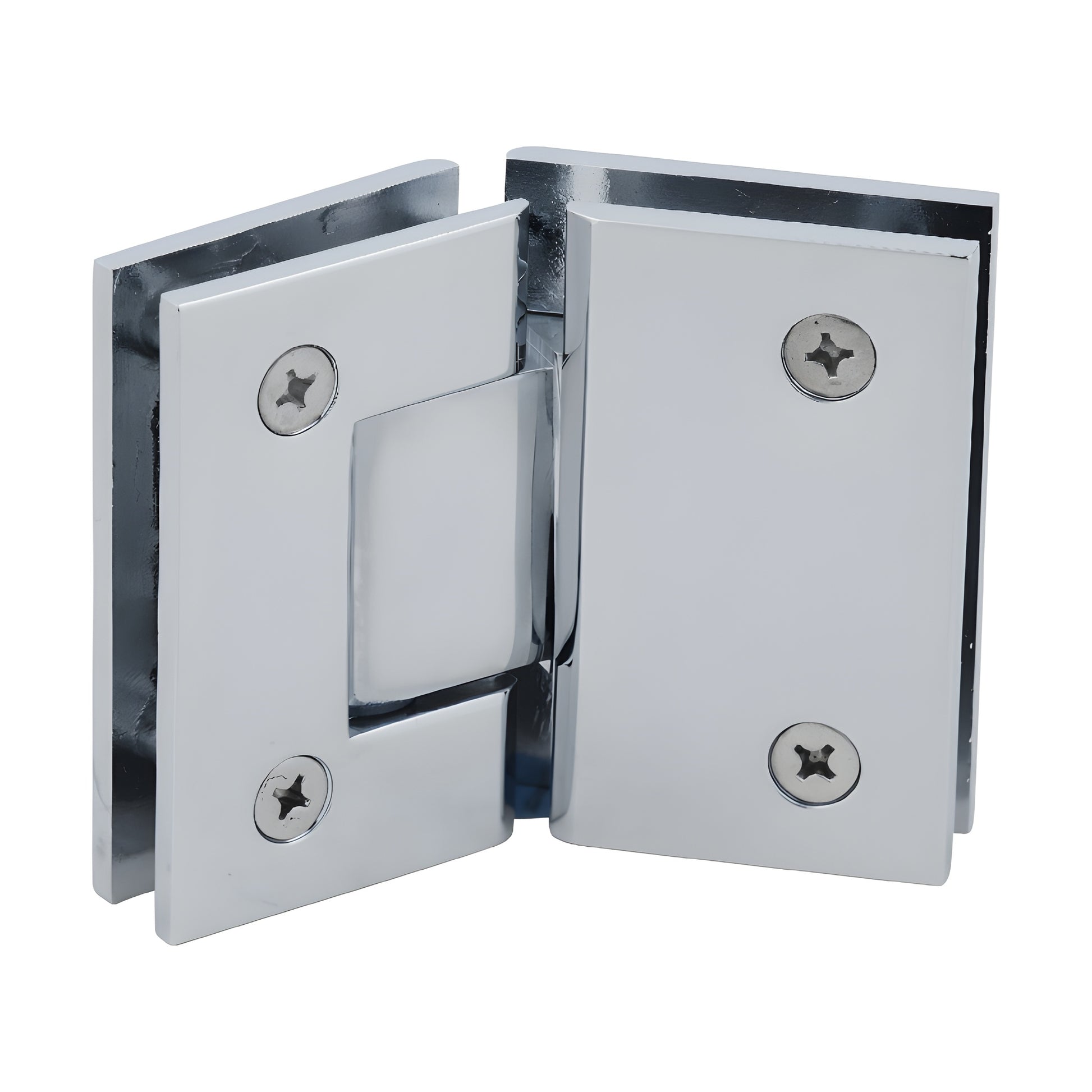

The CRL Geneva Series professional hinge (SKU: GEN545CH) fits 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass. Six styles—three Wall Mount and three Glass-to-Glass—offer design flexibility for frameless shower doors. Geneva hinges are self-centering and include a reversible 5° pivot pin; custom pivot pins are available to handle off-angle installations. Constructed of solid brass with stainless steel pins and springs for corrosion resistance and long life.

Standard Reversible Pivot Pin: Each hinge includes a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship with the 90° side active. Offset models are factory-set to 85° for a 5° tighter closure into the shower interior. Rotate the pin (do not flip) to change the active side.

Load capacity and door width limits:

• Two hinges (8–12 mm glass): holds up to 80 lbs (36 kg); max door width 28" (711 mm).
• Three hinges (8–12 mm glass): holds up to 120 lbs (54 kg); max door width 32" (813 mm).

Custom Pivot Pin (Cat. No. GENP1N): Available up to 45° for off-angle installations. If the 5° reversible pin does not achieve the desired closure, specify the required angle. Note: custom pins may affect glass sizes and enclosure aesthetics—contact Technical Sales Shower Door Department.

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Feature: Option of Standard model (0° closing) or 5° Pre-Set model for tighter interior closure
Construction: Solid Brass with stainless steel moving parts
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. GEN13 Gasket Pack must be purchased separately for use with 5/16" (8 mm) tempered glass.

Custom finishes available on request—contact Technical Sales Shower Door Division.
