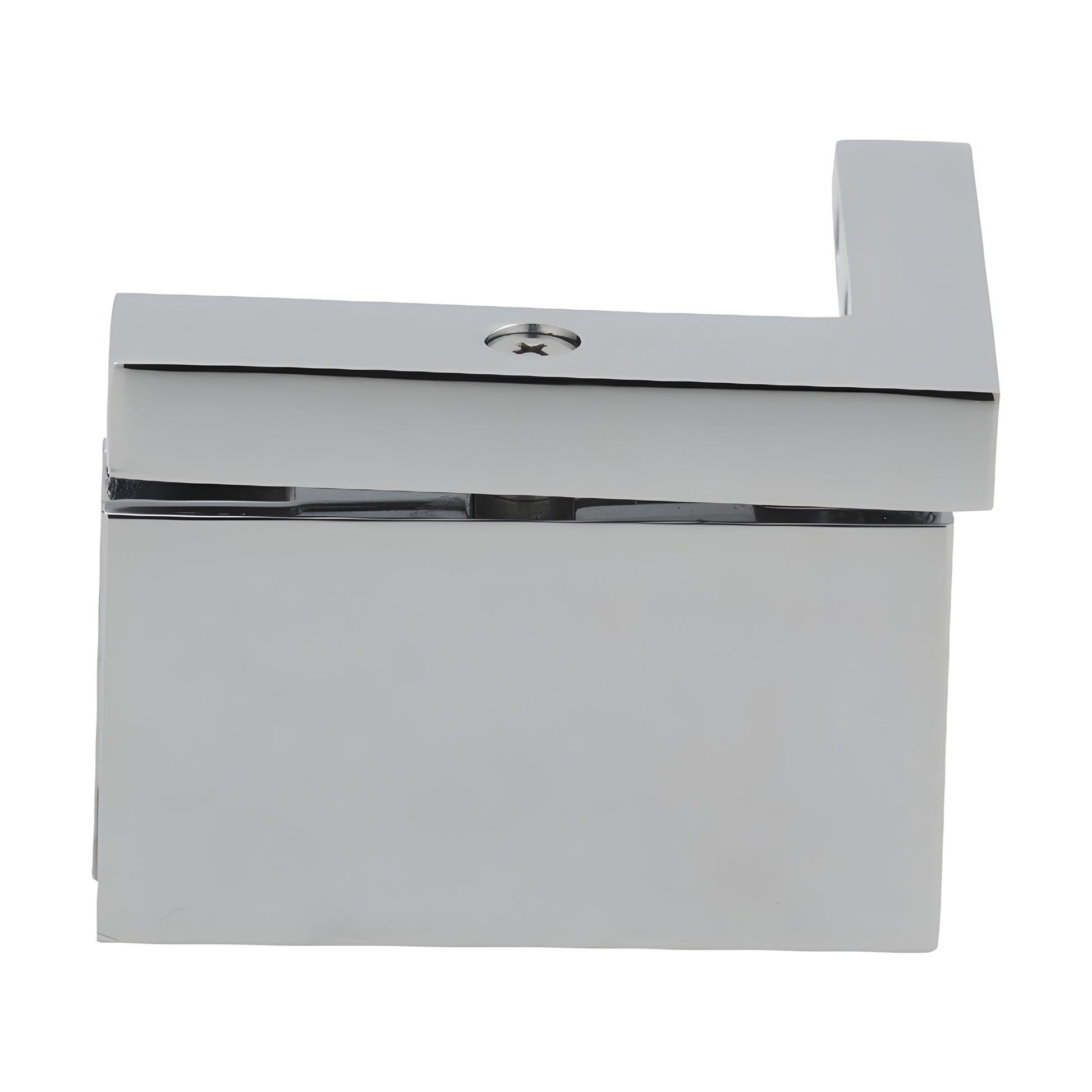

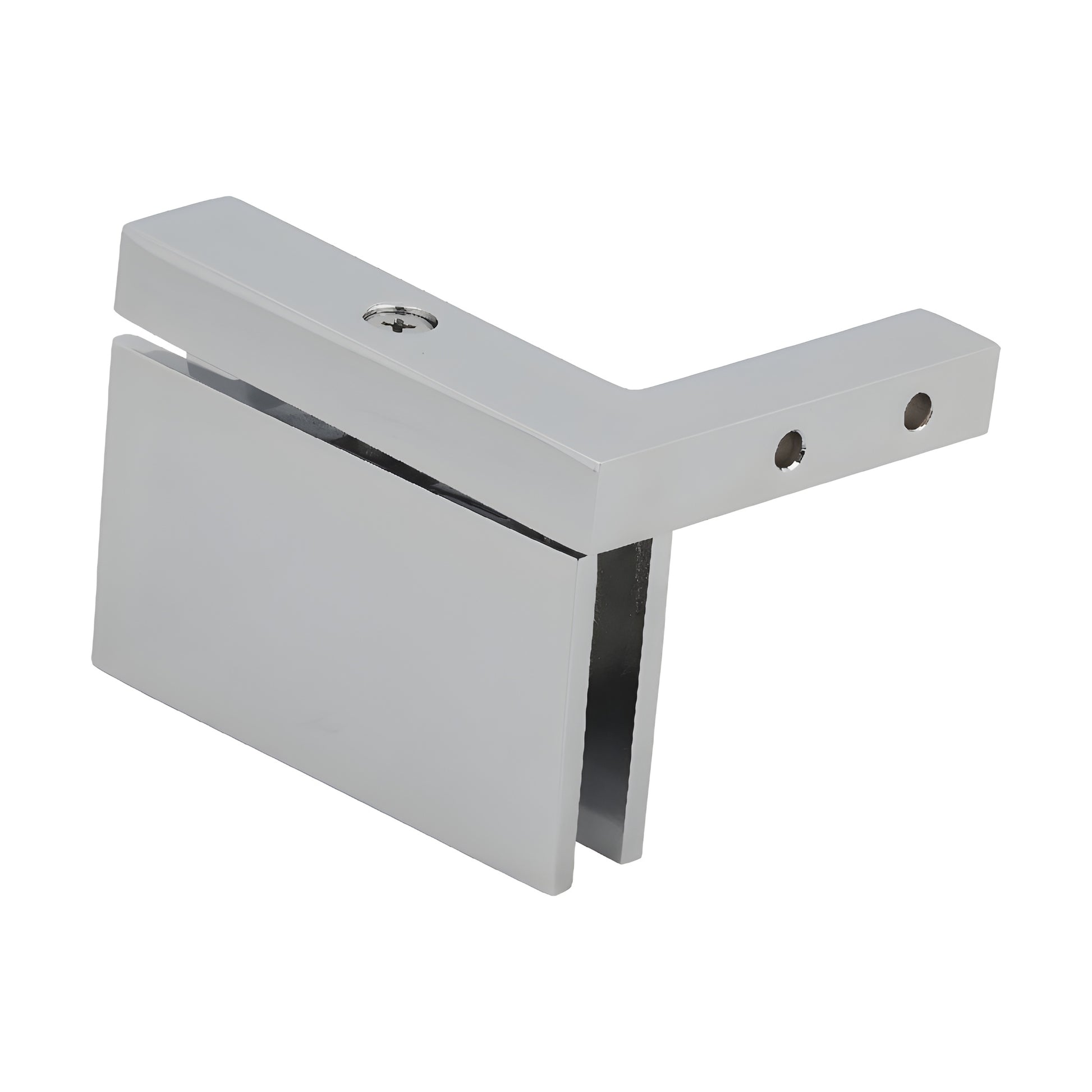

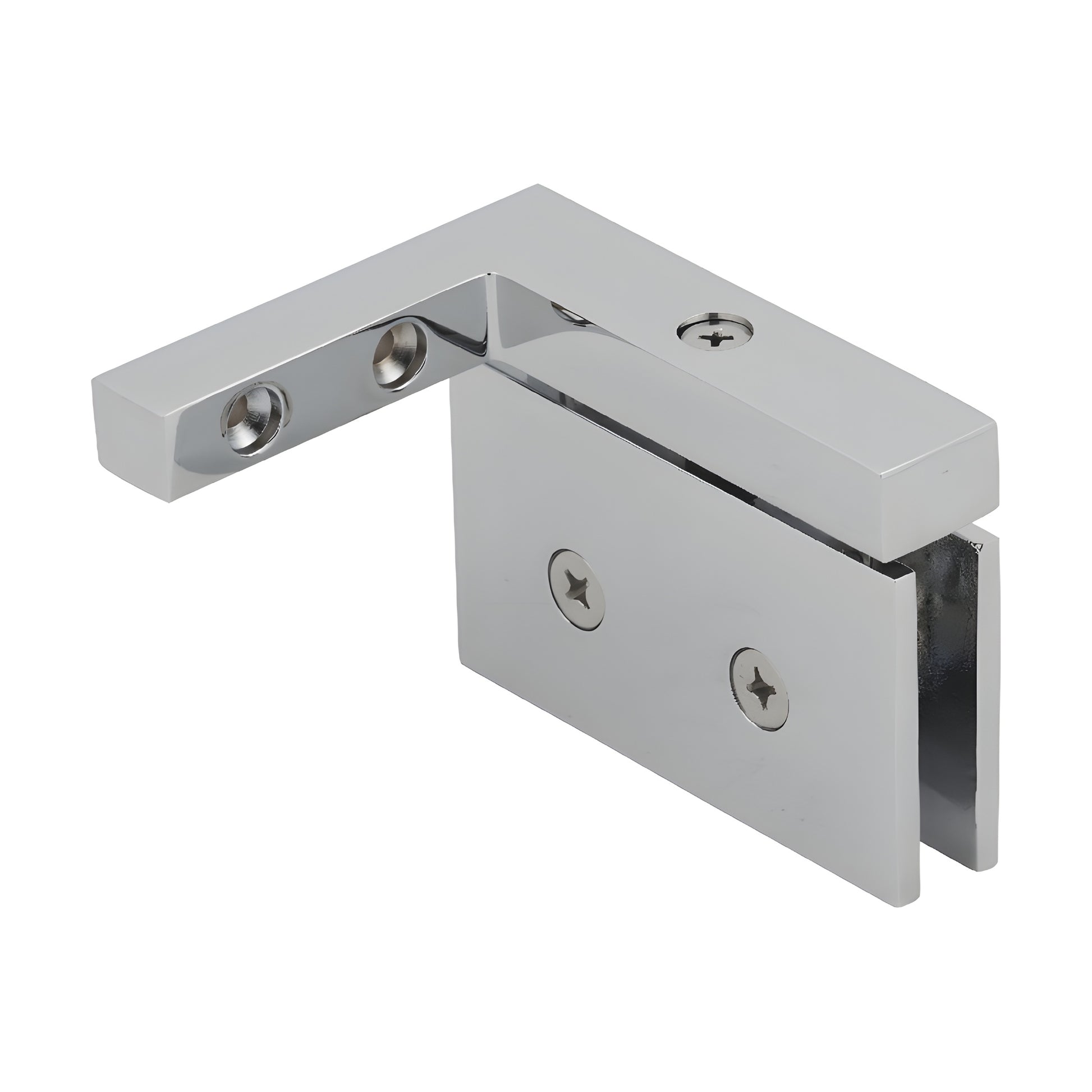

CRL Cardiff Series Chrome Right-Hand Mount Door Hinge

• Offset bracket wall mount — right-hand mount when viewed from outside of shower
• Available in several durable finishes for glass shower doors
• 3-year limited warranty
• For use with monolithic tempered safety glass
• U.S. Patent 5,297,313

CRL Cardiff Series Pivot Hinges are engineered for 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass and expand application possibilities for frameless and semi-frameless shower enclosures. Pivot-style hinges carry most of the door weight at the bottom and can be inset from the wall to provide clearance for towel bars and other projections—ideal for right-hand offset bracket wall mount installations. Cardiff hinges are self-centering with four springs for superior retention strength and full rotation swing. Optional 5º pre-set pivot pin sets (sold separately) let you alter the closing position by 5º and can be installed before or retrofitted after installation. The Cardiff Series is compatible with CRL’s Deluxe Header System for enclosures that do not extend to the ceiling.

NOTE: Optional 5º Pivot Pin Set (for Cardiff, Prima, Rondo, and Shell Series). Sold as a set of two (top and bottom). Not included with hinge purchase.

Using two hinges: With 5/16" or 3/8" glass (8 or 10 mm), two hinges support up to 100 lbs (45 kg) with a maximum door width of 31" (787 mm).

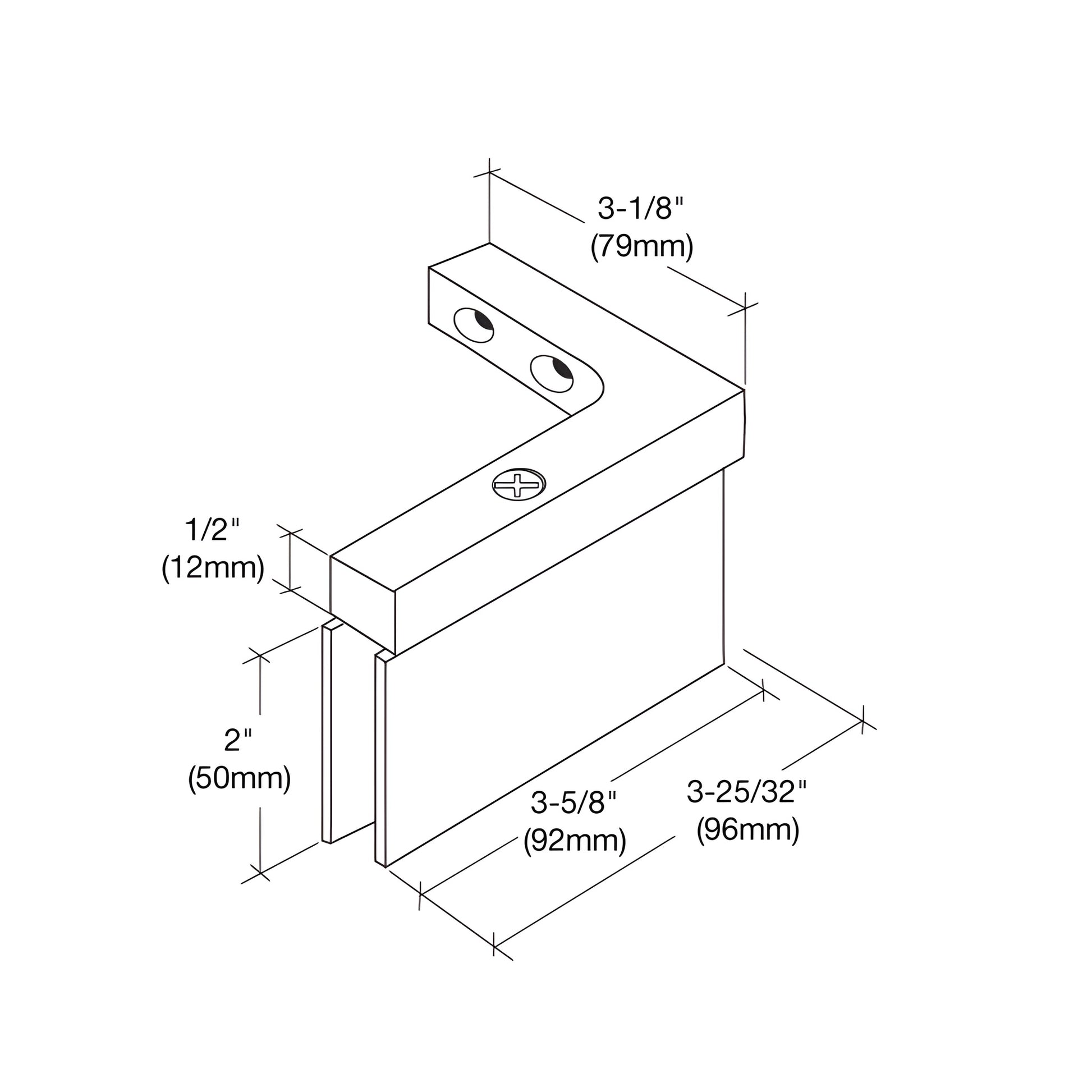

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass
Special Features: Top-and-bottom mount design exposes more glass and reduces the number of glass cut-outs versus standard side-mount glass-to-glass hinges. Cat. No. CAR01 can be mounted floor-and-ceiling or floor-and-header.
Construction: Solid brass for long-lasting corrosion resistance
Hinge Swings: Full rotation
Closing Type: Self-centering when within 15º of closed position
Cut-Out Required
Includes: Gaskets, screws, and glass fabrication dimensions
Patent: This hinge series is patented (Patent No. 5,297,313).

Product Warning:

CRL shower door hinges are designed for residential and hotel shower use only. For other applications, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge; cut-out dimensions for CRL hinges may differ from other brands.
