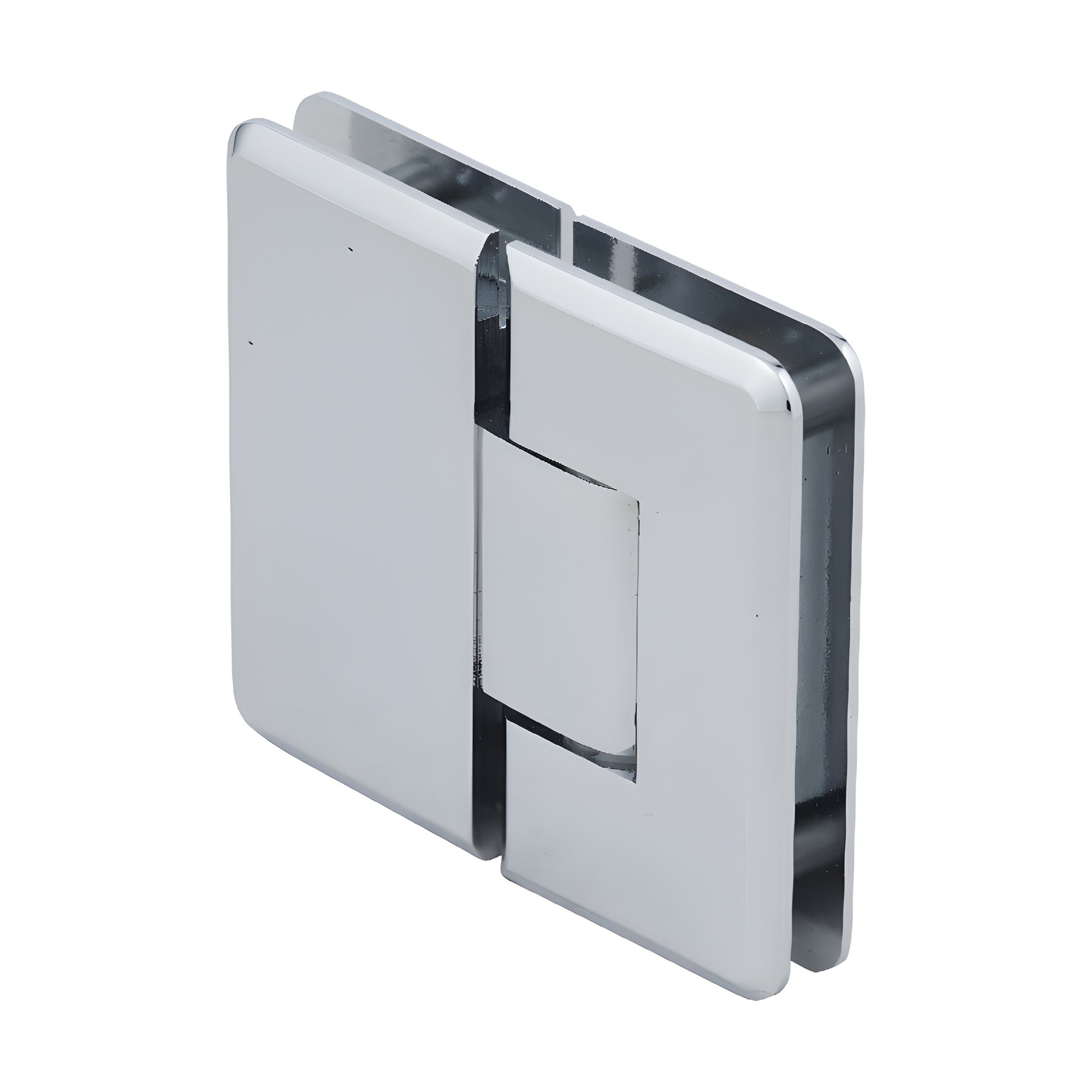

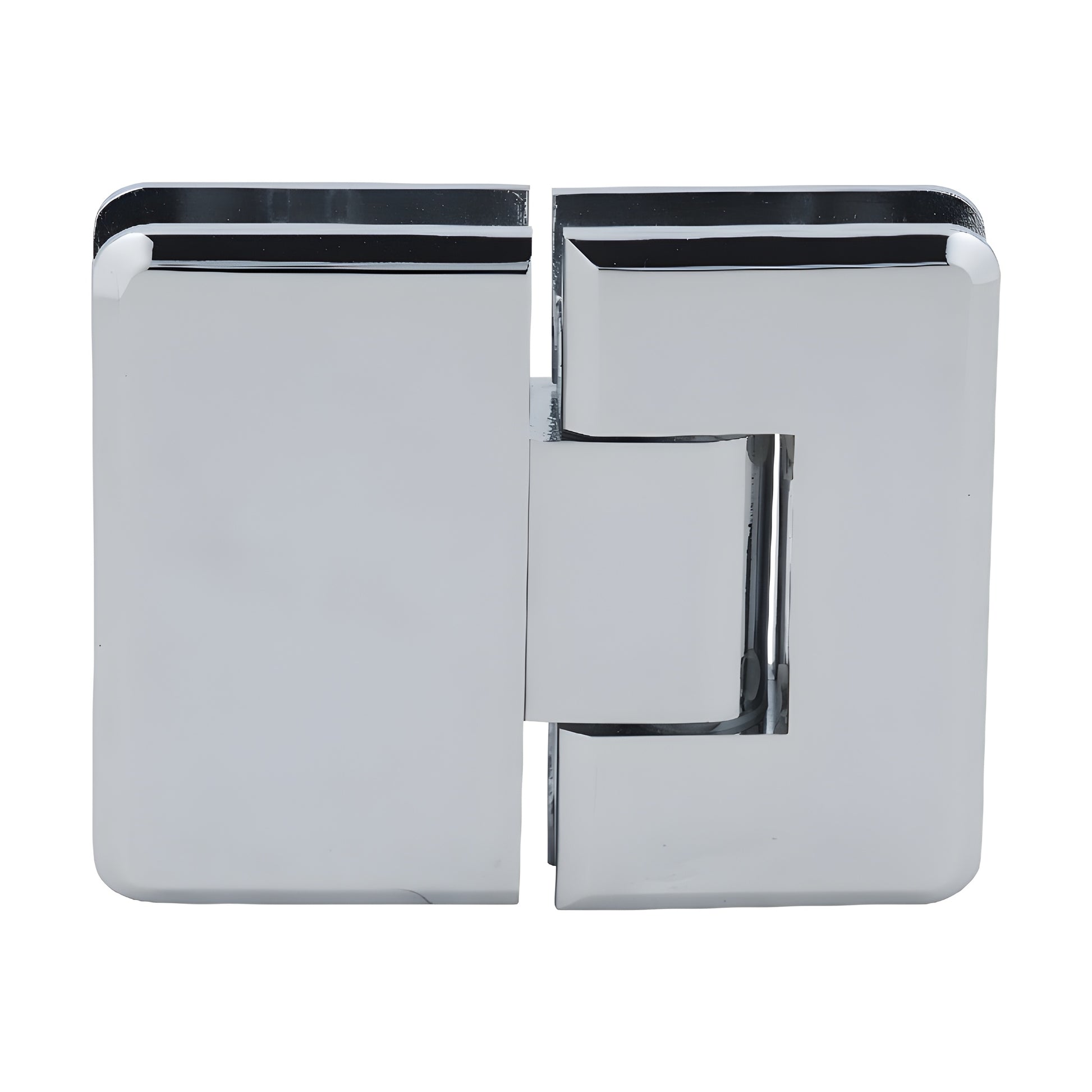

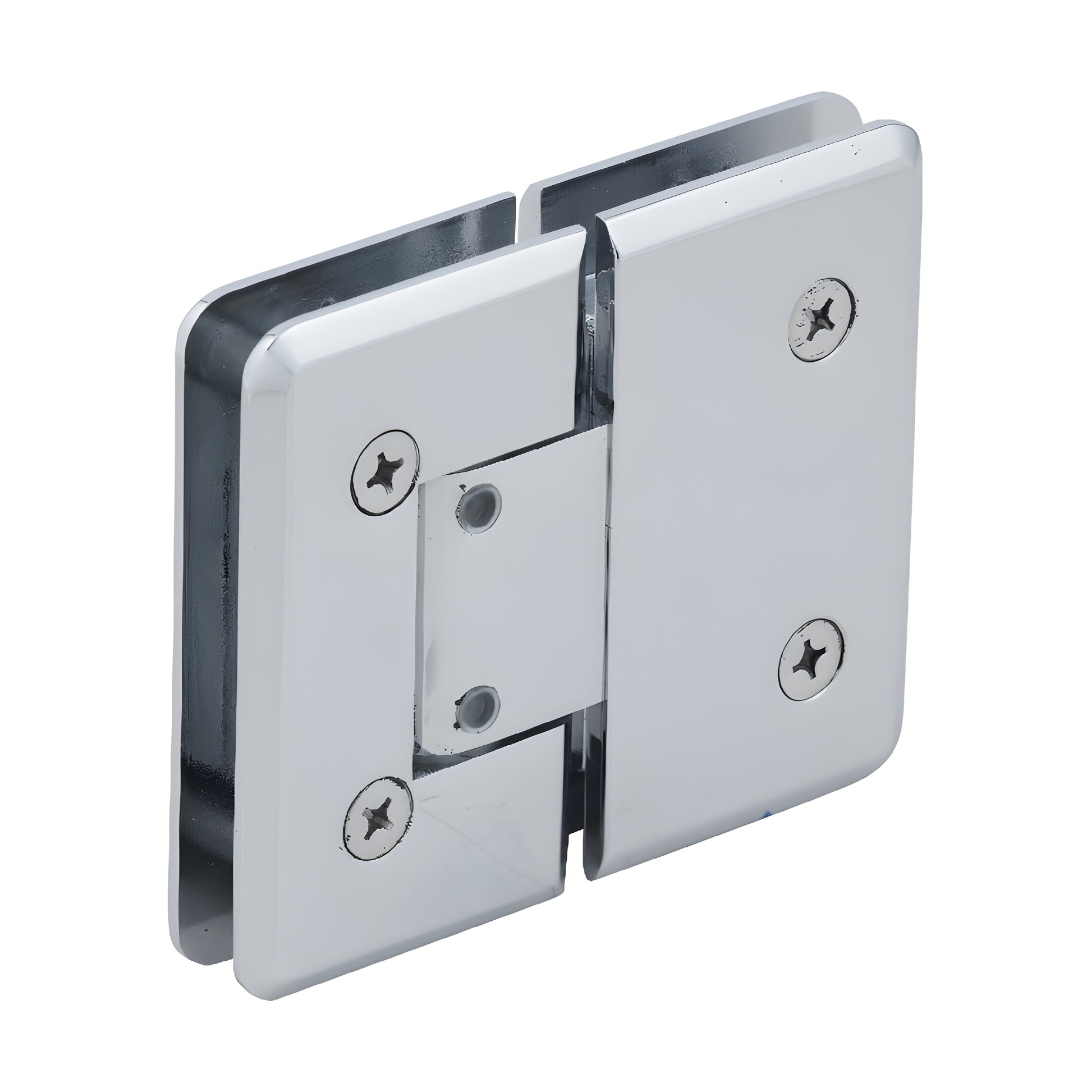

CRL Cologne 380 Adjustable 180° Chrome Frameless Glass-to-Glass Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) tempered safety glass
• Available in several beautiful finishes
• Adjustable 180º glass-to-glass; sets up to any angle up to 90º after installation
• Use with monolithic tempered glass

CRL Adjustable Cologne Series (SKU: C0L380CH) upgrades the classic Cologne hinge into an adjustable shower door hinge for 3/8"–1/2" glass. Adjustment to the desired closing angle is done after the door is hung—loosen the Allen set screws, rotate the door to the desired position, then retighten. The hinge supports 90º swing in both directions at factory settings and self-centers when within 15º of the closed position, providing a secure, precise seal against the jamb when needed.

Load Capacity:

Using two hinges: Holds up to 110 lbs. (50 kg) with maximum door width of 36" (914 mm).

Using three hinges: Holds up to 140 lbs. (63 kg) with maximum door width of 36" (914 mm).

SPECIFICATIONS:

Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass

Special Feature: Adjustable to any angle up to 90º without removing the door

Construction: Solid brass

Hinge Swings: 90º in and 90º out (at factory set position)

Closing Type: Self-centering when within 15º of closed position

Includes: Gaskets, screws, and glass fabrication dimensions

Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)

NOTE: Door glass width may require alteration from standard clearance deductions when adjusting angles. Call for details.

Custom finishes available on request—contact CRL Technical Sales for custom adjustable shower hinge finishes.

Product Warning:

CRL shower door hinges are designed for residential or hotel shower use. For other applications, obtain approval from CRL Shower Door Technical Sales. Use only the template included with this hinge; cut-out dimensions may not match other brands.
