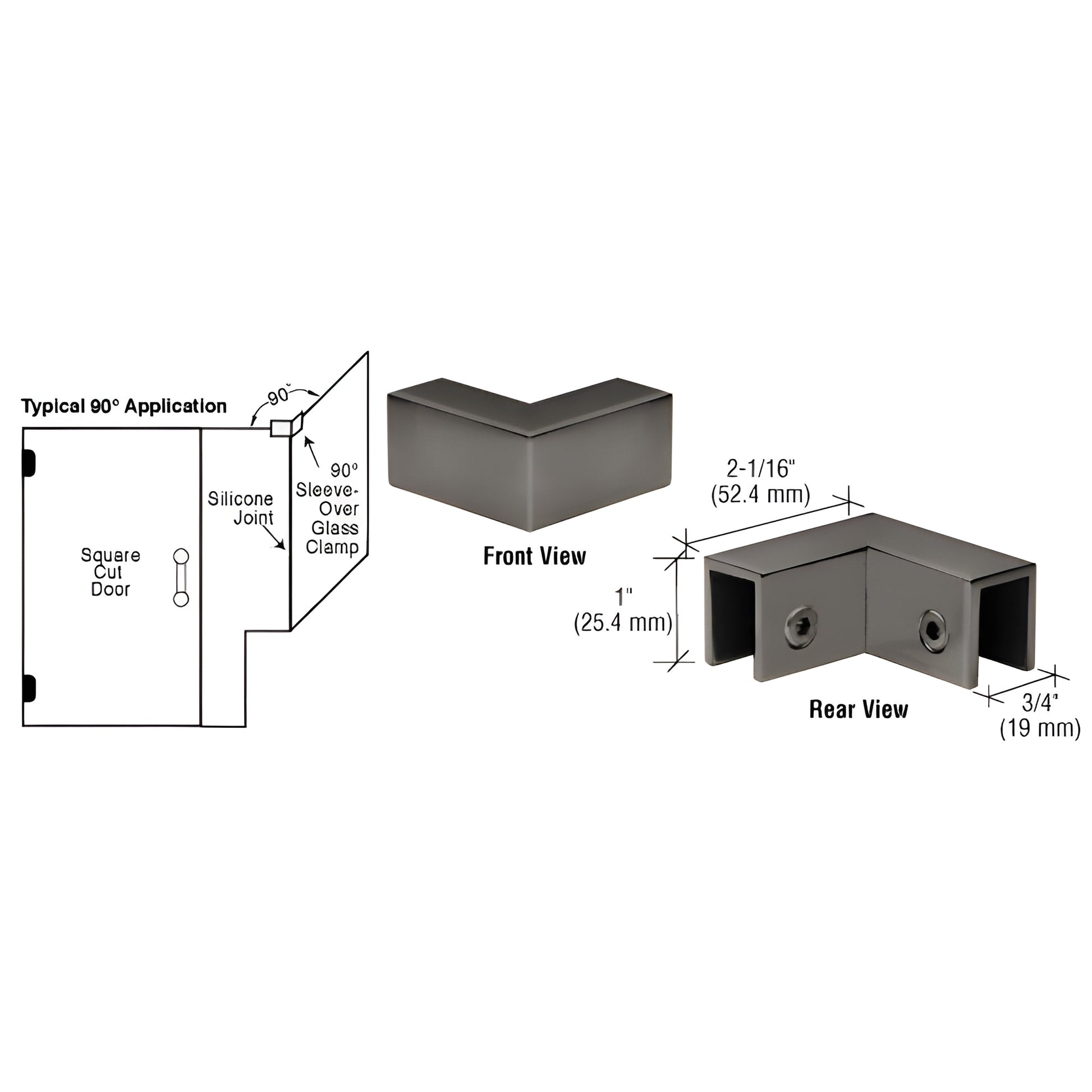

CRL Gunmetal 90° Sleeve-Over Glass Clamp for Railing

• For 5/16" to 1/2" (8 to 12 mm) thick glass
• Solid brass construction
• Use with monolithic tempered glass
• Assists with shear forces on glass panels
• Holds glass panels in position while sealant cures

CRL Sleeve Over Glass Clamps (SKU: S0GC90GM) are sleeve-over-glass mechanical fasteners designed for frameless shower glass applications and other architectural glass installations. No special glass fabrication is required. These solid brass clamps help carry shear loads and temporarily secure panels while silicone sealant cures—the sealant provides waterproofing and long-term pull strength. Clamps are locked in place with nylon-tipped Allen set screws and include gaskets to protect the glass.

P612** replacement screws

SPECIFICATIONS:
Glass Thickness: 5/16" to 1/2" (8 to 12 mm)
Material: Solid Brass
Includes: Gaskets
No glass fabrication required

NOTE: Clamps tighten using nylon-tipped Allen screws. These clamps are not designed to replace headers or a support bar. Contact CRL Frameless Shower Technical Sales for installation guidance and load requirements.

Product Warning:
These clamps are not designed to take the place of headers or a support bar. Use only as intended for shear load assistance and temporary positioning during sealant cure.

Shop now for solid brass frameless shower glass clamps designed for 8–12 mm tempered glass—contact us for technical support or bulk orders.
