CRL Matte Black Square 180° Glass-to-Glass Clamp for Shower Doors
CRL Matte Black Square 180° Glass-to-Glass Clamp for Shower Doors
Regular price
$44.41 CAD
Regular price
Sale price
$44.41 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SGC180MBL
Shipping Weight: 1.25 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.25 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Design Style
Squared
Enclosure Type
Niche, Tailor Made Solutions
Finish/Color
Matte Black
Glass To Glass Angle
180
Glazing Thickness
3/8 in. To 1/2 in. (10 mm To 12 mm)
Height
2 in. (51 mm)
Material
Brass
Mounting Type
Glass To Glass
Width
5 in. (127 mm)
Overview
- Joins two tempered glass panels inline at 180 degrees
- Solid brass construction for strength and corrosion resistance
- Designed for monolithic tempered glass to achieve an "all-glass" aesthetic
- Glass fabrication required to accommodate clamp holes/notches

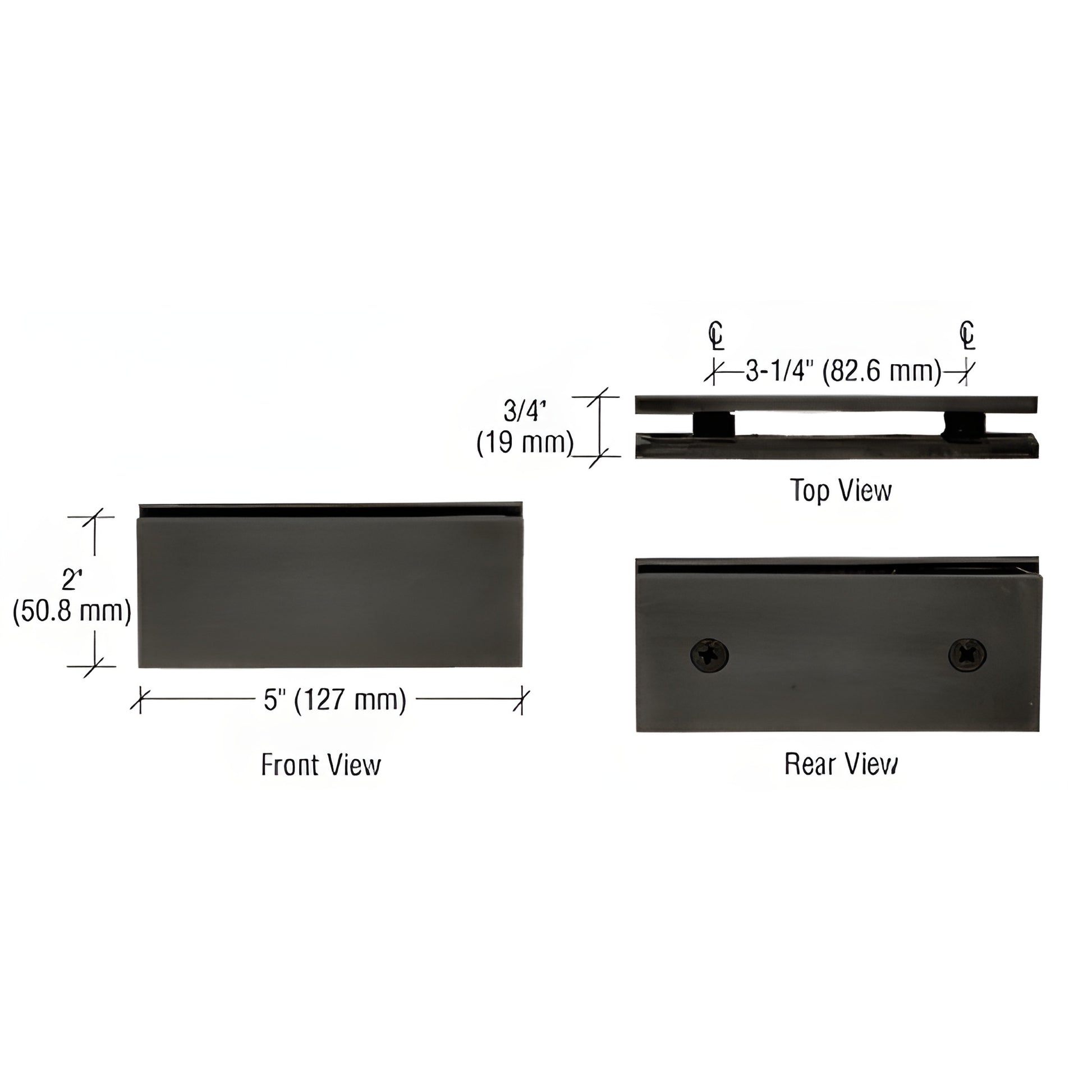

CRL Square 180 Degree Glass-to-Glass Clamp (SKU: SGC180MBL) features sharp squared-off corners and a low-profile design that helps create a seamless, all-glass look. Ideal for frameless shower enclosures, glass partitions, transoms, showcases, trophy cases, and custom wall systems, these 180° glass-to-glass clamps pair with CRL's door hinges and other hardware finishes for a cohesive appearance. Drawings and templates are available for accurate installation.
SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: SGC180, SGC135, SGC90, and SGC186 require 3/4" (19 mm) holes; SGC188 requires a 3/4" (19 mm) hole in the fixed panel and a notch in the transom
Includes: Mounting screws (for wall clamps) and gaskets
Order SGC180MBL today to add a premium, frameless look to your glass enclosure.
