CRL Polished Chrome Square 180° Glass-to-Glass Clamp for Shower Door

• Joins two tempered glass panels at 180 degrees
• Solid brass construction
• Designed for monolithic tempered glass
• Creates an 'all-glass' appearance—clean alternative to U-channel
• Glass fabrication required to accommodate clamp holes

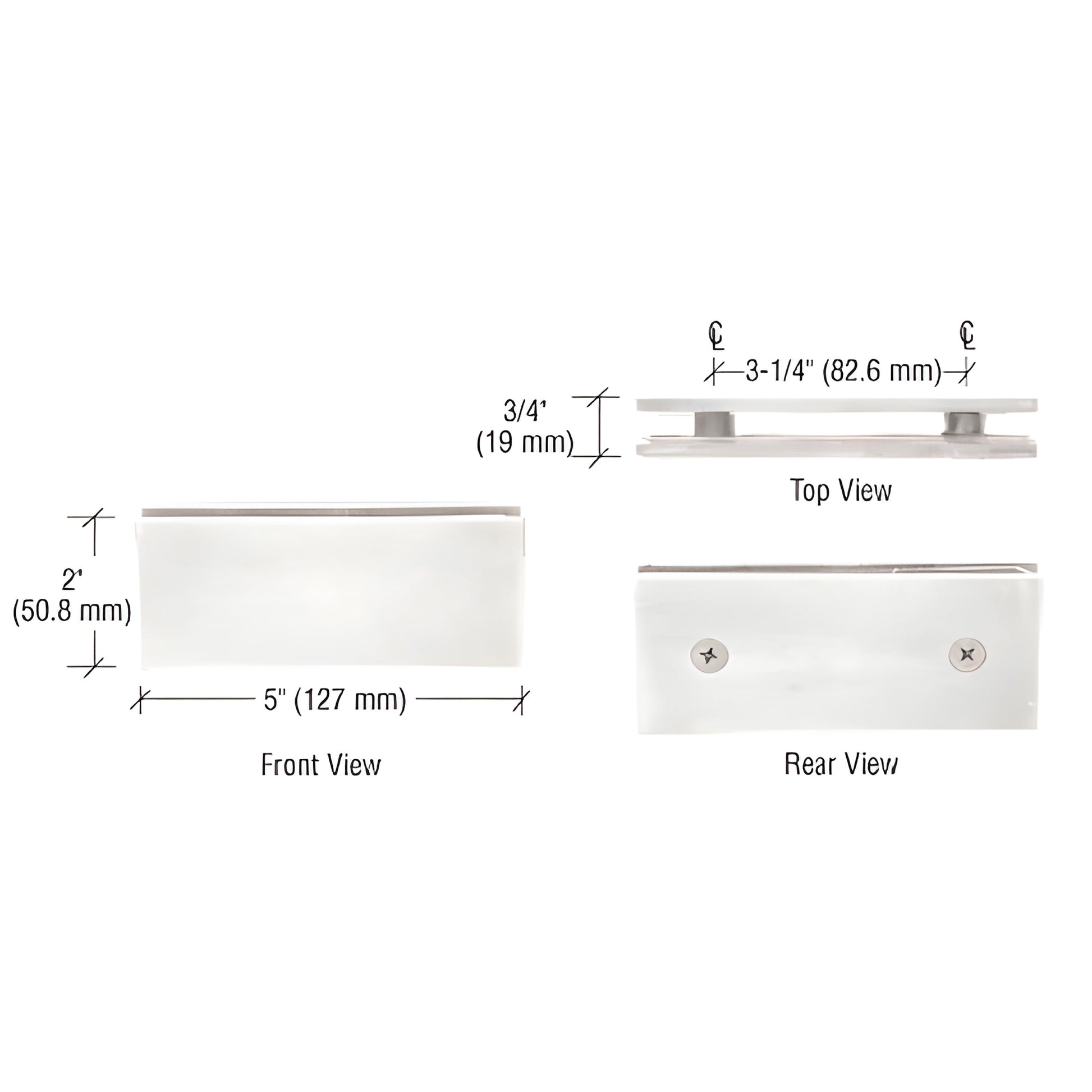

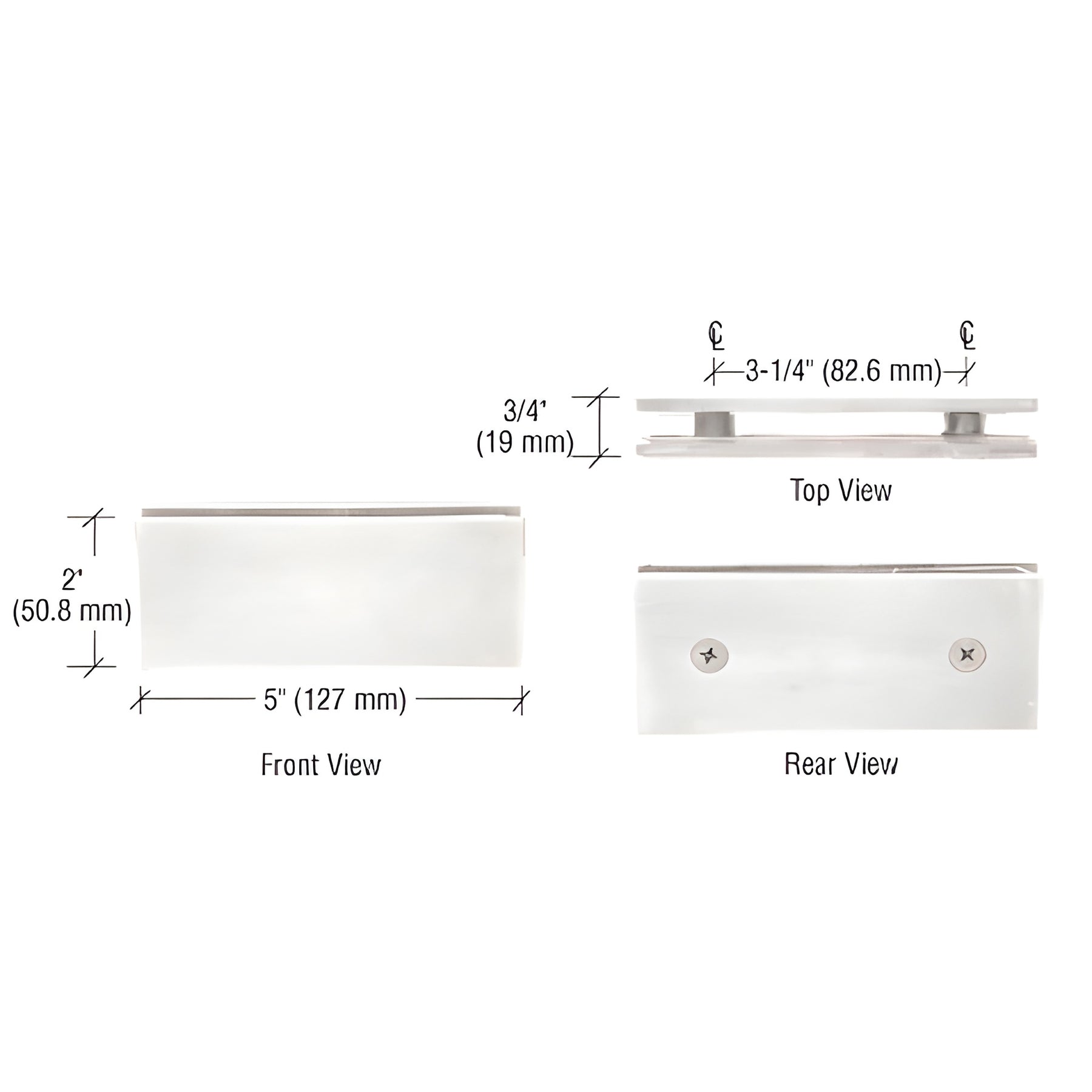

CRL Square 180 Degree Glass-to-Glass Clamp (SKU: SGC180CH) are sharp, squared-off clamps used to connect two fixed glass panels inline. These solid brass glass clamps are available in multiple finishes to match CRL door hinges and hardware. Ideal for custom glass partitions, transoms, showcases, trophy cases, and frameless enclosures, they provide a premium, all-glass look that elevates commercial and residential designs. Drawings and templates for all clamps are available on request.

SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: SGC180, SGC135, SGC90, and SGC186 require 3/4" (19 mm) holes; SGC188 requires a 3/4" (19 mm) hole in the fixed panel and a notch in the transom
Includes: Mounting screws (for wall clamps) and gaskets

Order the SGC180CH square 180° glass-to-glass clamp to achieve a seamless, high-end appearance in your next tempered glass partition or frameless enclosure project.
