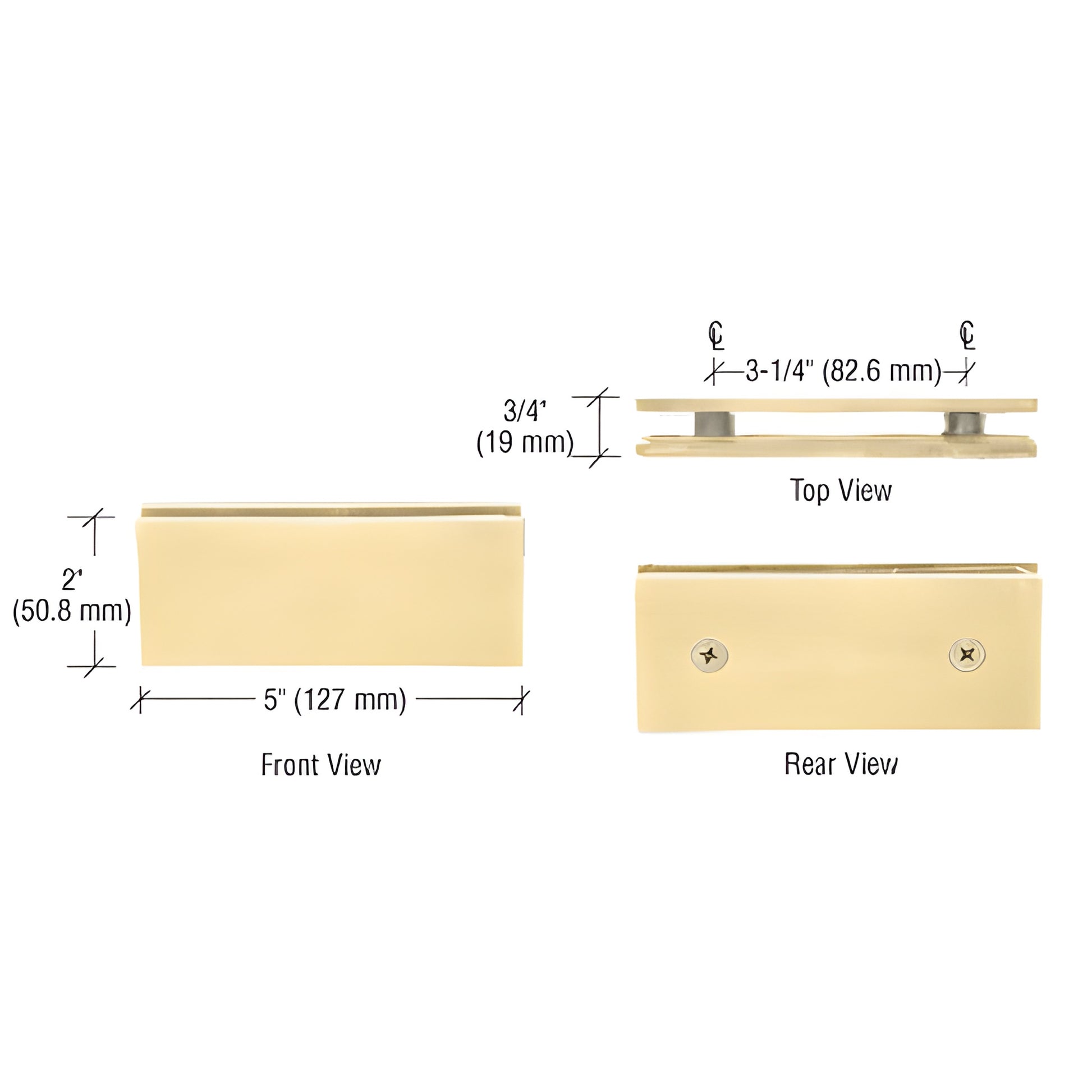

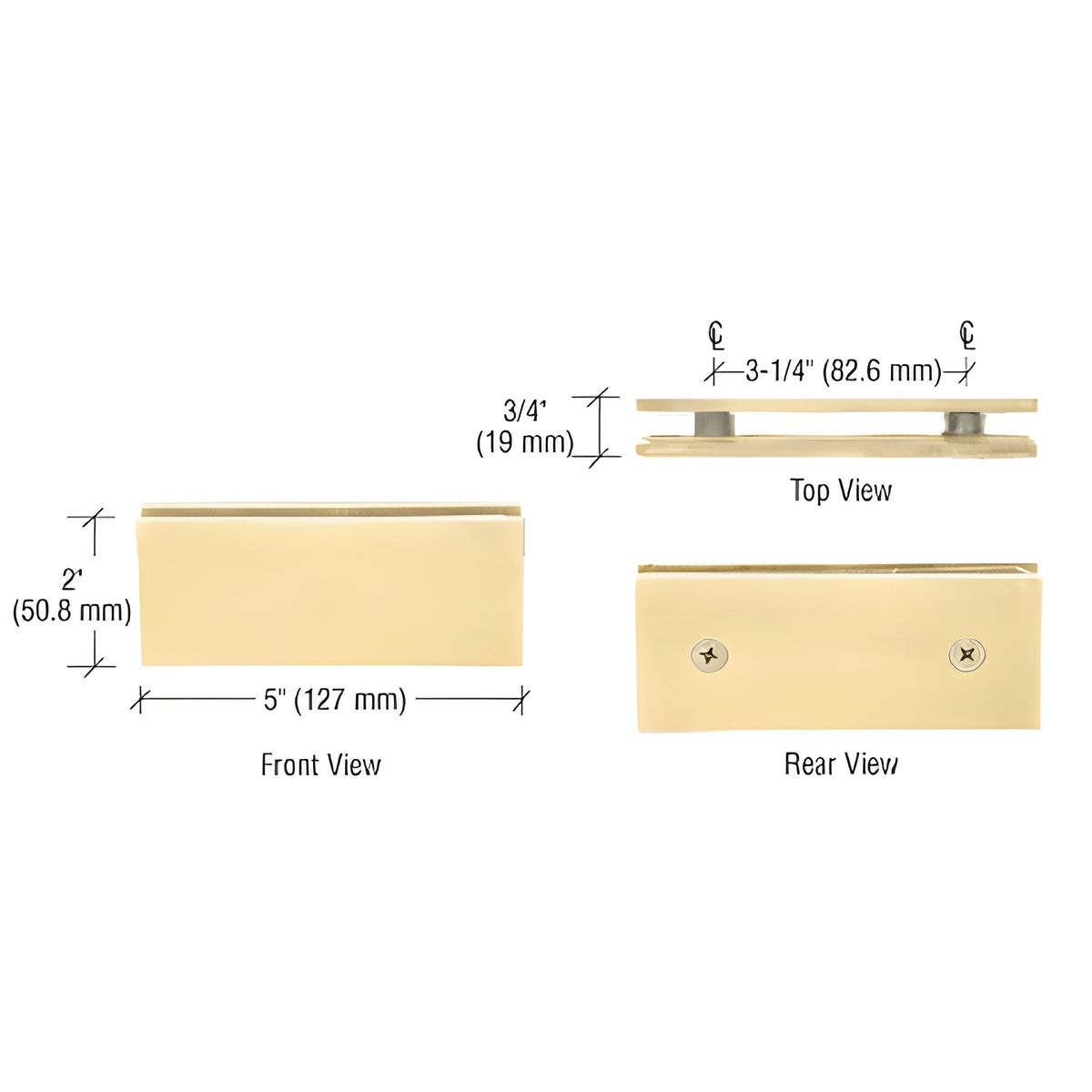

CRL Satin Brass Square 180° Glass-to-Glass Clamp for Shower Door
CRL Satin Brass Square 180° Glass-to-Glass Clamp for Shower Door
Regular price
$50.91 CAD
Regular price
Sale price
$50.91 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SGC180SB
Shipping Weight: 1.295 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.295 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Design Style
Squared
Enclosure Type
Niche, Tailor Made Solutions
Finish/Color
Satin Brass
Glass To Glass Angle
180
Glazing Thickness
3/8 in. To 1/2 in. (10 mm To 12 mm)
Height
2 in. (51 mm)
Material
Brass
Mounting Type
Glass To Glass
Width
5 in. (127 mm)
Overview
- Joins two glass panels at 180 degrees
- Solid brass construction
- Use with monolithic tempered glass
- Provides an "all-glass" appearance vs. traditional U-channel
- Glass fabrication required to accommodate clamps
CRL Square 180 Degree Glass-to-Glass Clamp — SKU: SGC180SB are sharp, squared-off clamps used to connect two fixed glass panels inline. Designed for tempered, monolithic glass, these solid brass glass-to-glass clamps are available in multiple finishes to match CRL door hinges and clamp hardware. Typical applications include custom wall partitions, transoms, showcases, trophy cases, and frameless "all-glass" enclosures. Drawings and templates are available for all clamps.
SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: SGC180, SGC135, SGC90, and SGC186 require 3/4" (19 mm) holes; SGC188 requires a 3/4" (19 mm) hole in the fixed panel and a notch in the transom
Includes: Mounting screws (for wall clamps) and gaskets
Brass Finish Advisory:
Brass is durable but prone to oxidation, which can cause a tarnished appearance over time. For care and finish details, see the Brass Finish Disclaimer in the Technical References section.
Specifications
Templates
