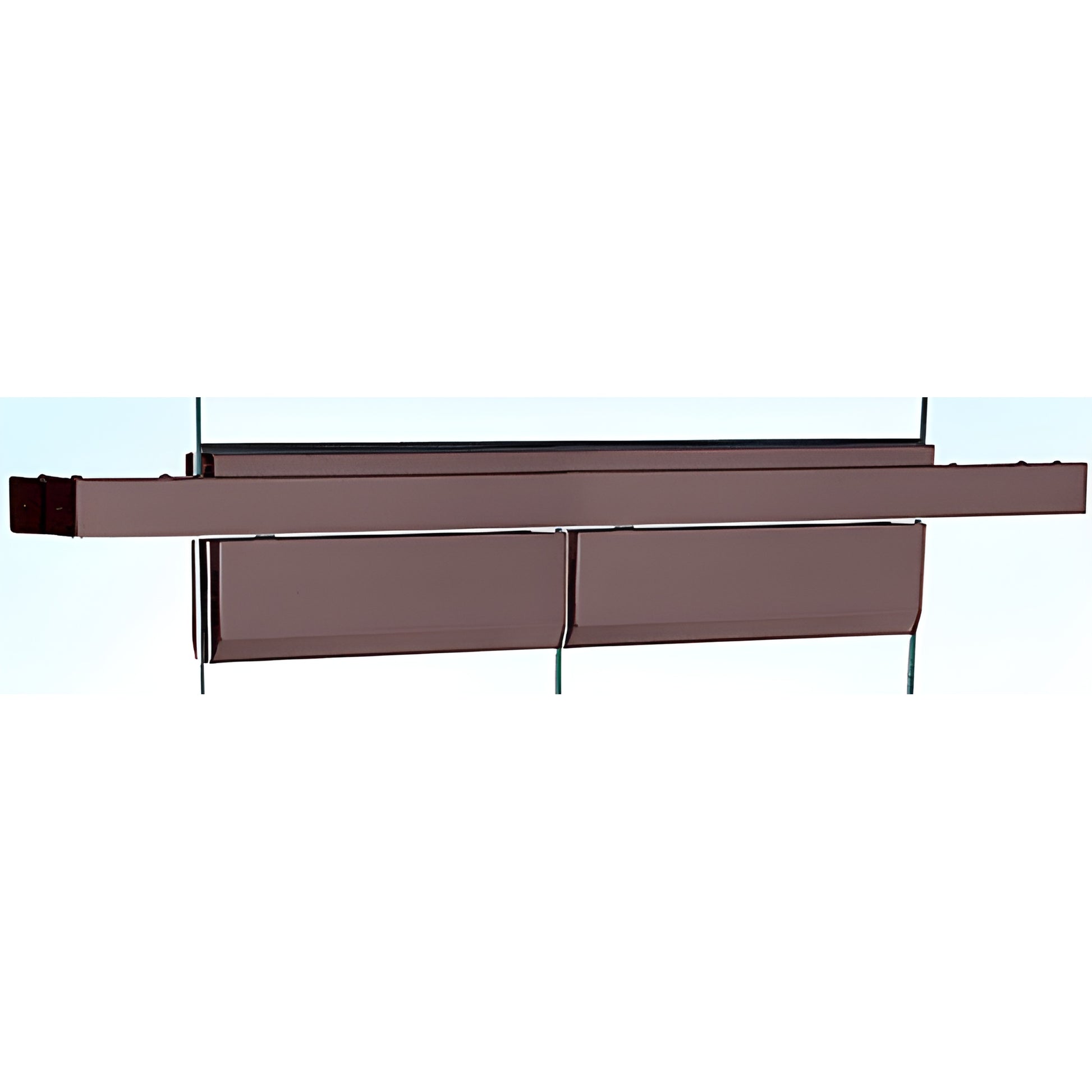

CRL Black Bronze Anodized Double Header for 72" Concealed Closers

• For use with 1/2" (12 mm) glass only
• Ideal when cutting into the floor for a floor closer is not an option
• Available for glass-to-glass or glass-to-wall installations with overhead concealed door closers or pivots
• Six standard architectural finishes; custom finishes available on special order

These CRL Floating Headers for Overhead Concealed Door Closers (SKU: FH4DUD) permit mounting single or double doors off glass sidelites with a transom above. Stock floating headers are designed for 1/2" (12 mm) glass-to-glass installations and are prepared to accept CRL overhead concealed door closers and a 1/2" (12 mm) glass transom.

Custom floating headers cover additional configurations, including other glass thicknesses, custom lengths, glass-to-wall installations, and headers prepped for surface-mounted magnetic locks, magnetic shear locks, surface-mounted top pivots, walking beam pivots, or overhead concealed door closers.

Capacity note: If the transom weight above the header exceeds 100 lbs (45.4 kg), the transom must be supported from the ceiling to relieve the header and prevent bowing. Use Cat. No. B5BC Smoke Baffle Channel or PH94 Patch Fittings for support. Contact CRL Technical Sales for assistance.

Application tip: For projects with protected floor finishes or minimal floor thickness where floor closers are not feasible, this floating header provides an effective glass door header solution without floor-cutting.

Stock floating headers: For 1/2" (12 mm) glass-to-glass installations, prepped for overhead concealed door closers.

Product Warning:

STRUCTURAL DISCLAIMER - Customers must consult a structural engineer to confirm suitability for intended use and site conditions. Installers must be qualified and ensure compliance with local, state, and federal regulations, appropriate safety factors, and correct fixing materials and procedures.

If the transom weight exceeds 100 lbs (45.4 kg), support the transom from the ceiling using Cat. No. B5BC Smoke Baffle Channel or PH94 Patch Fittings. Contact CRL Technical Sales for assistance.

For pricing, lead times, or custom finish options for SKU FH4DUD, contact CRL Customer Service or Technical Sales to get started.
