CRL Polished Stainless Double Floating Header for 72" Overhead Closers

• For use with 1/2" (12 mm) glass only
• Ideal where cutting into the floor for a floor closer is not an option
• Available for glass-to-glass or glass-to-wall installations with overhead concealed door closers or pivots
• Six standard architectural finishes; custom finishes available on special order

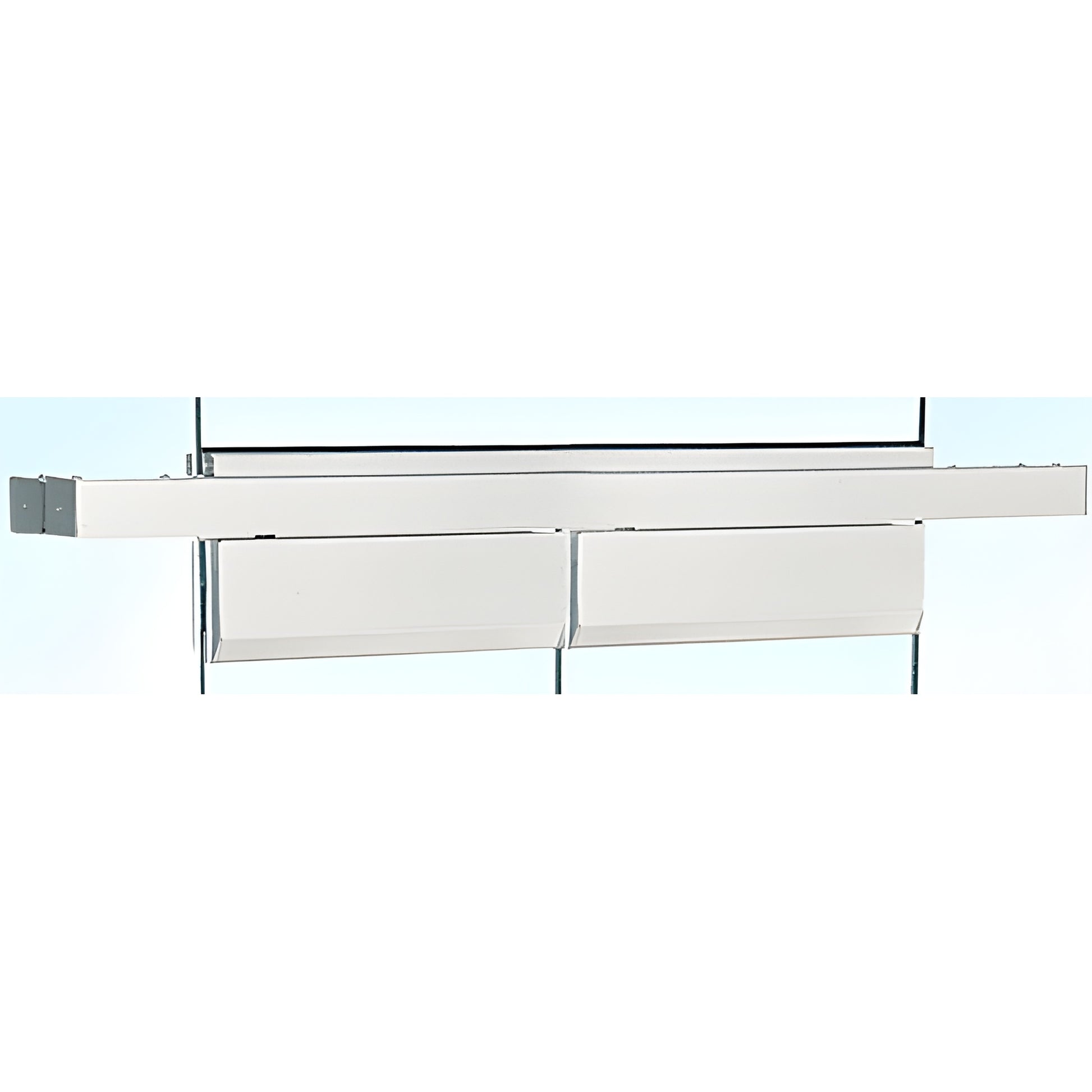

These CRL Floating Headers for Overhead Concealed Door Closers (SKU: FH4PSD) mount single or double doors off glass sidelites with a transom above. Stock floating headers are designed for 1/2" (12 mm) glass-to-glass installations and are prepped to accept CRL overhead concealed door closers and a 1/2" (12 mm) thick glass transom.

Custom floating headers support additional configurations: alternate glass thicknesses, custom lengths, glass-to-wall installations, and headers prepped for surface-mounted magnetic locks, magnetic shear locks, surface-mounted top pivots, walking beam pivots, or overhead concealed closers.

NOTE: If the transom weight above the header exceeds 100 lbs (45.4 kg), the transom must be supported from the ceiling to prevent header bowing. Use Cat. No. B5BC Smoke Baffle Channel or PH94 Patch Fittings, or contact CRL Technical Sales for assistance.

APPLICATION TIP: For projects with special floor finishes or minimal floor thickness where floor closers aren’t feasible, the CRL floating header for overhead concealed door closers is an ideal solution for frameless glass doors and transoms.

STOCK FLOATING HEADERS: For 1/2" (12 mm) glass-to-glass installations, prepped for overhead concealed door closers.

Product Warning:

STRUCTURAL DISCLAIMER – Customers must consult a structural engineer to confirm product suitability for site conditions. Installers must be qualified and ensure compliance with local, state, and federal regulations, safety factors, and appropriate fixing materials and procedures. If the transom above the header exceeds 100 lbs (45.4 kg), provide ceiling support using Cat. No. B5BC Smoke Baffle Channel or PH94 Patch Fittings. Contact CRL Technical Sales for assistance.
