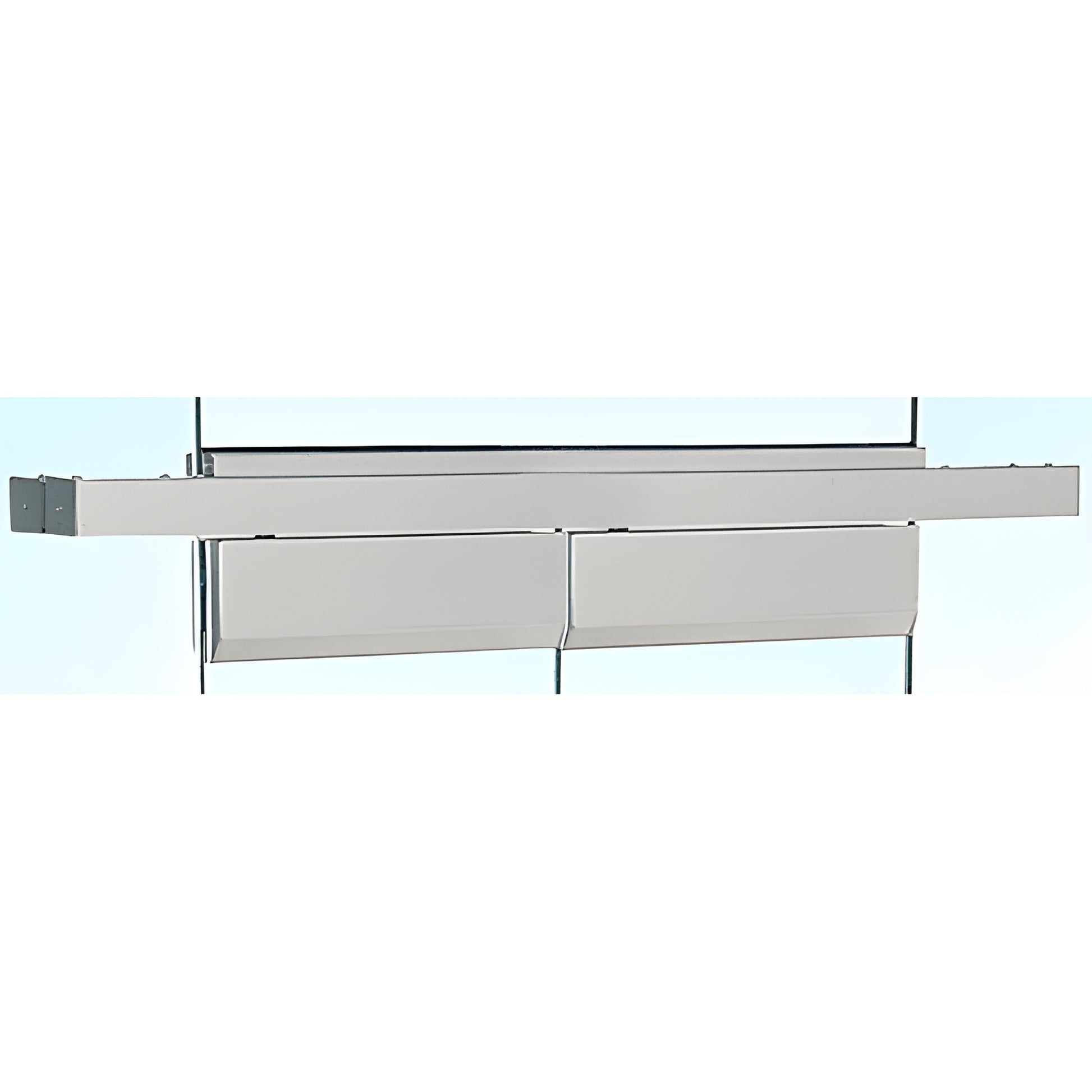

CRL Brushed Stainless Double Floating Header for 72" Door Closers

• For use with 1/2" (12 mm) glass only
• Ideal where cutting into the floor for a floor closer is not an option
• Available for glass-to-glass or glass-to-wall installations with overhead concealed door closers or pivots
• Six standard architectural finishes
• Custom finishes available on special order

These CRL Floating Headers for Overhead Concealed Door Closers (SKU: FH4BSD) mount single or double doors off glass sidelites with a transom above. Stock floating headers are for 1/2" (12 mm) glass-to-glass installations and are prepped to accept CRL overhead concealed door closers and a 1/2" (12 mm) thick glass transom.

Custom floating headers support additional configurations, including various glass thicknesses, custom lengths, glass-to-wall installations, and headers prepped for surface-mounted magnetic locks, magnetic shear locks, surface-mounted top pivots, walking beam pivots, or overhead concealed door closers.

Important: If the transom above the header exceeds 100 lbs (45.4 kg), support the transom from the ceiling to prevent header bowing. Use Cat. No. B5BC Smoke Baffle Channel or PH94 Patch Fittings as needed. Contact CRL Technical Sales for assistance.

Application Tip: For projects with delicate floor finishes or minimal floor thickness where floor closers are not feasible, this floating header for overhead concealed door closers offers a reliable glass door header solution.

Stock Floating Headers: For 1/2" (12 mm) glass-to-glass installations, prepped for overhead concealed door closers.

Product Warning:

STRUCTURAL DISCLAIMER - Customers must consult a structural engineer to confirm product suitability for intended use and site conditions. Installers must be qualified and comply with local, state, and federal regulations, safety factors, and proper fixing materials and procedures.

If the transom weight exceeds 100 lbs (45.4 kg) the transom must be supported from the ceiling to relieve the header. Use Cat. No. B5BC Smoke Baffle Channel or PH94 Patch Fittings. Contact CRL Technical Sales Department for assistance.

Stainless Steel Advisory:
