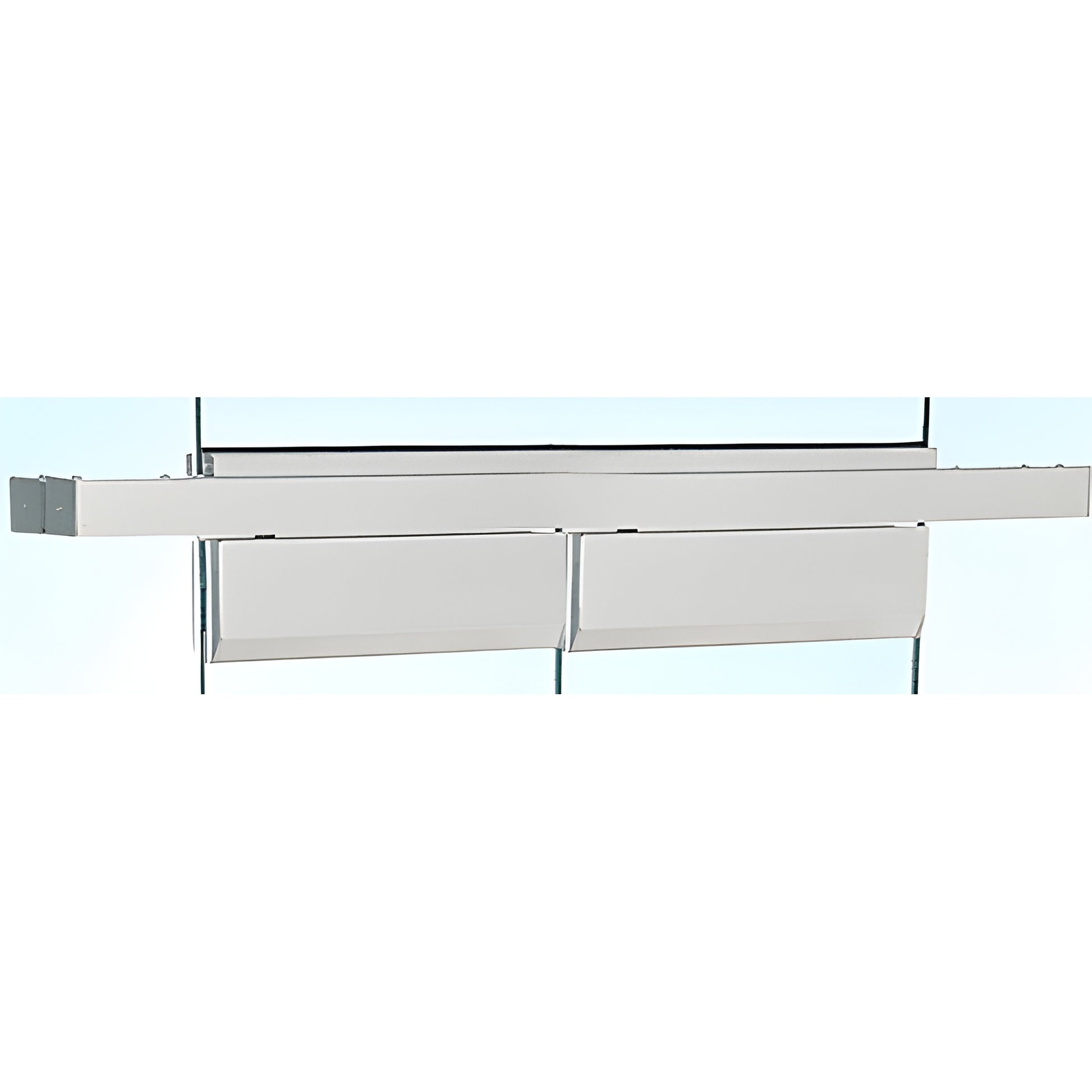

CRL Satin Anodized Double Floating Header for 72 in Concealed Closers

• For Use with 1/2" (12 mm) Glass Only
• Ideal for Projects Where Cutting Into the Floor for a Floor Closer Is Not an Option
• Available for Glass-to-Glass or Glass-to-Wall Installations with Overhead Concealed Door Closers or Pivots
• Six Standard Architectural Finishes
• Custom Finishes Available on Special Order

These CRL Floating Headers for Overhead Concealed Door Closers (SKU: FH4SAD) mount single or double frameless doors off glass sidelites with a transom above. Stock floating headers are designed for 1/2" (12 mm) glass-to-glass installations and are prepped to accept CRL overhead concealed door closers and a 1/2" (12 mm) thick glass transom.


Custom floating headers cover additional configurations: other glass thicknesses, custom lengths, glass-to-wall installations, and headers prepped for surface-mounted magnetic locks, magnetic shear locks, surface-mounted top pivots, walking beam pivots, or overhead concealed door closers.

NOTE: If the transom above the header exceeds 100 lbs (45.4 kg), the transom must be supported from the ceiling to relieve the header and prevent bowing. Use B5BC Smoke Baffle Channel or PH94 Patch Fittings. Contact Technical Sales for assistance.

APPLICATION TIP: When floor closers are not possible because of special floor finishes or minimal floor thickness, the CRL Floating Header for Overhead Concealed Door Closers provides a reliable alternative for frameless glass door installations.

STOCK FLOATING HEADERS: For 1/2" (12 mm) glass-to-glass installations; prepped for overhead concealed door closers.

Product Warning:

STRUCTURAL DISCLAIMER - Customers must consult a structural engineer to confirm product suitability for site conditions. Installers must be qualified and ensure compliance with local, state, and federal regulations, safety factors, and proper choice of fixing materials and procedures.

If the transom above the header exceeds 100 lbs. (45.4 kg) the transom must be supported from the ceiling to prevent bowing. The customer may use Cat. No. B5BC Smoke Baffle Channel or PH94 Patch Fittings. Please contact CRL Technical Sales Department for assistance.
