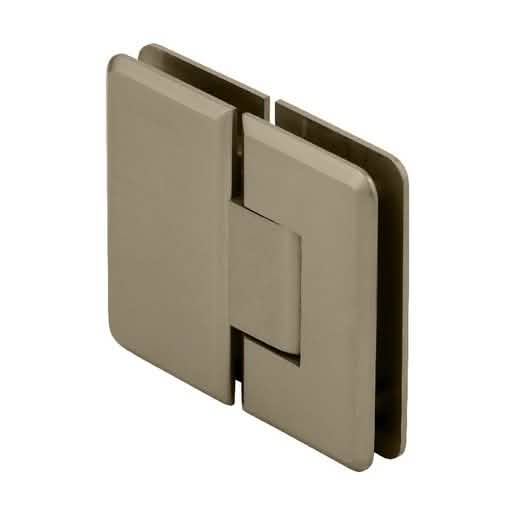

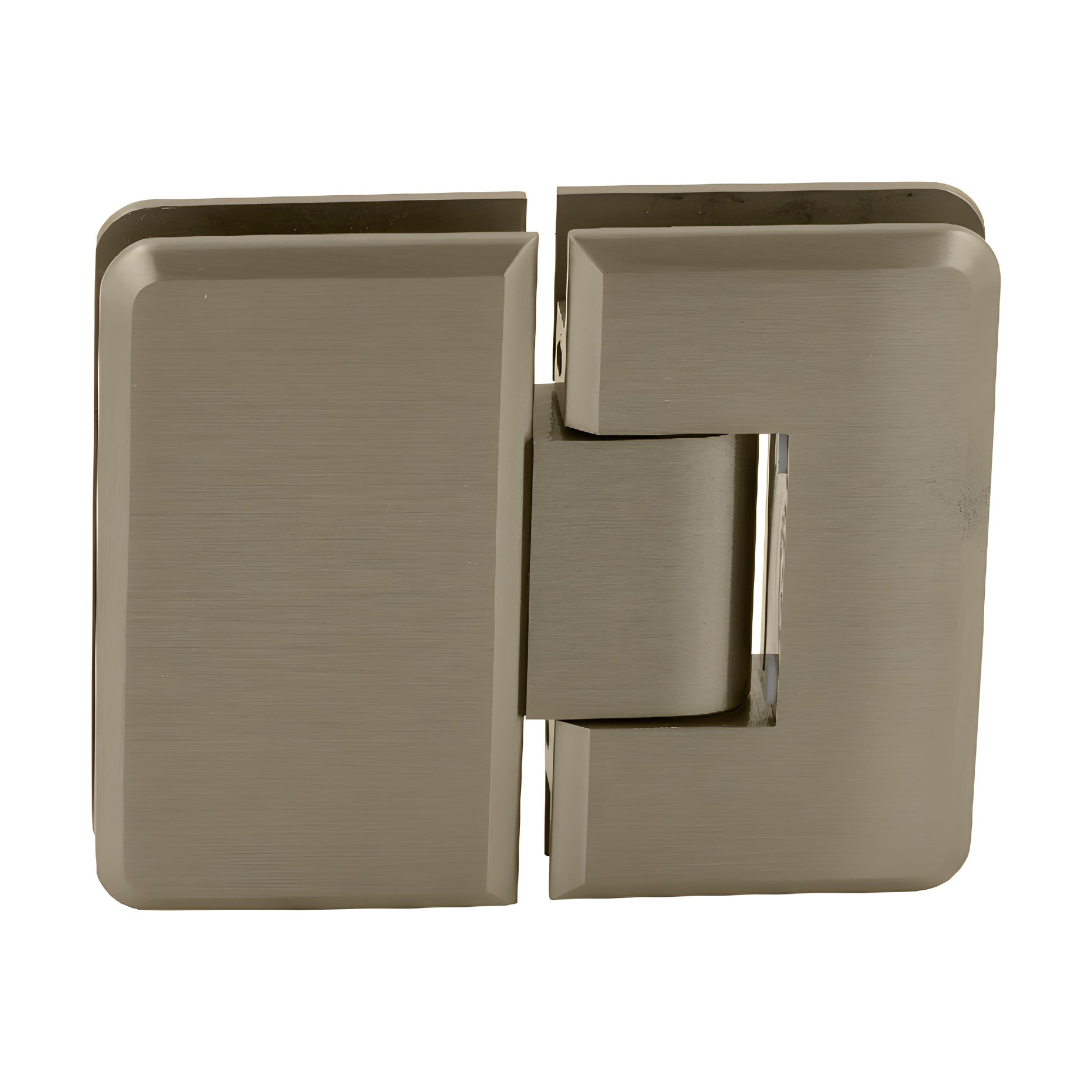

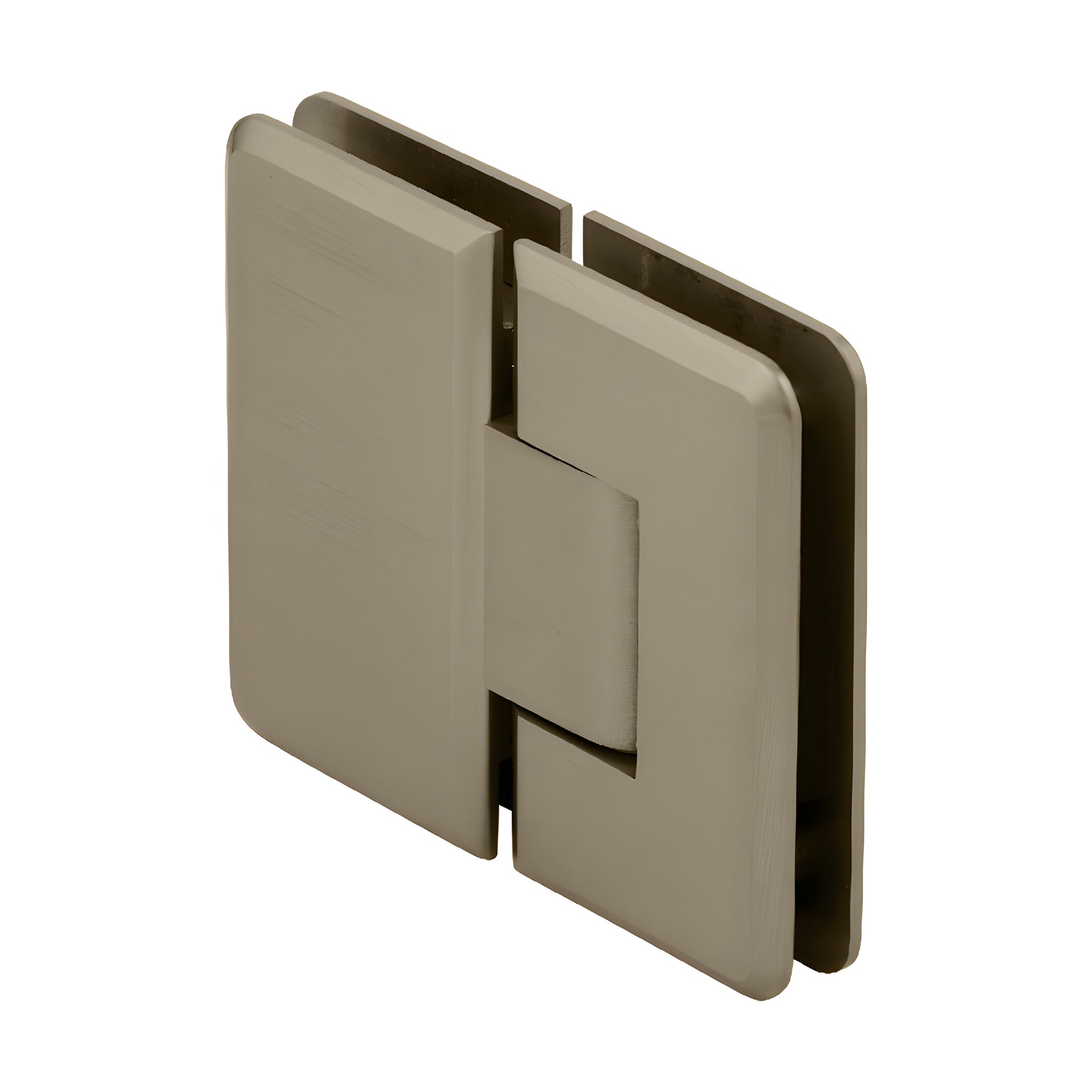

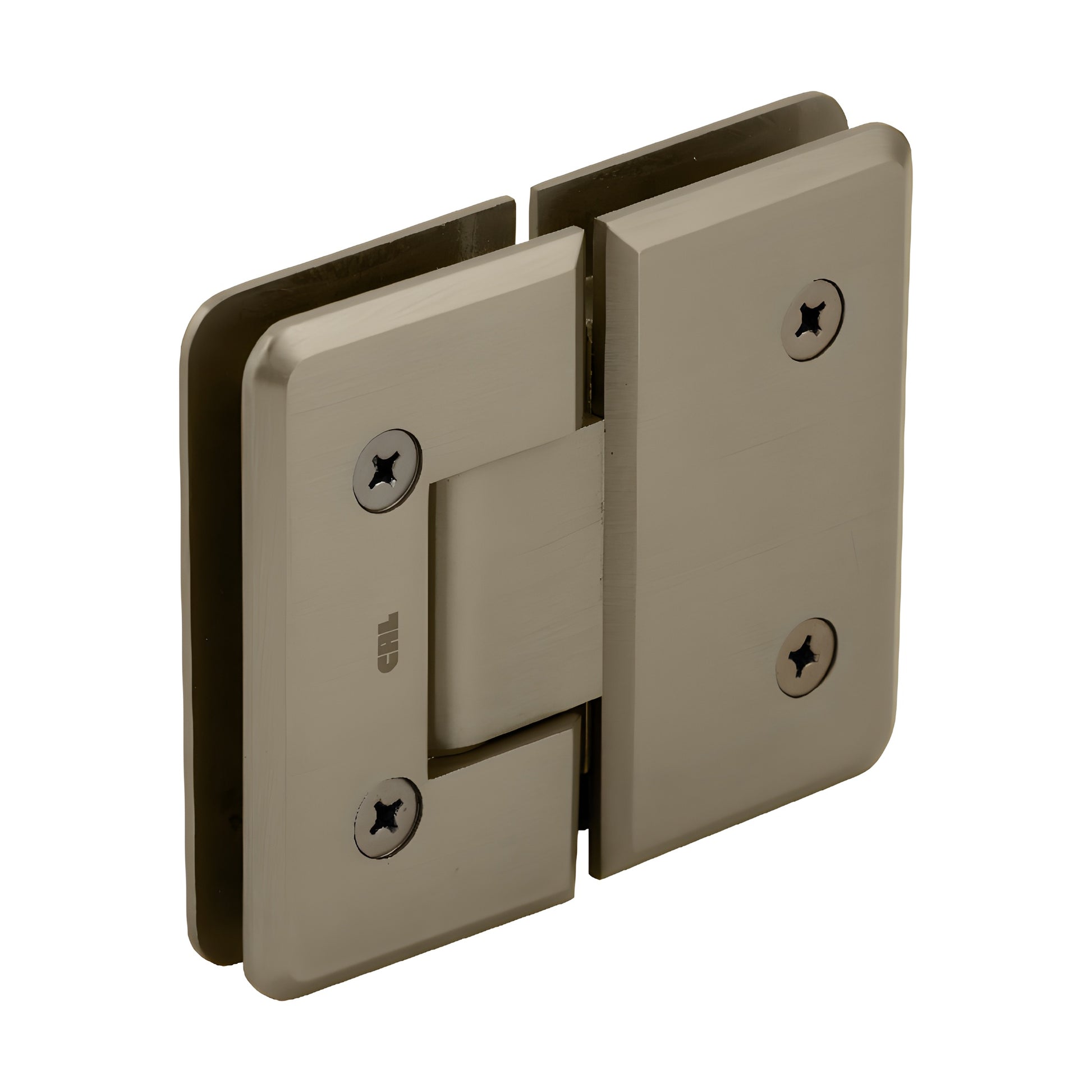

CRL Cologne 180 Brushed Bronze Glass-to-Glass Shower Door Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) glass
• Available in several beautiful finishes
• 180º glass-to-glass hinge for shower doors
• Use with monolithic tempered safety glass

CRL Cologne Hinges (SKU: C0L180BBRZ) combine the strength required for wider, heavier shower doors with a refined aesthetic—radius corners and beveled edges for a sleek, modern look. Designed as a heavy-duty alternative to standard Vienna-style hinges, Cologne Hinges are ideal for glass shower doors and frameless shower installations where durability and style matter.

Two internal steel pins provide mounting flexibility: leave both pins in place to use CRL "mouse-ears" cut-outs for safety, or remove them to increase adjustability and fit rectangular, square-cornered CRL or some competitive cut-outs.

STANDARD REVERSIBLE PIVOT PIN: Each hinge includes a reversible pivot pin marked 90º on one side and 85º on the other. Standard models ship with the 90º side active; Pre-Set models ship set at 85º (providing a 5º tighter closure into the shower interior). Rotate the pin (do not flip) to change sides.

CUSTOM PIVOT PIN: Custom pivot pins are available for off-angle installations (specify required angle up to 45º) to help close doors against walls that are not perfectly 90º.

Load Capacity:
Using two hinges with 3/8" to 1/2" glass (10–12 mm) — holds up to 110 lbs. (50 kg), maximum door width 36" (914 mm).
Using three hinges with 3/8" to 1/2" glass (10–12 mm) — holds up to 140 lbs. (63 kg), maximum door width 36" (914 mm).

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass
Hinge Swings: 90º in and 90º out
Closing Type: Self-centering when within 15º of closed position
Cut-Out Required: Except C0L092 which requires cut-out for door and two holes for fixed panel

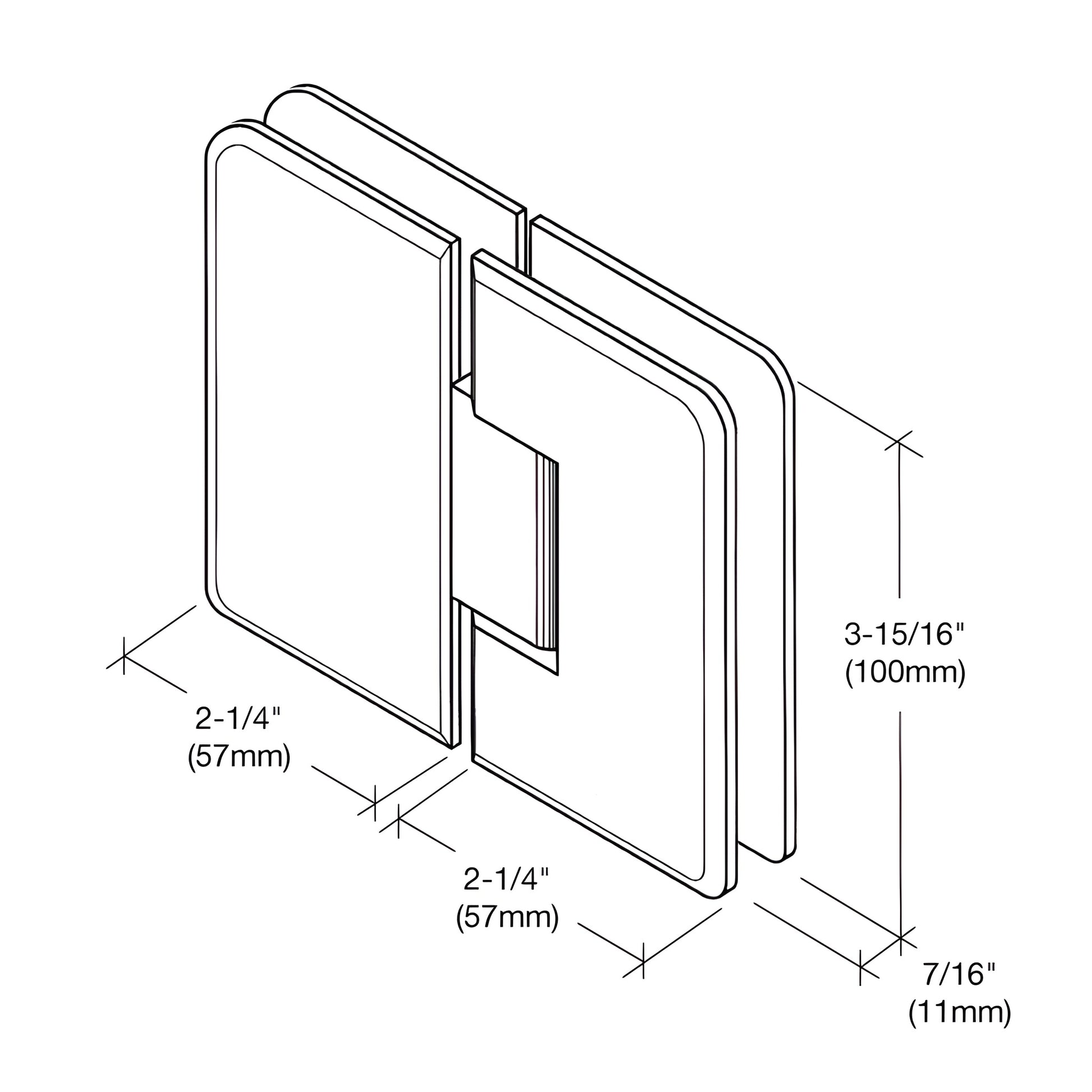

Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)

Custom finishes available on request—contact CRL Technical Sales Department for lead times and options.

Product Warning:

CRL shower door hinges are intended for residential or hotel shower use. For other uses, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge
