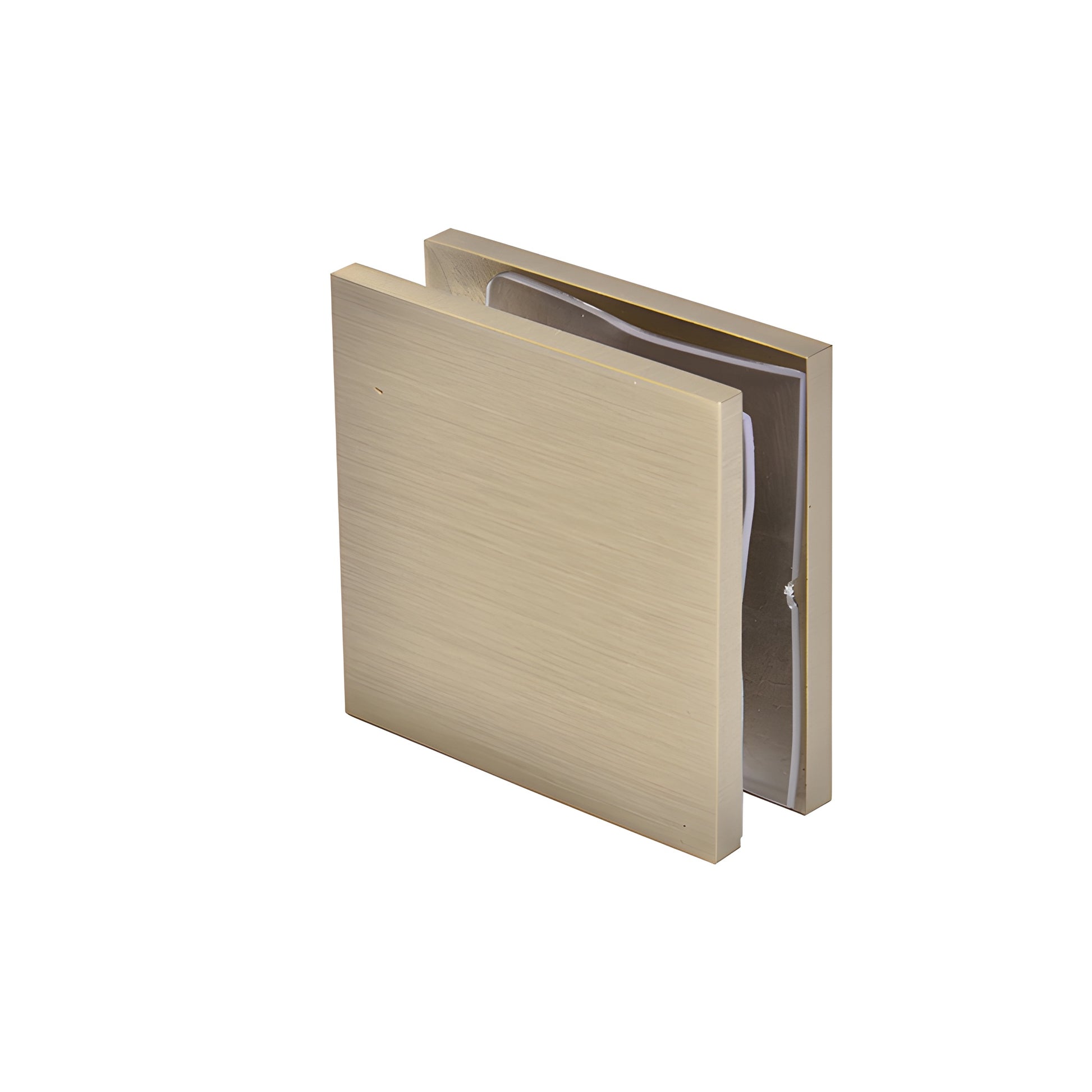

• SCU4BBRZ square wall-mount hole-in-glass clamp, brushed bronze solid brass, for 10-12mm frameless glass panels.

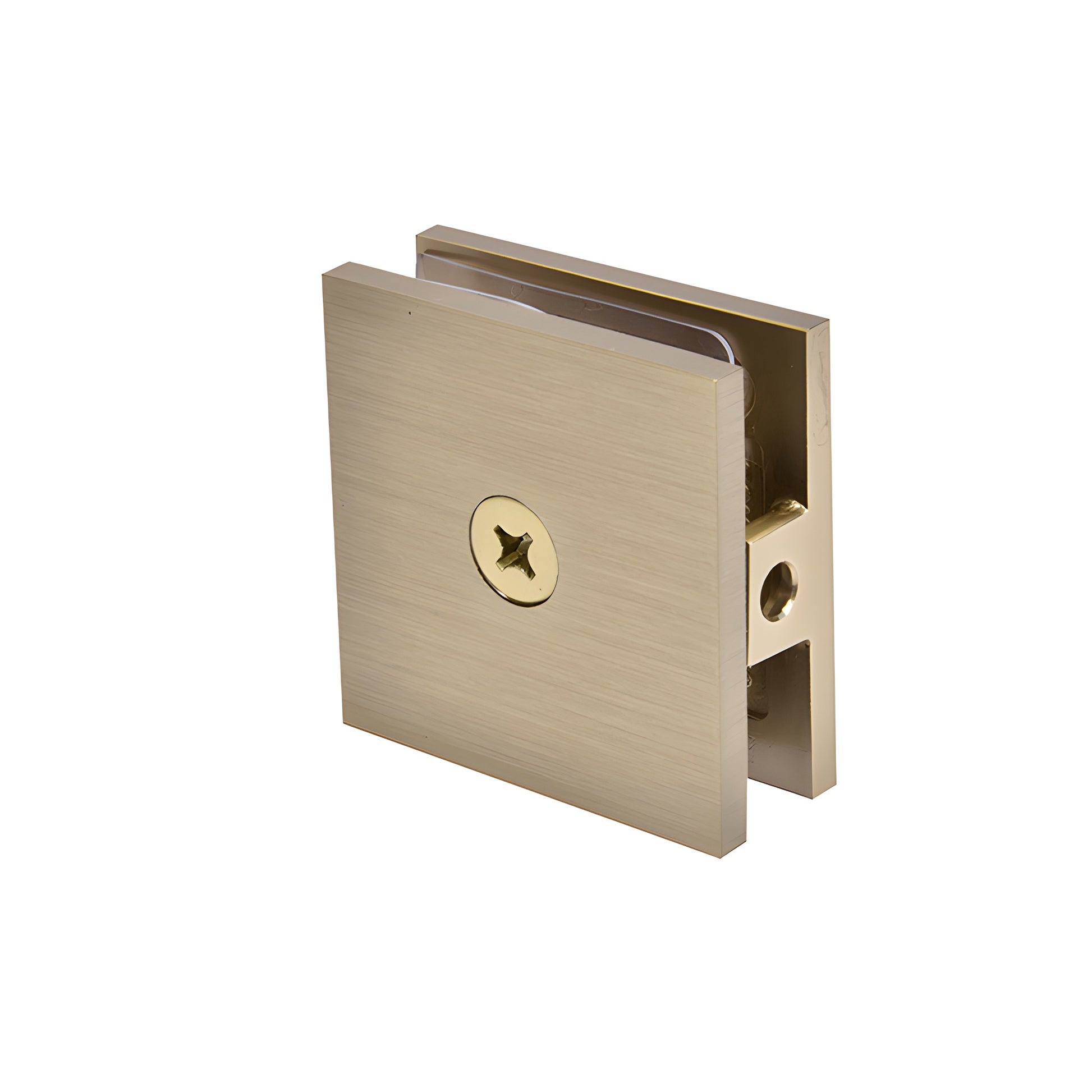

  • SCU4BBRZ square wall-mount hole-in-glass clamp, brushed bronze solid brass, for 10-12mm frameless glass panels.
  • SCU4BBRZ square wall-mount hole-in-glass clamp, brushed bronze solid brass, for 10-12mm frameless glass panels.
1 3

CRL

CRL Brushed Bronze Square Hole-in-Glass U-Clamp for Glass Panels

CRL Brushed Bronze Square Hole-in-Glass U-Clamp for Glass Panels

$28.15 CAD
$28.15 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# SCU4BBRZ
Shipping Weight: 7.68 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Design Style
Squared
Enclosure Type
Corner, Niche, Bathtub, Tailor Made Solutions
Finish/Color
Brushed Bronze
Glazing Thickness
3/8 in. To 1/2 in. (10 mm To 12 mm)
Material
Brass
Mounting Type
Wall Mount
Replacement Clamping Screw
P615BBRZ

Overview

  • Fits 5/16" to 1/2" (8 to 12 mm) tempered glass
  • Secures fixed glass panels in frameless shower enclosures and all-glass partitions
  • Solid brass construction for corrosion resistance and long life
  • Provides a cleaner "all-glass" appearance versus traditional U-channel
  • Glass fabrication required to accommodate hole-in-glass clamps
  • Use with monolithic tempered glass only

CRL Square Wall Mount Clamp (Hole-in-Glass Style) — SKU: SCU4BBRZ mounts directly to a wall, ceiling, or floor to secure vertical fixed glass panels. Clearance between the glass and wall is 3/16" (5 mm). Use clear silicone for a clean, water-tight seal.

SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: SGCU1 requires notch; SCU4, SGC037, and SGC039 require 3/4" (19 mm) holes
Includes: Mounting screws and gaskets

Most shipping weights are approximate. If exact weight is required for shipping cost calculations, contact CRL Customer Service before ordering. Product images are actual or close representations; colors may vary by monitor.


Order the SCU4BBRZ solid brass hole-in-glass wall mount clamp for durable, low-profile support in frameless shower and glass partition installations.

Specifications

Templates
SCU4 Template
