CRL Polished Nickel Square Hole-in-Glass U-Clamp for Fixed Glass
CRL Polished Nickel Square Hole-in-Glass U-Clamp for Fixed Glass
Regular price
$20.58 CAD
Regular price
Sale price
$20.58 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SCU4PN
Shipping Weight: 7.2 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 7.2 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Design Style
Squared
Enclosure Type
Corner, Niche, Bathtub, Tailor Made Solutions
Finish/Color
Polished Nickel
Glazing Thickness
3/8 in. To 1/2 in. (10 mm To 12 mm)
Material
Brass
Mounting Type
Wall Mount
Replacement Clamping Screw
P615PN
Overview
- Fabrication: 5/8" or 3/4" (16 or 19 mm) hole-in-panel
- Application: secures fixed glass panels for frameless shower enclosures and glass partitions
- Material: solid brass for corrosion resistance and long service life
- Design benefit: clamp style provides a cleaner, near "all-glass" appearance compared to traditional U-channel
- Glass requirements: monolithic tempered glass; glass fabrication required to accommodate clamps

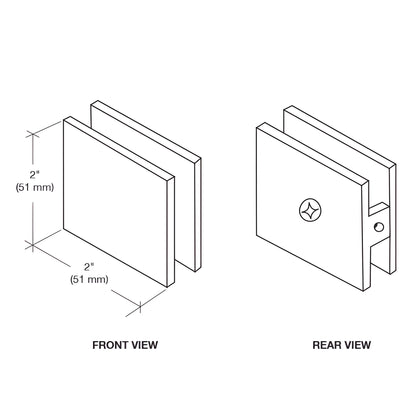

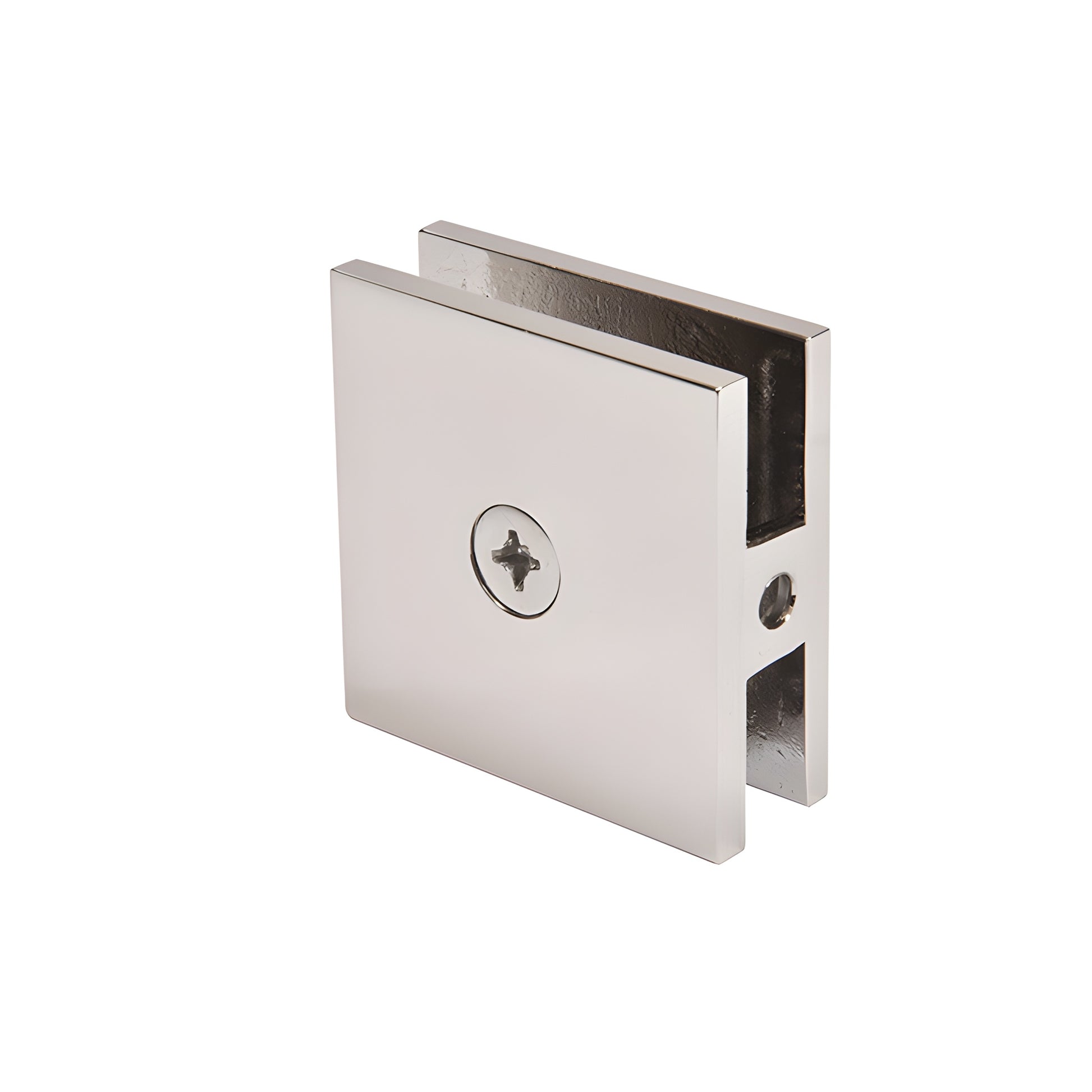

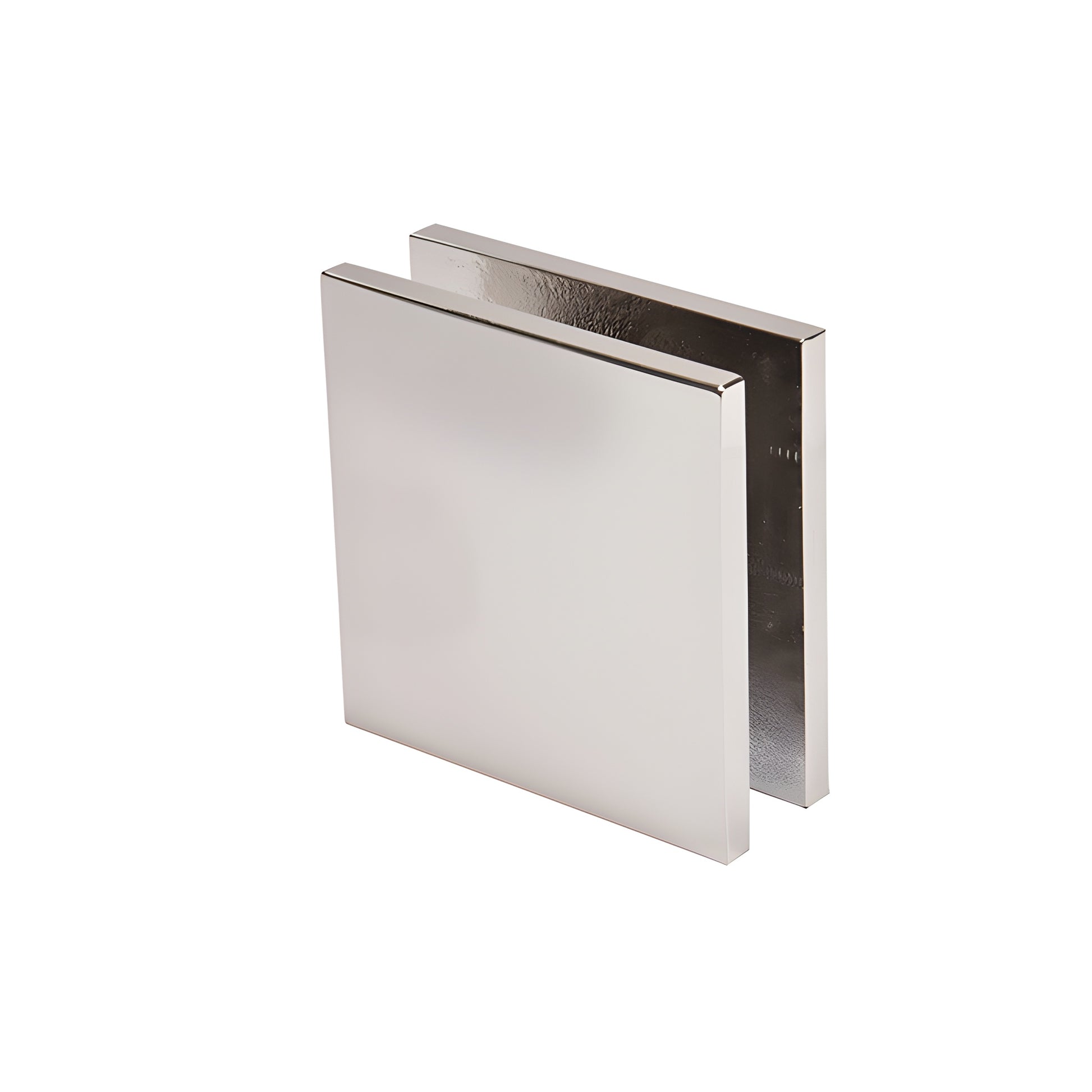

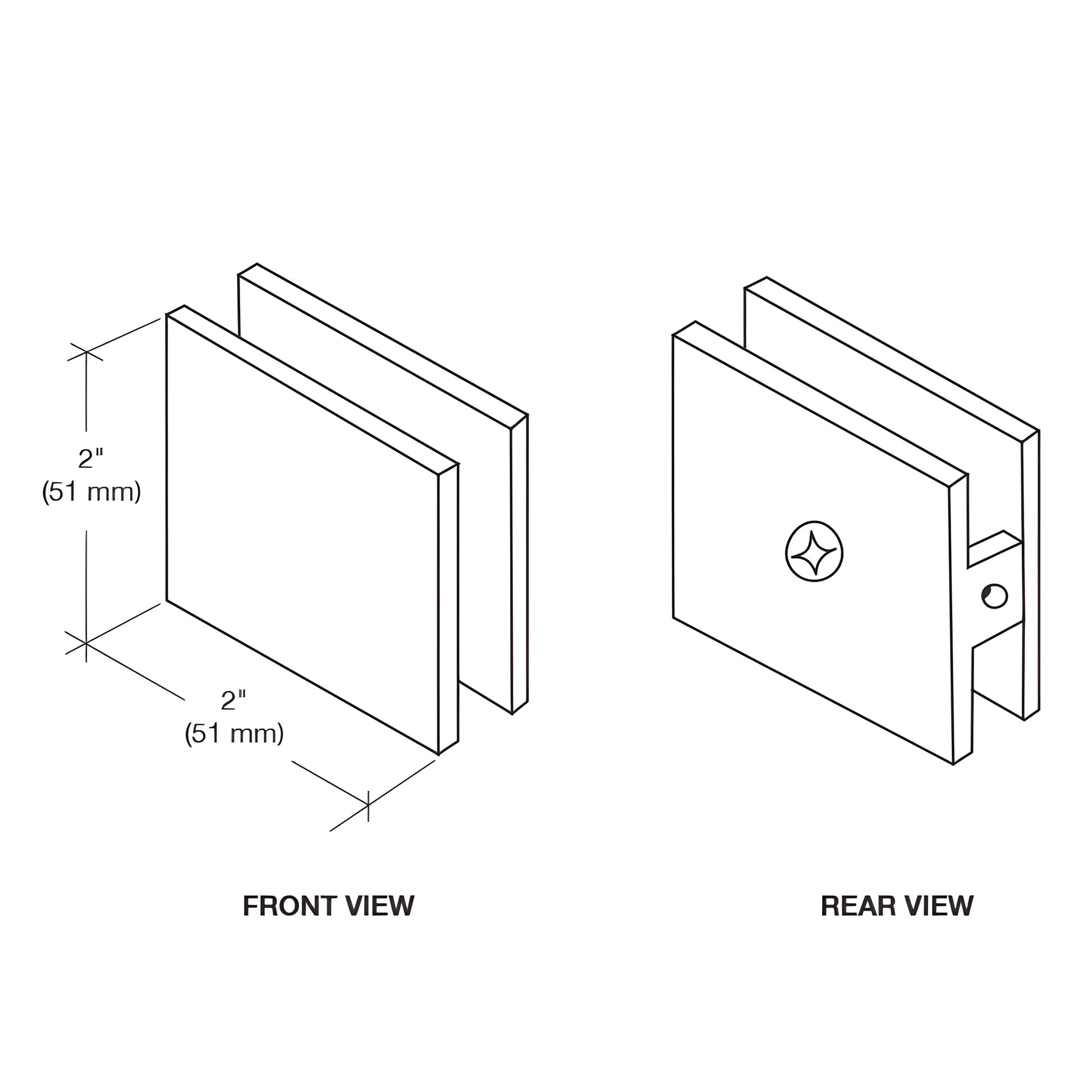

CRL Square Wall Mount Clamp (Hole-in-Glass Style) — SKU: SCU4PN mounts directly to wall, ceiling, or floor to secure vertical fixed glass panels with 3/16" (5 mm) clearance from the wall. Use clear silicone for a clean, water-tight finish.
SPECIFICATIONS:
Materials: Solid brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: SGCU1 requires notch; SCU4, SGC037, and SGC039 require 3/4" (19 mm) holes
Includes: mounting screws and gaskets
Order the SCU4PN square wall mount clamp for a sleek, durable hole-in-glass solution for frameless showers — add to cart or contact us for fabricator guidance.
