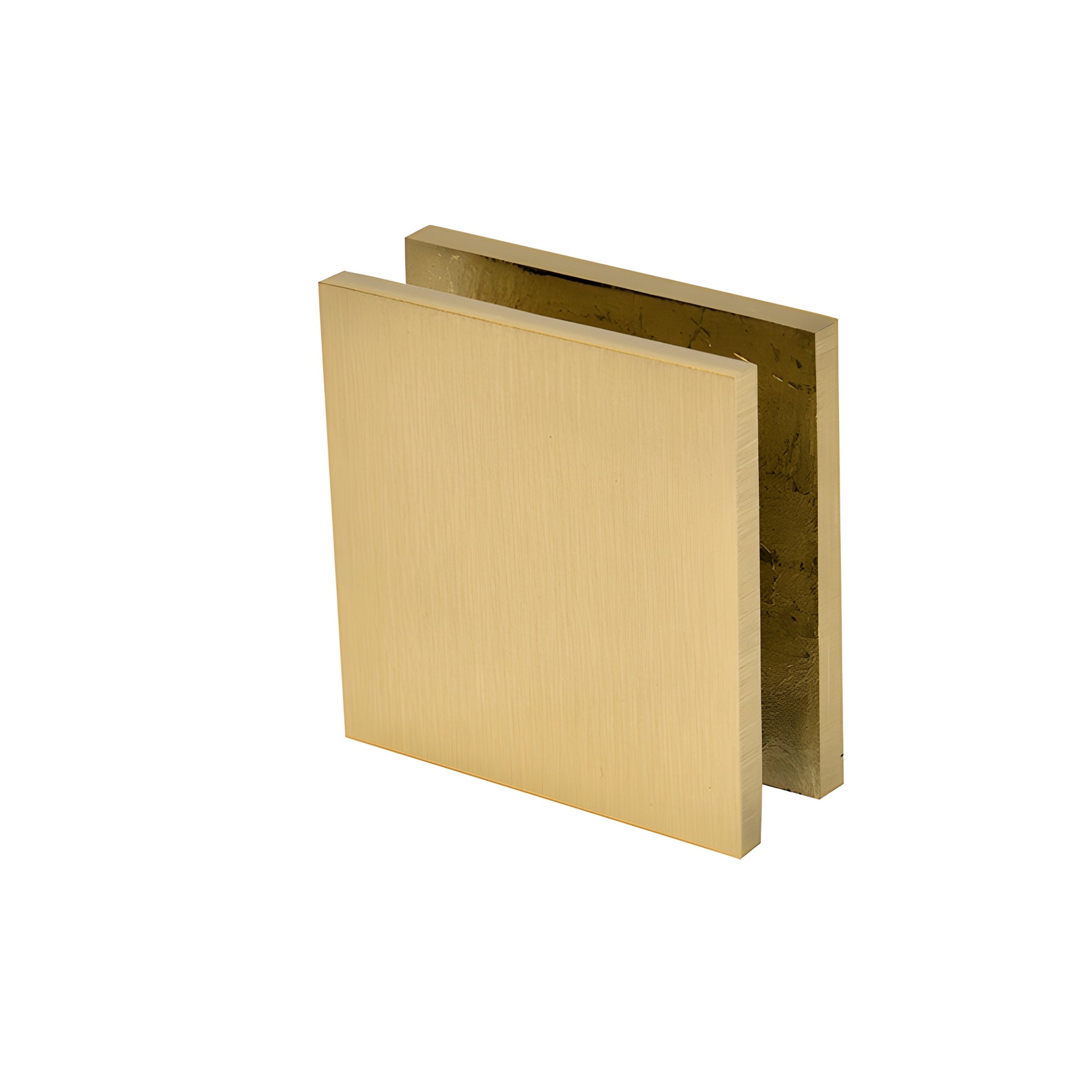

CRL Satin Brass Square Glass U-Clamp for Hole-in-Glass Fixed Panel
CRL Satin Brass Square Glass U-Clamp for Hole-in-Glass Fixed Panel
Regular price
$20.58 CAD
Regular price
Sale price
$20.58 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SCU4SB
Shipping Weight: 7.6 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 7.6 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Design Style
Squared
Enclosure Type
Corner, Niche, Bathtub, Tailor Made Solutions
Finish/Color
Satin Brass
Glazing Thickness
3/8 in. To 1/2 in. (10 mm To 12 mm)
Material
Brass
Mounting Type
Wall Mount
Replacement Clamping Screw
P615SB
Overview
- For 5/16 to 1/2" (8 to 12 mm) glass
- Secures fixed panels of glass for frameless shower enclosures
- Solid brass construction for durability
- Creates an "all-glass" appearance vs. traditional U-channel
- Glass fabrication required to accommodate clamps
- Use with monolithic tempered glass

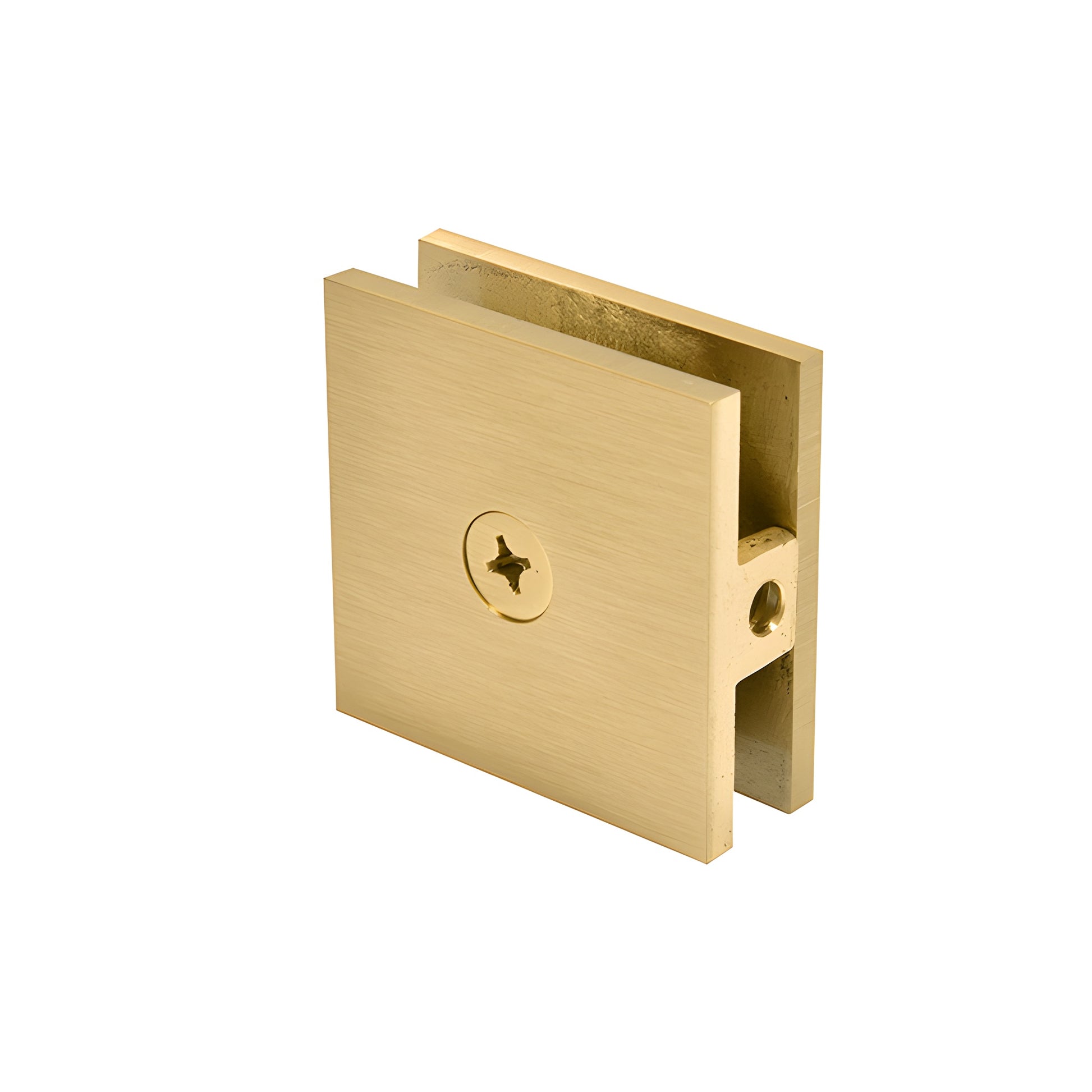

CRL Square Wall Mount Clamp (Hole-in-Glass Style) — SKU: SCU4SB mount directly to the wall, ceiling, or floor to secure vertical fixed glass panels. Clearance between the glass and wall is 3/16" (5 mm). Clear silicone may be used to provide a clean, water-tight seal. Ideal for frameless shower glass, glass balustrades, and other hole-in-glass applications where a minimalist, all-glass look is desired.
SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: SGCU1 requires notch; SCU4, SGC037, and SGC039 require 3/4" (19 mm) holes
Includes: Mounting screws and gaskets
Brass Finish Advisory:
Although durable, brass is prone to oxidation and may develop a tarnished appearance over time. See the Brass Finish Disclaimer in Technical References for care and maintenance details.
Order the SCU4SB solid brass square wall mount clamp for frameless shower glass today to achieve a clean, minimalist all-glass installation.
