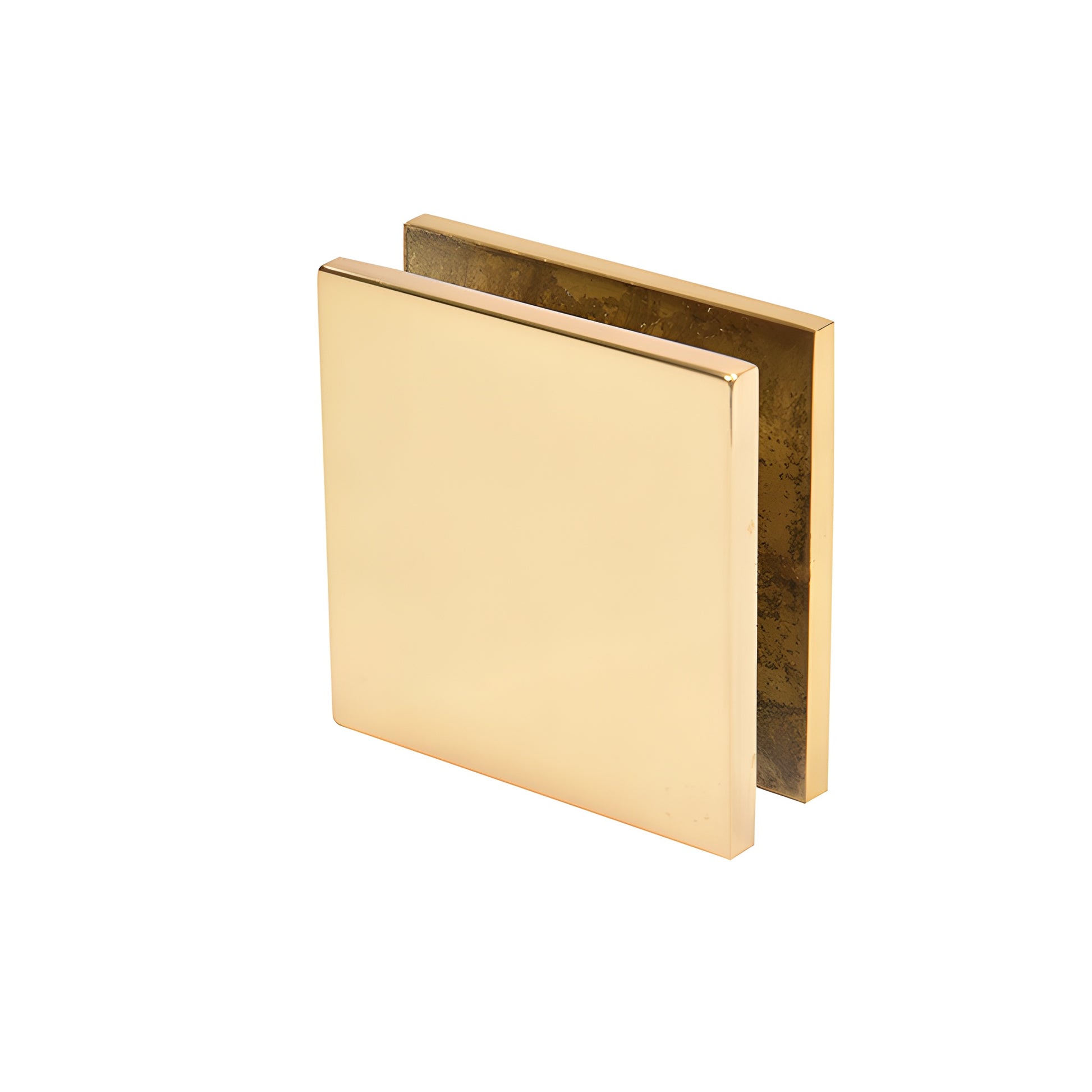

• SCU4BR square polished-brass wall-mount clamp for 3/8-1/2" (10-12 mm) tempered glass panels

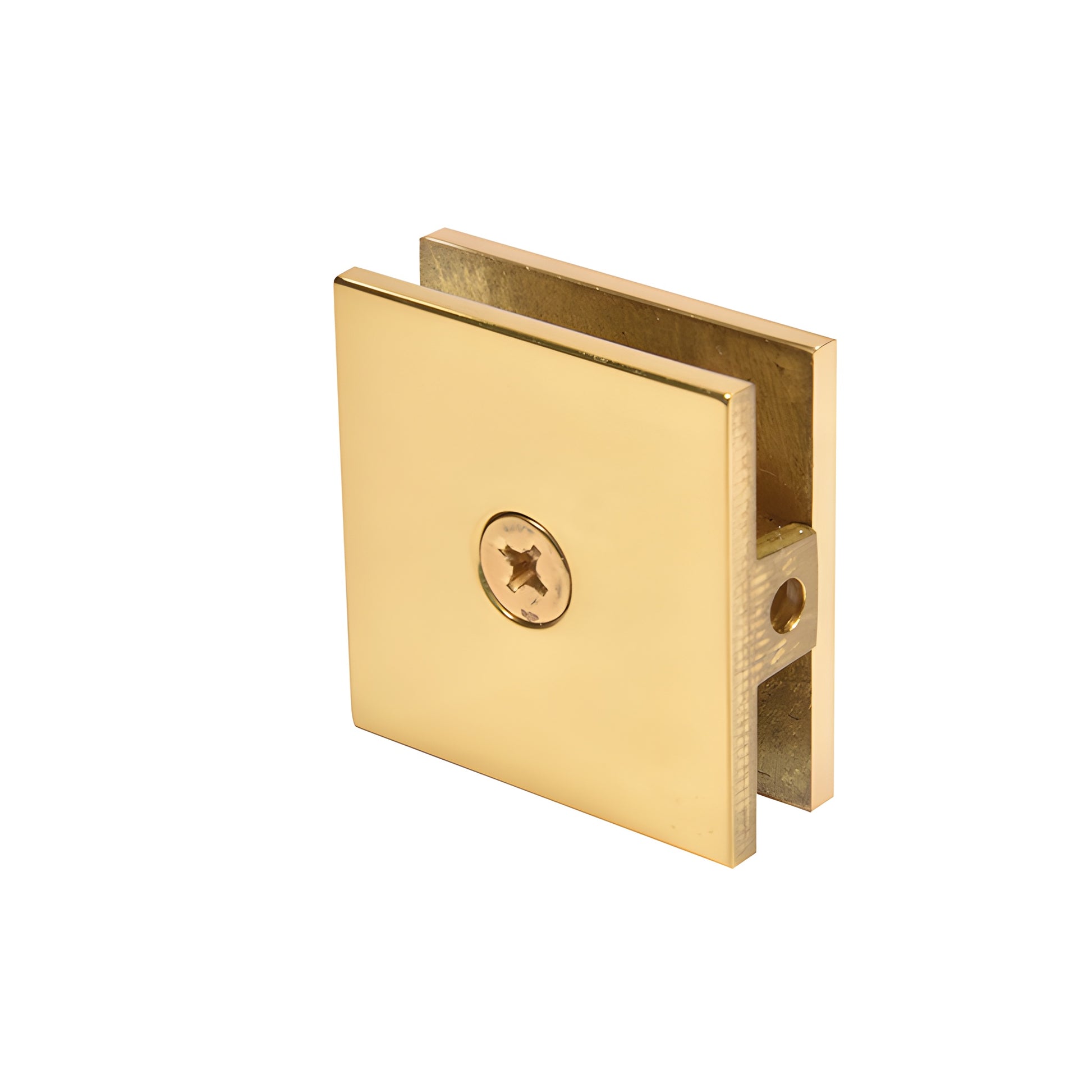

  • SCU4BR square polished-brass wall-mount clamp for 3/8-1/2" (10-12 mm) tempered glass panels
  • SCU4BR square polished-brass wall-mount clamp for 3/8-1/2" (10-12 mm) tempered glass panels
1 3

CRL

CRL Polished Brass Square Hole-in-Glass U-Clamp for Fixed Panel

CRL Polished Brass Square Hole-in-Glass U-Clamp for Fixed Panel

$19.50 CAD
$19.50 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# SCU4BR
Shipping Weight: 7.36 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Design Style
Squared
Enclosure Type
Corner, Niche, Bathtub, Tailor Made Solutions
Finish/Color
Polished Brass
Glazing Thickness
3/8 in. To 1/2 in. (10 mm To 12 mm)
Material
Brass
Mounting Type
Wall Mount
Replacement Clamping Screw
P615BR

Overview

  • For 3/8" to 1/2" (10 to 12 mm) glass
  • Glass fabrication: 5/8" or 3/4" (16 or 19 mm) hole in panel
  • Secures fixed glass panels for frameless shower enclosures
  • Solid brass construction for strength and corrosion resistance
  • Provides an all-glass look versus traditional U-channel
  • Glass fabrication required to accommodate clamps; use monolithic tempered glass

CRL Square Wall Mount Clamp (Hole-in-Glass Style) mounts directly to the wall, ceiling, or floor to secure vertical fixed glass panels. Clearance between the glass and wall is 3/16" (5 mm). Clear silicone can be used to provide a clean, water-tight seal. SKU: SCU4BR

SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: SGCU1 requires notch; SCU4, SGC037, and SGC039 require 3/4" (19 mm) holes
Includes: Mounting screws and gaskets

Most shipping weights are approximate. If exact weight is needed to determine shipping costs, request this prior to submitting your order by contacting CRL Customer Service. Product images are of the actual product or a close representation; colors may vary by monitor.

Brass Finish Advisory:
Although durable, brass is prone to oxidation and may develop a tarnished appearance over time. See the Brass Finish Disclaimer in Technical References for care and maintenance.


Order the SCU4BR square wall mount clamp now to achieve a clean, frameless shower enclosure appearance.

Specifications

Templates
SCU4 Template
