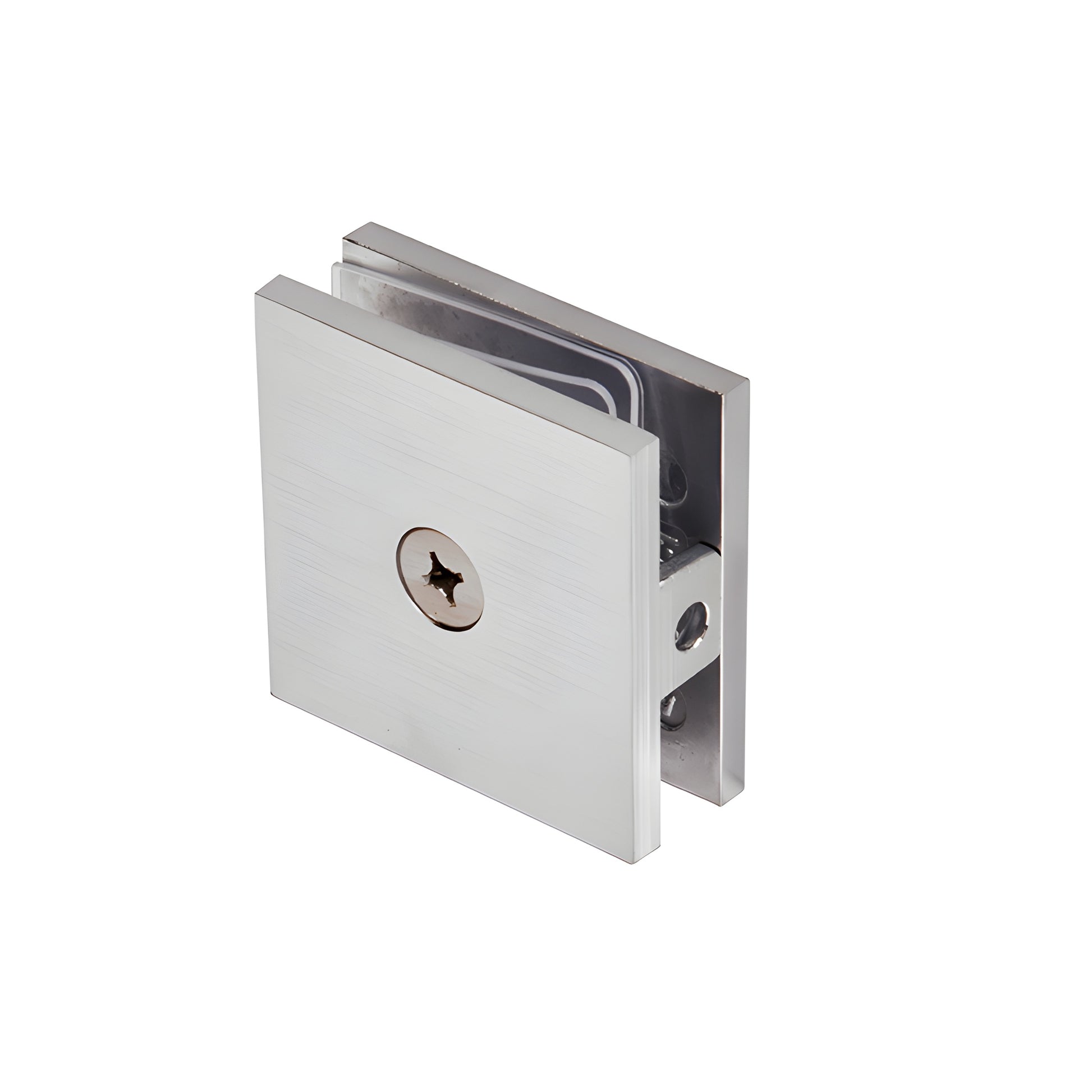

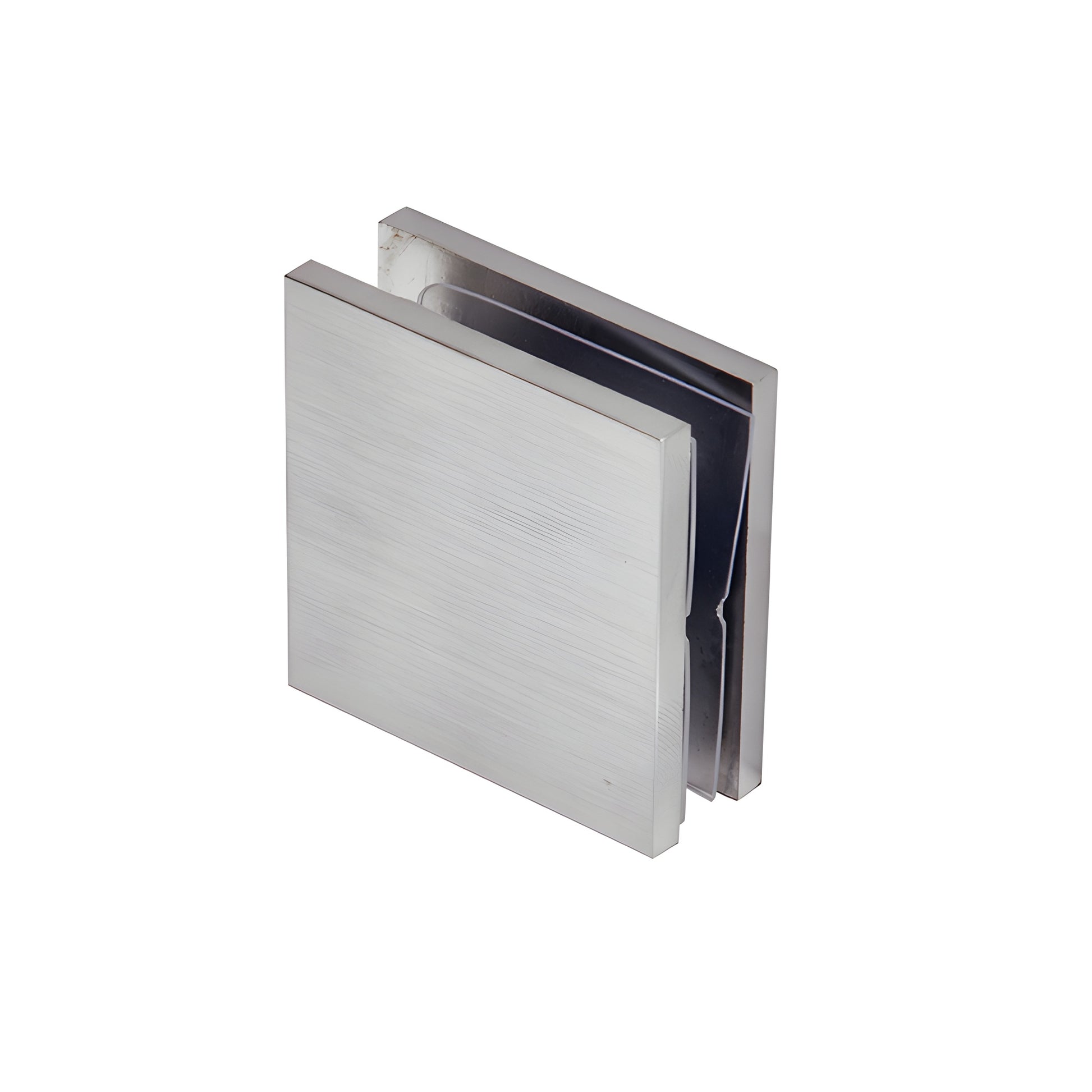

CRL Brushed Chrome Square Glass U-Clamp for Shower Panels
CRL Brushed Chrome Square Glass U-Clamp for Shower Panels
Regular price
$37.91 CAD
Regular price
Sale price
$37.91 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SCU4BCH
Shipping Weight: 7.52 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 7.52 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Brushed Chrome
Glazing Thickness
3/8 in. To 1/2 in. (10 mm To 12 mm)
Material
Brass
Mounting Type
Wall Mount
Replacement Clamping Screw
P6150RB
Overview
- Fabrication: 5/8" or 3/4" (16 or 19 mm) hole in panel
- Used to secure fixed glass panels for frameless shower enclosures
- Solid brass construction for corrosion resistance and long life
- Provides a near "all-glass" appearance compared with traditional U-channel
- Glass fabrication required to accommodate clamps — use monolithic tempered glass
CRL Square Wall Mount Clamp (Hole-in-Glass Style) mounts directly to wall, ceiling, or floor to secure vertical fixed glass panels. Clearance between glass and wall is 3/16" (5 mm). Use clear silicone for a clean, watertight seal. Ideal as a square wall mount glass clamp or hole-in-glass clamp for frameless shower panels.
SPECIFICATIONS:
SKU: SCU4BCH
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: SGCU1 requires notch; SCU4, SGC037, and SGC039 require 3/4" (19 mm) holes
Includes: Mounting screws and gaskets
Shop now to order the SCU4BCH square wall mount glass clamp for a clean, frameless shower look.
