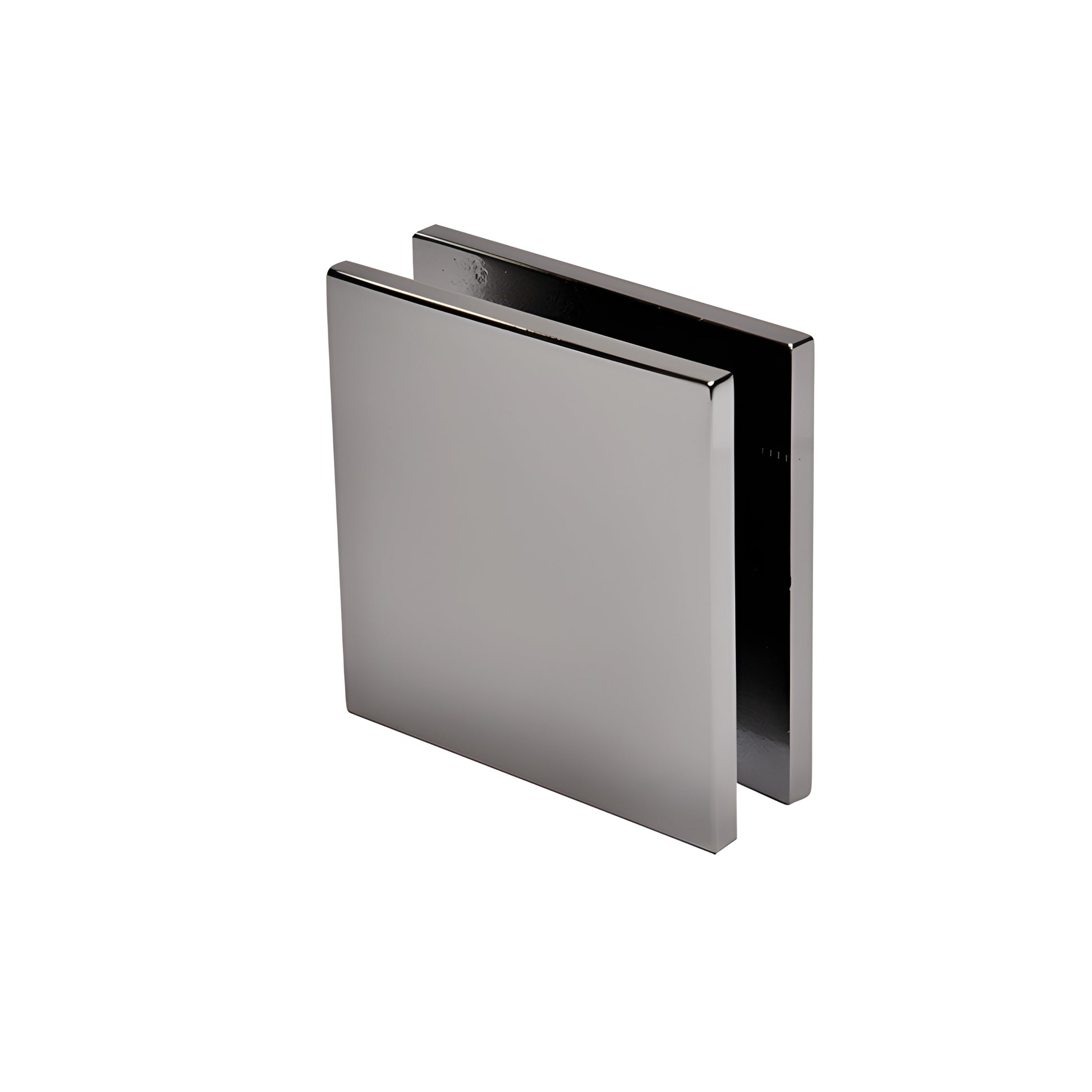

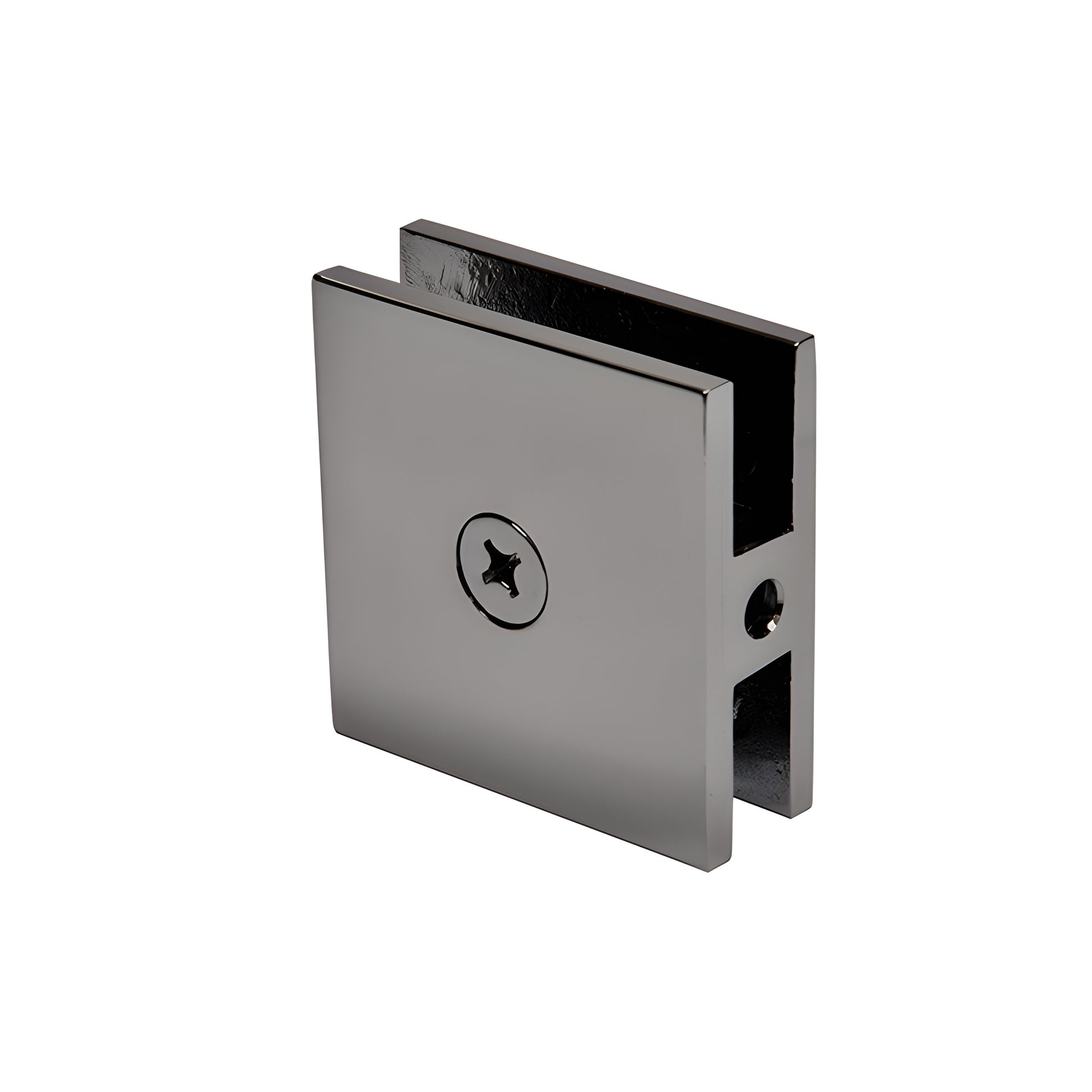

CRL Gun Metal Square Hole-in-Glass U-Clamp for Frameless Panels
CRL Gun Metal Square Hole-in-Glass U-Clamp for Frameless Panels
Regular price
$27.08 CAD
Regular price
Sale price
$27.08 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SCU4GM
Shipping Weight: 8.352 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 8.352 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Design Style
Squared
Enclosure Type
Corner, Niche, Bathtub, Tailor Made Solutions
Finish/Color
Gun Metal
Glazing Thickness
3/8 in. To 1/2 in. (10 mm To 12 mm)
Material
Brass
Mounting Type
Wall Mount
Overview
- For 3/8" to 1/2" (10 to 12 mm) glass
- Glass fabrication: 5/8" or 3/4" (16 or 19 mm) hole in panel
- Secures fixed panels of glass for frameless shower enclosures
- Solid brass construction
- Provides a cleaner "all-glass" appearance vs. traditional U-channel
- Glass fabrication required to accommodate clamps
- Use monolithic tempered glass
CRL Square Wall Mount Clamp (Hole-in-Glass Style) — SKU: SCU4GM mount directly to wall, ceiling, or floor to secure vertical fixed glass panels. Designed for frameless shower enclosure applications and other interior glass partitions, these solid brass wall-mount clamps create a minimal 3/16" (5 mm) clearance between glass and wall. Use clear silicone to create a clean, water-tight seal for shower installations.
SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: SGCU1 requires notch; SCU4, SGC037, and SGC039 require 3/4" (19 mm) holes
Includes: Mounting screws and gaskets
Upgrade your frameless shower or interior glass partition with the SCU4GM square wall-mount clamp for a streamlined, all-glass look — order now.
