CRL Rose Gold Square U-Clamp Glass Clamp for Hole-in-Glass Panels
CRL Rose Gold Square U-Clamp Glass Clamp for Hole-in-Glass Panels
Regular price
$45.50 CAD
Regular price
Sale price
$45.50 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SCU4RG
Shipping Weight: 7.52 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 7.52 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Rose Gold
Glazing Thickness
3/8 in. To 1/2 in. (10 mm To 12 mm)
Material
Brass
Mounting Type
Wall Mount
Replacement Clamping Screw
P6150RB
Overview
- Fabrication: 5/8" or 3/4" (16 or 19 mm) hole in panel
- Used to secure fixed glass panels for frameless shower enclosures
- Solid brass construction for durability and corrosion resistance
- Creates an "all-glass" appearance compared to traditional U-channel
- Glass fabrication required to accommodate clamps
- Use monolithic tempered glass

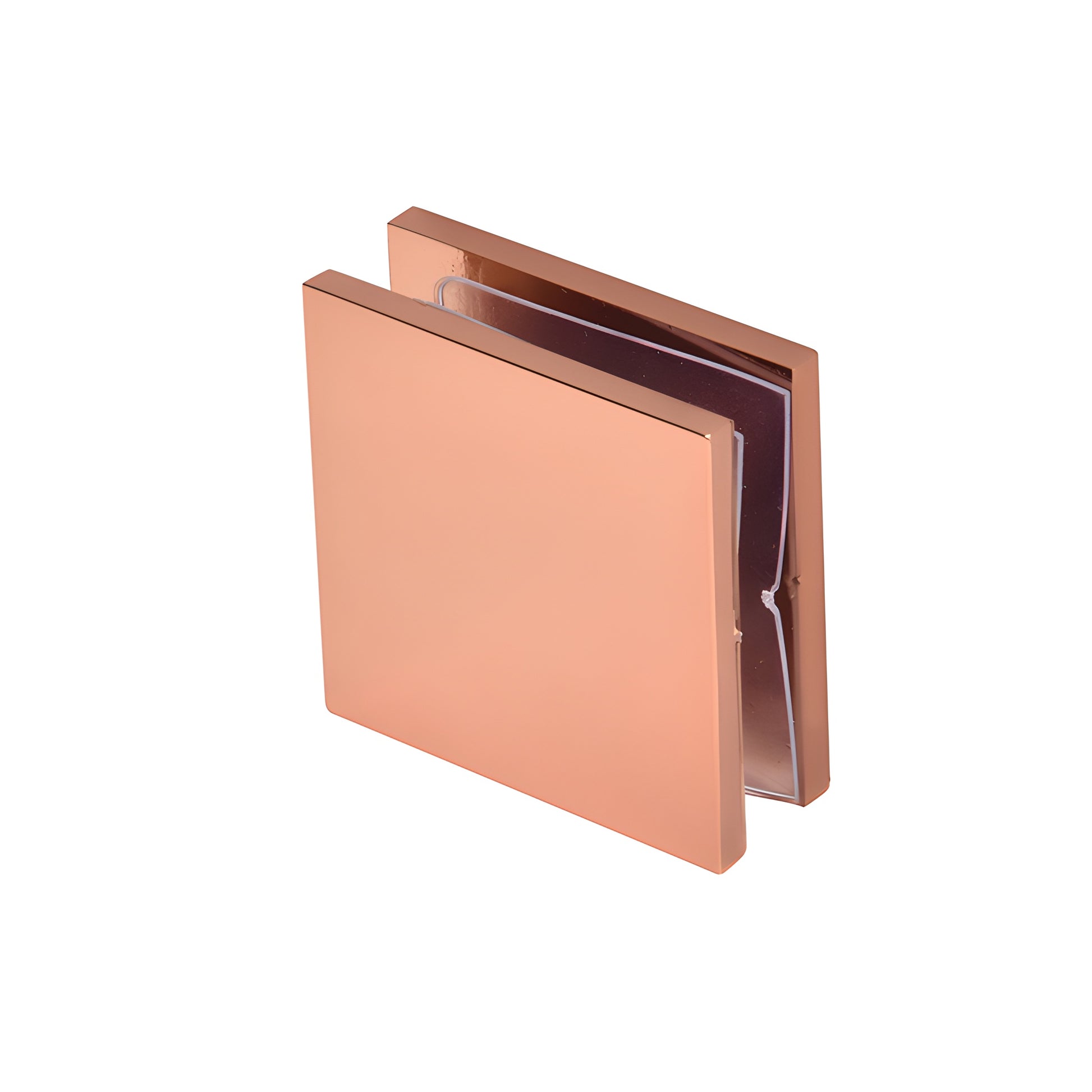

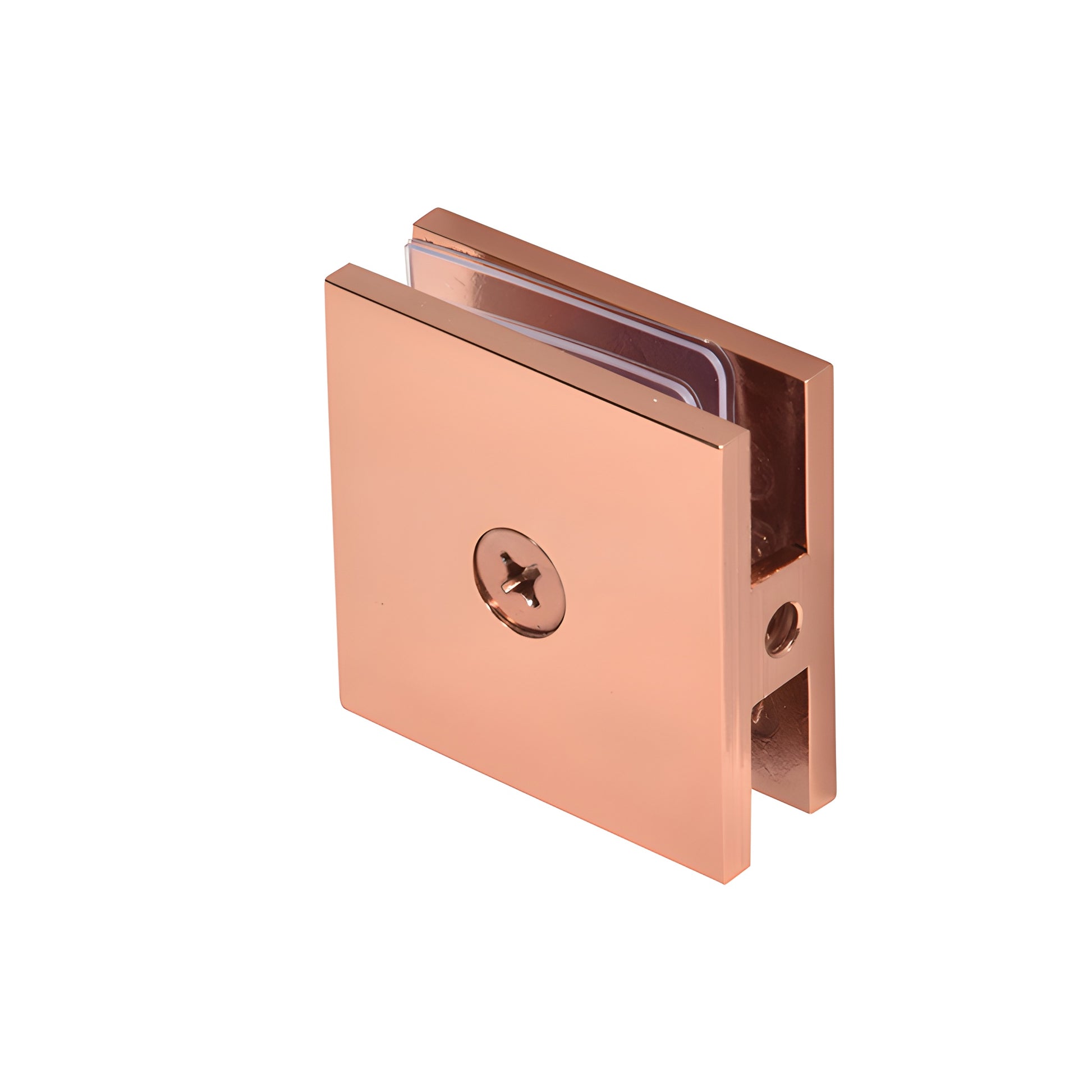

CRL Square Wall Mount Clamp (Hole-in-Glass Style) — SKU: SCU4RG
These square wall-mount clamps mount directly to the wall, ceiling, or floor to secure vertical fixed glass panels. Designed for frameless shower enclosures and other architectural glass applications, they leave a minimal 3/16" (5 mm) clearance between the glass and wall. Use clear silicone to create a clean, water-tight seal. Ideal long-tail keywords: square wall mount clamp hole-in-glass, frameless shower enclosure glass clamp, solid brass glass clamp.
SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: SGCU1 requires notch; SCU4, SGC037, and SGC039 require 3/4" (19 mm) holes
Includes: Mounting screws and gaskets
Why choose SCU4RG? Solid brass construction, hole-in-glass mounting for a cleaner all-glass look, and compatibility with monolithic tempered glass make this clamp a premium choice for frameless shower projects.
Order SCU4RG now to finish your frameless shower with a sleek, durable square wall-mount clamp.
