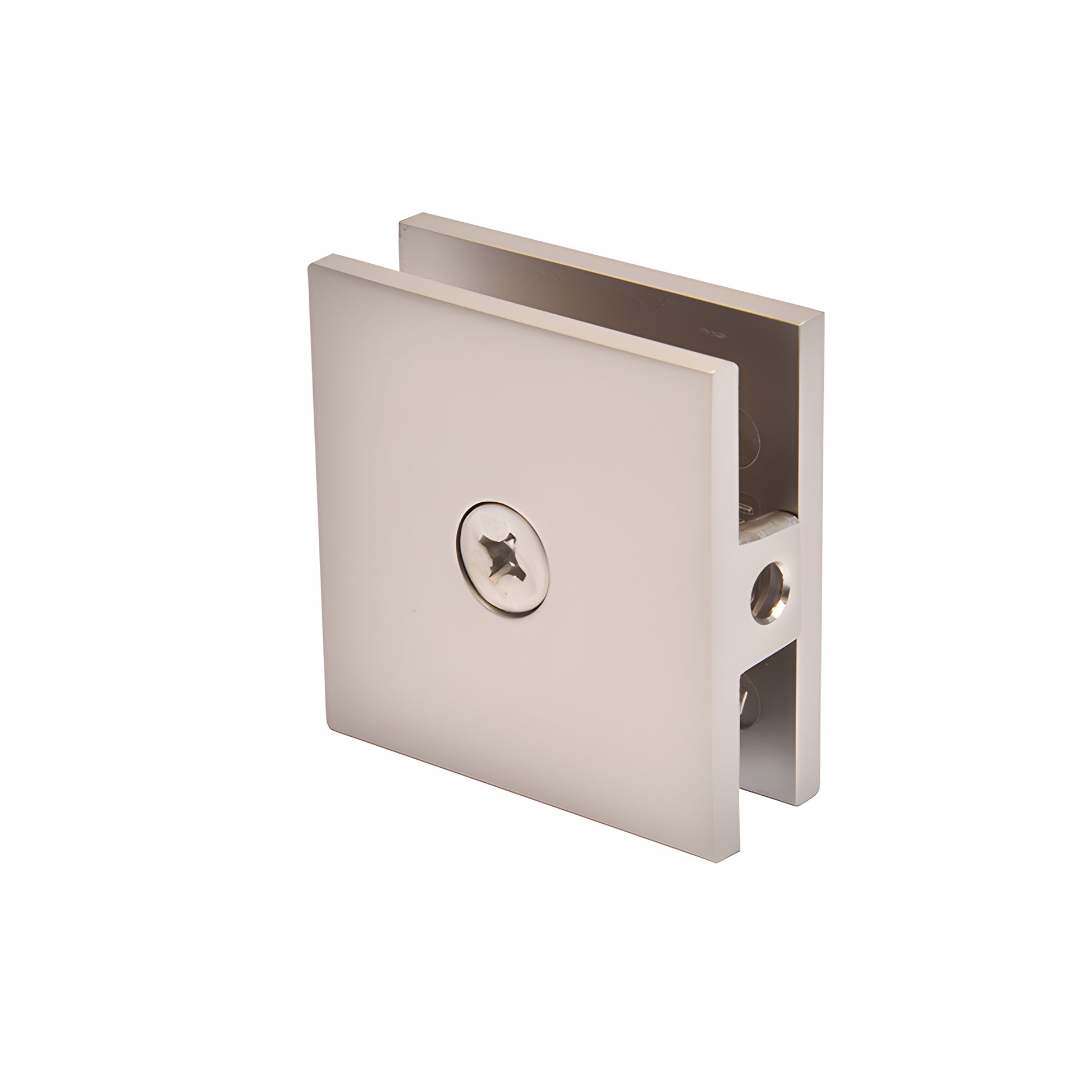

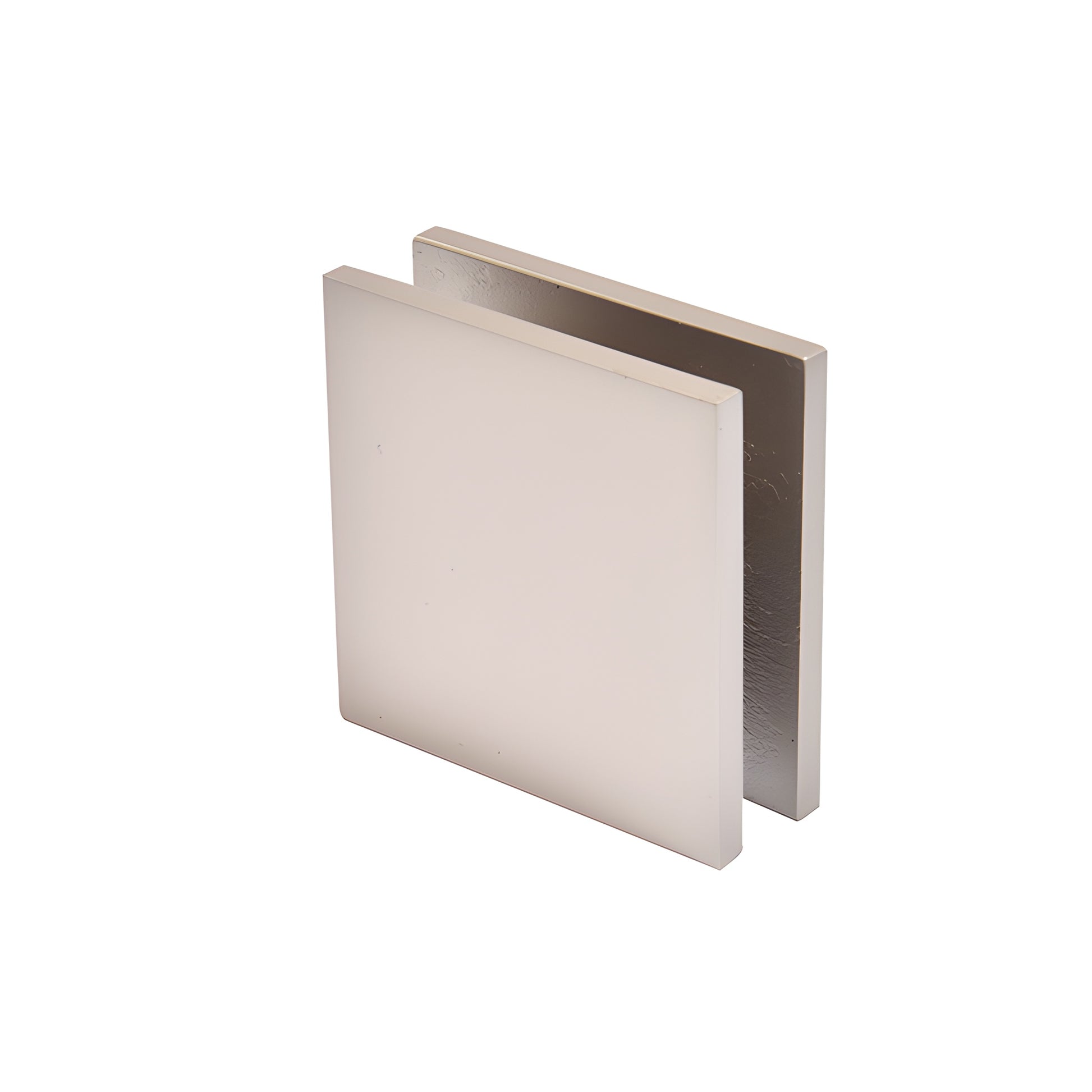

CRL Satin Nickel Square Hole-in-Glass U-Clamp for Fixed Glass Panel

• For 3/8" to 1/2" (10 to 12 mm) glass
• Used to secure fixed panels of glass for frameless shower enclosures
• Solid brass construction for corrosion resistance
• Hole-in-glass style square wall mount clamp creates an all-glass appearance versus U-channel
• Glass fabrication required to accommodate clamps (3/4" / 19 mm holes)
• Use monolithic tempered glass

CRL Square Wall Mount Clamp (Hole-in-Glass Style) — SKU: SCU4SN mount directly to the wall, ceiling, or floor to secure vertical fixed glass panels in frameless shower enclosures and other architectural glass applications. Clearance between the glass and wall is 3/16" (5 mm). Clear silicone can be used to provide a clean, water-tight seal.


SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: SCU4 and similar models require 3/4" (19 mm) holes
Includes: Mounting screws and gaskets


Enhance your frameless shower design with the SCU4SN
