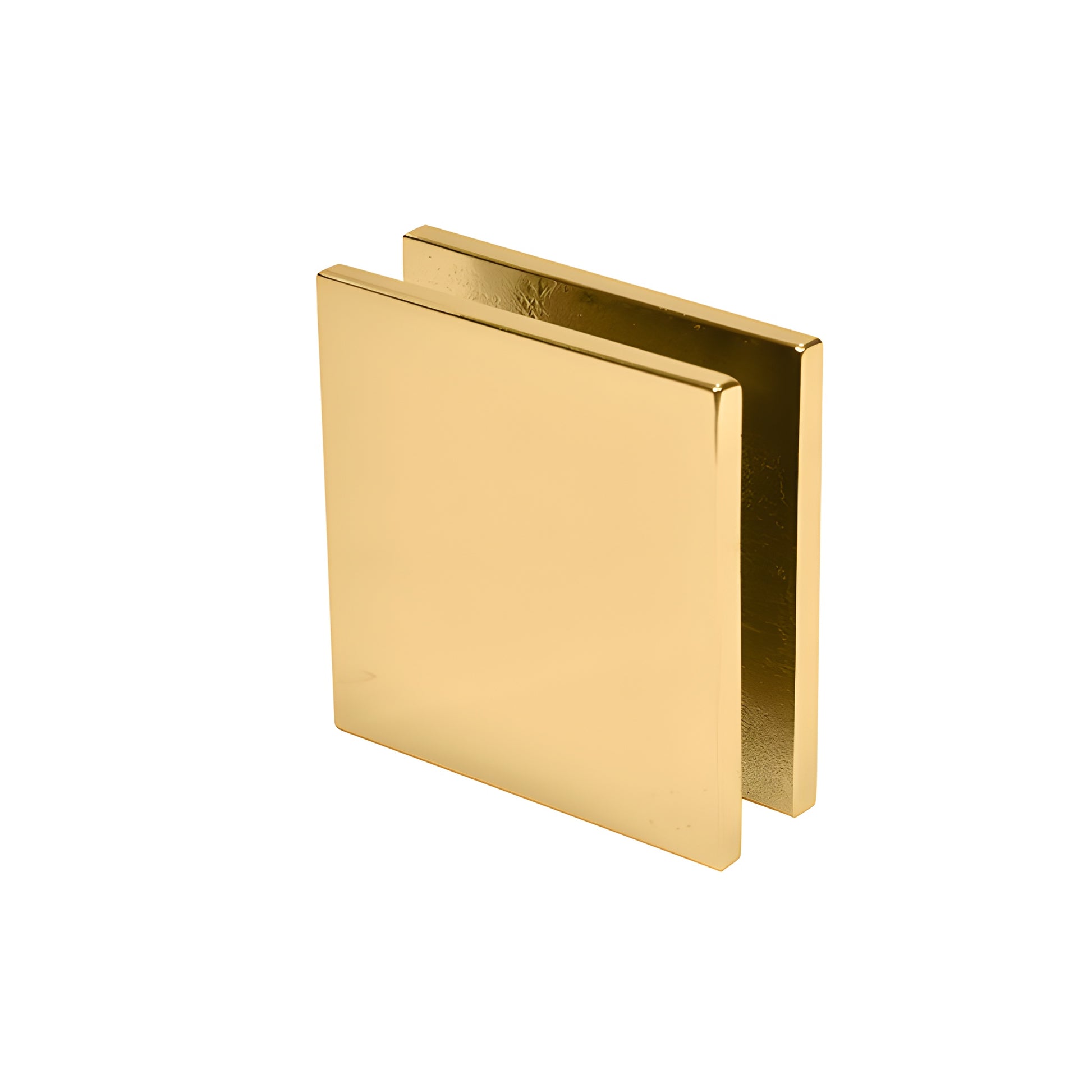

• SCU4FG French gold solid brass square wall mount clamp for 3/8-1/2" (10-12 mm) glass panels
  • SCU4FG French gold solid brass square wall mount clamp for 3/8-1/2" (10-12 mm) glass panels

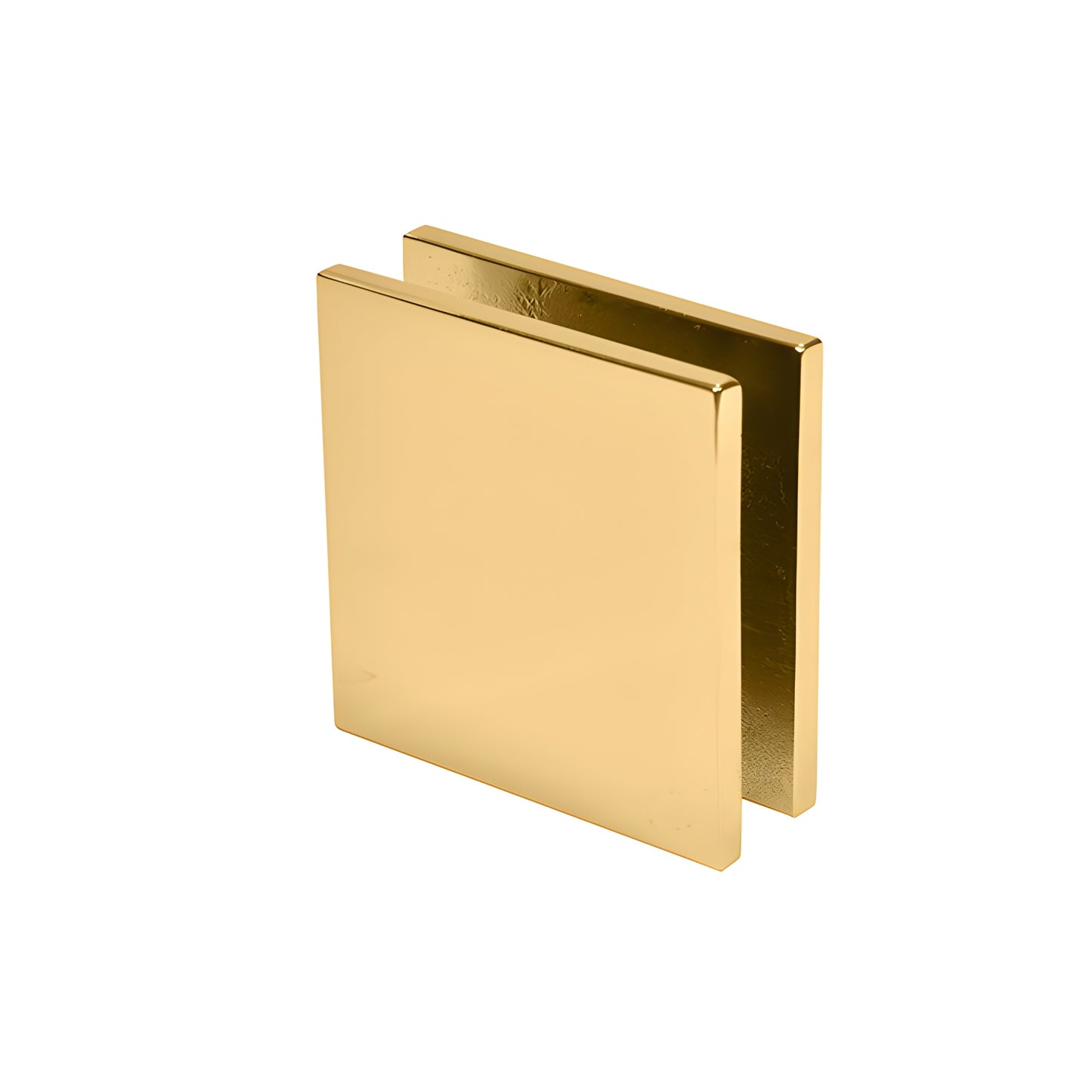

  • SCU4FG French gold solid brass square wall mount clamp for 3/8-1/2" (10-12 mm) glass panels
1 3

CRL

CRL French Gold Square U-Clamp for Hole-in-Glass Panels

CRL French Gold Square U-Clamp for Hole-in-Glass Panels

$45.50 CAD
$45.50 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# SCU4FG
Shipping Weight: 7.52 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
French Gold
Glazing Thickness
3/8 in. To 1/2 in. (10 mm To 12 mm)
Material
Brass
Mounting Type
Wall Mount
Replacement Clamping Screw
P6150RB

Overview

  • Fabrication: 5/8" or 3/4" (16 or 19 mm) hole in panel
  • Used to secure fixed glass panels for frameless shower enclosures and glass partitions
  • Solid Brass construction for corrosion resistance
  • Provides an "all-glass" appearance compared with traditional U-channel
  • Glass fabrication required to accommodate clamps
  • Use monolithic tempered glass

CRL Square Wall Mount Clamp (Hole-in-Glass Style) — SKU SCU4FG mounts directly to wall, ceiling or floor to secure vertical fixed glass panels. Clearance between the glass and wall is 3/16" (5 mm). Clear silicone can be used for a clean, water-tight seal. Ideal as a solid brass glass clamp for frameless shower enclosures, glass railings, and commercial glass partitions.


SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: SGCU1 requires notch; SCU4, SGC037, and SGC039 require 3/4" (19 mm) holes
Includes: Mounting screws and gaskets

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your monitor settings.

Order the SCU4FG solid brass square wall mount clamp for a clean, frameless glass look — add to cart now.

Specifications

Templates
SCU4 Template
