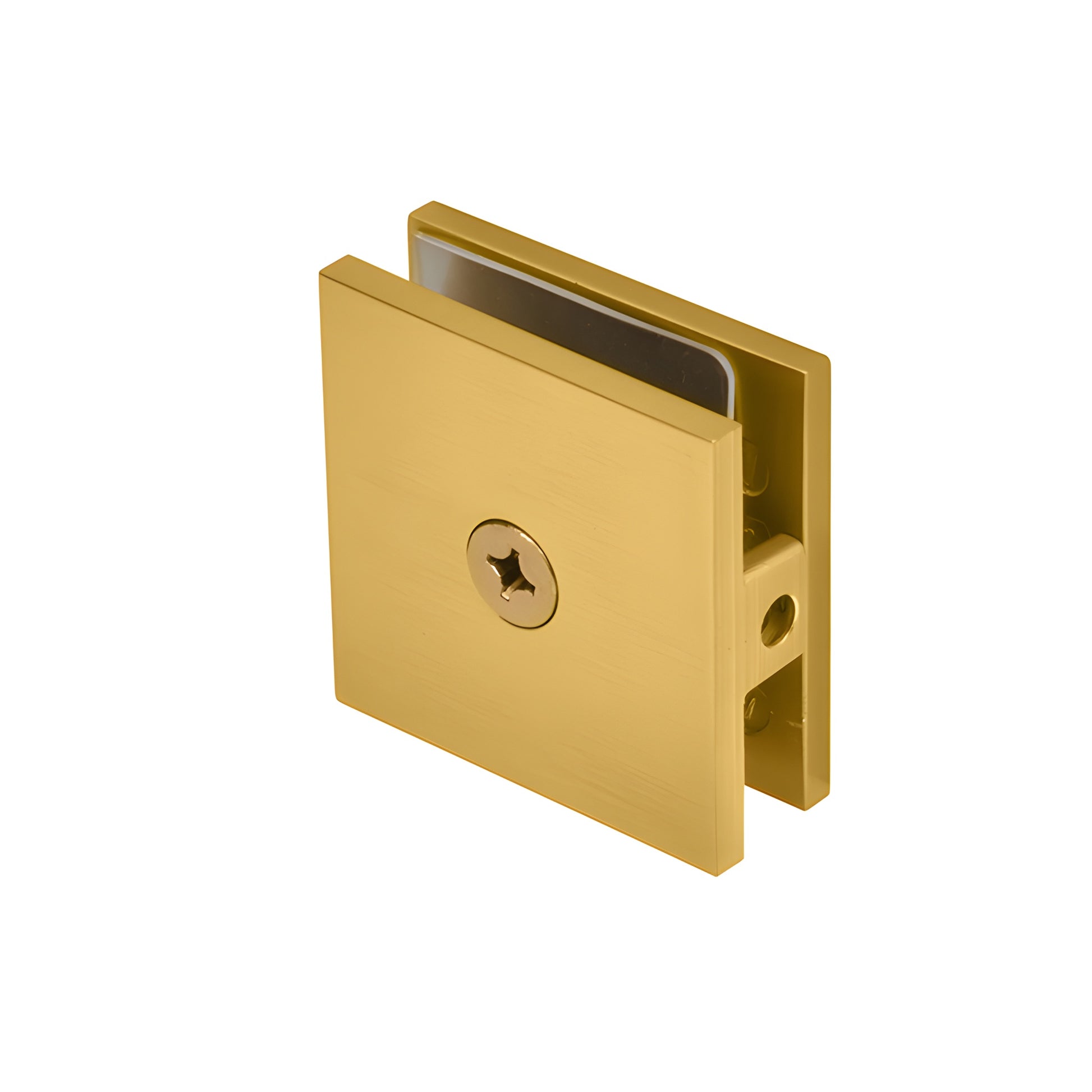

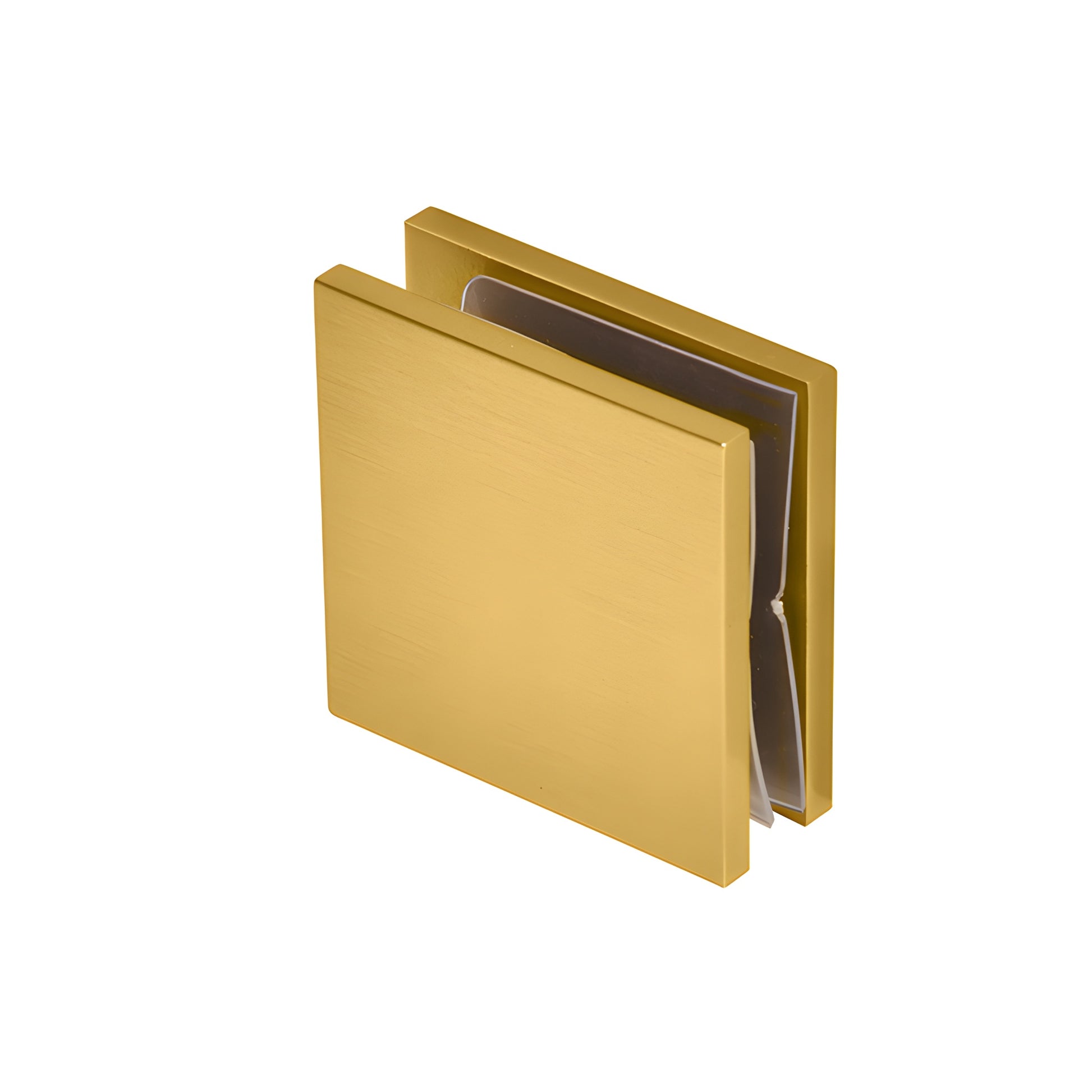

CRL Modern Gold Square Glass Clamp for Hole-in-Glass Fixed Panel
CRL Modern Gold Square Glass Clamp for Hole-in-Glass Fixed Panel
Regular price
$47.66 CAD
Regular price
Sale price
$47.66 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SCU4MG
Shipping Weight: 7.52 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 7.52 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Modern Gold
Glazing Thickness
3/8 in. To 1/2 in. (10 mm To 12 mm)
Material
Brass
Mounting Type
Wall Mount
Replacement Clamping Screw
P6150RB
Overview
- Fabrication: 5/8" or 3/4" (16 or 19 mm) hole in panel
- Use: secures fixed glass panels for frameless shower enclosures
- Material: solid brass
- Design benefit: alternative to traditional U-channel—clamps support a cleaner "all-glass" appearance
- Glass fabrication required to accommodate clamps; use monolithic tempered glass
CRL Square Wall Mount Clamp (Hole-in-Glass Style) — SKU: SCU4MG mounts directly to wall, ceiling, or floor to secure vertical fixed glass panels. Clearance between glass and wall is 3/16" (5 mm). Clear silicone can be applied for a neat, water-tight seal. Ideal for frameless shower clamp installations and hole-in-glass wall mount applications.
SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: SGCU1 requires notch; SCU4, SGC037, and SGC039 require 3/4" (19 mm) holes
Includes: Mounting screws and gaskets
Order the SCU4MG solid brass hole-in-glass wall mount clamp for a sleek frameless shower finish—add to cart or contact us for help with glass fabrication requirements.
