Product Details
- For 3/8" to 1/2" (10 to 12 mm) Glass
- Glass Fabrication: 5/8" or 3/4" (16 or 19 mm) Hole in Panel
- Used to Secure Fixed Panels of Glass for Frameless Shower Enclosures
- Solid Brass
- A Nice Option to More Traditional U-Channel, in that the Clamps Help the Appearance of an 'All-Glass' Look
- Glass Fabrication Required to Accommodate Clamps
- Use Monolithic Tempered Glass

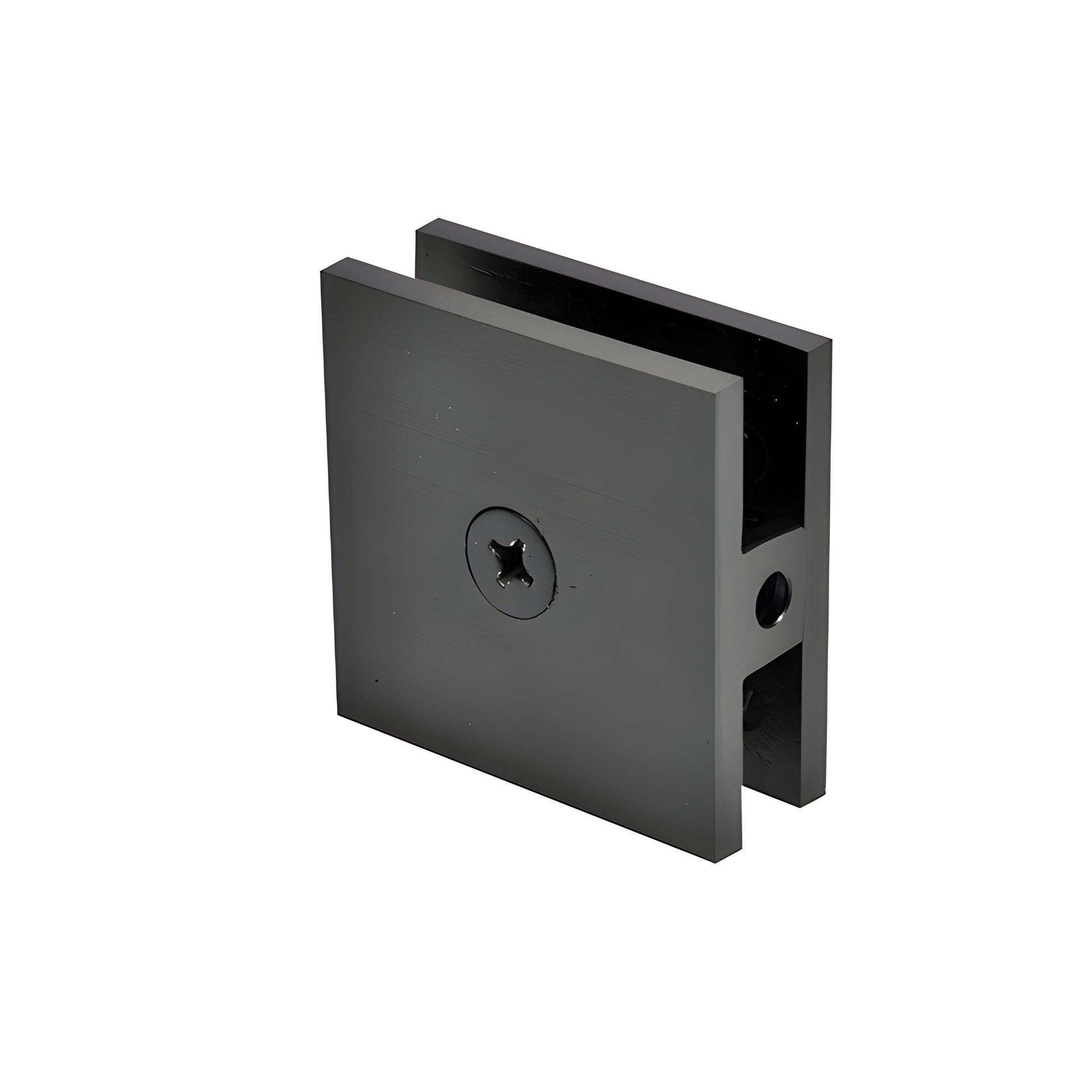

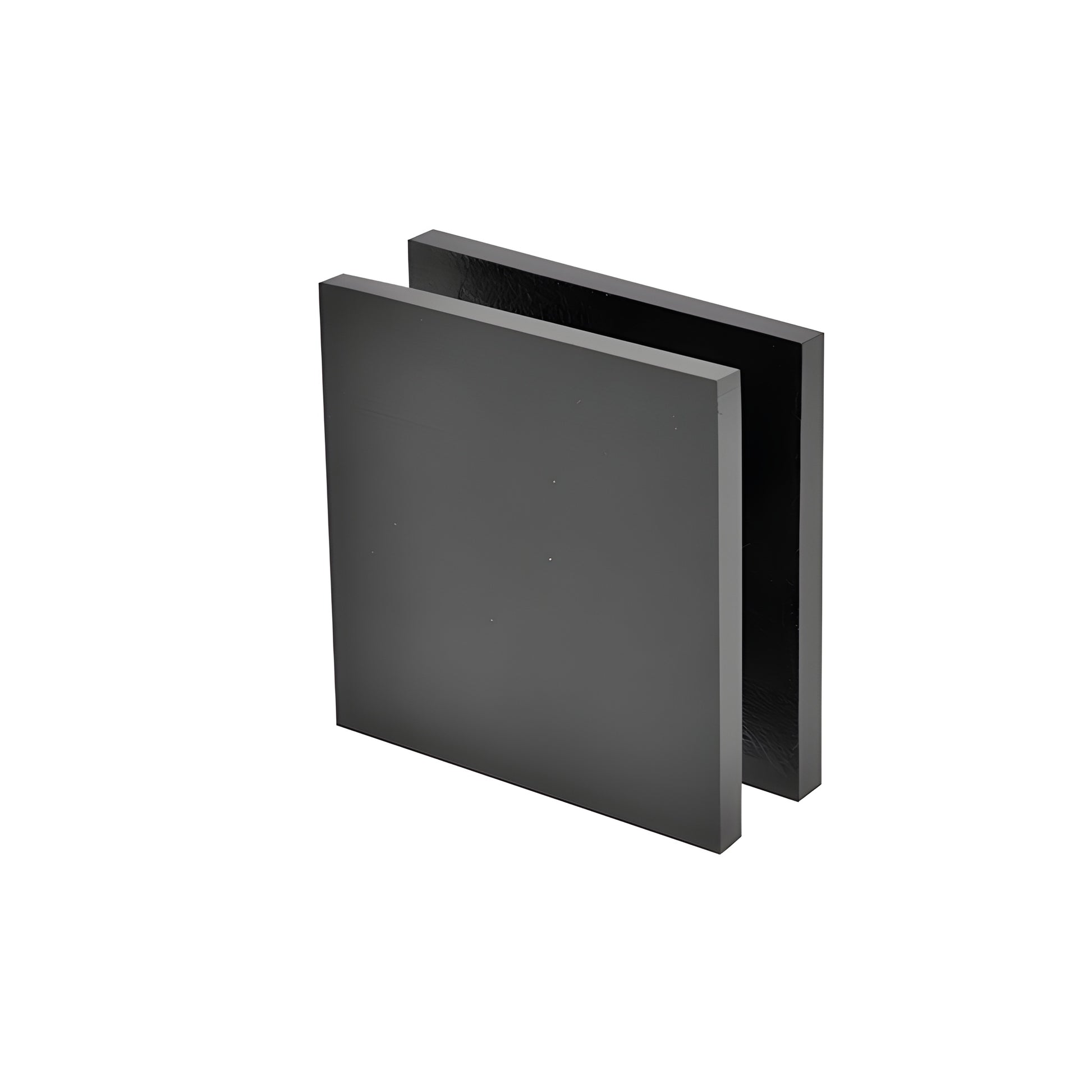

CRL Square Wall Mount Clamp (Hole-in-Glass Style) mount directly to the wall, ceiling or floor to secure vertical fixed glass panels. Clearance between the glass and wall is 3/16" (5 mm). Clear silicone can be used to provide a clean, water-tight seal.
SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: SGCU1 Requires Notch; SCU4, SGC037, and SGC039 Require 3/4" (19 mm) Holes
Includes: Mounting Screws and Gaskets
