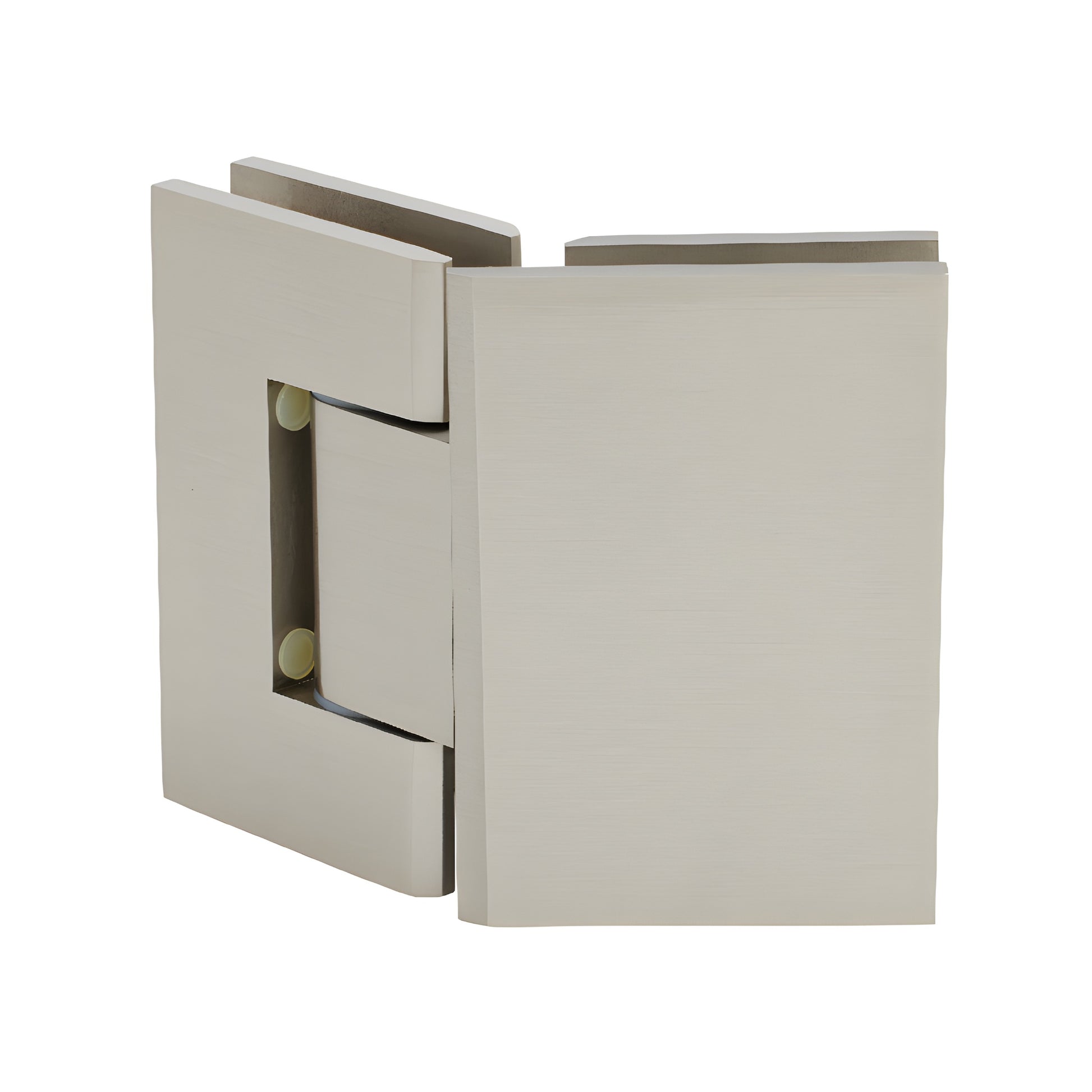

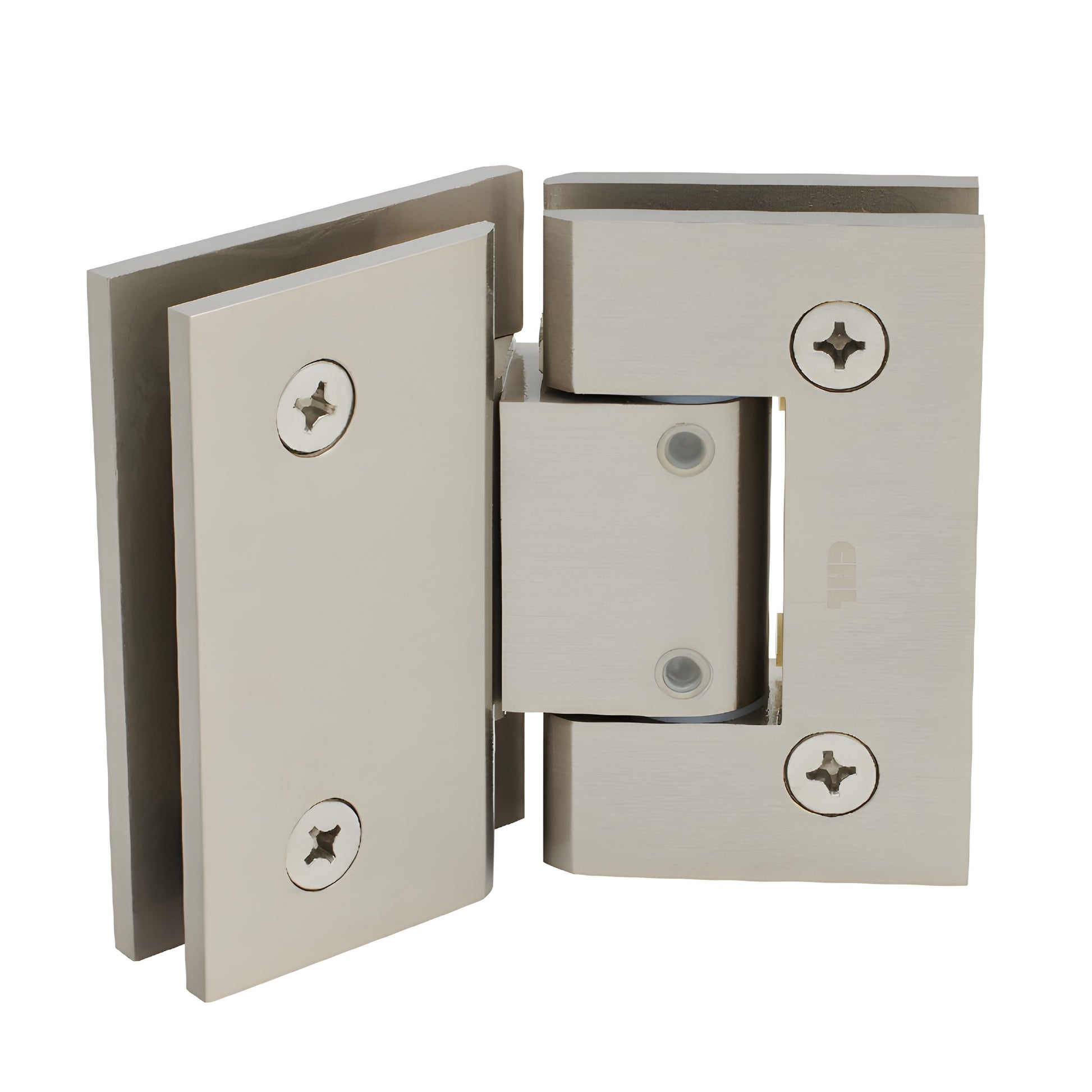

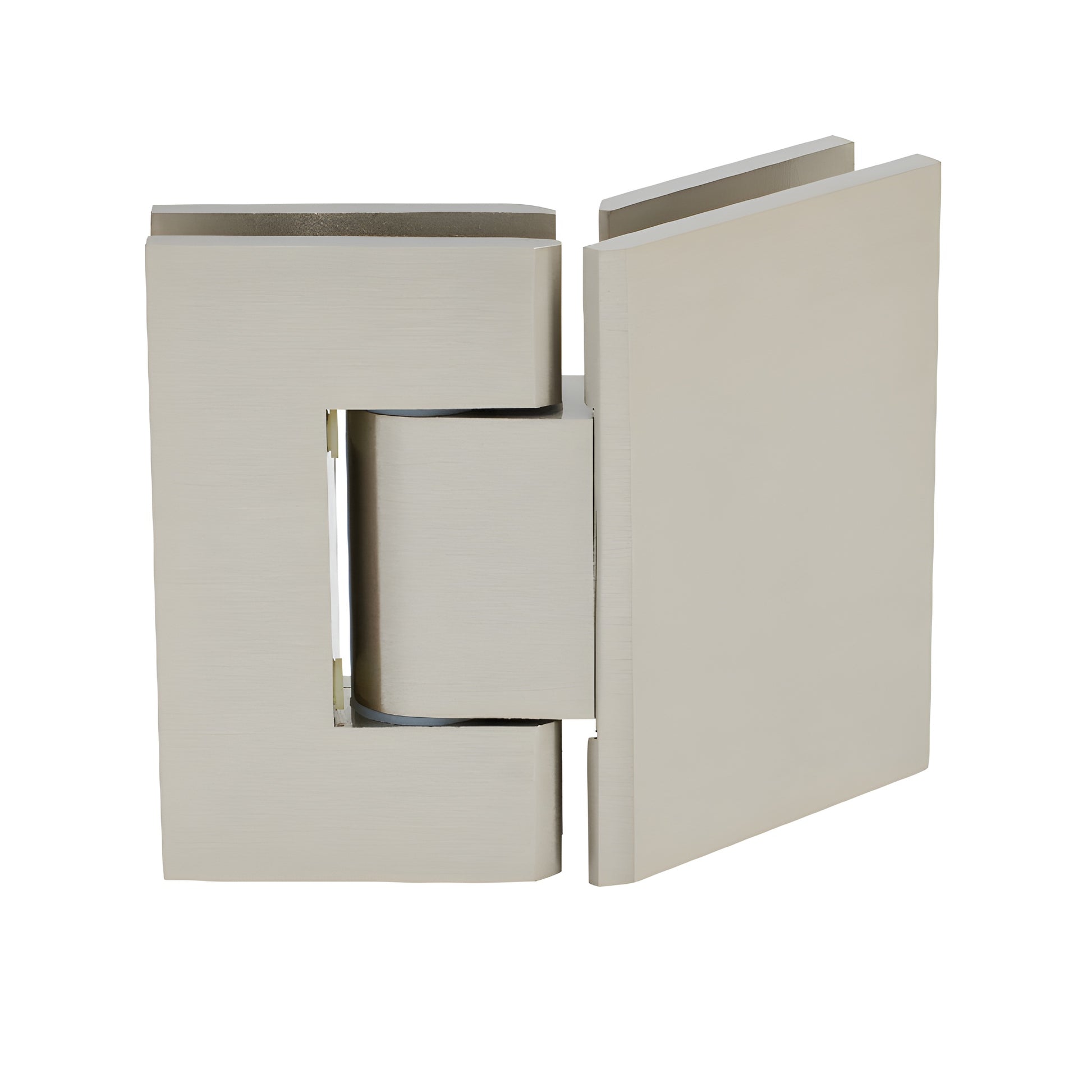

CRL Geneva 345 135° Brushed Nickel Adjustable Frameless Shower Hinge

• Adjustable to any angle up to 90° without removing door — ideal for adjustable shower door hinges
• Available in several beautiful finishes
• Three year warranty
• Adjustable 135° glass-to-glass option for frameless installations
• Designed for monolithic tempered safety glass

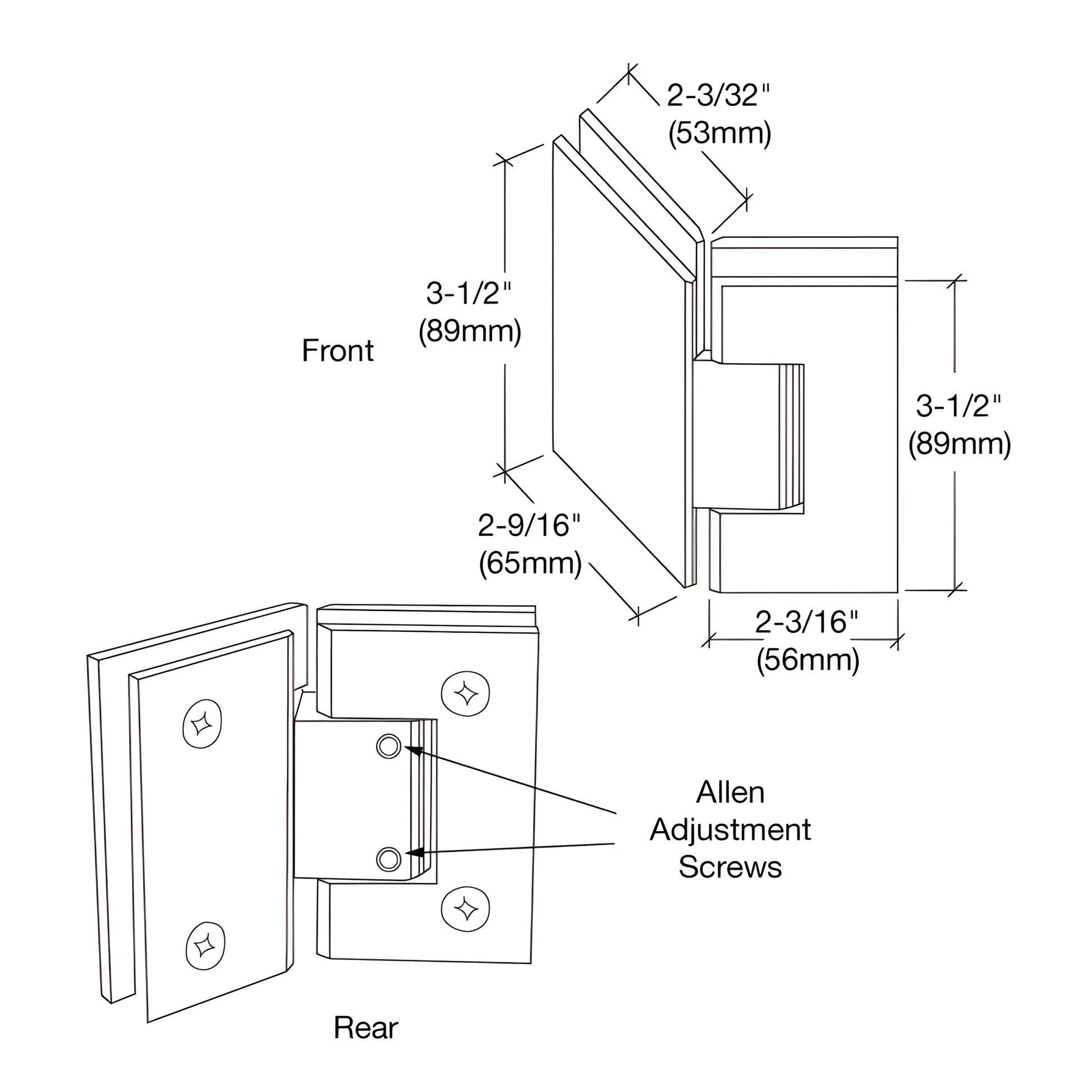

The CRL Adjustable Geneva Series (SKU: GEN345BN) upgrades the popular Geneva hinge into a fully adjustable shower door hinge. After installation you can fine-tune closing angle (up to 90°) without removing the door: loosen the Allen set screws, rotate the door to the desired position and re-tighten to self-center. The hinge supports 90° swing in and out from the factory set position; reducing the factory swing will proportionally change the available 90° travel. For outward-swinging doors (clear jamb installations) you can set the hinge to close 5° inside the shower for a snug jamb seal.

Performance:
Using two hinges with 5/16"–1/2" (8–12 mm) tempered glass: holds up to 80 lb (36 kg), max door width 28" (711 mm).
Using three hinges with 5/16"–1/2" (8–12 mm) tempered glass: holds up to 120 lb (54 kg), max door width 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
Special Features: Adjustable to any angle up to 90° without removing the door — perfect for frameless glass shower door adjustments
Construction: Solid brass (durable brass shower hinge)
Hinge Swings: 90° in and 90° out (at factory set position)
Closing Type: Self-centering when within 15° of closed position
Cut-Out Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. GEN13 gasket pack sold separately for 5/16" (8 mm) glass.

NOTE: Door glass width may require modification from standard clearance deductions when adjusting angles. Contact CRL Technical Sales for details.

Custom finishes available on request. Contact the CRL Technical Sales Shower Door Department for finish options and pricing.

Product Warning:

CRL shower door hinges are designed for residential and hotel shower use. For other applications, obtain approval from CRL Shower Door Technical Sales. Use only the template provided with this hinge—cut-out dimensions may differ from other brands.
