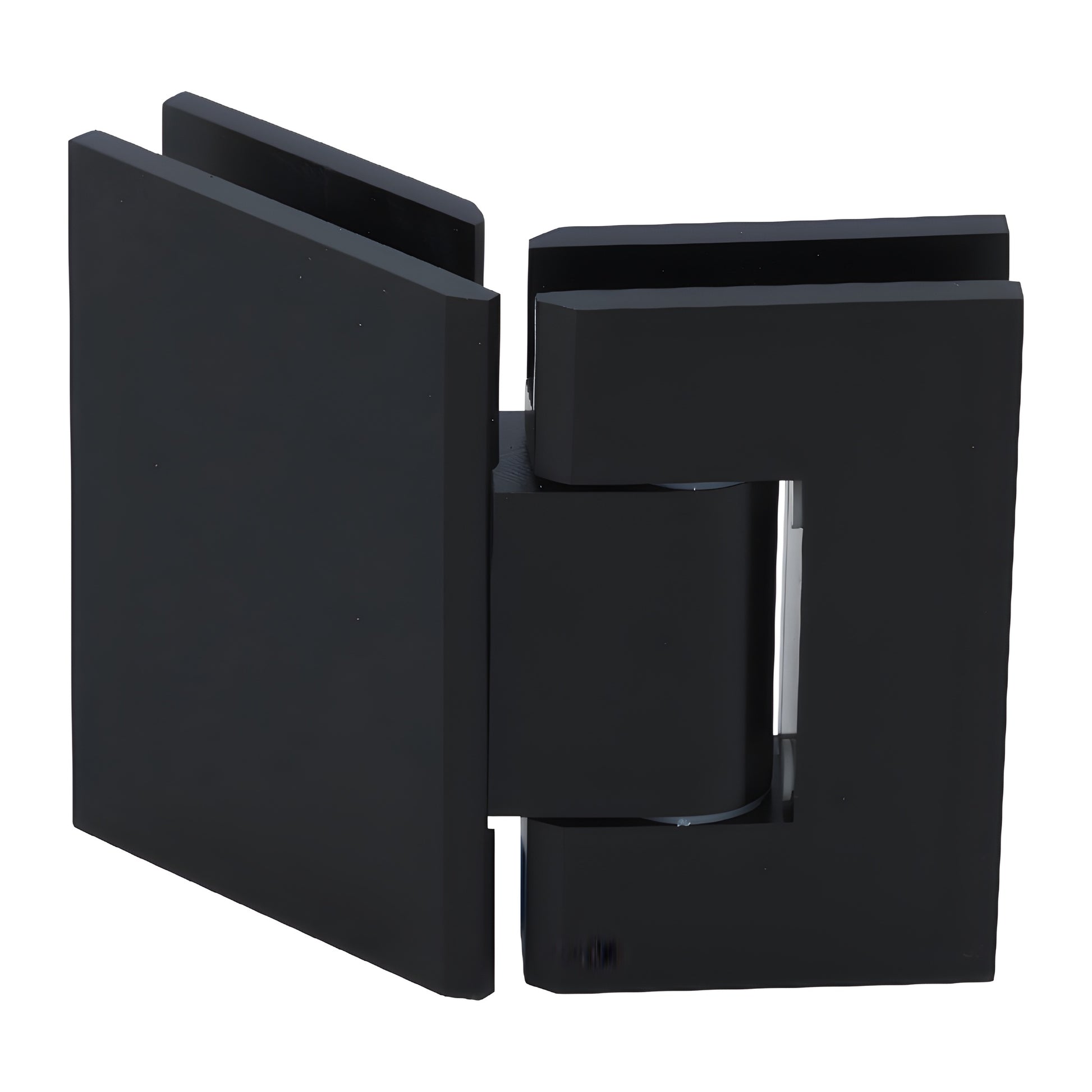

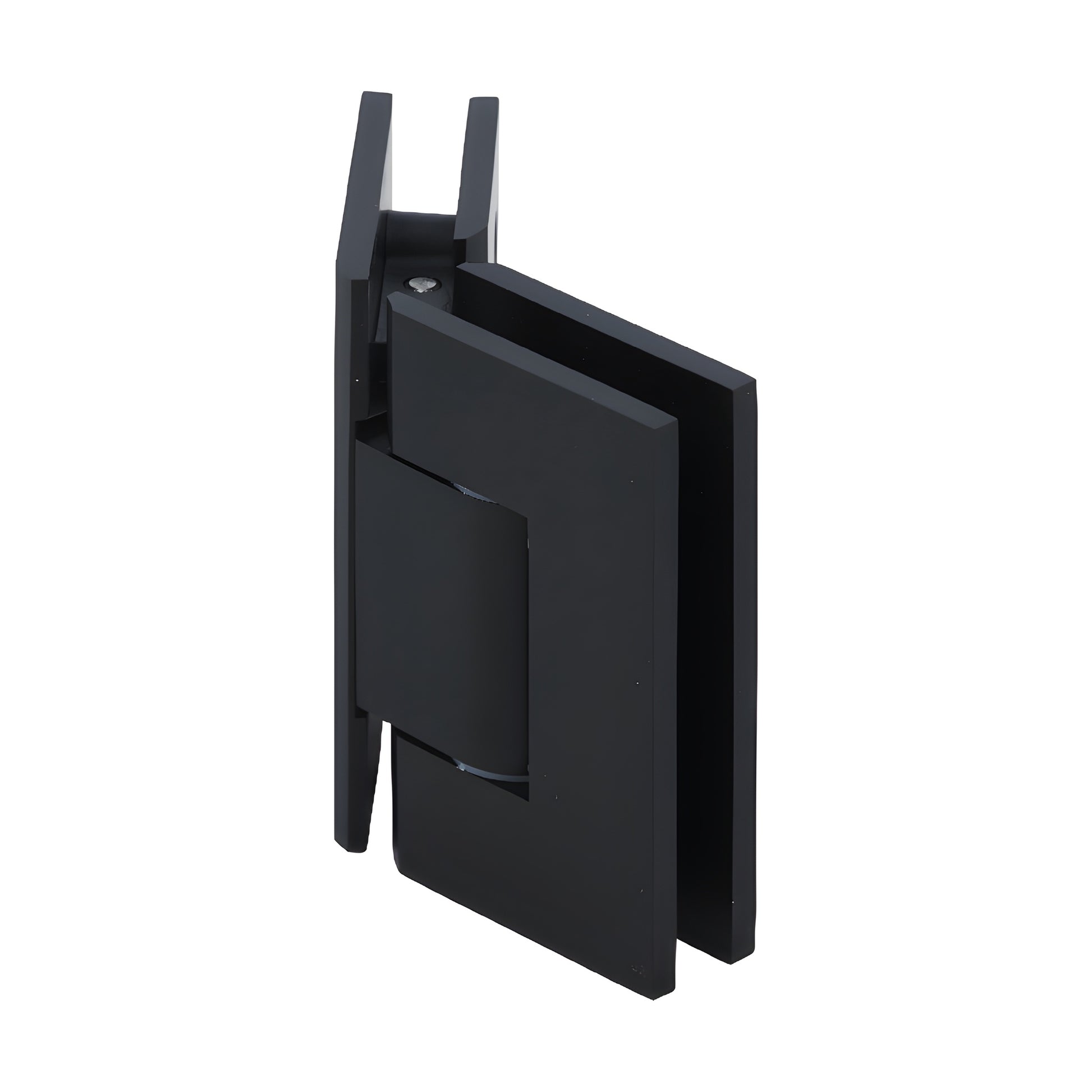

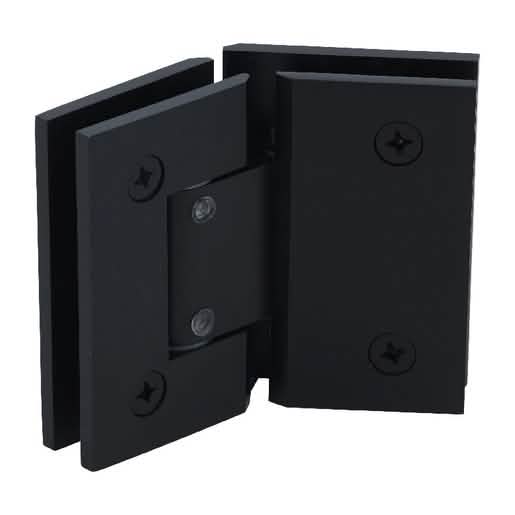

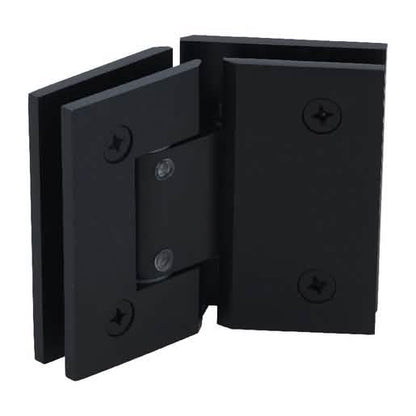

CRL Oil Rubbed Bronze Geneva 345 Series Adjustable 135 Degree Glass-to-Glass Hinge
CRL Oil Rubbed Bronze Geneva 345 Series Adjustable 135 Degree Glass-to-Glass Hinge
Regular price
$212.27 CAD
Regular price
Sale price
$212.27 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# GEN3450RB
Shipping Weight: 2.61 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 2.61 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| 5 Degree Pre-Set No | Yes |
| Edge | Profile Square |
| Finish/Color | Oil Rubbed Bronze |
| Glass To Glass Angle | 135 |
| Glazing Thickness | 5/16 in. To 1/2 in. (8 mm To 12 mm) |
| Height 3-1/2 in. | (89 mm) |
| Material | Brass |
| Maximum Door Weight - 2 Hinges 80 lbs. | (36.3 kg) |
| Maximum Door Weight - 3 Hinges 120 lbs. | (54.4 kg) |
| Maximum Door Width - | 2 Hinges 28 |
| Maximum Door Width - | 3 Hinges 32 |
| Mounting | Type Glass To Glass |
| Self-Centering Yes | Geneva |
| Width - Door Portion 2-3/16 in. | (56 mm) |
| Width - Sidelite Portion | 2-9/16 |
Overview
The CRL Adjustable Geneva Series elevates our renowned Geneva Hinge by offering versatile adjustments to angles up to 90 degrees without removing the door, available in several stunning finishes for added elegance.
Featuring a robust construction with solid brass, these hinges can accommodate monolithic tempered glass and support up to 120 lbs with three hinges, ensuring durability and style for your shower doors.
With a three-year warranty, the Geneva Series guarantees lasting performance and is designed for residential or hotel use, with custom finishes available upon request.
For precise angle adjustments, please contact the CRL Technical Sales Shower Door Department to ensure optimal fit and function.
Featuring a robust construction with solid brass, these hinges can accommodate monolithic tempered glass and support up to 120 lbs with three hinges, ensuring durability and style for your shower doors.
With a three-year warranty, the Geneva Series guarantees lasting performance and is designed for residential or hotel use, with custom finishes available upon request.
For precise angle adjustments, please contact the CRL Technical Sales Shower Door Department to ensure optimal fit and function.
