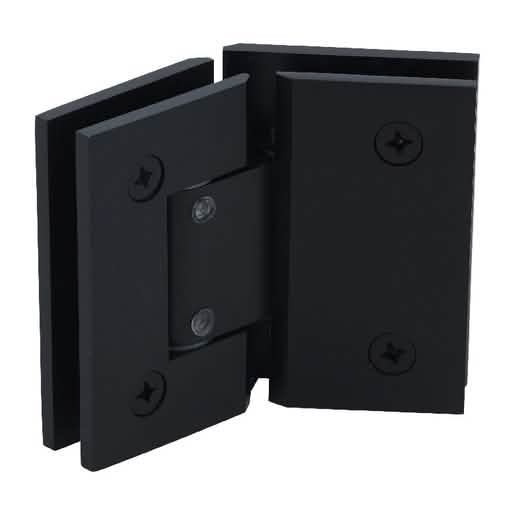

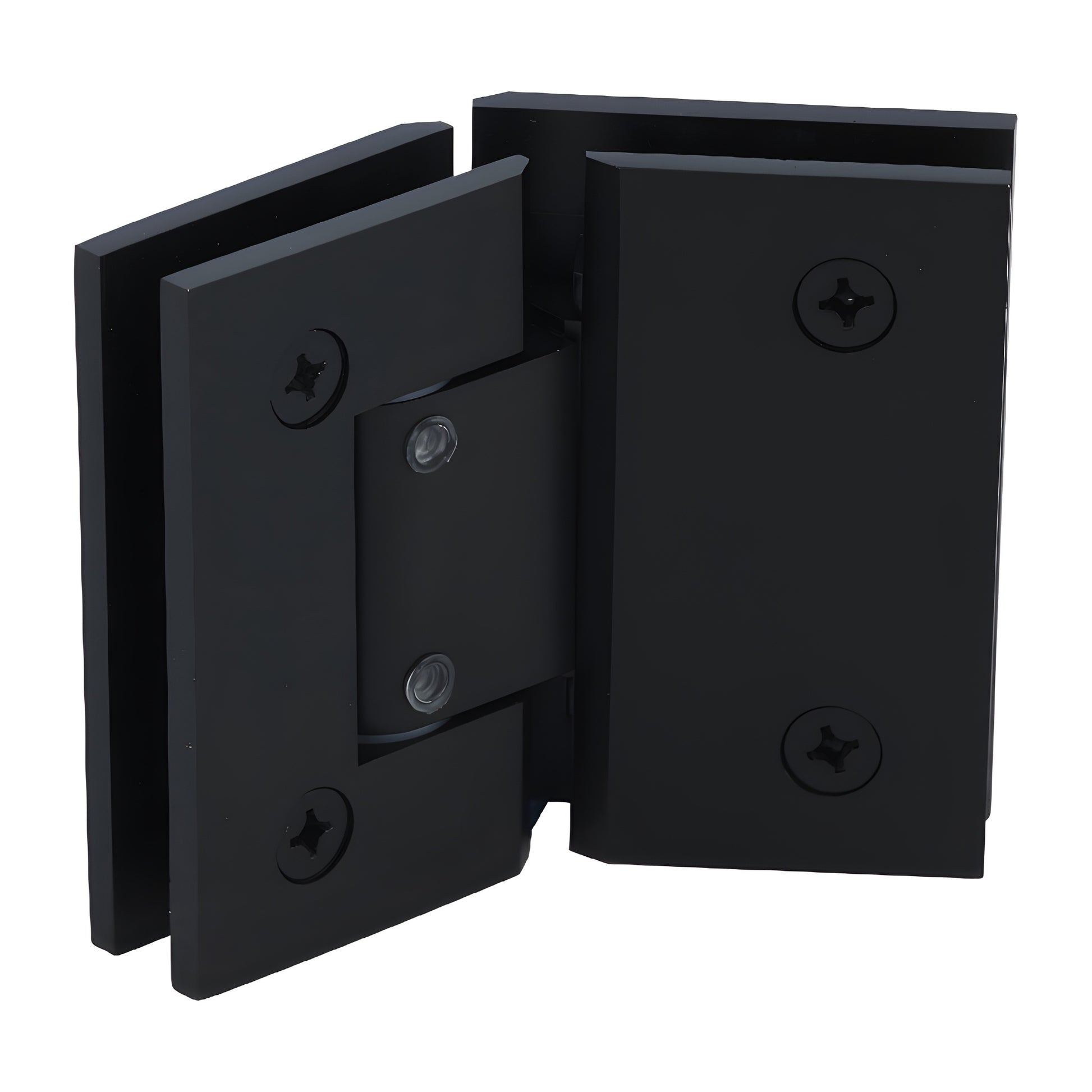

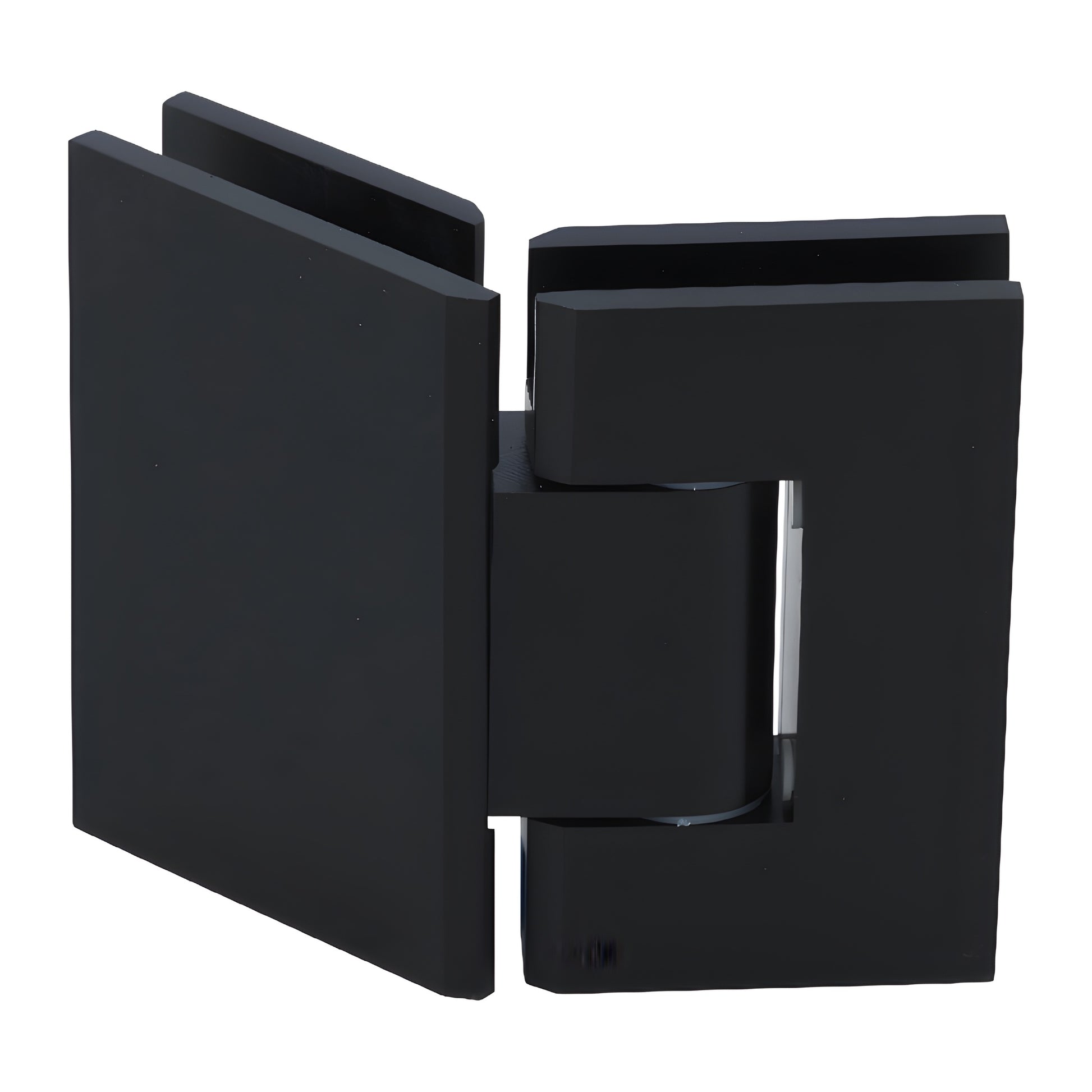

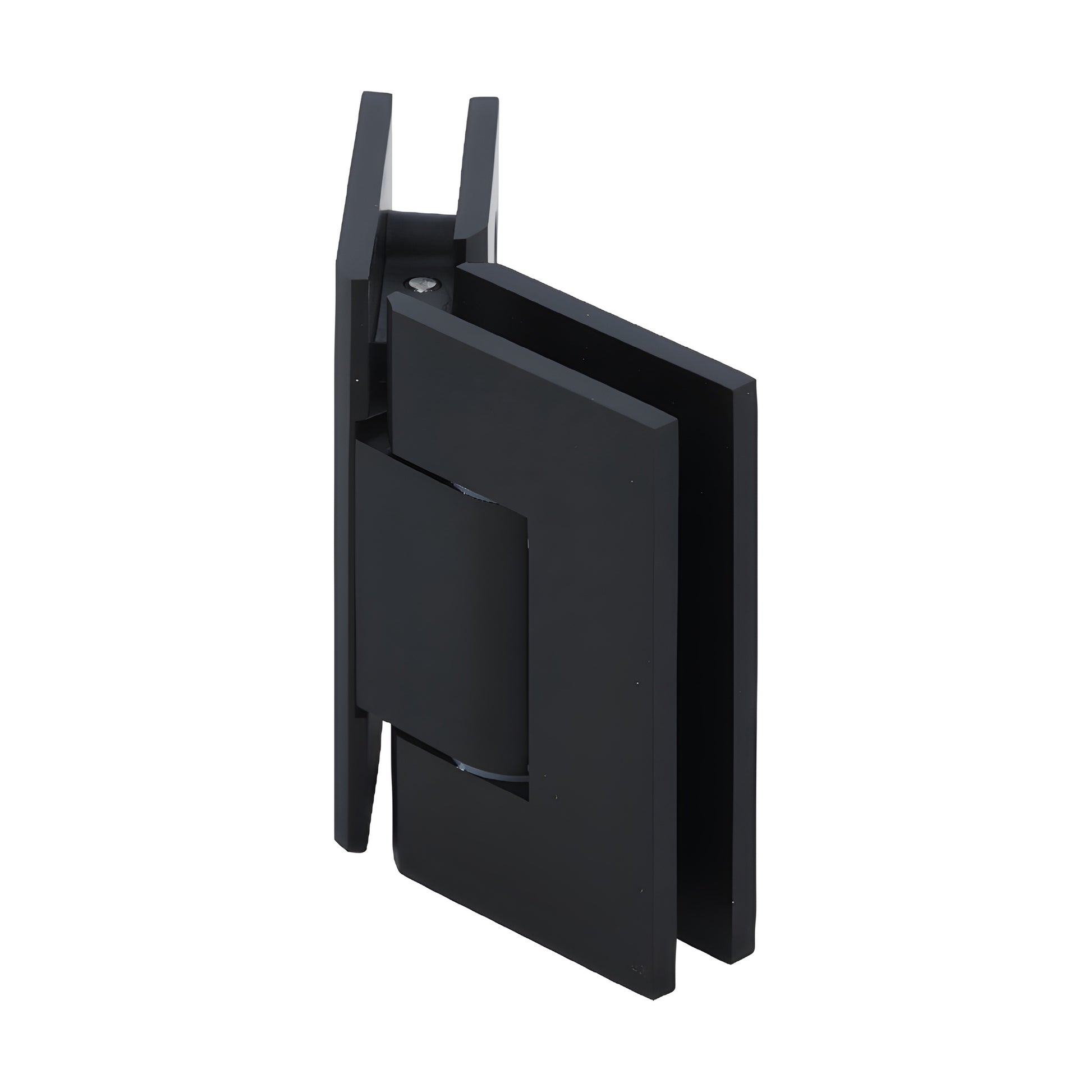

CRL Matte Black Geneva 345 Adjustable 135° Glass-to-Glass Shower Hinge

• Adjustable to any angle up to 90 degrees without removing door
• Available in several beautiful finishes
• Three year warranty
• Adjustable 135 degree glass-to-glass
• For use with monolithic tempered glass

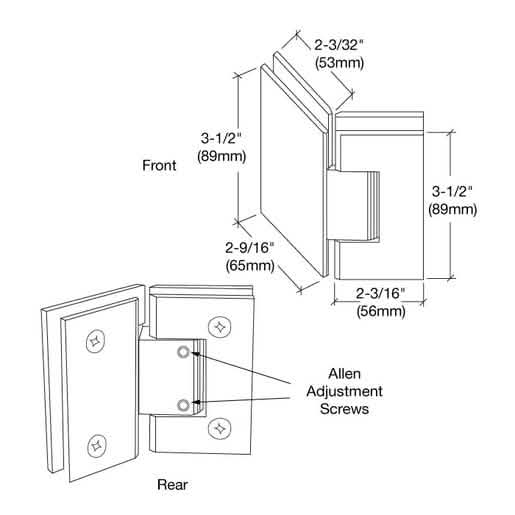

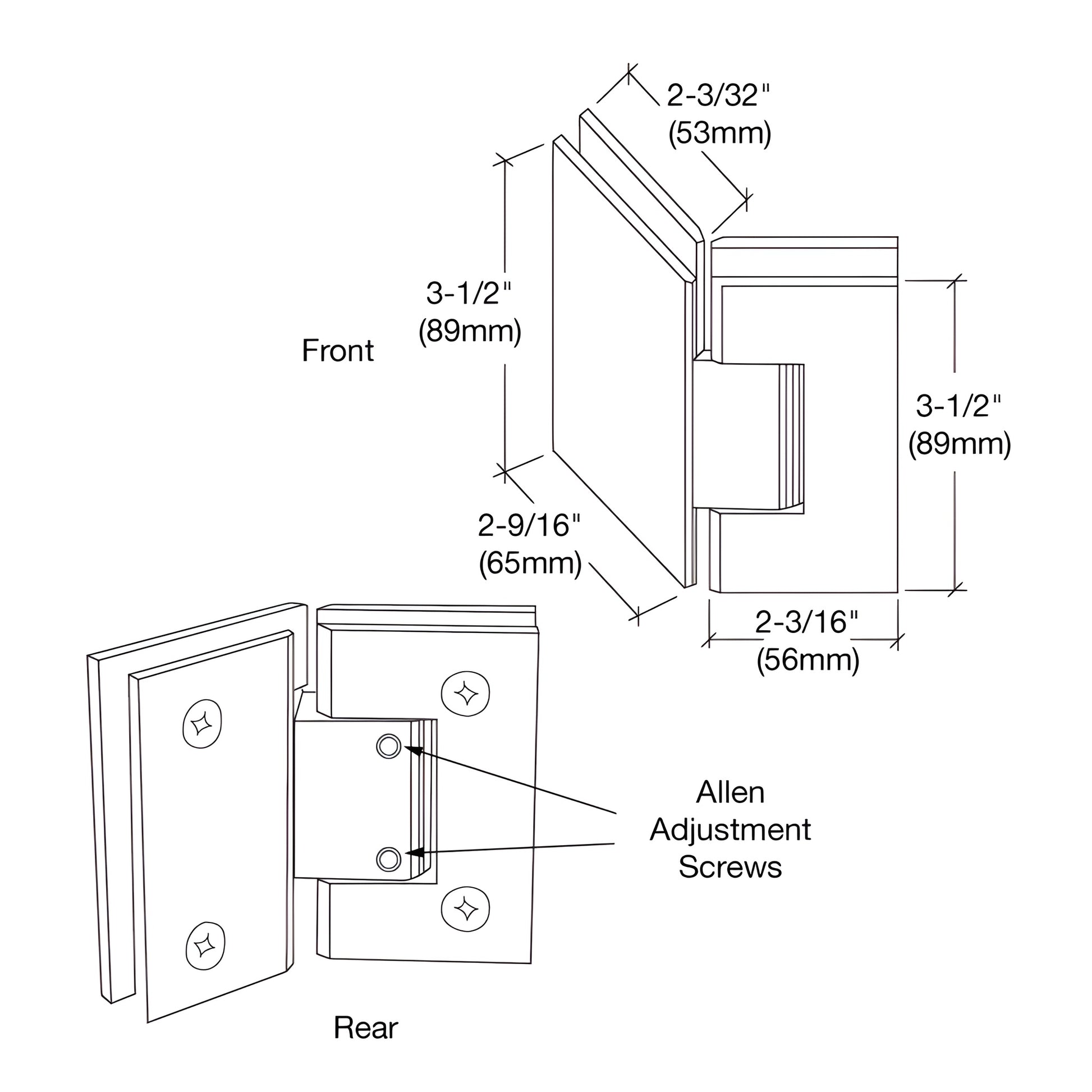

The CRL Adjustable Geneva Series (SKU: GEN345MBL) upgrades the popular Geneva hinge into a fully adjustable glass shower hinge. Adjust the closing angle up to 90° after installation—no door removal required. Loosen the Allen set screws, rotate the door to the desired position, then tighten; the hinge self-centers when within 15° of the closed position. The door can swing 90° inward and 90° outward (note: adjusting from the factory-set position can reduce swing in that direction). For doors that pull outward only (clear door jambs), adjust the hinge so the door closes 5° inside the shower for a snug jamb seal.

Capacity & glass:
Using two hinges: with 5/16" to 1/2" (8–12 mm) tempered glass, holds up to 80 lbs (36 kg); max door width 28" (711 mm).
Using three hinges: with 5/16" to 1/2" (8–12 mm) tempered glass, holds up to 120 lbs (54 kg); max door width 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
Special Features: Adjustable to any angle up to 90º without removing door; ideal as an adjustable glass shower hinge and self-centering shower door hinge
Construction: Solid brass
Hinge Swings: 90º in and 90º out (at factory set position)
Closing Type: Self-centering when within 15º of closed position
Cut-Out Required Includes: gaskets, screws, and glass fabrication dimensions. Cat. No. GEN13 gasket pack must be purchased separately for use with 5/16" (8 mm) tempered glass.

NOTE: Door glass width may require alteration from standard clearance deductions when adjusting angles. Call for details.

Custom finishes are available on request. Contact the CRL Technical Sales Shower Door Department.

CRL shower door hinges are designed for residential or hotel shower use. For alternate applications, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge—cut-out dimensions may not match other brands.
