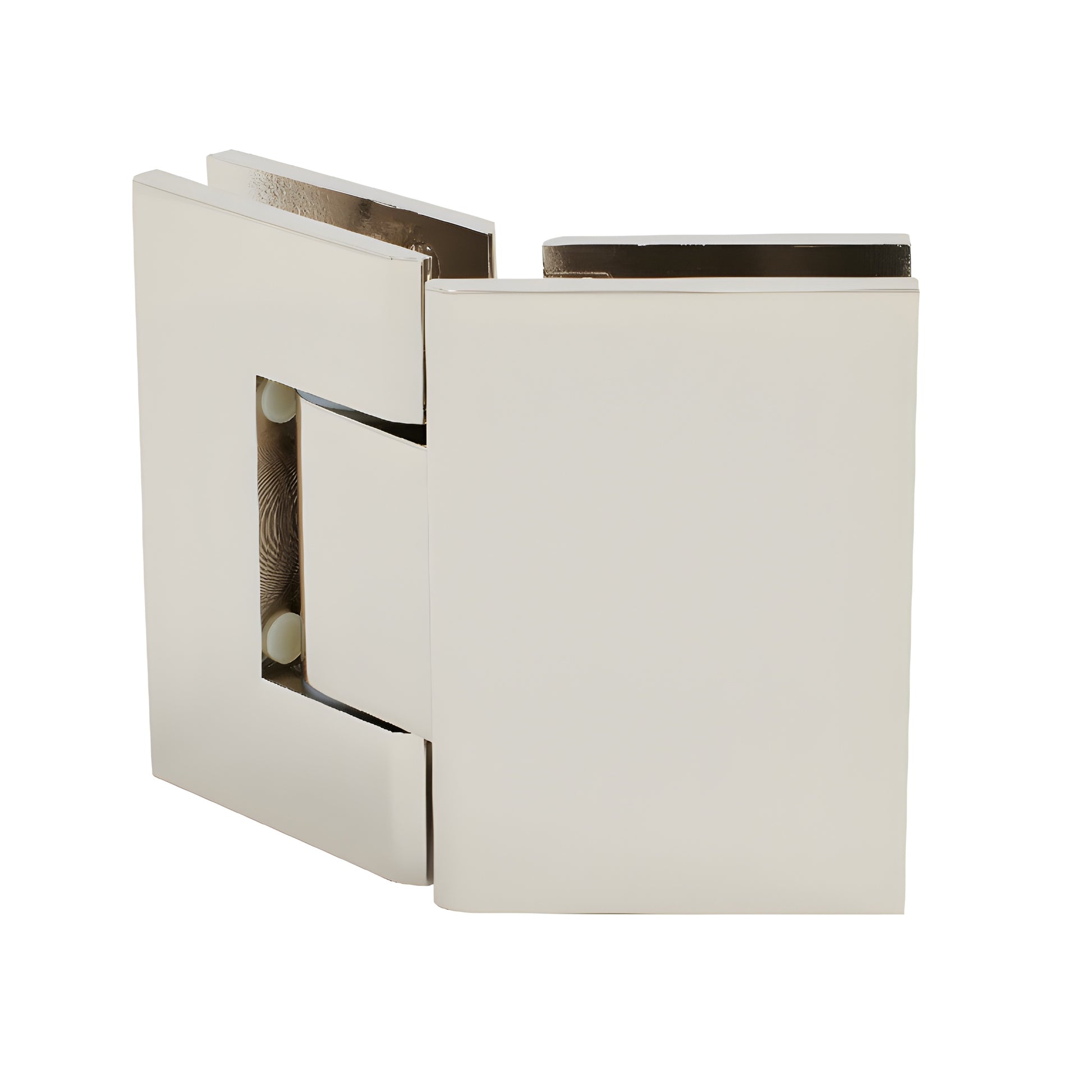

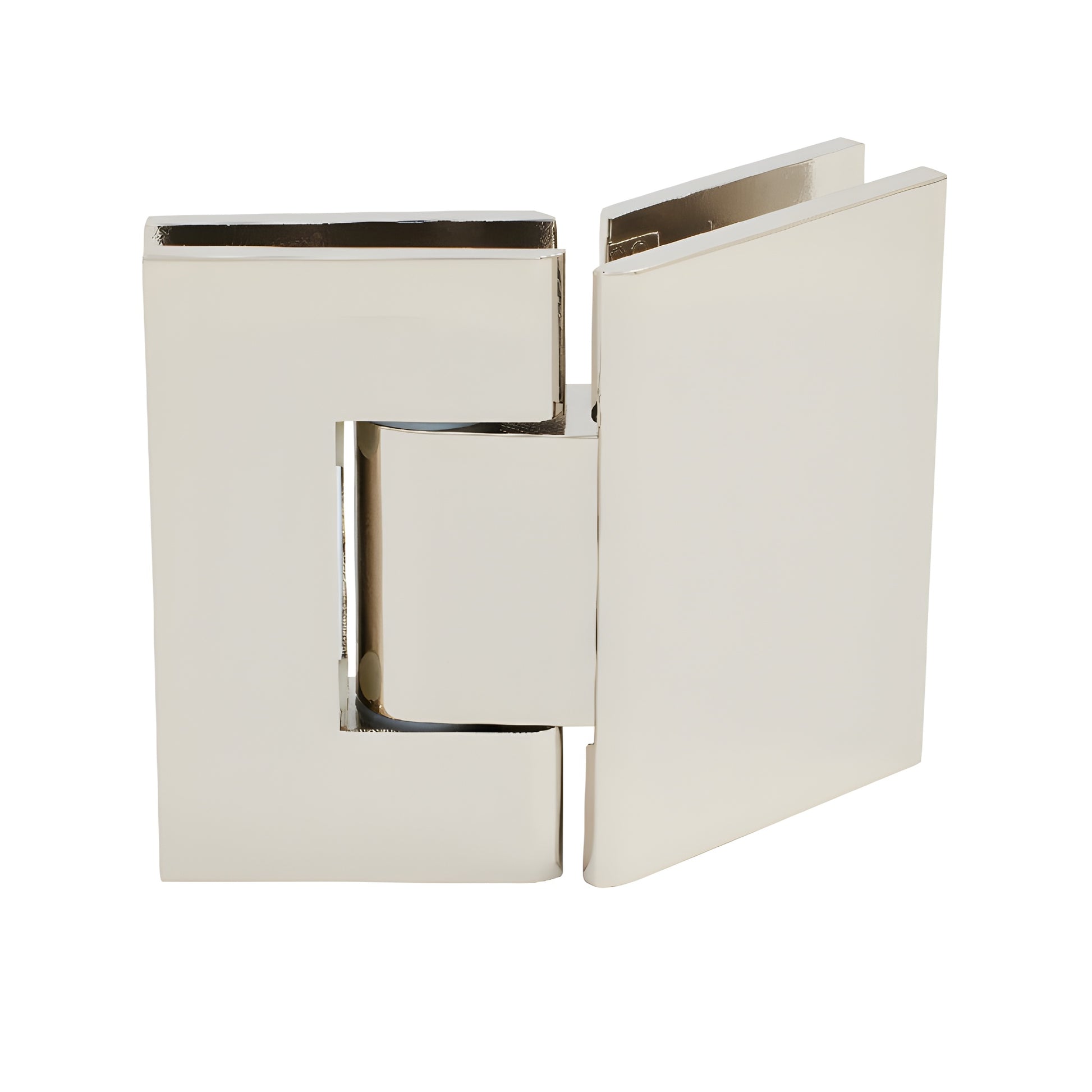

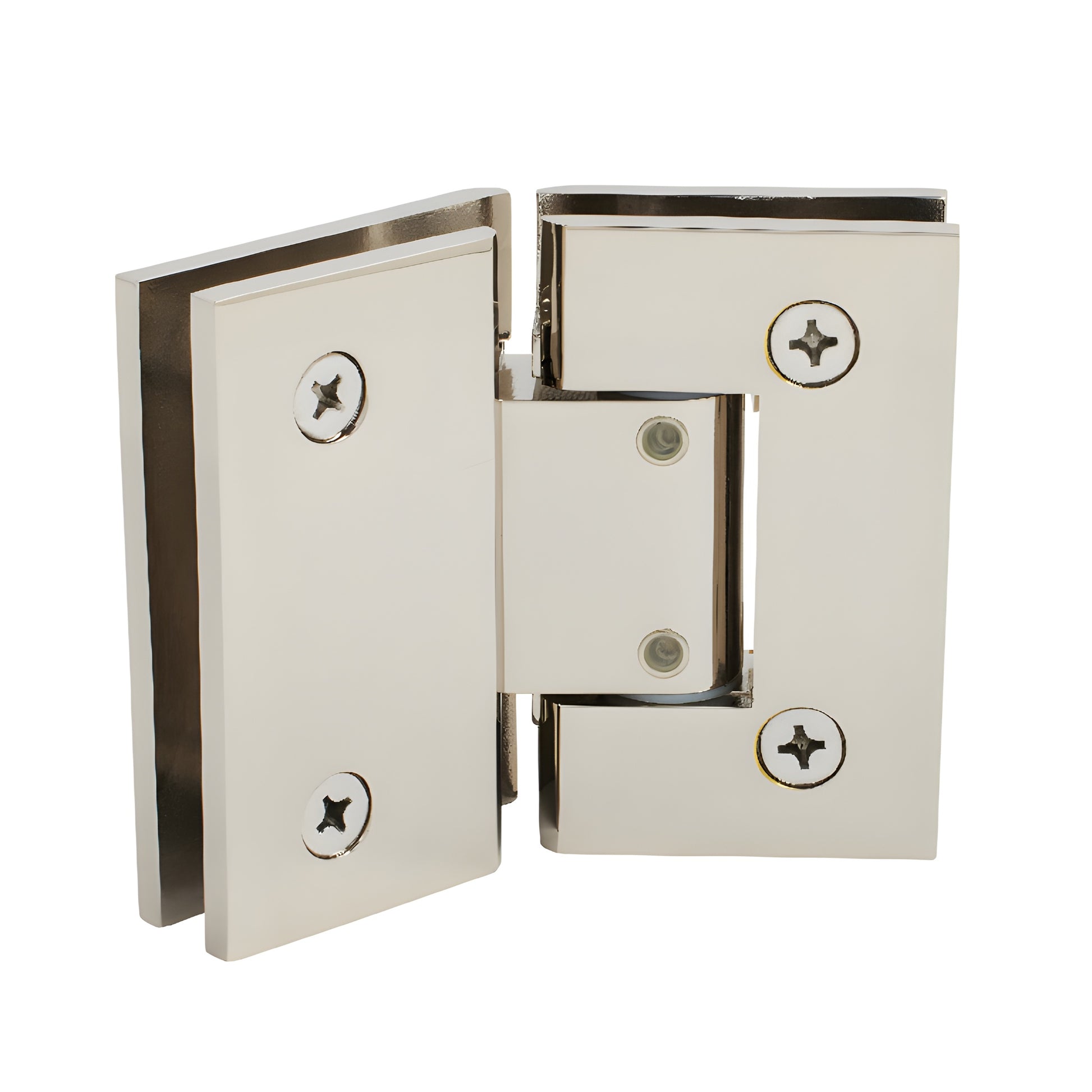

CRL Geneva 345 Polished Nickel 135° Adjustable Glass Shower Hinge

• Adjustable to any angle up to 90 degrees without removing the door
• Available in several beautiful finishes
• Three year warranty
• Adjustable 135° glass-to-glass configuration option
• Designed for monolithic tempered safety glass

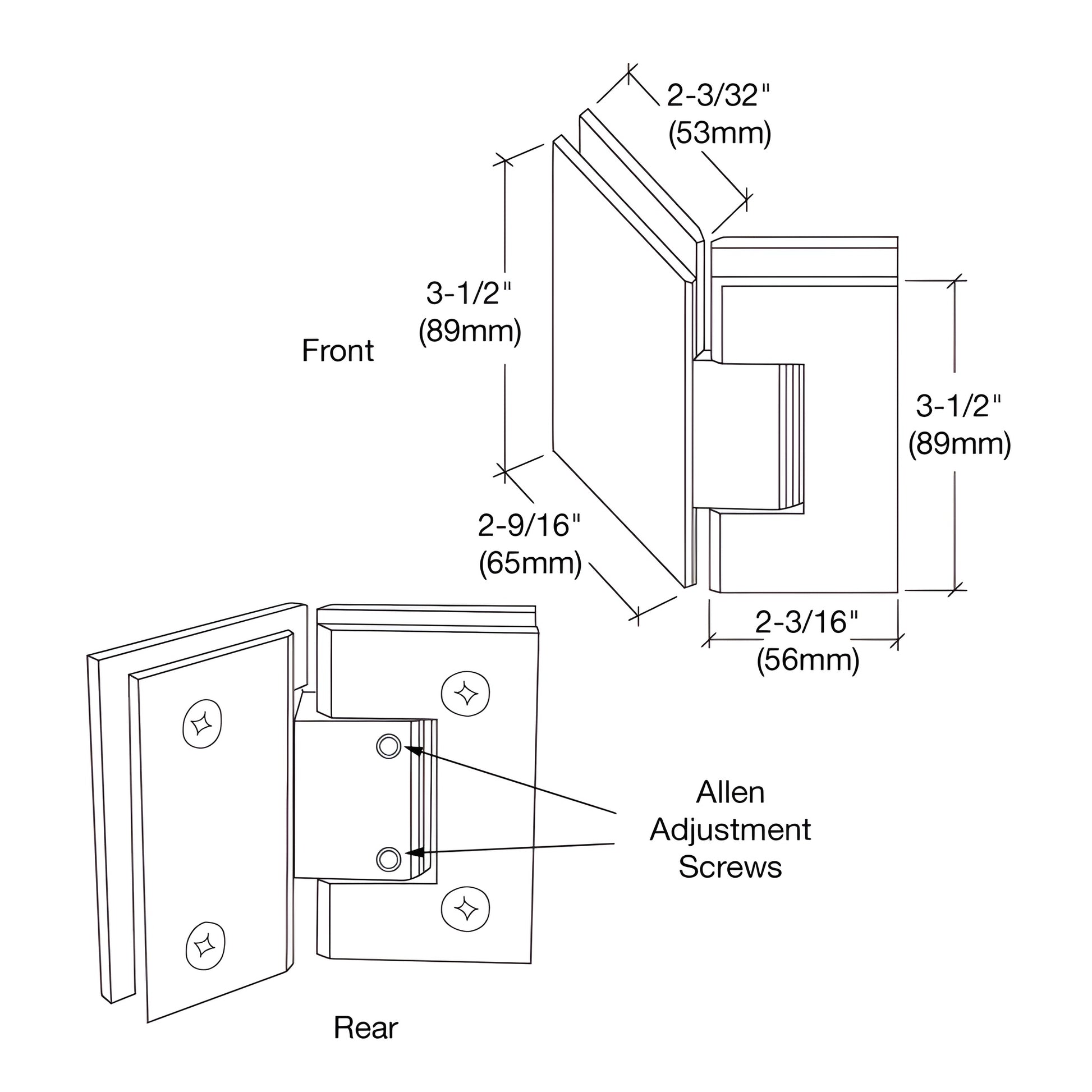

The CRL Adjustable Geneva Series builds on our popular Geneva hinge to deliver a field‑adjustable, self‑centering shower door hinge. After the door is installed, loosen the Allen set screws, rotate the door to the desired closing position (up to 90°), then retighten — the door will self‑center when within 15° of closed. The hinge allows 90° swing inward and 90° swing outward at the factory set position; adjusting the factory angle will reduce swing in that direction. For outward‑pulling doors with clear jambs, the hinge can be set to close 5° inside the shower for a snug jamb seal. This model is ideal for adjustable shower door hinge and glass‑to‑glass shower hinge applications.

Load Capacity:
Using two hinges: For 5/16"–1/2" (8–12 mm) tempered glass, supports up to 80 lbs (36 kg); maximum door width 28" (711 mm).
Using three hinges: For 5/16"–1/2" (8–12 mm) tempered glass, supports up to 120 lbs (54 kg); maximum door width 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
Special Features: Field adjustable to any angle up to 90° without removing door; ideal for adjustable shower door hinge installations
Construction: Solid brass for long‑lasting corrosion resistance and premium finish options
Hinge Swings: 90° in and 90° out (at factory set position)
Closing Type: Self‑centering within 15° of closed position
Cut‑Out Required Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. GEN13 gasket pack required separately for 5/16" (8 mm) glass.

NOTE: Adjusting hinge angles can affect standard clearance deductions and may require glass width alteration. Contact CRL Technical Sales for details.

Custom finishes available on request. Contact the CRL Technical Sales Shower Door Department.

Product Warning:

CRL shower door hinges are designed for residential and hotel shower use. For other applications, obtain approval from CRL Shower Door Technical Sales. Use only the template included with this hinge — cut‑out dimensions may differ from
