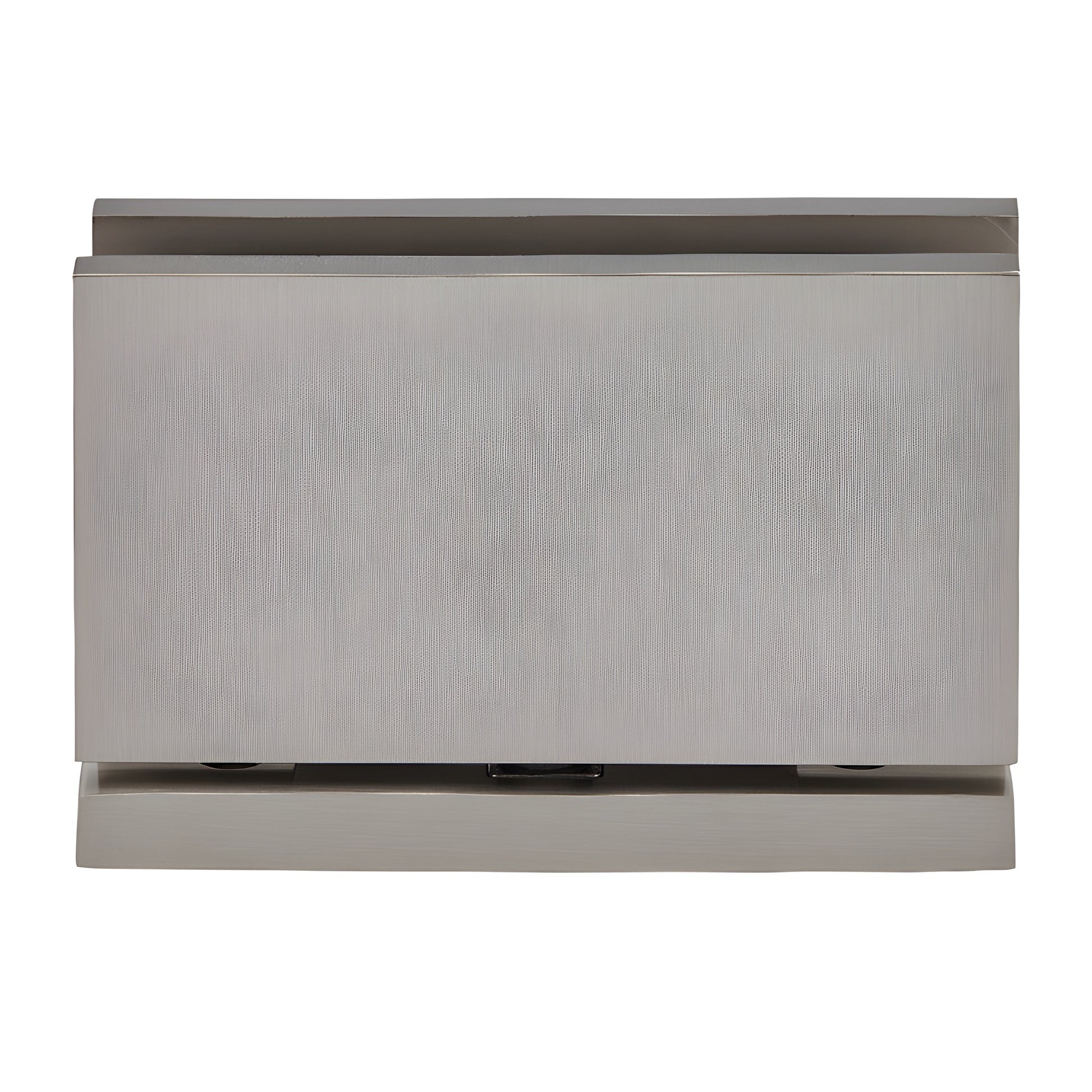

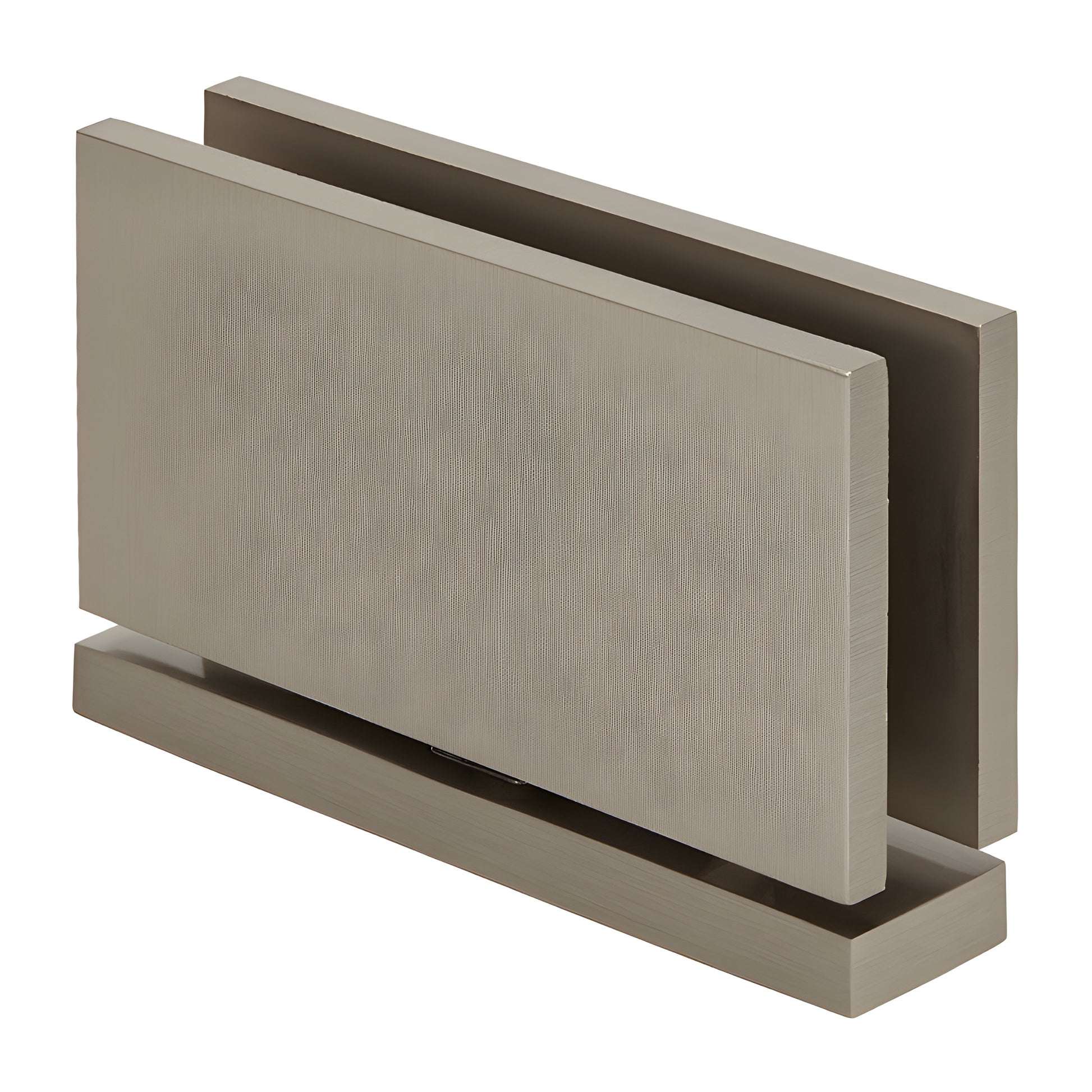

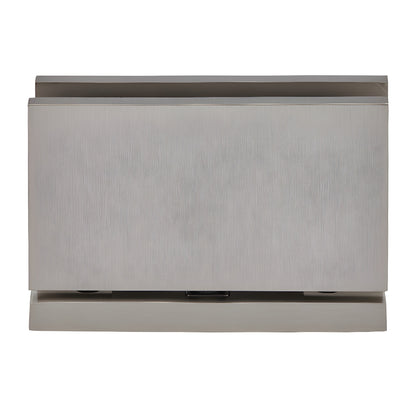

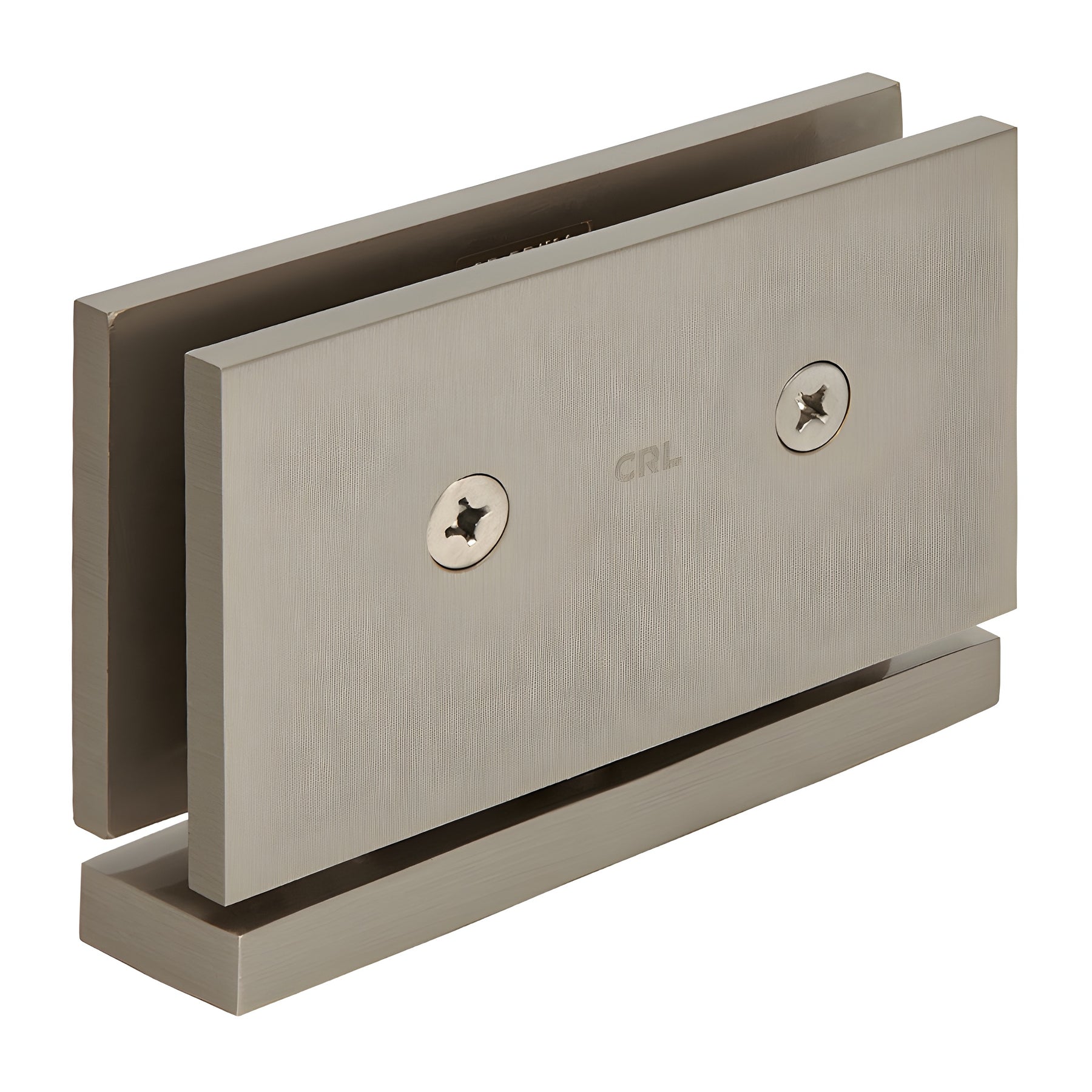

CRL Cardiff Senior Brushed Nickel Glass Shower Door Hinge

• Top or bottom mount pivot hinge — adaptable to CRL Deluxe Header Kit
• Larger Cardiff Series model to accommodate 1/2" (12 mm) thick tempered safety glass
• Square corners for a sharp, traditional aesthetic
• Designed for monolithic tempered glass shower doors
• Adaptable to CRL Deluxe Header System (Senior Adapter Block SRHAB01 sold separately)
• Stocked in many popular hardware finishes

CRL Senior Cardiff Series Top and Bottom Mount Pivot Hinges (SKU: SRCAR01BN) are engineered for 1/2" (12 mm) tempered safety glass used in residential and hotel shower doors. These top-and-bottom mount shower door pivot hinges carry the majority of door weight on the bottom hinge and can be inset from the door edge to provide clearance for towel bars and other projections — a practical long-tail benefit for remodels and custom enclosures.

Senior Cardiff hinges are self-centering with four strong springs for maximum retention strength. They adapt to the CRL Deluxe Header System using the Senior Adapter Block (SRHAB01 — order separately) for enclosures that do not reach the ceiling. For doors that do reach the ceiling, they can be mounted to the floor and ceiling.

Performance: Using two hinges with 1/2" (12 mm) glass, the pair will support up to 145 lbs. (66 kg) with a maximum door width of 36" (914 mm).

SPECIFICATIONS:

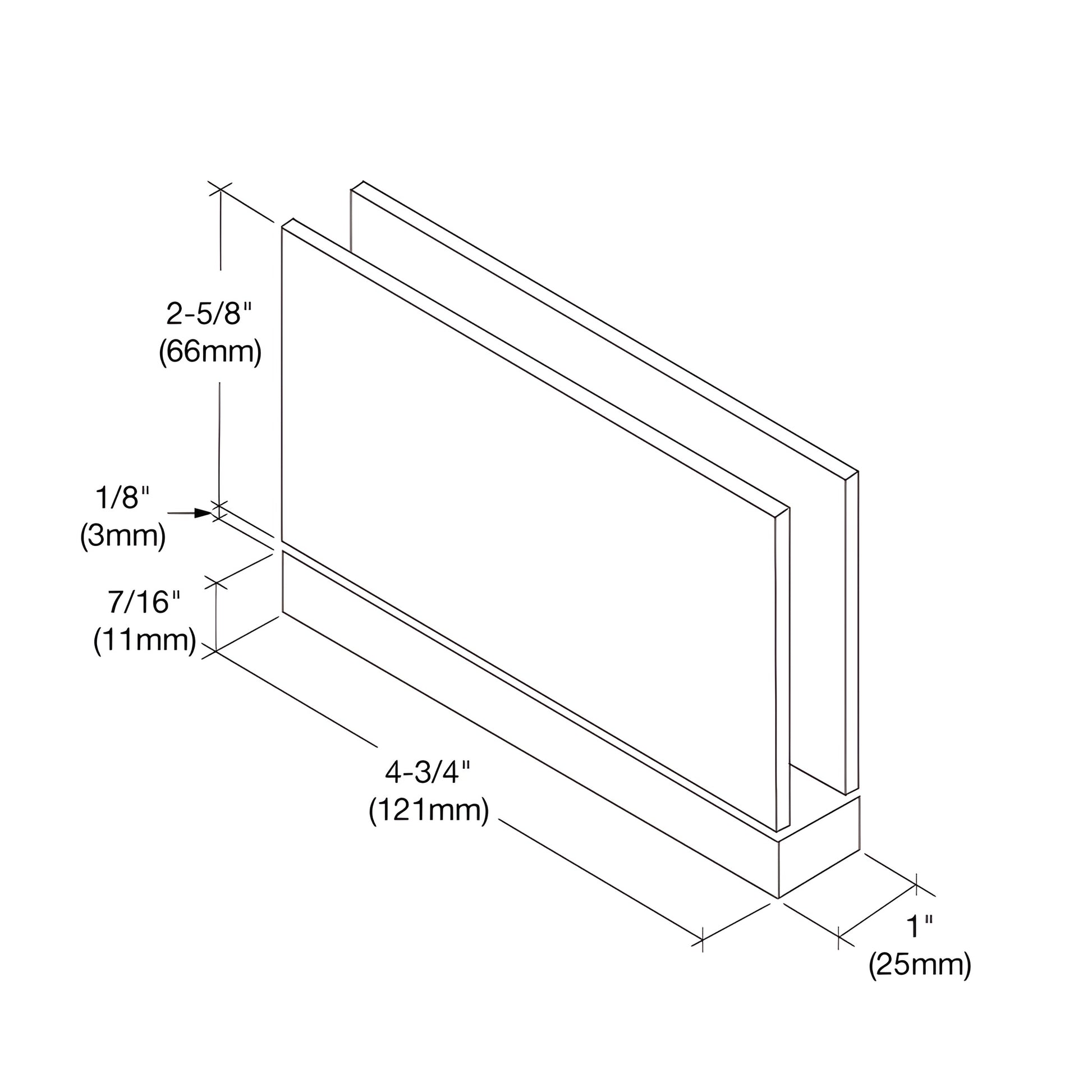

Glass Thickness: 1/2" (12 mm) tempered safety glass
Special Features: Top-and-bottom mount exposes more glass and can reduce glass fabrication/cut-out costs compared to side-mount glass-to-glass hinges
Construction: Solid brass
Hinge Swings: Full rotation
Closing Type: Self-centering within 15° of closed position
Includes: Gaskets, screws, and glass fabrication dimensions
Patent: Patented (Patent No. 5,297,313)

Optional: For a tighter 5° closer, use SRP1VP1N 5° pivot pins (sold separately) — one for the top hinge and one for the bottom hinge.

Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use only. For other applications, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge; cut-out dimensions may not match other brands.
