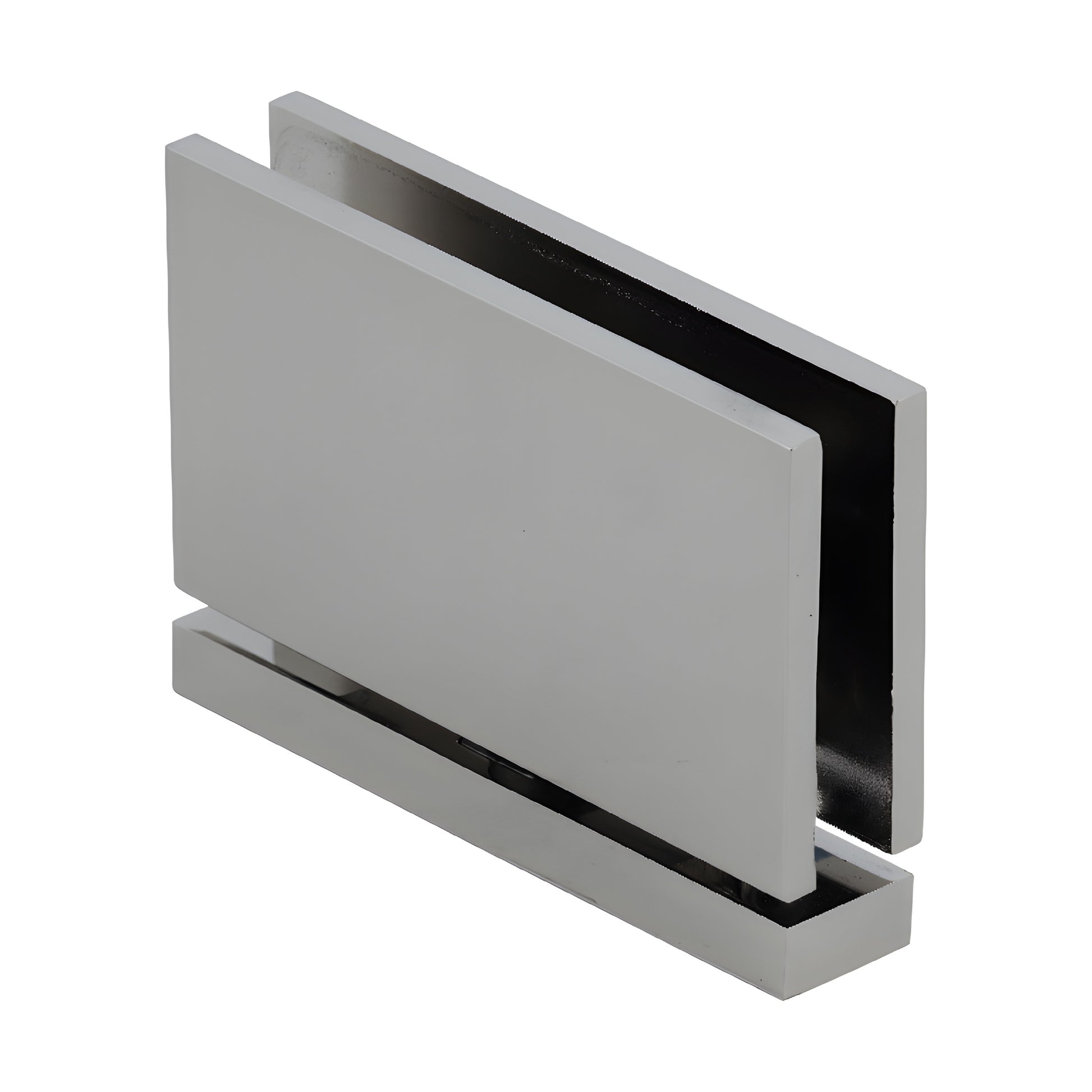

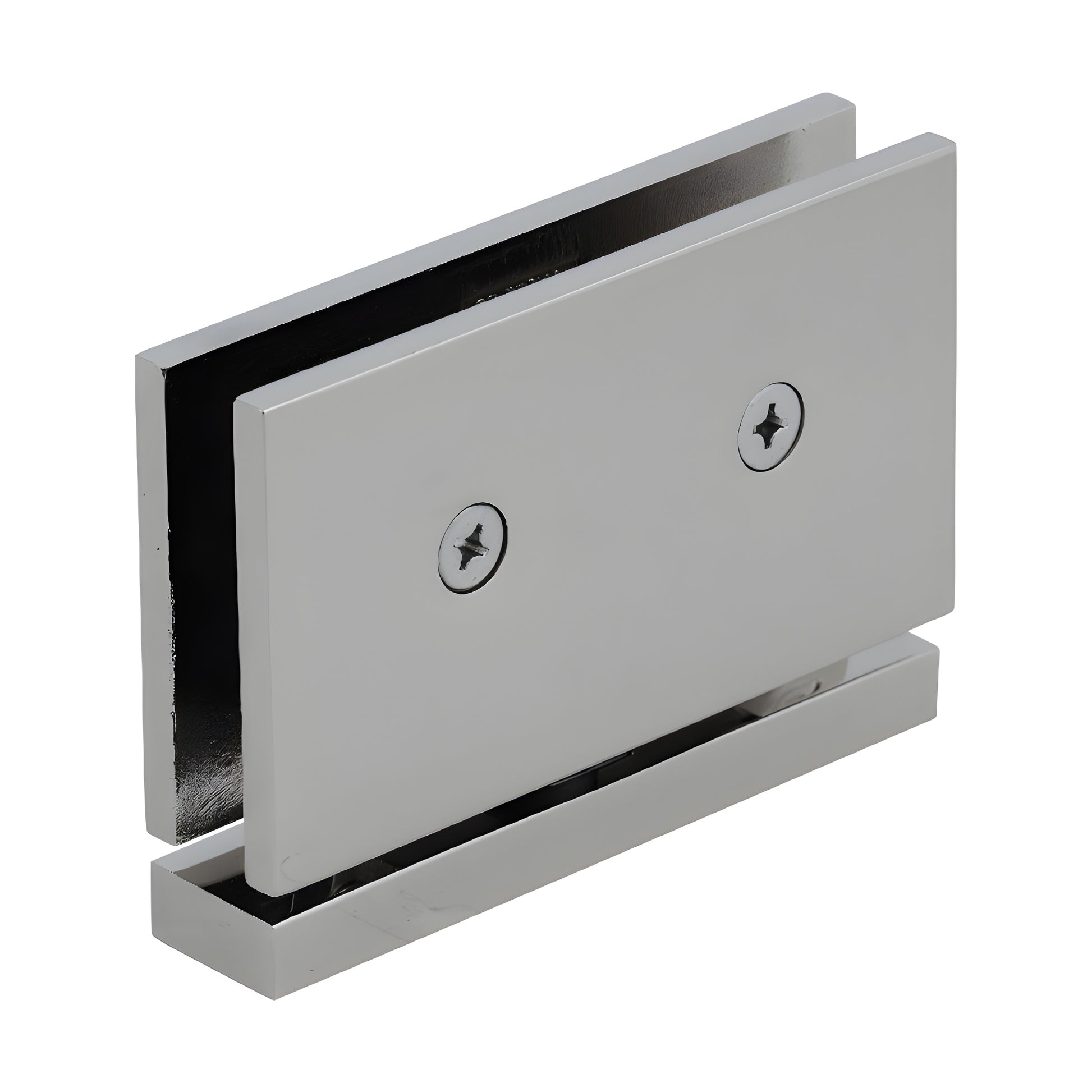

CRL Cardiff Senior Polished Nickel Glass Door Hinge

• Top or Bottom Mount — adaptable to CRL Deluxe Header Kit (requires SRHAB01 Adapter Block, sold separately)
• Larger version of the Cardiff Series to fit 1/2" (12 mm) thick tempered safety glass
• Square corners for a crisp, traditional appearance
• Designed for monolithic tempered glass shower doors
• Adaptable to CRL Deluxe Header System; simple floor-and-ceiling mount option for full-height doors
• Stocked in multiple popular hardware finishes

CRL Senior Cardiff Series Top and Bottom Mount Pivot Hinges — SKU: SRCAR01PN are engineered for 1/2" (12 mm) tempered safety glass shower doors. These solid brass pivot hinges carry most of the door weight on the bottom hinge and can be inset from the door edge to provide clearance for towel bars and other projections — a practical benefit for glass shower door installations.

Senior Cardiff hinges are self-centering with four heavy-duty springs for strong retention. They are compatible with CRL’s Deluxe Header System via the Senior Adapter Block (SRHAB01, sold separately) and can also be used in floor-and-ceiling installations where the enclosure reaches the ceiling.

Using two hinges on 1/2" glass (12 mm), each hinge set supports up to 145 lbs. (66 kg) with a maximum door width of 36" (914 mm), making them suitable for residential and hotel glass shower door projects.

SPECIFICATIONS:
Glass Thickness: 1/2" (12 mm) tempered safety glass
Special Features: Top-and-bottom mount maximizes visible glass area and can reduce glass fabrication costs versus side-mount glass-to-glass hinges that require additional cut-outs
Construction: Solid brass
Hinge Swings: Full rotation
Closing Type: Self-centering within 15° of closed position
Includes: Gaskets, screws, and glass fabrication dimensions
Patent: Patented (Patent No. 5,297,313)

Options & Notes:
Use SRP1VP1N pivot pins (sold separately) for a 5° tighter door closer option on 1/2" (12 mm) glass. Sold as a set (one top, one bottom).

Product Warning:

CRL shower door hinges are intended for residential or hotel shower use. For other applications, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template provided with this hinge — cut-out dimensions may differ from other brands.
