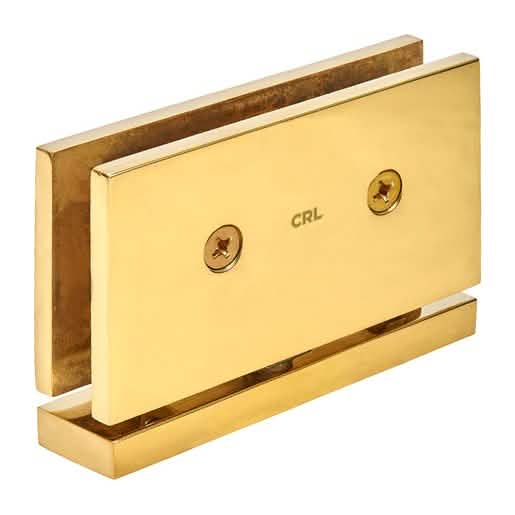

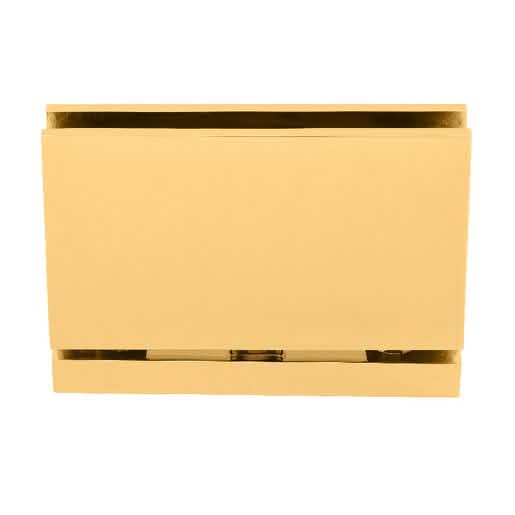

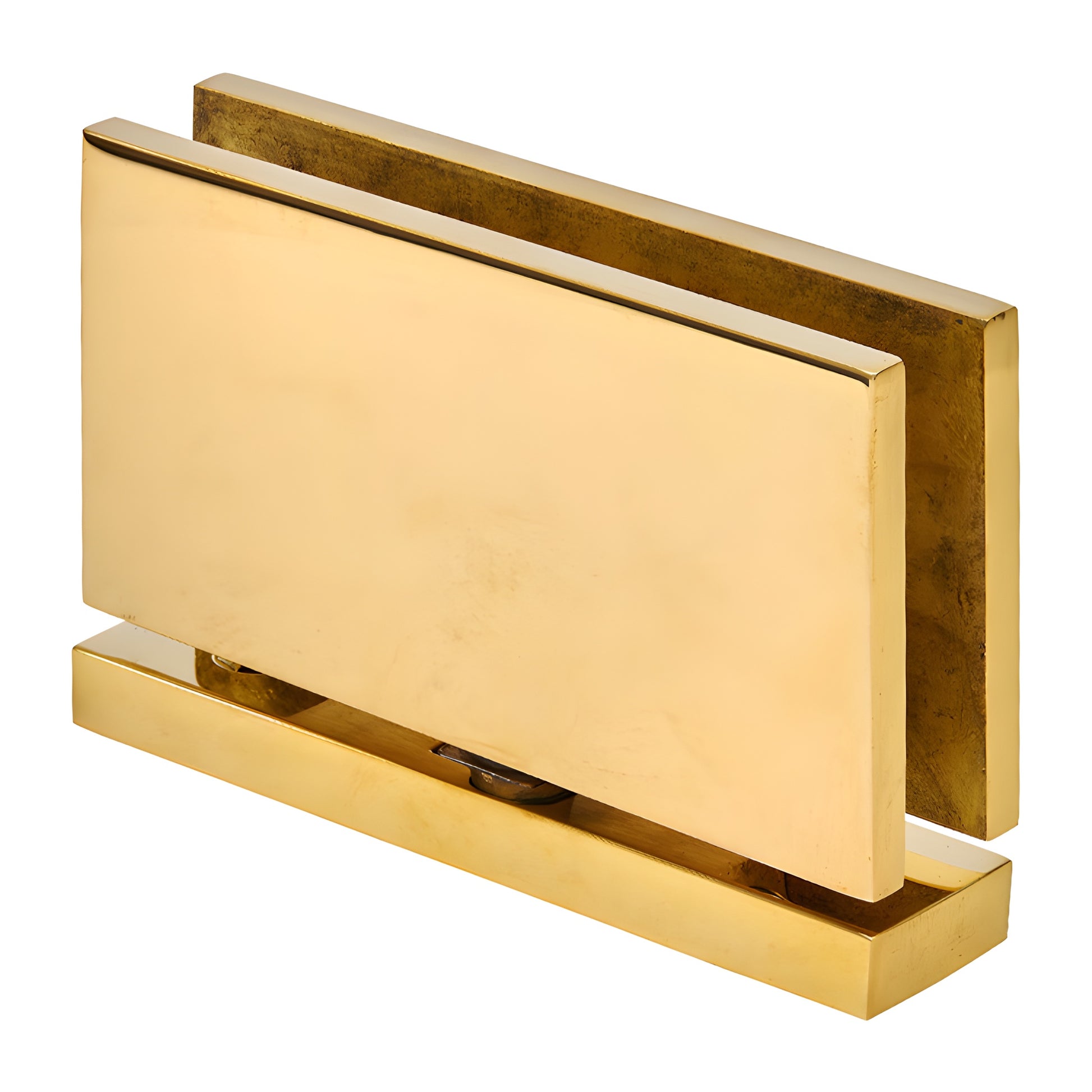

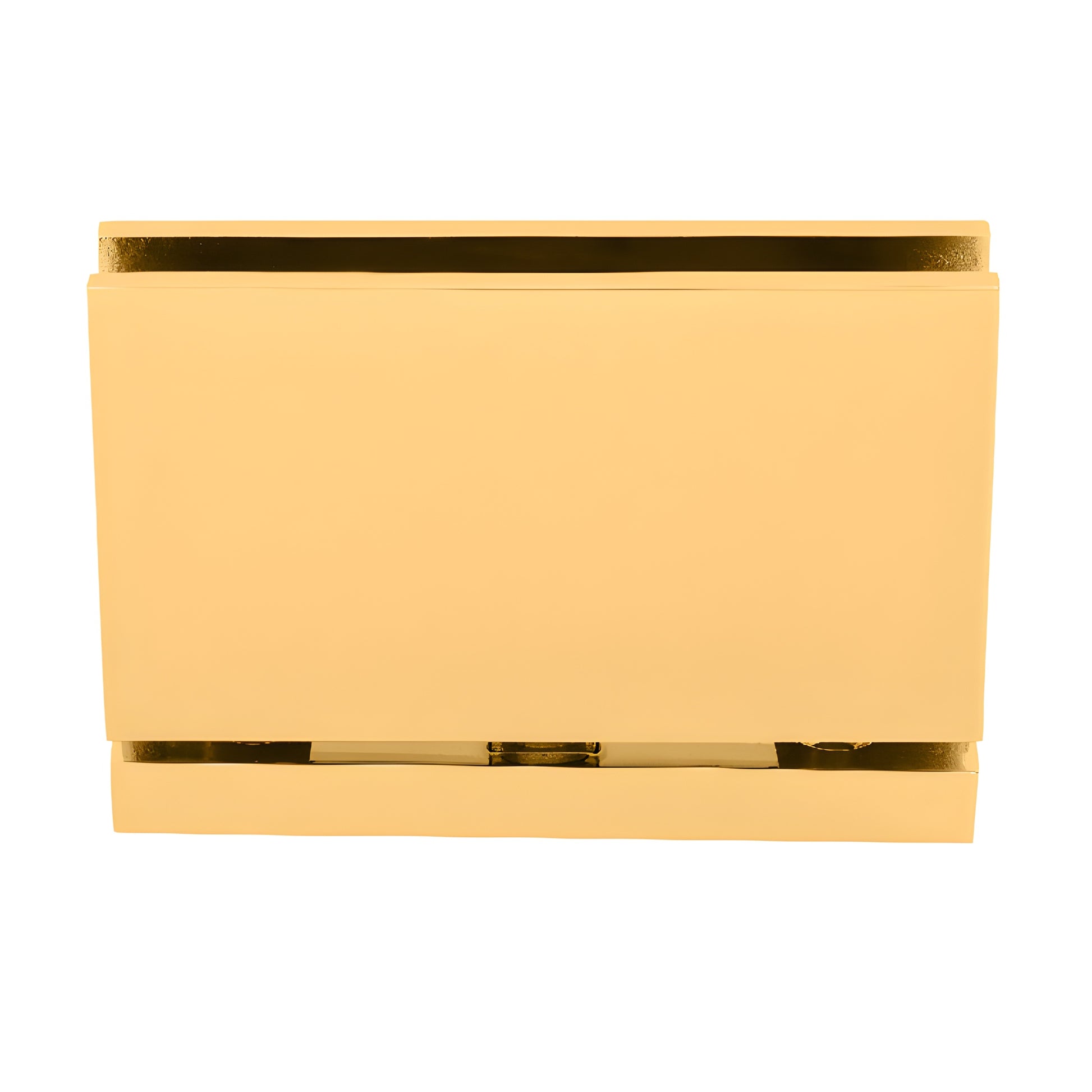

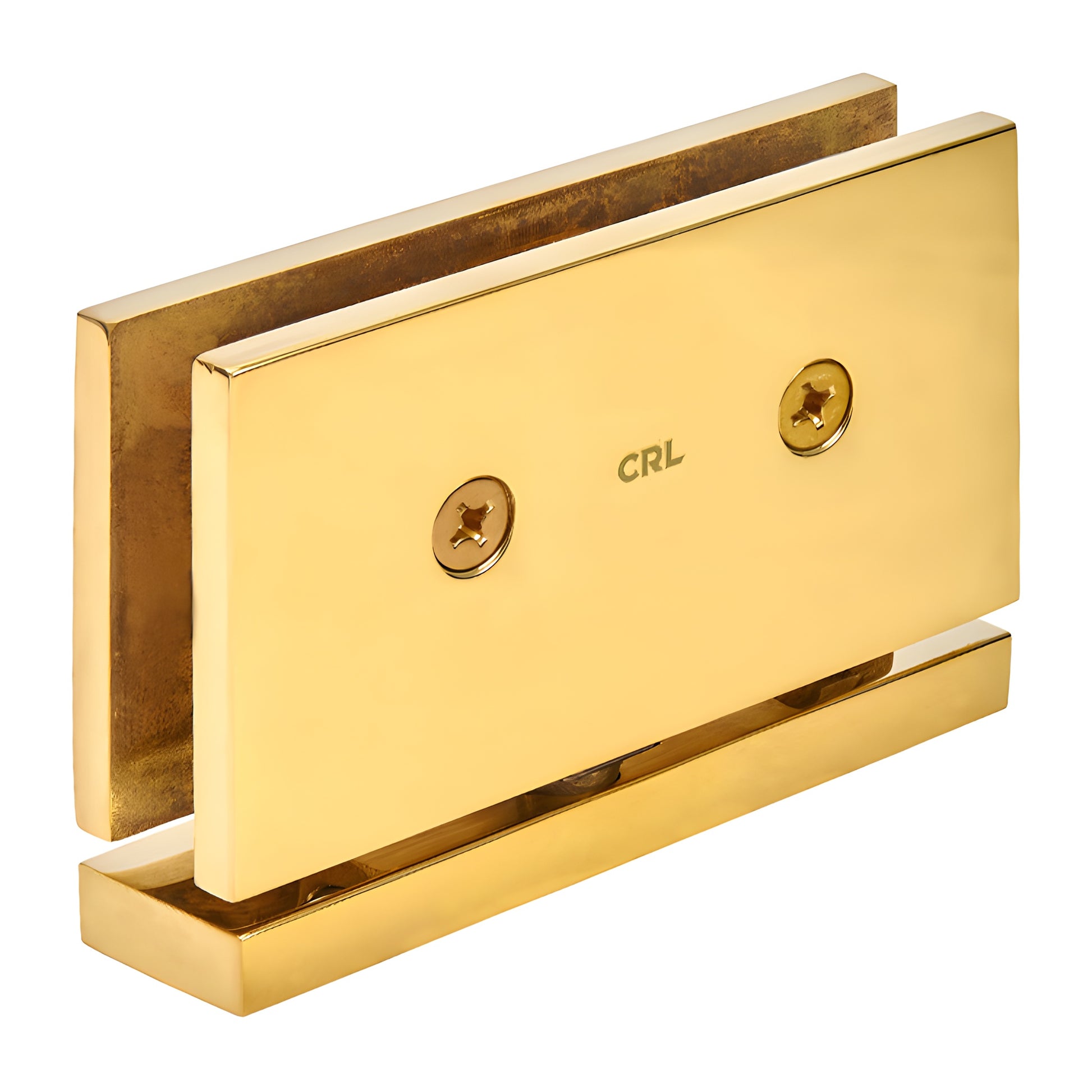

CRL Senior Cardiff Unlacquered Solid Brass Door Hinge

• Top or Bottom Mount — adapts to CRL Deluxe Header Kit
• Larger Cardiff Series model for 1/2" (12 mm) tempered glass
• Square corners for a sharp, traditional aesthetic
• Designed for monolithic tempered safety glass
• Adaptable to CRL Deluxe Header System (Senior Adapter Block required)
• Stocked in multiple popular hardware finishes

CRL Senior Cardiff Series Top and Bottom Mount Pivot Hinges (SKU: SRCAR01ULBR) are engineered for 1/2" (12 mm) tempered safety glass shower doors. These top-and-bottom mount shower door pivot hinges carry most of the door weight on the bottom hinge and can be inset from the door edge to provide clearance for towel bars and other projections — a practical long-tail solution for custom shower door installations.

Senior Cardiff hinges are self-centering with four strong springs for maximum retention strength. They adapt to the CRL Deluxe Header System using the SRHAB01 Adapter Block (sold separately) for enclosures that do not reach the ceiling, or they can be floor-and-ceiling mounted for full-height doors.

Using two hinges on 1/2" (12 mm) glass, the assembly supports up to 145 lbs (66 kg) with a maximum door width of 36" (914 mm).

SPECIFICATIONS:
Glass Thickness: 1/2" (12 mm) Tempered Safety Glass
Special Features: Top-and-bottom mount exposes more glass for a cleaner look and can reduce glass fabrication costs vs. side-mount glass-to-glass hinges that require larger cut-outs.
Construction: Solid Brass
Hinge Swings: Full rotation
Closing Type: Self-centering within 15° of closed position
Cut-Out Required
Includes: Gaskets, screws, and glass fabrication dimensions
Patent: U.S. Patent No. 5,297,313

Accessories: For a 5° tighter close, use SRP1VP1N 5° pivot pins for 1/2" (12 mm) glass (sold as a set — one top, one bottom).

Product Warning:

CRL Shower Door Hinges are intended for residential or hotel shower use. For other applications, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template provided with this hinge — cut-out dimensions may differ from other brands.
