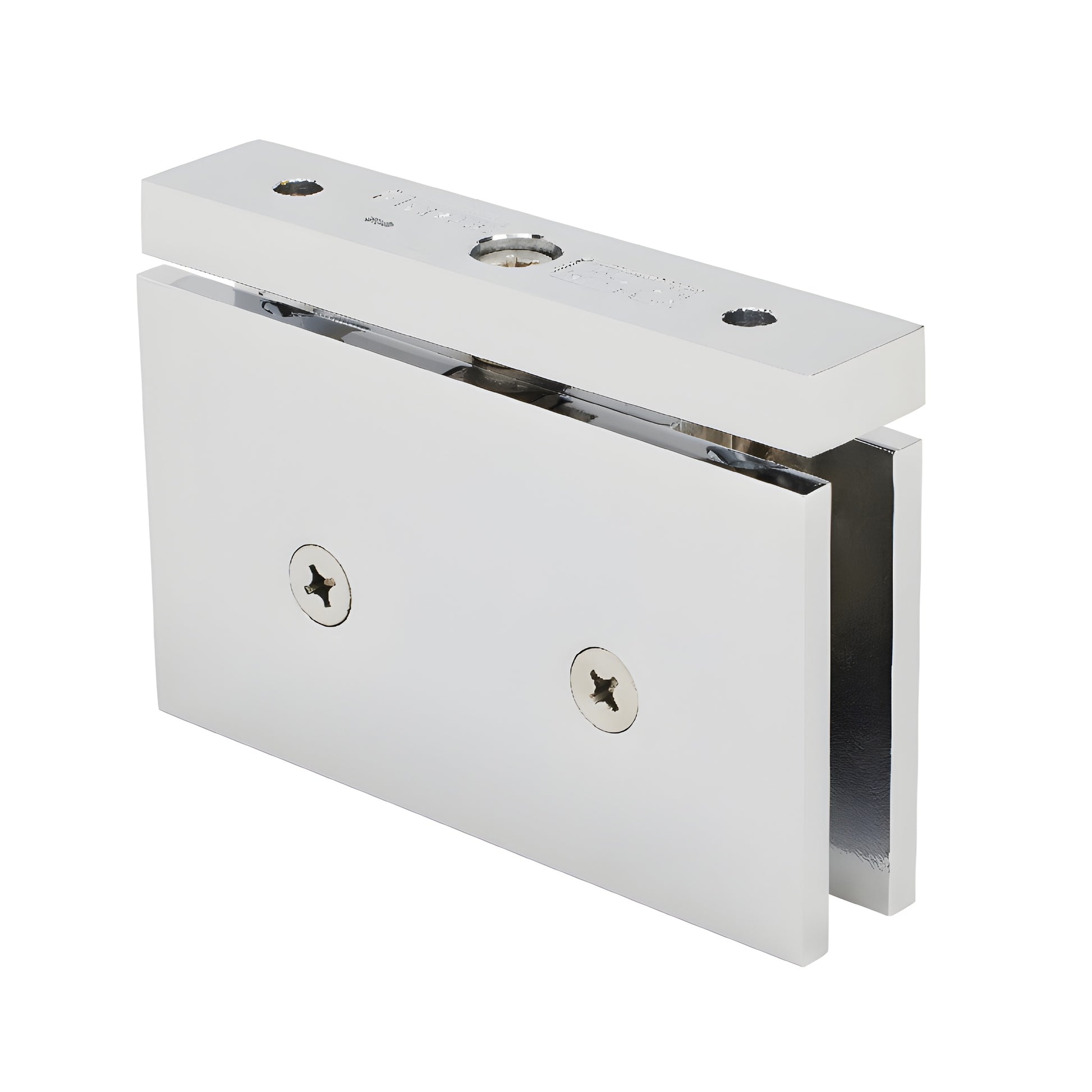

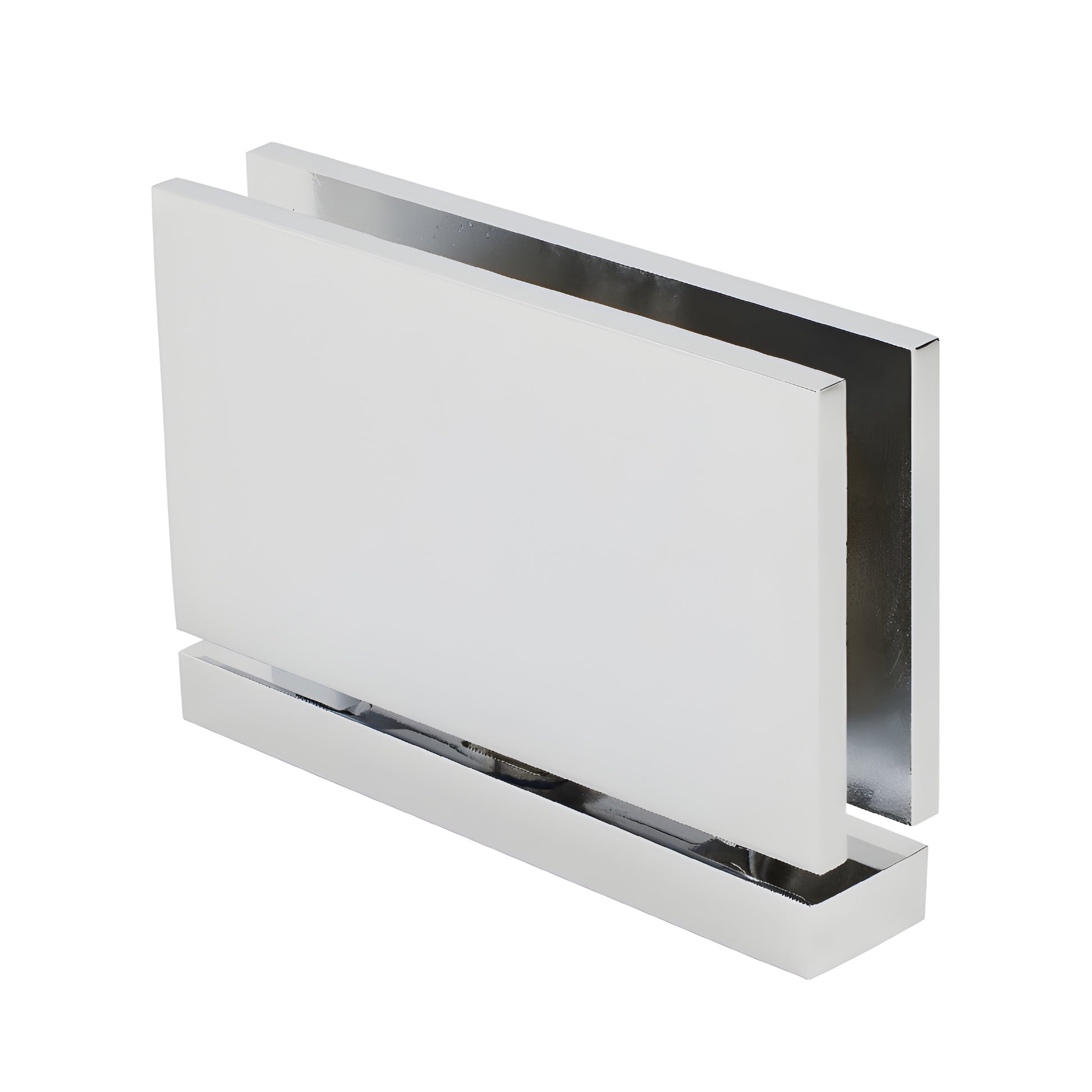

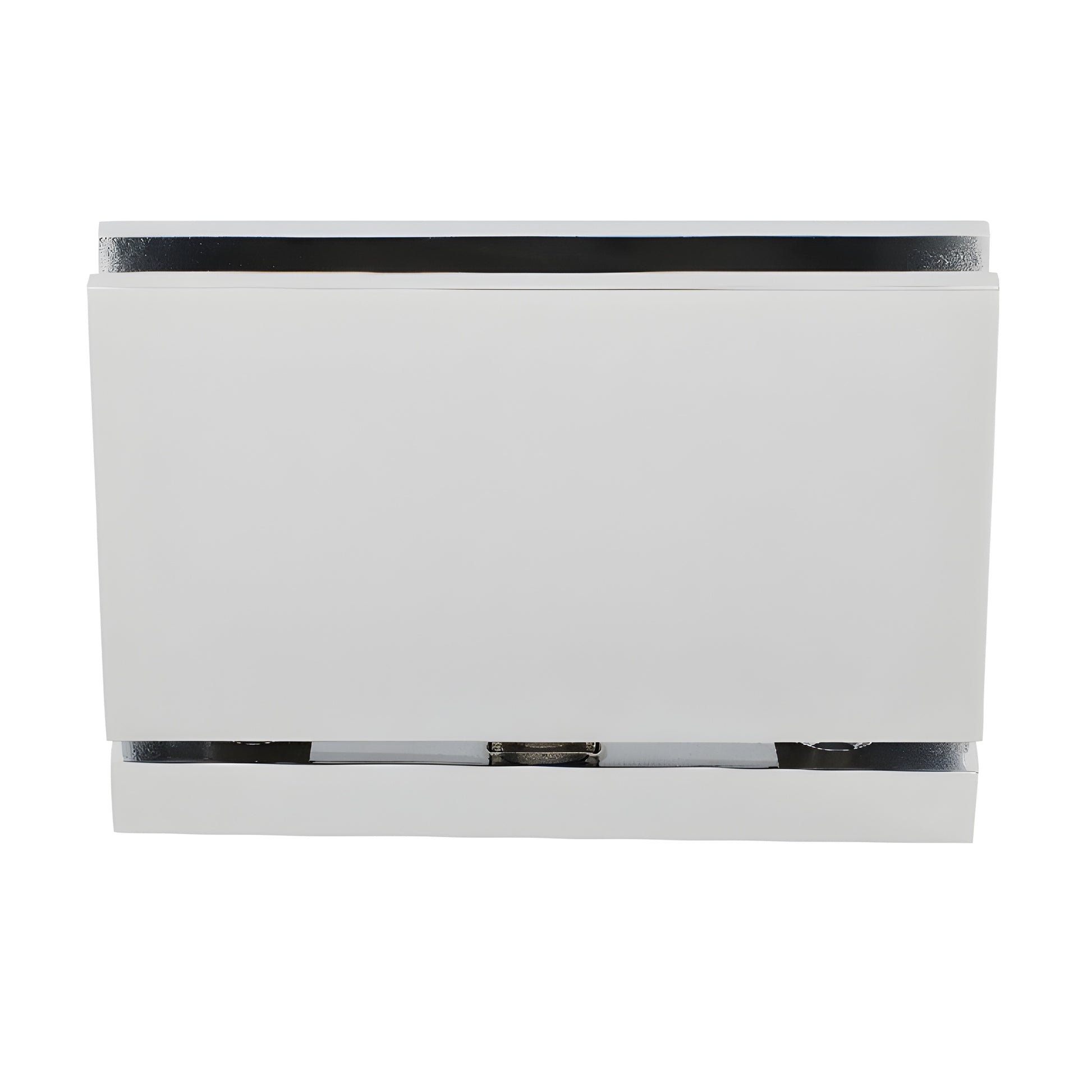

CRL Polished Chrome Senior Cardiff Glass Shower Door Hinge

• Top or Bottom Mount — adaptable to CRL Deluxe Header Kit (SRHAB01 ordered separately)
• Larger Cardiff Series model for 1/2" (12 mm) tempered glass
• Square corners for a sharp, traditional look
• Designed for monolithic tempered safety glass
• Compatible with CRL Deluxe Header System and stocked in many popular hardware finishes

CRL Senior Cardiff Series Top and Bottom Mount Pivot Hinges (SKU: SRCAR01CH) are engineered for 1/2" (12 mm) tempered safety glass shower doors. These solid-brass pivot hinges carry most of the door weight on the bottom hinge and can be inset from the door edge to provide clearance for towel bars and other projections — a key advantage over side-mount glass-to-glass hinges.

Senior Cardiff Hinges are self-centering with four strong springs for maximum retention. They adapt to the CRL Deluxe Header System using the SRHAB01 adapter block (sold separately) or can be floor-and-ceiling mounted for doors that reach the ceiling.

Performance: Using two hinges with 1/2" (12 mm) glass, the pair will support up to 145 lbs. (66 kg) with a maximum door width of 36" (914 mm).

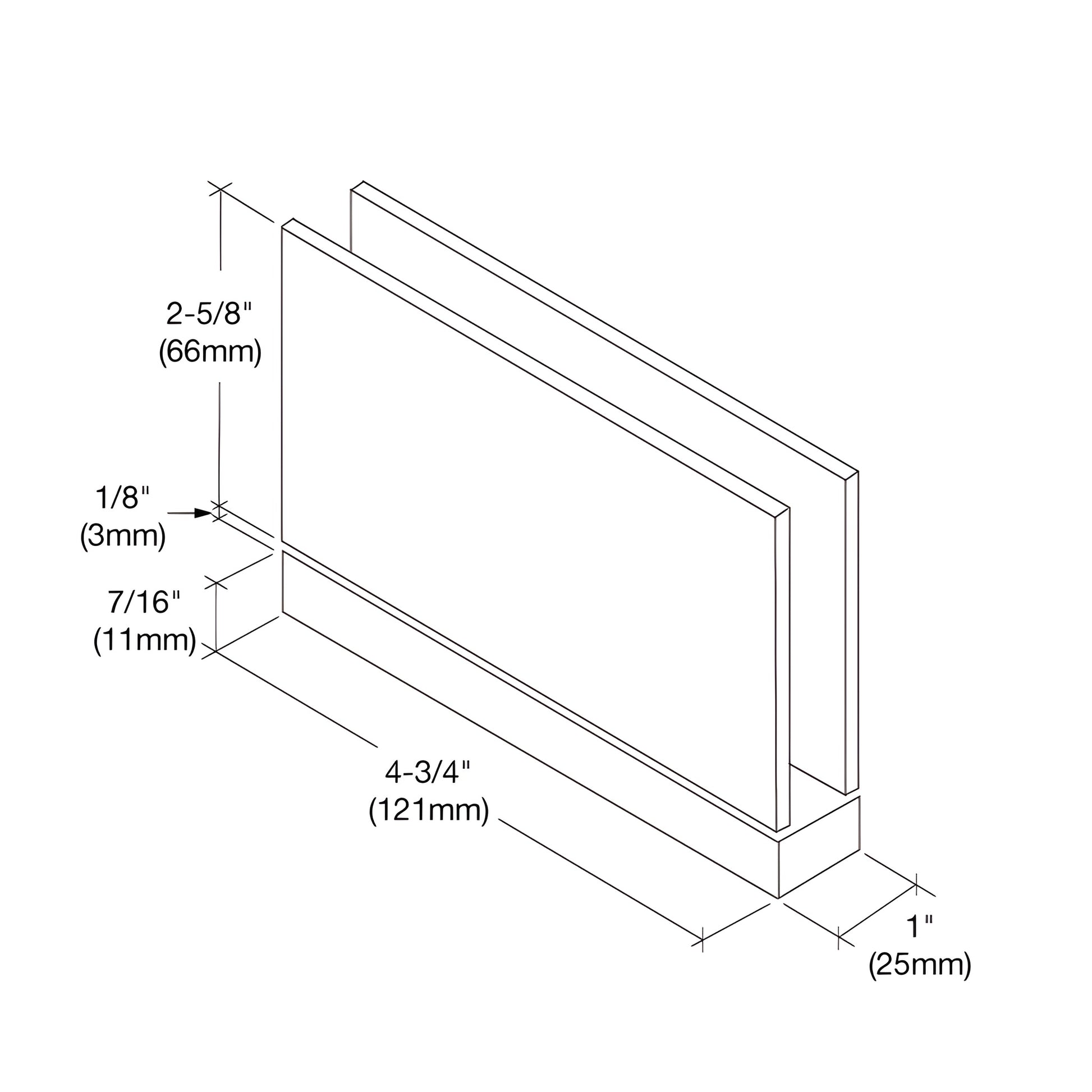

SPECIFICATIONS:
Glass Thickness: 1/2" (12 mm) Tempered Safety Glass
Special Features: Top-and-bottom mount maximizes glass exposure and can reduce glass fabrication cuts vs. side-mount glass-to-glass hinges
Construction: Solid Brass
Hinge Swings: Full Rotation
Closing Type: Self-centering within 15° of closed position
Cut-Out Required
Includes: Gaskets, screws, and glass fabrication dimensions
Patent: Patent No. 5,297,313

Optional: Use SRP1VP1N pivot pins (sold separately) for a 5° tighter closer; sold as a top-and-bottom set for 1/2" (12 mm) glass.

Product Warning:

CRL Shower Door Hinges are designed for residential and hotel shower use. For other applications, obtain approval from CRL Shower Door Technical Sales. Use only the template included with this hinge—cut-out dimensions may not match other brands.

Order the CRL Senior Cardiff Top and Bottom Mount Pivot Hinges (SRCAR01CH)
