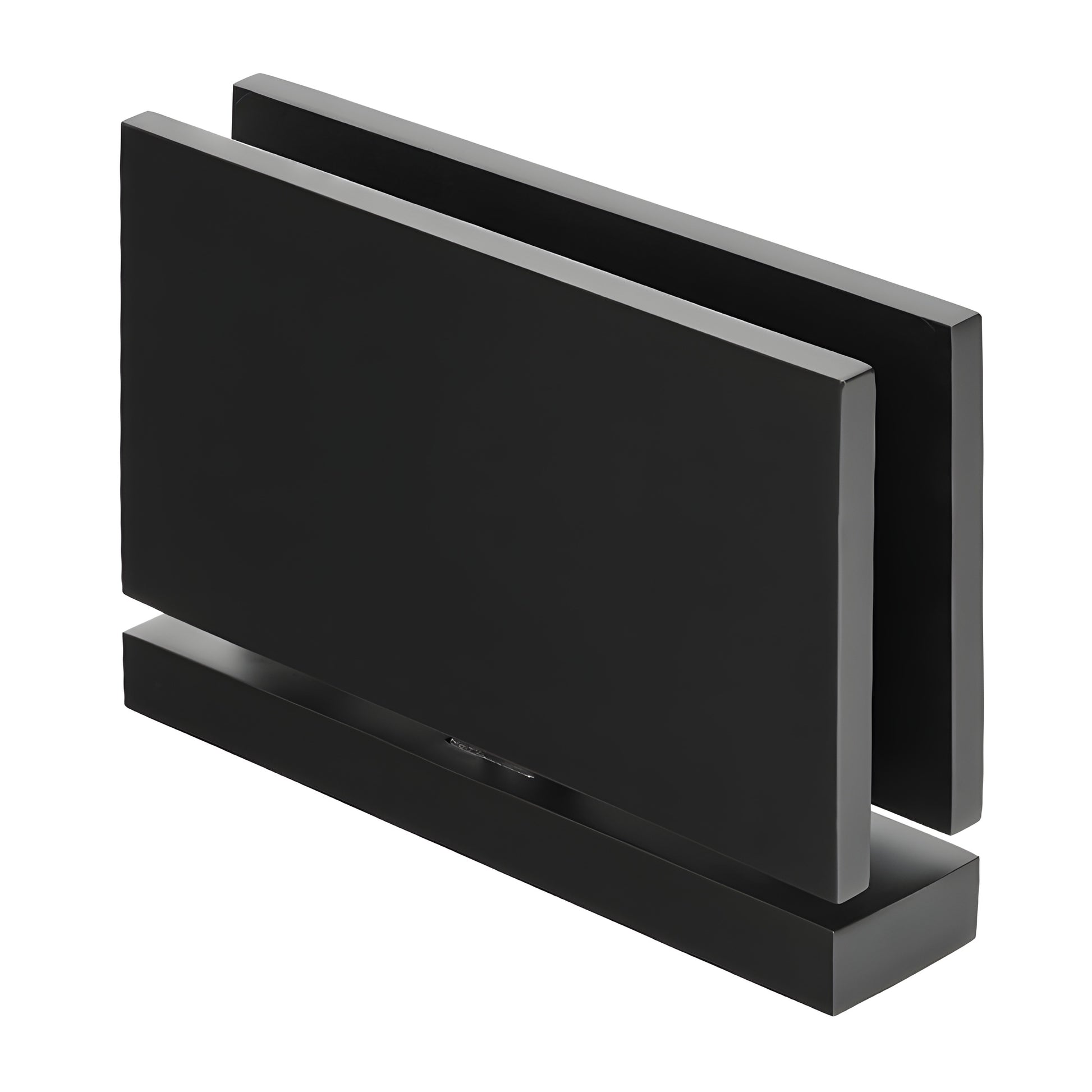

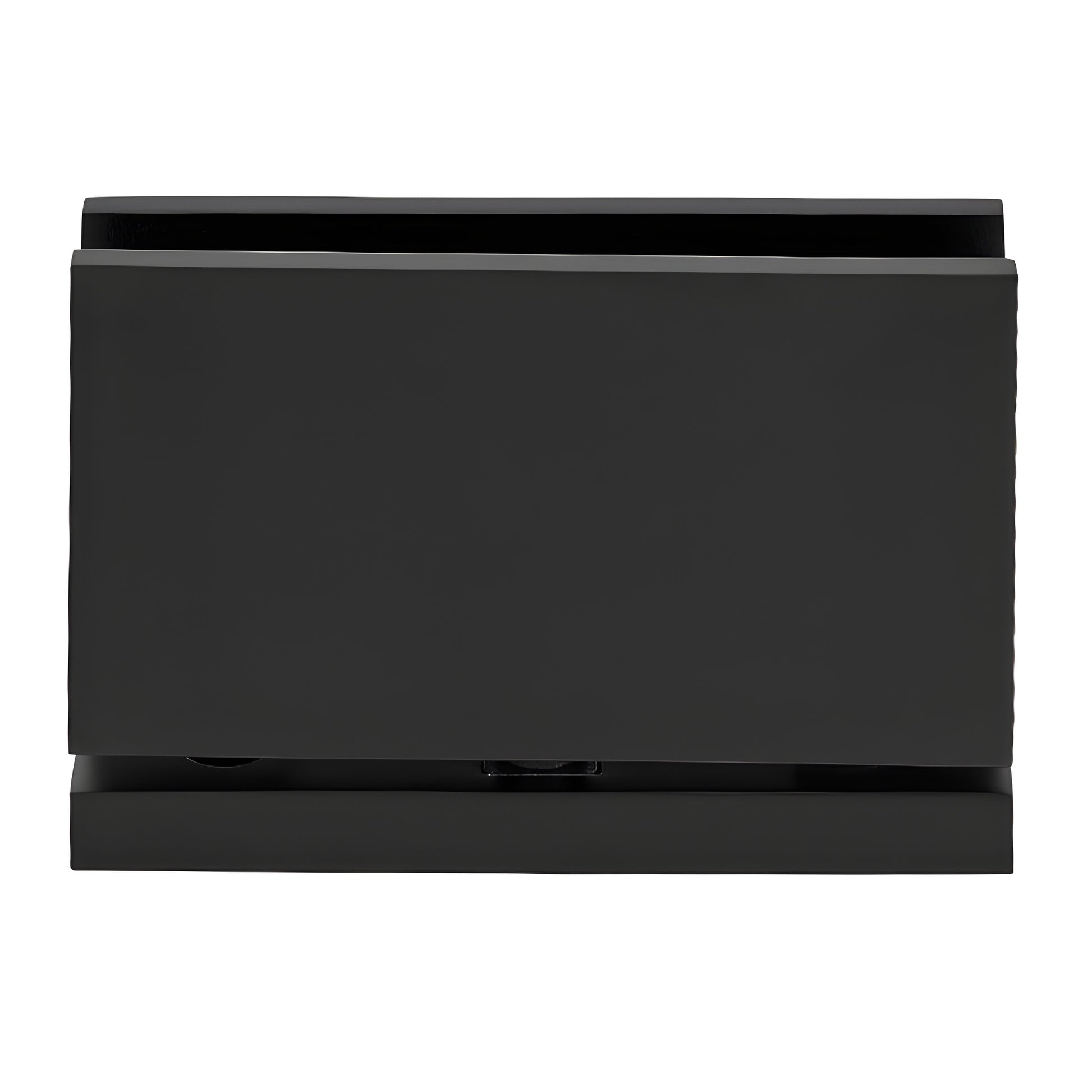

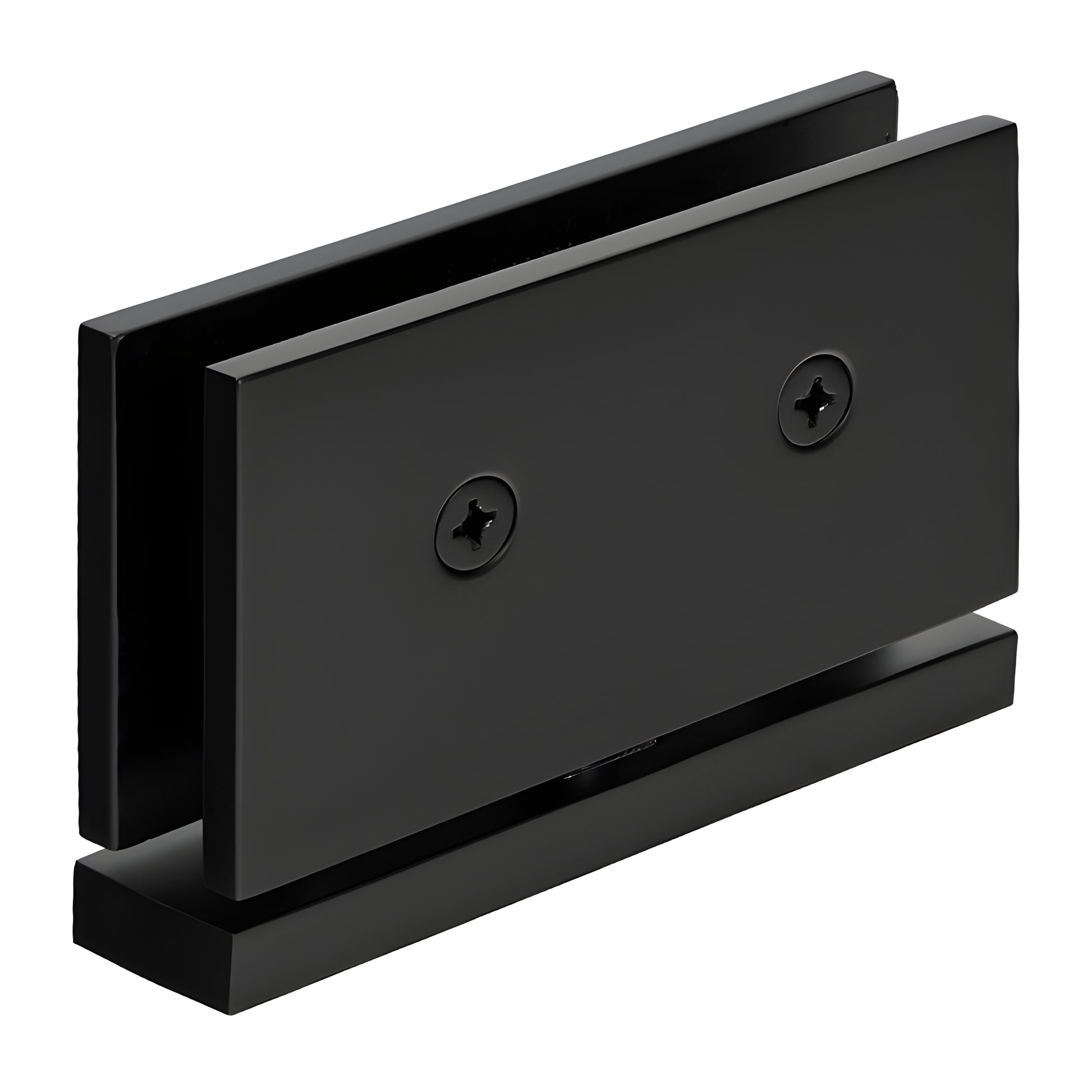

CRL Cardiff Series Senior Matte Black Door Hinge

• Top or bottom mount pivot hinge — adapts to CRL Deluxe Header Kit
• Larger Cardiff Series model to accommodate 1/2" (12 mm) thick tempered safety glass
• Square corners for a sharp, traditional look
• Designed for monolithic tempered glass shower doors
• Adaptable to CRL Deluxe Header System with optional adapter block (SRHAB01)
• Stocked in many popular hardware finishes

CRL Senior Cardiff Series Top and Bottom Mount Pivot Hinges (SKU: SRCAR01MBL) are engineered for 1/2" (12 mm) tempered safety glass and optimized for shower door applications. The top-and-bottom mounting carries most of the door weight on the bottom hinge and can be inset from the door edge to allow clearance for towel bars and other projections — a practical long-tail solution for half-inch tempered glass shower door pivot hinge installations.

Senior Cardiff hinges are self-centering with four strong internal springs for maximum retention strength. They adapt to the CRL Deluxe Header System using the Senior Adapter Block (SRHAB01 — sold separately) or can be floor-and-ceiling mounted for full-height doors.

Performance: Using two hinges with 1/2" (12 mm) glass, the assembly supports up to 145 lbs (66 kg) with a maximum door width of 36" (914 mm).

SPECIFICATIONS:
Glass Thickness: 1/2" (12 mm) Tempered Safety Glass
Special Features: Top-and-bottom mount maximizes exposed glass and can reduce glass fabrication costs versus side-mount glass-to-glass hinges that require additional cut-outs.
Construction: Solid brass
Hinge Swings: Full rotation
Closing Type: Self-centering within 15° of closed position
Cut-Out Required
Includes: Gaskets, screws, and glass fabrication dimensions
Patent: This hinge series is patented (Patent No. 5,297,313).

Accessory Note: For a tighter 5° closer option use SRP1VP1N 5° pivot pins (sold separately) — one top and one bottom per set.

Product Warning:

CRL Shower Door Hinges are intended for residential and hotel shower use. For other applications, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template provided with this hinge; CRL cut-out dimensions may differ from other brands.
