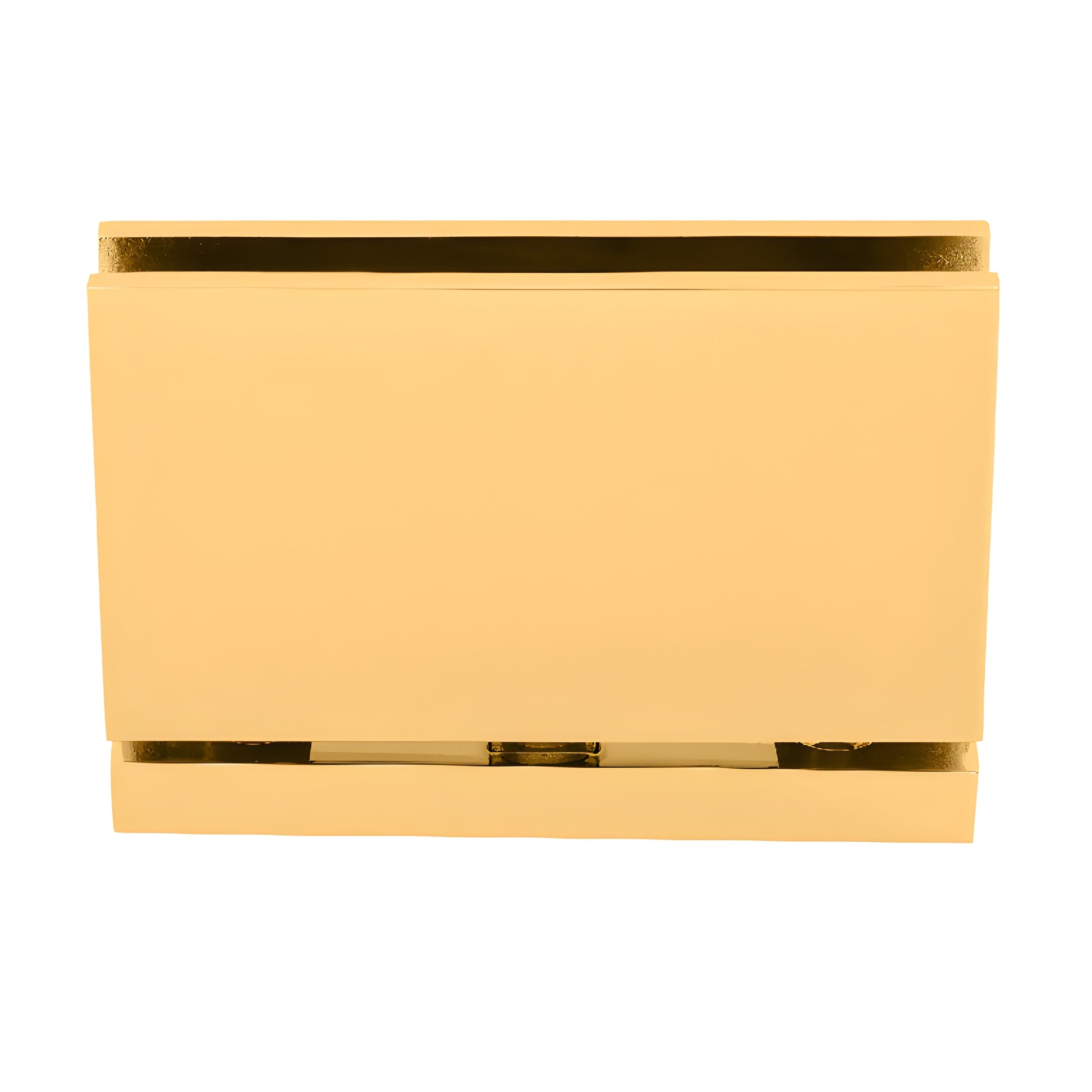

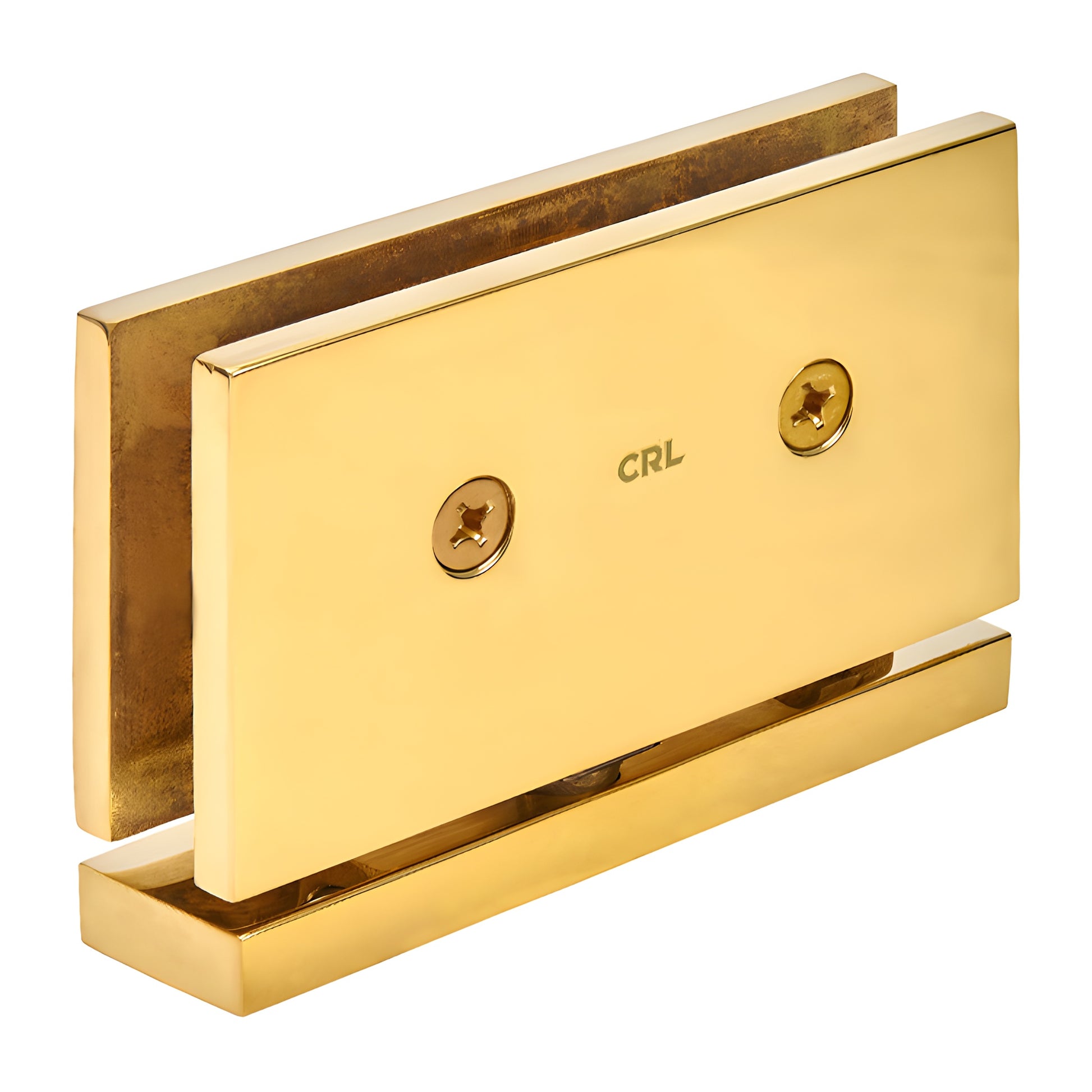

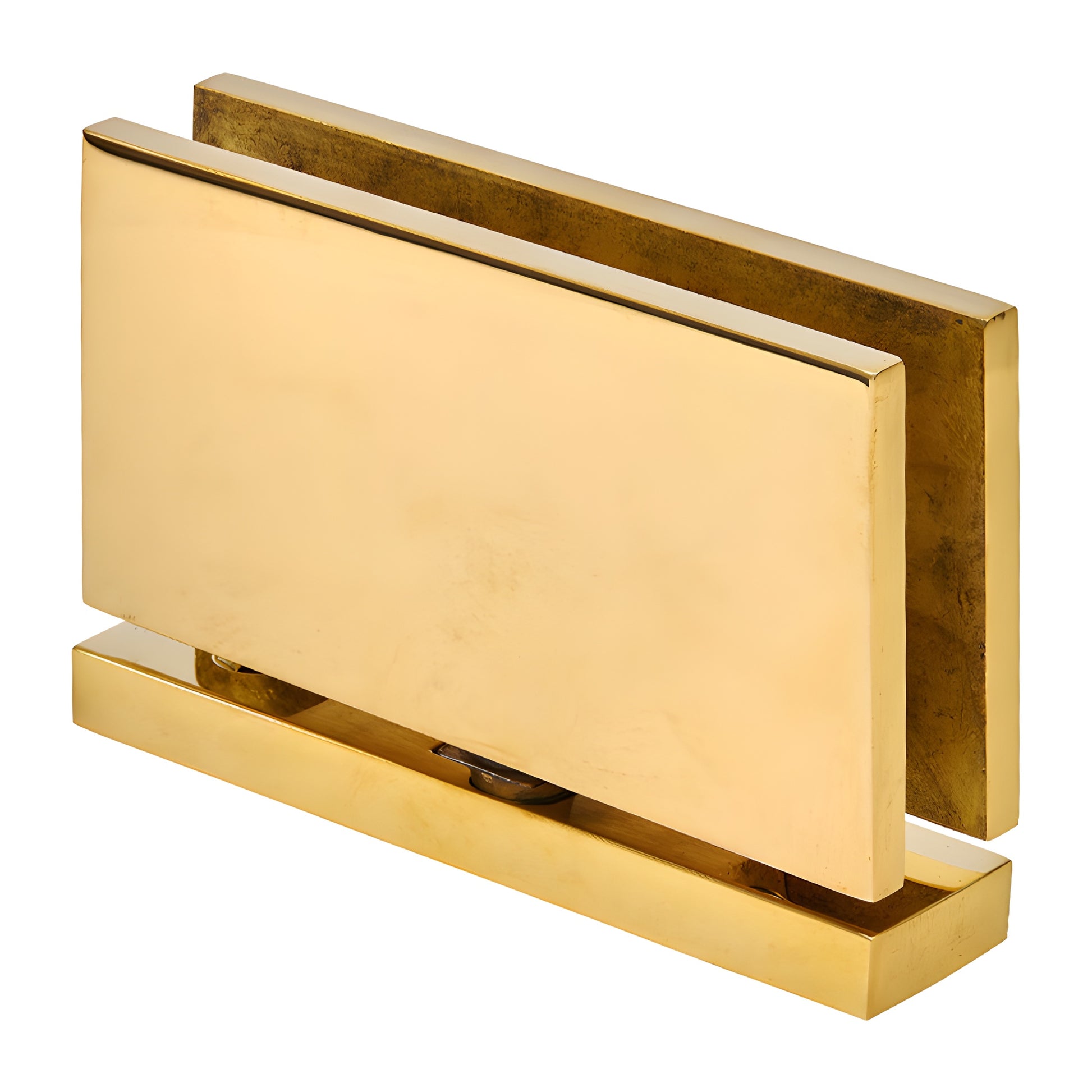

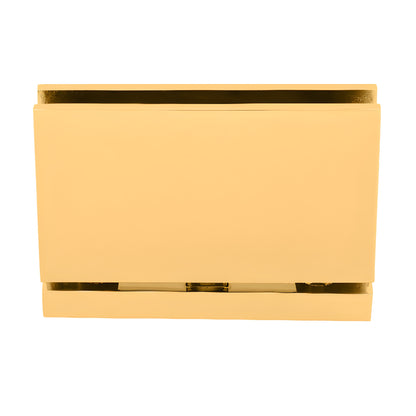

CRL Cardiff Senior Polished Brass Door Hinge

• Top or Bottom Mount (can adapt to Deluxe Header Kit)
• Larger version of the Cardiff Series to accommodate 1/2" (12 mm) thick tempered glass
• Square corners for a sharp, traditional look
• Use with monolithic tempered safety glass
• Adaptable to CRL Deluxe Header System (with separate adapter)
• Stocked in many popular hardware finishes

CRL Senior Cardiff Series Top and Bottom Mount Pivot Hinges are engineered for 1/2" (12 mm) tempered safety glass and optimized for residential and hotel shower doors. These solid-brass pivot hinges carry most of the door weight on the bottom hinge and can be inset from the door edge to provide clearance for towel bars and other projections—ideal when maximizing glass exposure and minimizing visible hardware.

Senior Cardiff hinges are self-centering with four internal springs for strong retention. The hinge adapts to the CRL Deluxe Header System using the SRHAB01 Adapter Block (order separately), or it can be floor-and-ceiling mounted for full-height doors.

Load Capacity (using two hinges): Holds up to 145 lbs. (66 kg) with a maximum door width of 36" (914 mm) using 1/2" (12 mm) glass.

SPECIFICATIONS:
SKU: SRCAR01BR
Glass Thickness: 1/2" (12 mm) tempered safety glass
Construction: Solid brass
Hinge Swings: Full rotation
Closing Type: Self-centering within 15° of closed position
Special Features: Top-and-bottom mount increases visible glass area and can reduce glass fabrication cut-outs compared with side-mounted glass-to-glass hinges
Includes: Gaskets, screws, and glass fabrication dimensions/template
Patent: Patented (Patent No. 5,297,313)

Accessories / Notes:
- SRHAB01 Adapter Block sold separately for use with the Deluxe Header System.
- For a tighter 5° closure option, use SRP1VP1N 5° pivot pins (sold separately; one required for top hinge and one for bottom hinge).

Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use only. For other uses, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge—cut-out dimensions may not match other brands.
