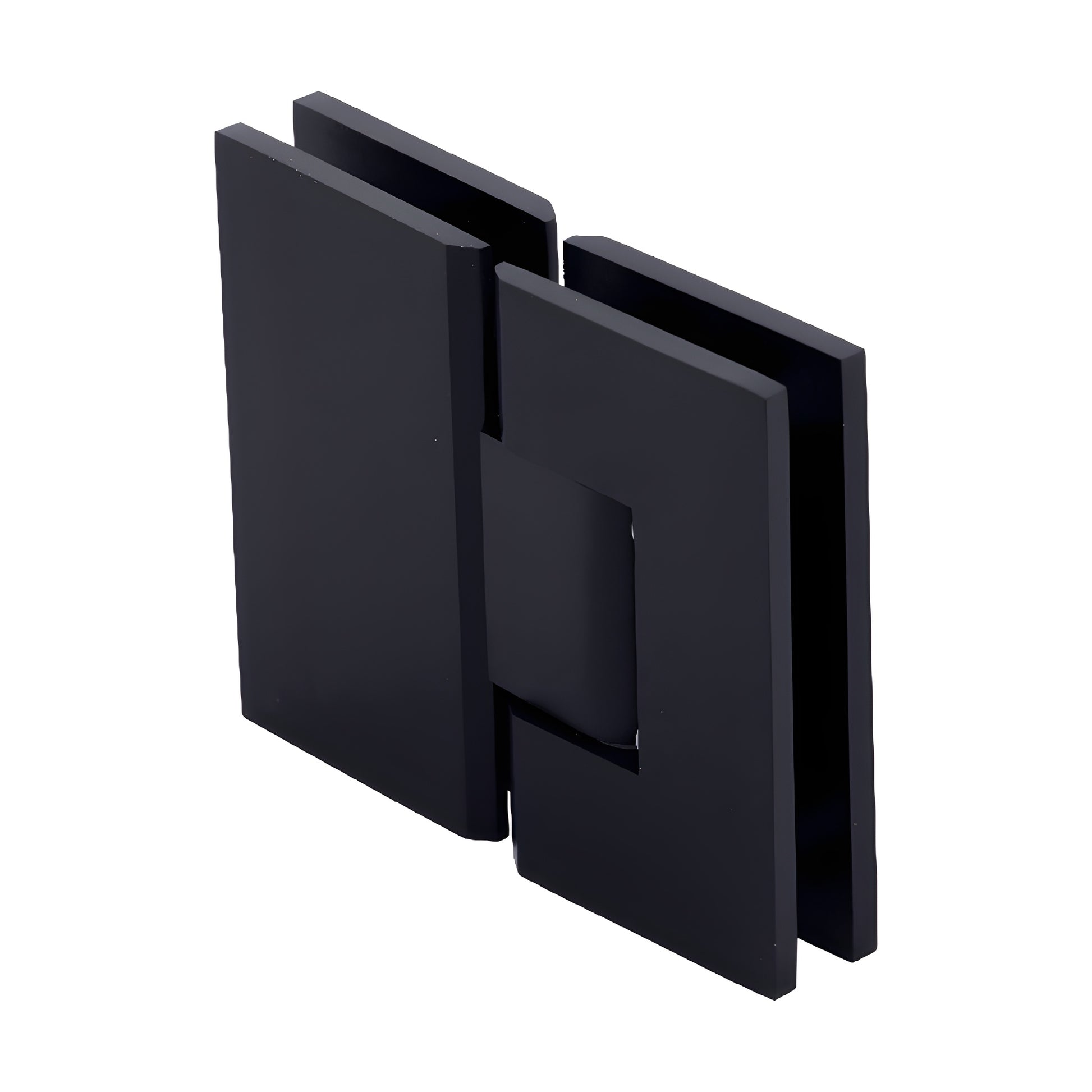

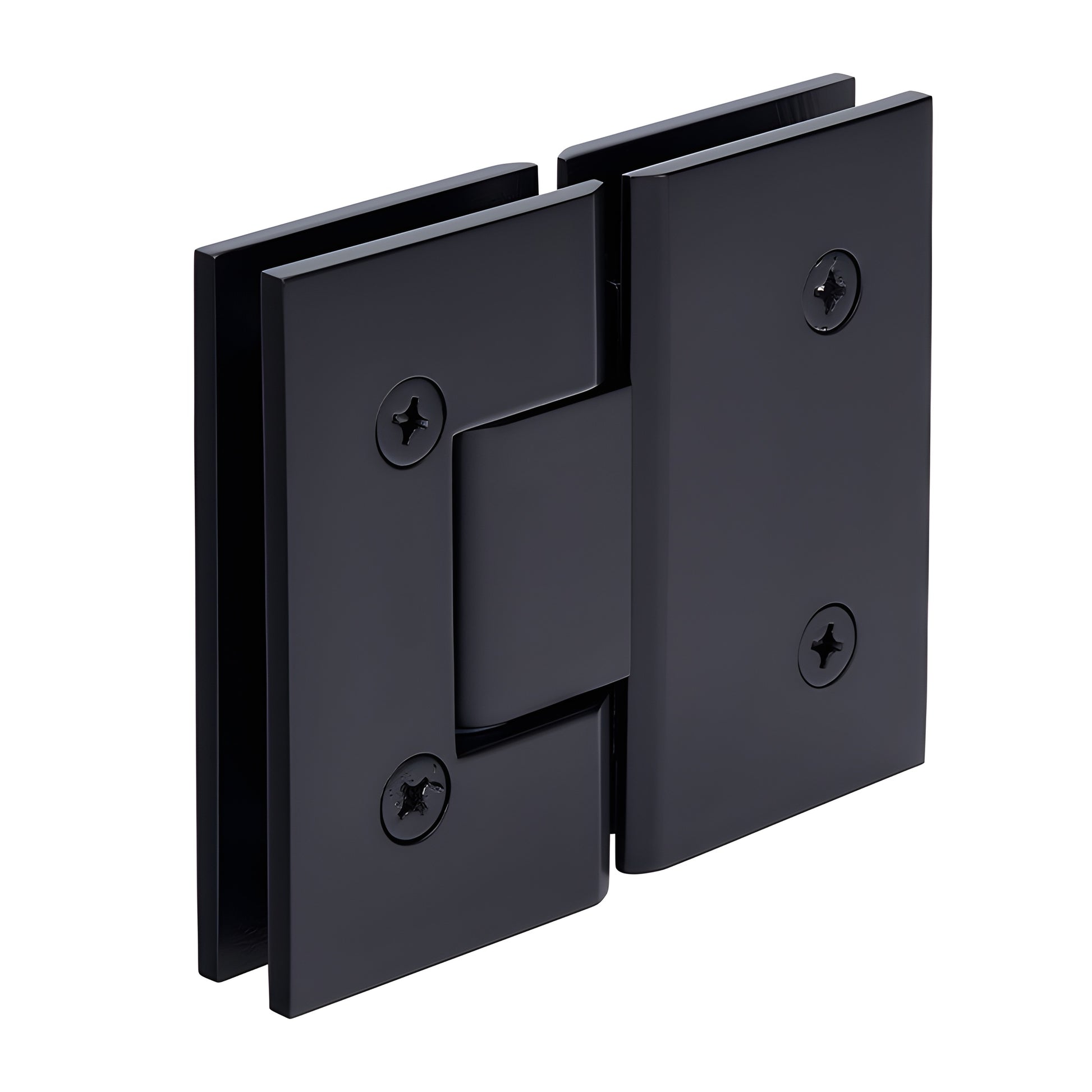

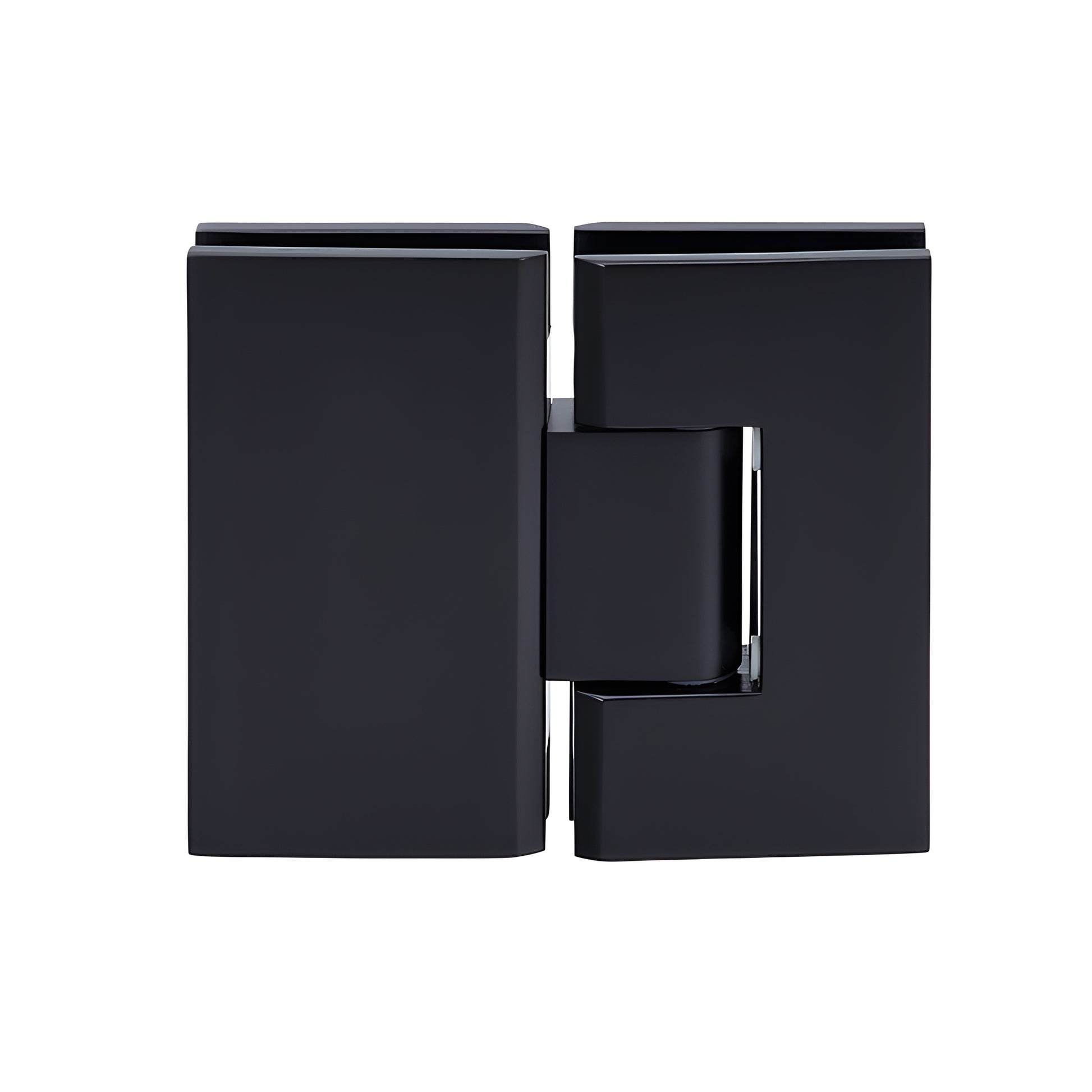

CRL Vienna 580 Matte Black Glass-to-Glass Shower Hinge 5° Pin

• Accommodates 3/8" to 1/2" (10 to 12 mm) tempered safety glass
• Available in several beautiful finishes (custom finishes available on request)
• 3 Year Warranty
• Wall mount full back plate standard model (factory set for standard closing position)
• Use monolithic tempered glass

CRL Vienna Hinges (SKU: V1E580MBL) are engineered for wider, heavier shower doors when traditional hinges lack strength. Solid brass construction and twin internal steel pins provide two mounting template options: leave both pins in place for compatibility with CRL "mouse‑ears" cut-outs, or remove the pins for increased adjustability and fit with CRL rectangular (square-corner) cut-outs—and in some cases competitive rectangular cut-outs. These features make the Vienna Hinge ideal as a heavy-duty shower door hinge for frameless and semi-frameless glass doors. Standard Reversible Pivot Pin: Each hinge contains a reversible pivot pin with one side marked 90° (standard) and the opposite side marked 85° for a 5° tighter closure into the shower interior. Pins can be rotated (not flipped) to select the desired pre-set closing position. Custom Pivot Pin: Custom pivot pins are available for off-angle installations (specify required angle up to 45°) when the standard 5° adjustment does not achieve the needed door closing position. Load Capacity: Using two hinges with 3/8"–1/2" (10–12 mm) glass: holds up to 110 lbs (50 kg) with a maximum door width of 36" (914 mm). Using three hinges with 3/8"–1/2" (10–12 mm) glass: holds up to 140 lbs (63 kg) with a maximum door width of 36" (914 mm). SPECIFICATIONS: Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required: Except V1E092 which requires cut-out for door and two holes for fixed panel
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m) Custom finishes and special-order pivot pins are available—contact CRL Technical Sales Shower Door Department for details. Product Warning: CRL shower door hinges are designed for residential and hotel shower use. Use for applications other than intended requires approval from CRL Shower Door Technical Sales. Use only the template included with this hinge—CRL cut
