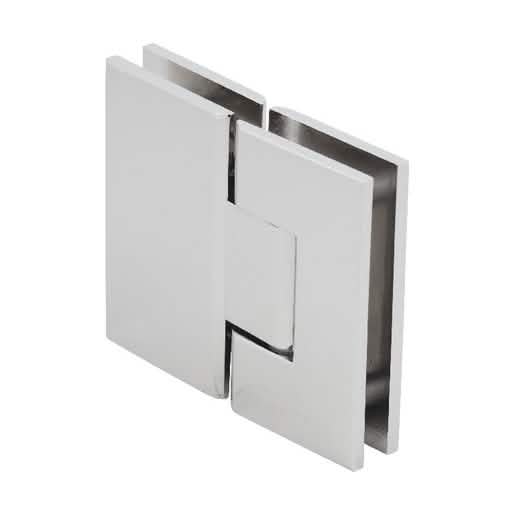

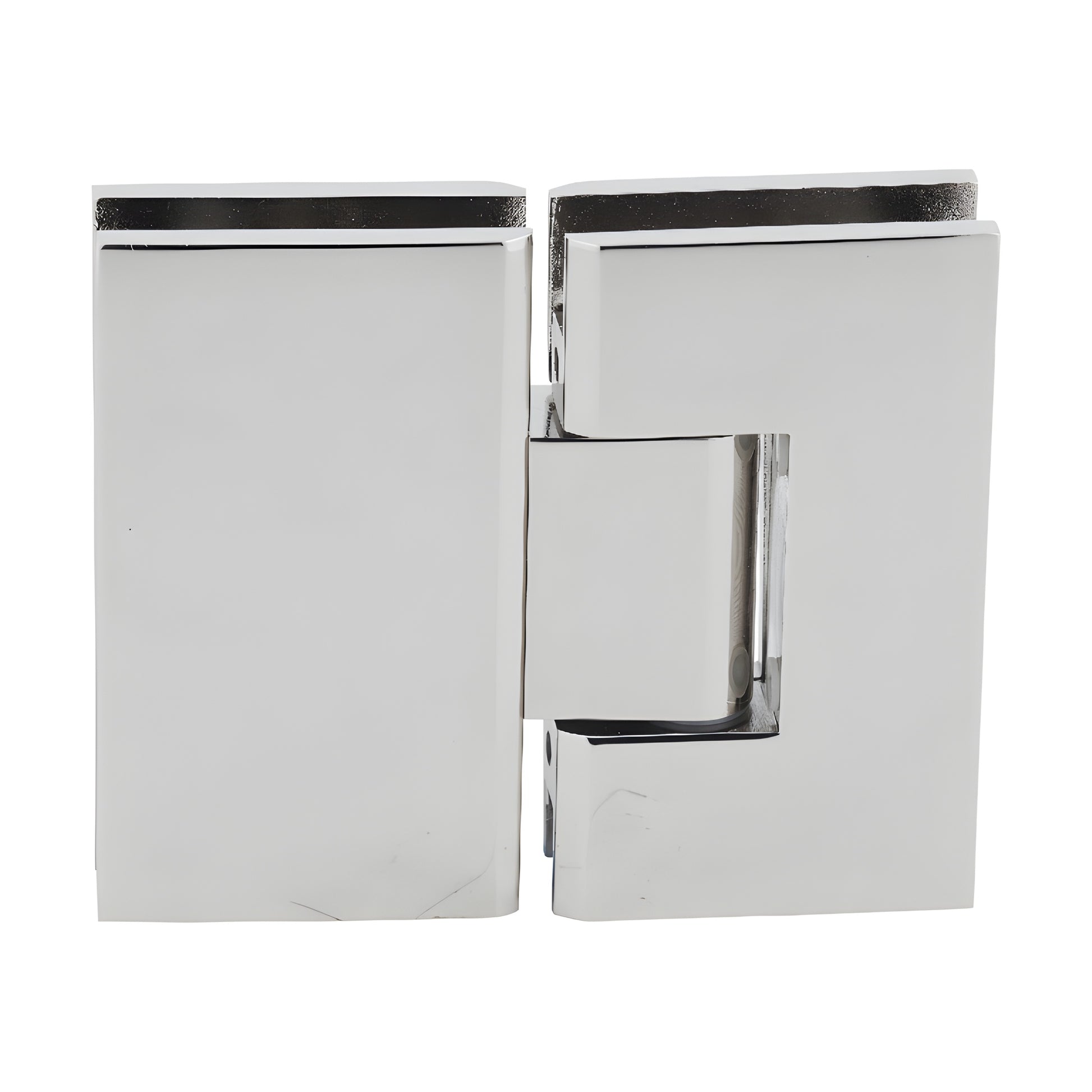

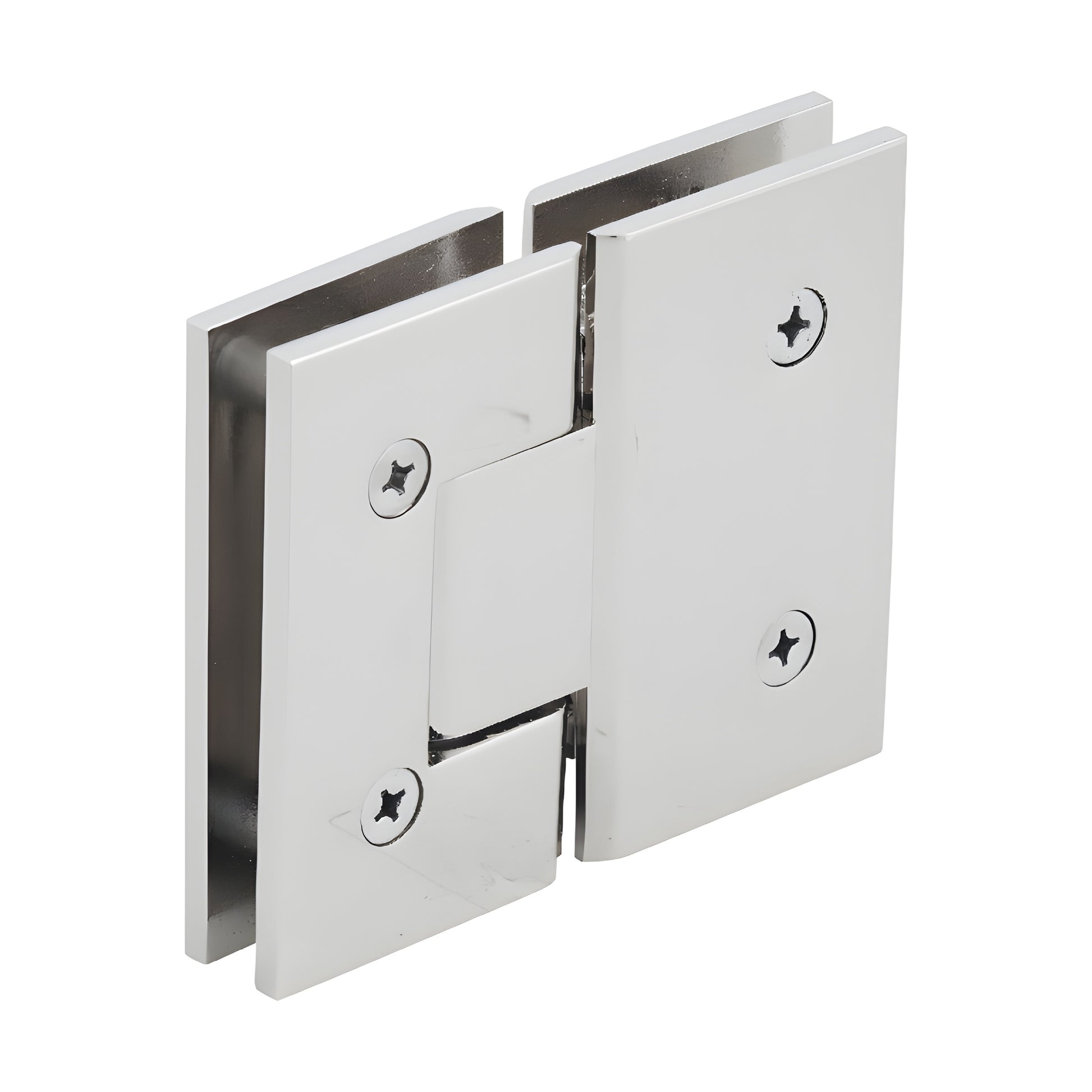

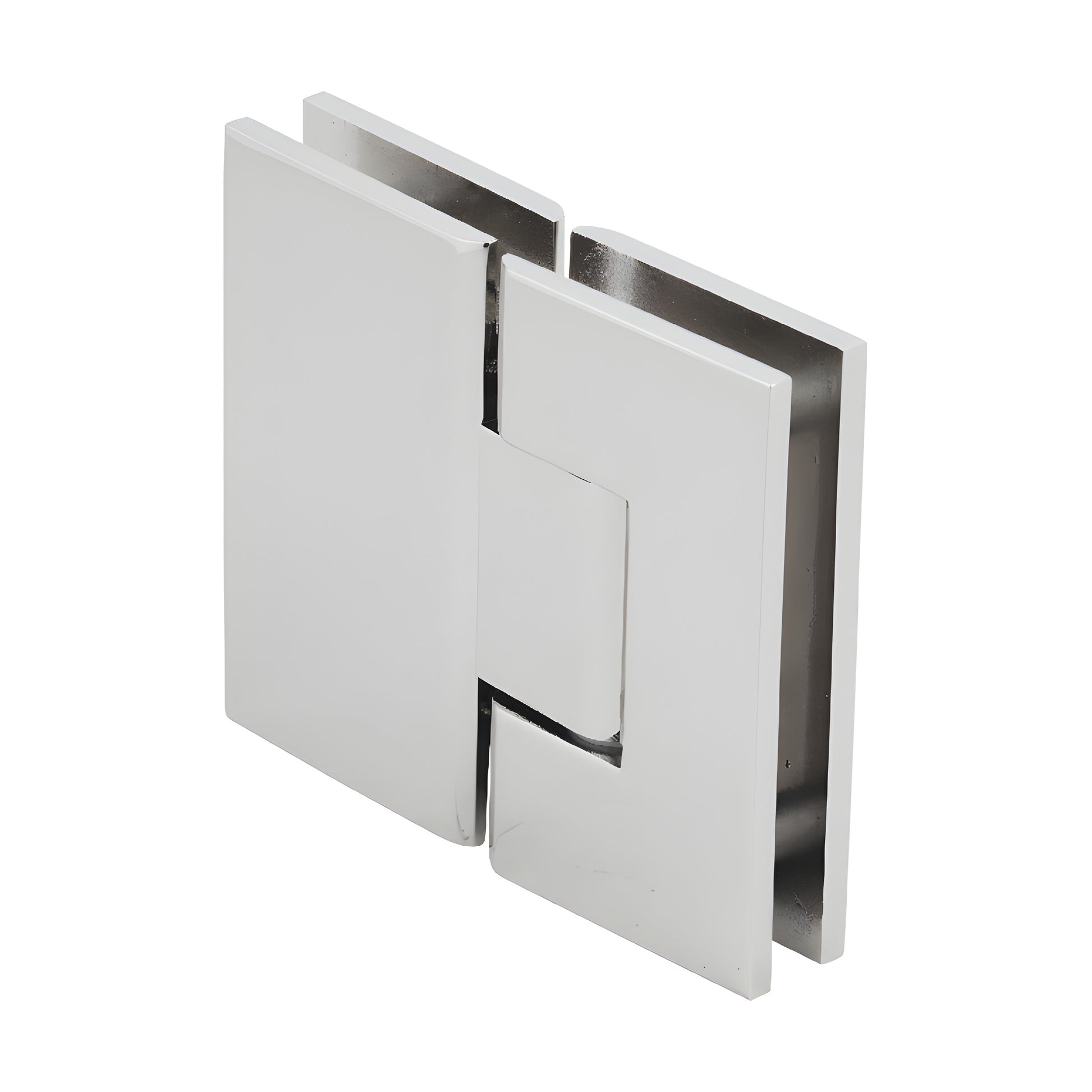

CRL Polished Nickel Vienna 580 Series Glass-to-Glass Hinge with Internal 5 Degree Pin
CRL Polished Nickel Vienna 580 Series Glass-to-Glass Hinge with Internal 5 Degree Pin
Regular price
$164.73 CAD
Regular price
Sale price
$164.73 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# V1E580PN
Shipping Weight: 3.27 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 3.27 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| 5 Degree Pre-Set Yes | No |
| Design | Style Squared |
| Edge | Profile Square |
| Enclosure | Type Niche, Tailor Made Solutions |
| Finish/Color | Polished Nickel |
| Glass To Glass Angle | 180 |
| Glazing Thickness | 3/8 in. to 1/2 in. (10 mm to 12 mm) |

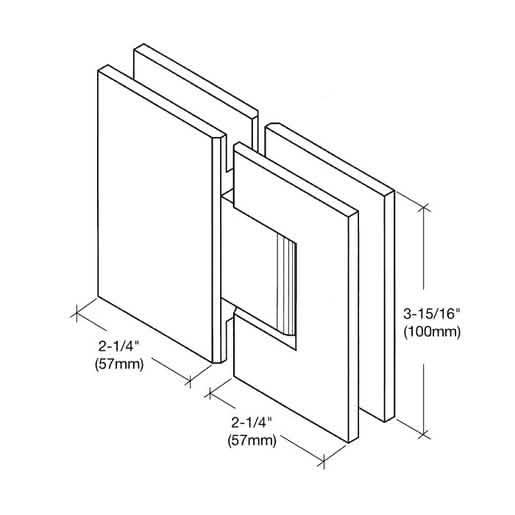

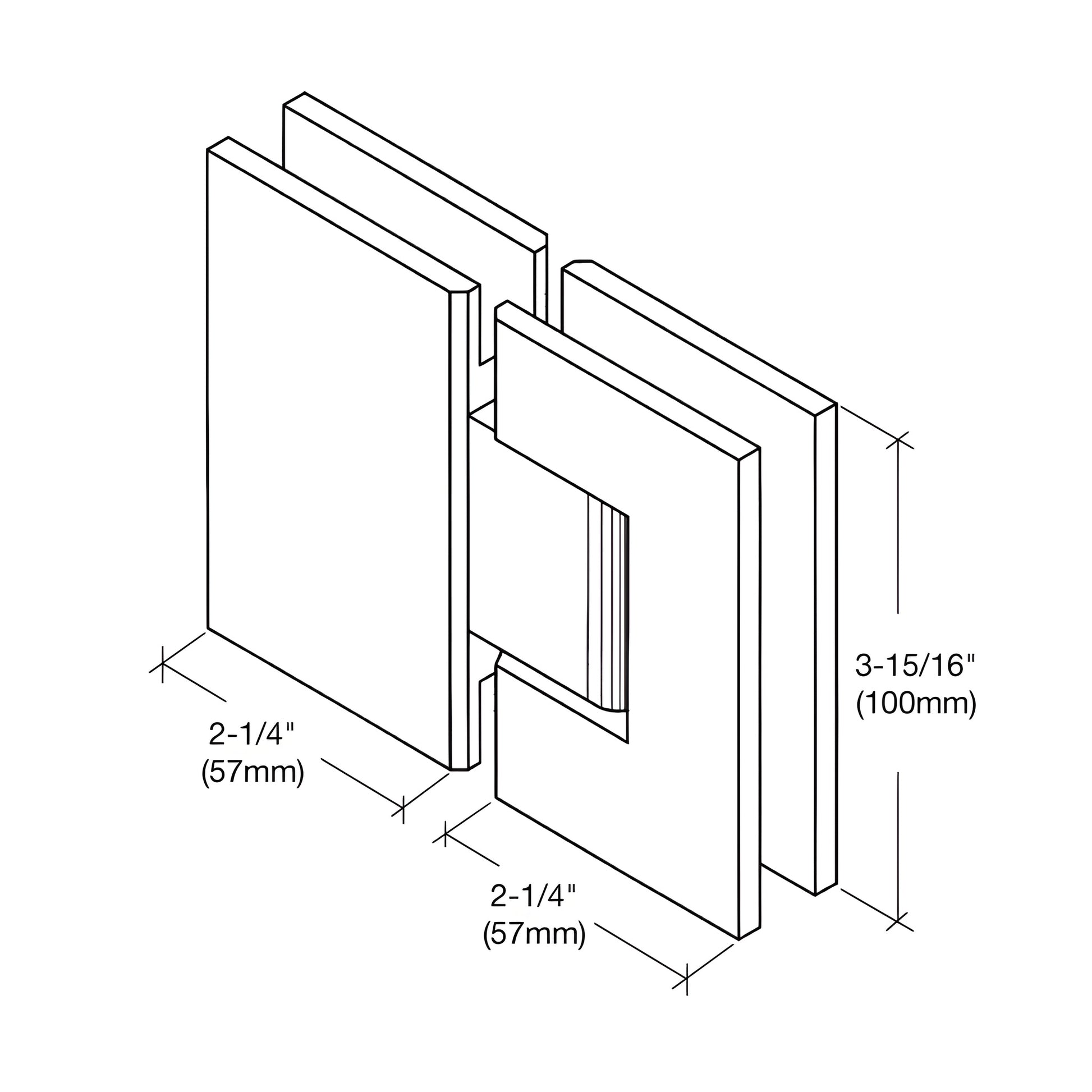

| Height 3-15/16 in. | (100 mm) |
| Material | Brass |
| Maximum Clamping Screw Torque 60 lbf.in | (677.9 cN.m) |
| Maximum Door Weight - 2 Hinges 110 lbs. | (49.9 kg) |
| Maximum Door Weight - 3 Hinges 140 lbs. | (63.5 kg) |
| Maximum Door Width 36 in. | (914 mm) |
| Mounting | Type Glass To Glass |
| Opening Style Swing | (side) |
| Positive | Close No |
| Self-Centering Yes | Vienna |
| Width - Door Portion 2-1/4 in. | (57 mm) |
| Width - Sidelite Portion | 2-1/4 |
Overview
The CRL Vienna Hinges are expertly designed to accommodate 3/8" to 1/2" (10 to 12 mm) glass, making them ideal for wider, heavier doors that traditional hinges can't support.
Available in a variety of beautiful finishes and backed by a 3-year warranty, these hinges are crafted from solid brass and feature a wall mount full back plate standard model.
With a reversible pivot pin for enhanced adjustability, the Vienna Hinges are suitable for monolithic tempered glass and can hold up to 140 lbs with three hinges.
Custom pivot pins are also available to accommodate off-angle installations, ensuring a perfect fit for any shower door setup.
Available in a variety of beautiful finishes and backed by a 3-year warranty, these hinges are crafted from solid brass and feature a wall mount full back plate standard model.
With a reversible pivot pin for enhanced adjustability, the Vienna Hinges are suitable for monolithic tempered glass and can hold up to 140 lbs with three hinges.
Custom pivot pins are also available to accommodate off-angle installations, ensuring a perfect fit for any shower door setup.
