- Adjustable to Any Angle Up to 90º without Removing Door
- Available in Several Beautiful Finishes
- Adjustable 180º Glass-to-Glass
- Use Monolithic Tempered Glass
- Apply medium-strength threadlocker on cover plate screws
The

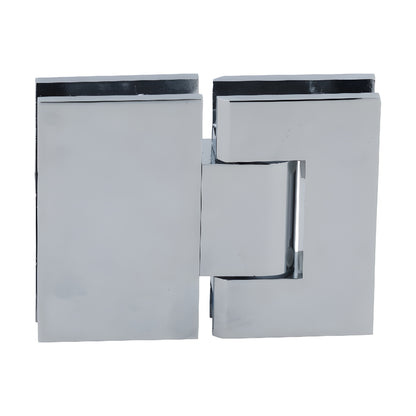

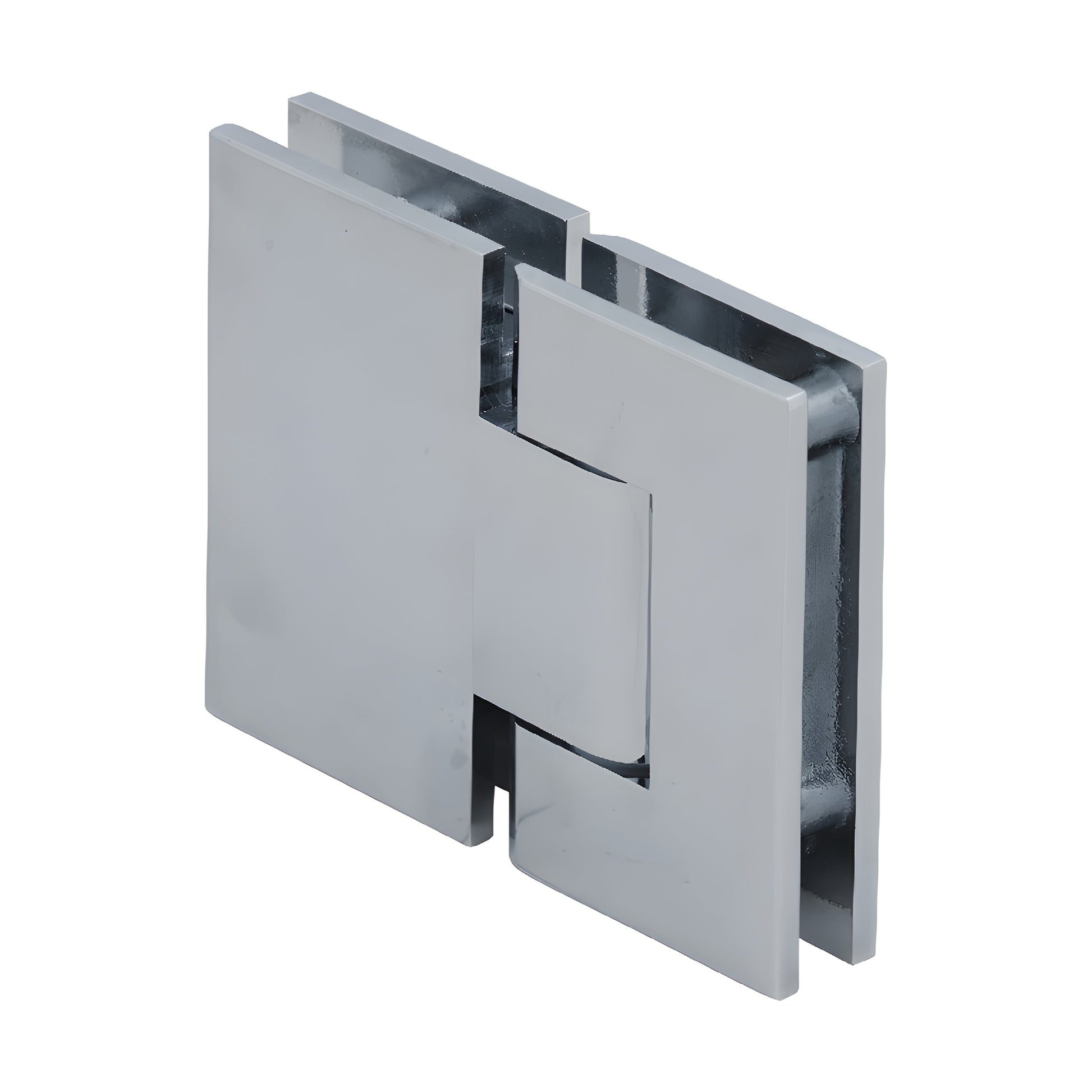

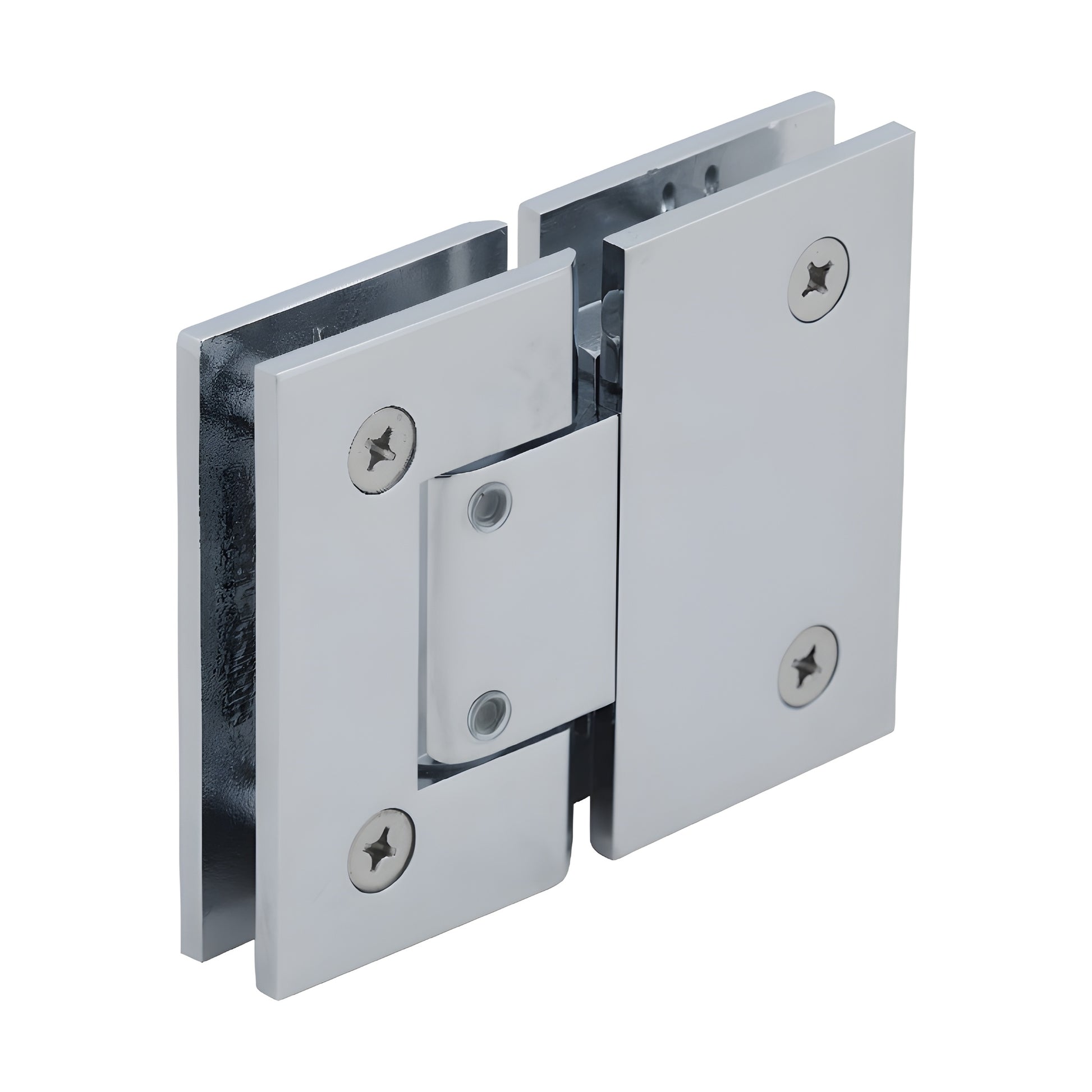

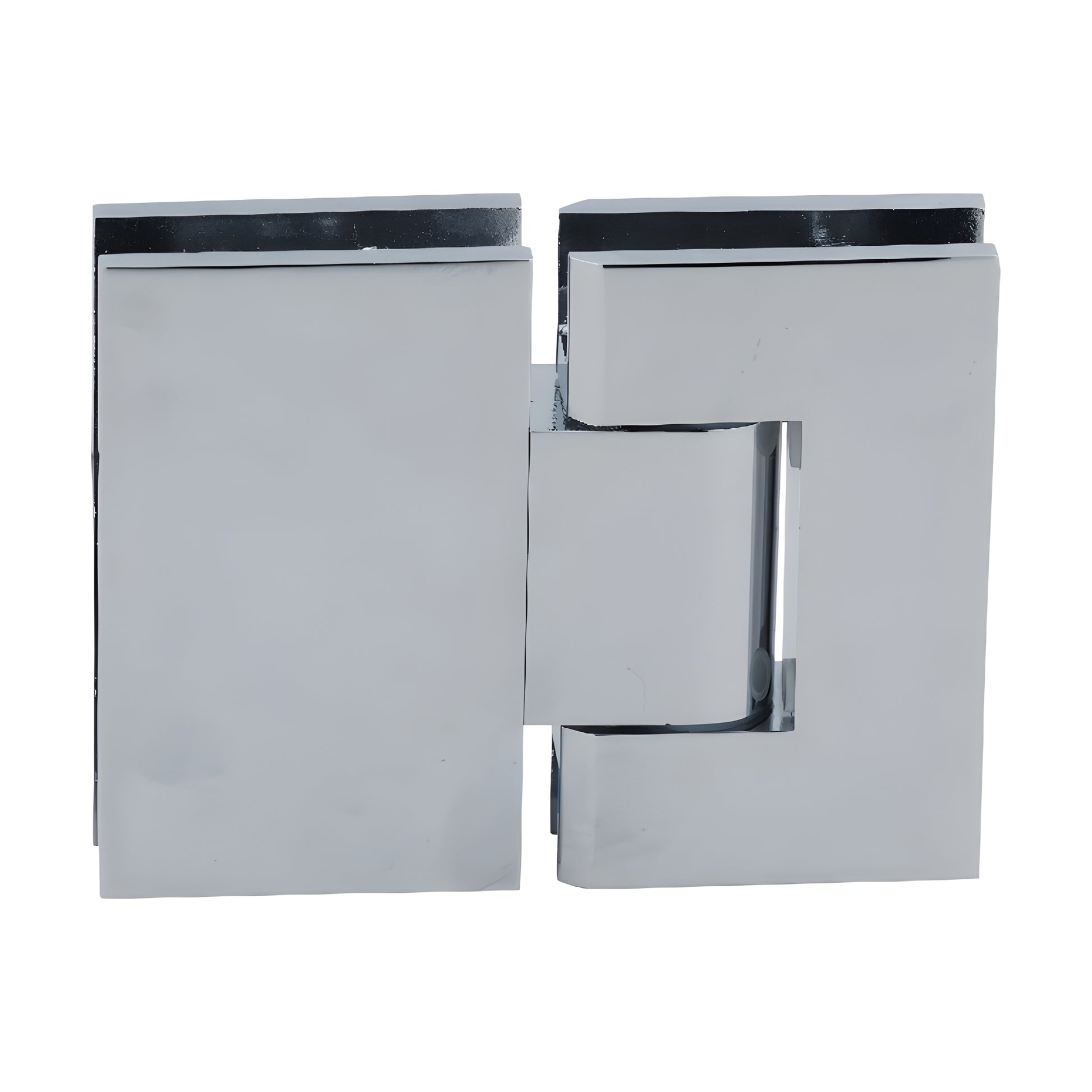

CRL Adjustable Geneva Series
has taken our popular Geneva Hinge to a new level. Adjustment to accommodate the desired angle (up to 90º) is done after the door is installed. Once the door is hung, simply loosen the Allen set screws and turn the door to the desired closed position. By merely tightening the Allen screws your door will self-center to the desired closing position. The door can swing 90 degree inward and 90º outward (adjusting angle from factory set position will reduce 90º swing in that direction). For doors pulling outwards only (using a clear door jamb), you can adjust the hinge to close 5º inside the shower area, thus having the door close snugly against the jamb.
Using two hinges
with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum door width of 28" (711 mm).
Using three hinges
with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 32" (813 mm).
SPECIFICATIONS
Glass Thickness
5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Features
Adjustable to any angle up to 90º without having to take door down.
Construction
Solid Brass
Hinge Swings
90º in and 90º out (at factory set position).
Closing Type
Self-Centering when within 15 degree of closed position.

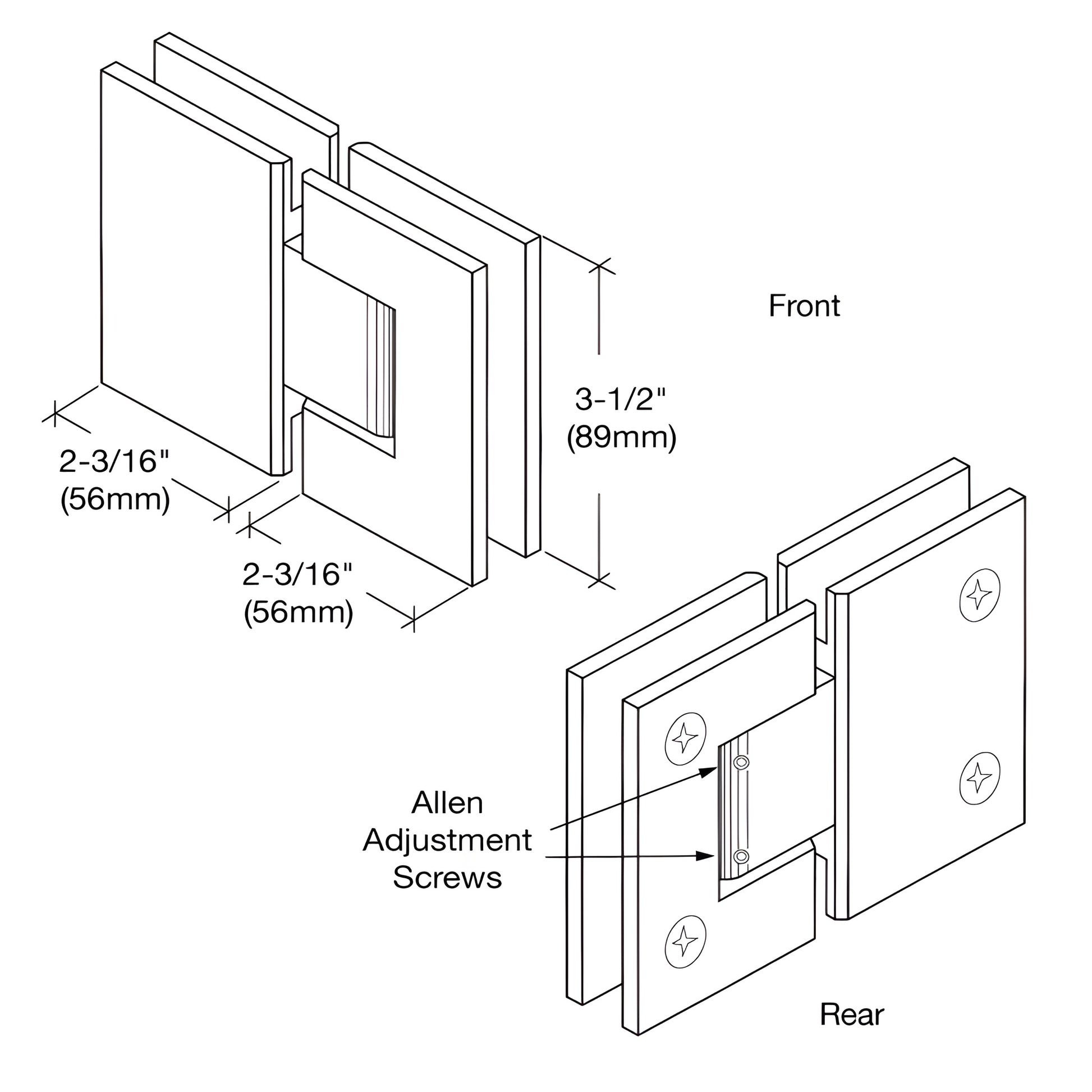

Cut-Out Required Includes
Gaskets, Screws, and Glass Fabrication Dimensions. Cat. No. GEN13 Gasket Pack must be purchased separately for use with 5/16" (8 mm) thick tempered glass.
NOTE
Door glass width may require alteration from standard clearance deductions when adjusting angles. Call for details.
Custom finishes are available on request. Contact the CRL Technical Sales Shower Door Department.
Product Warning
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
