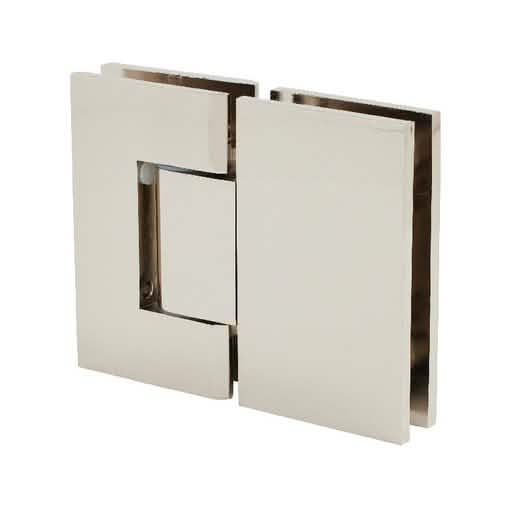

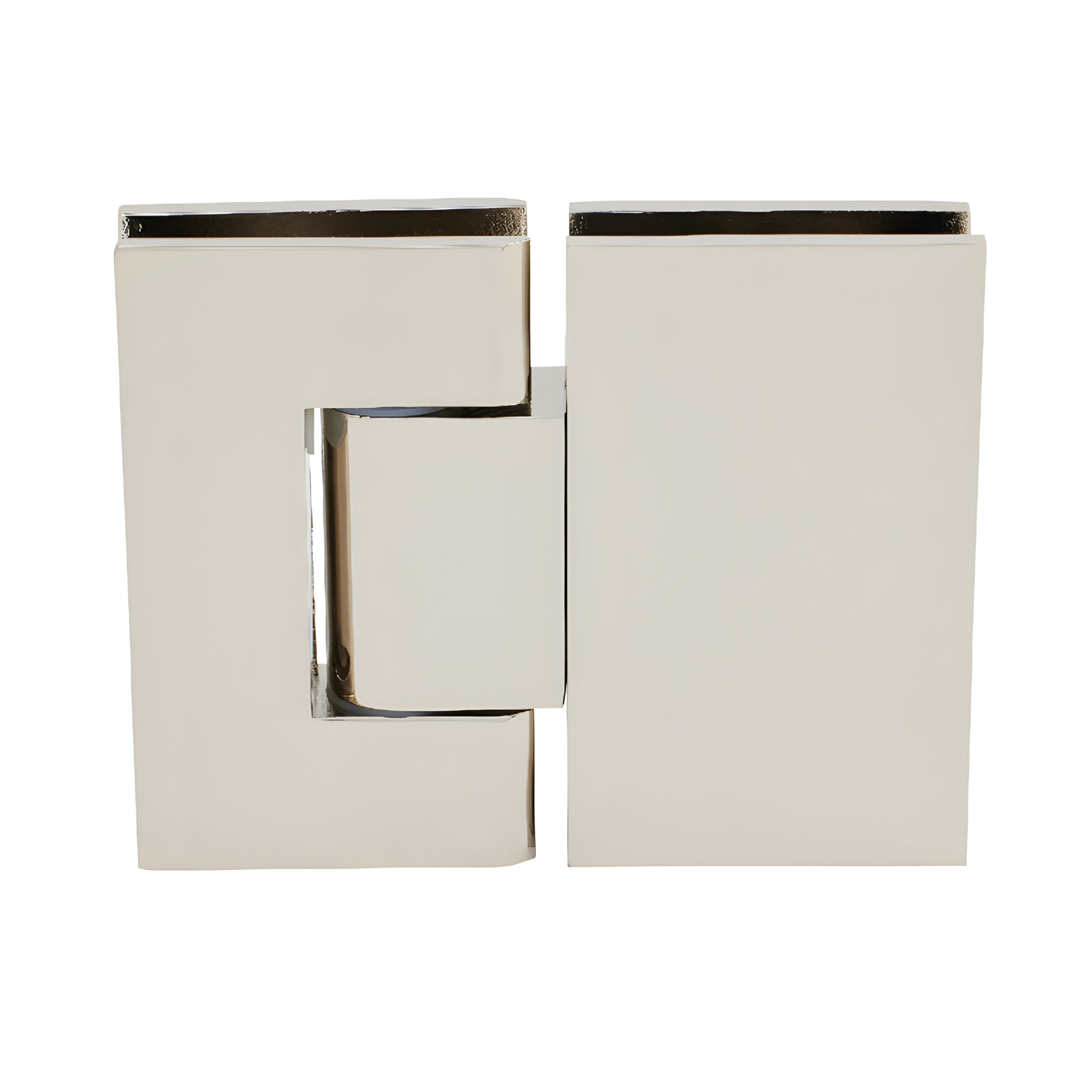

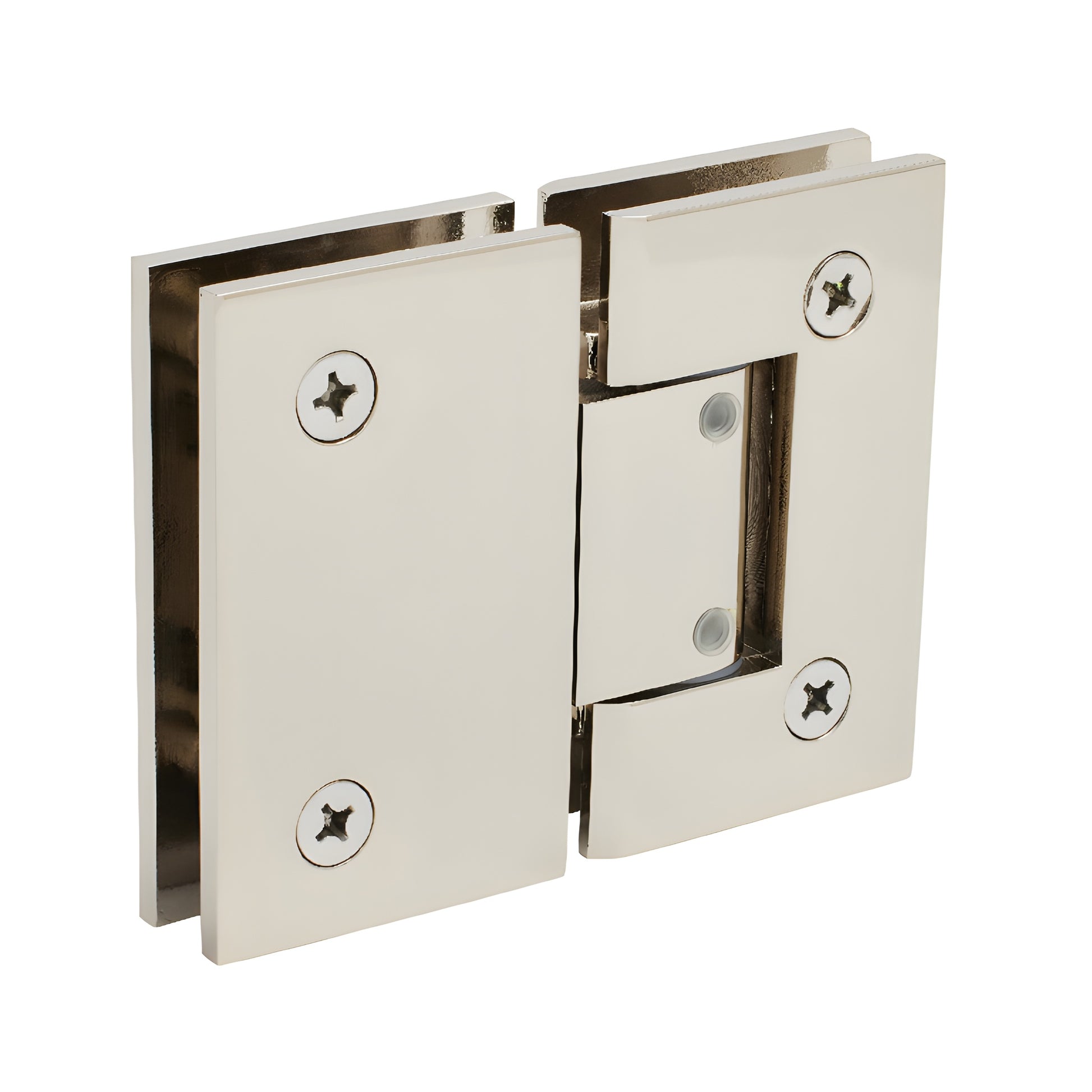

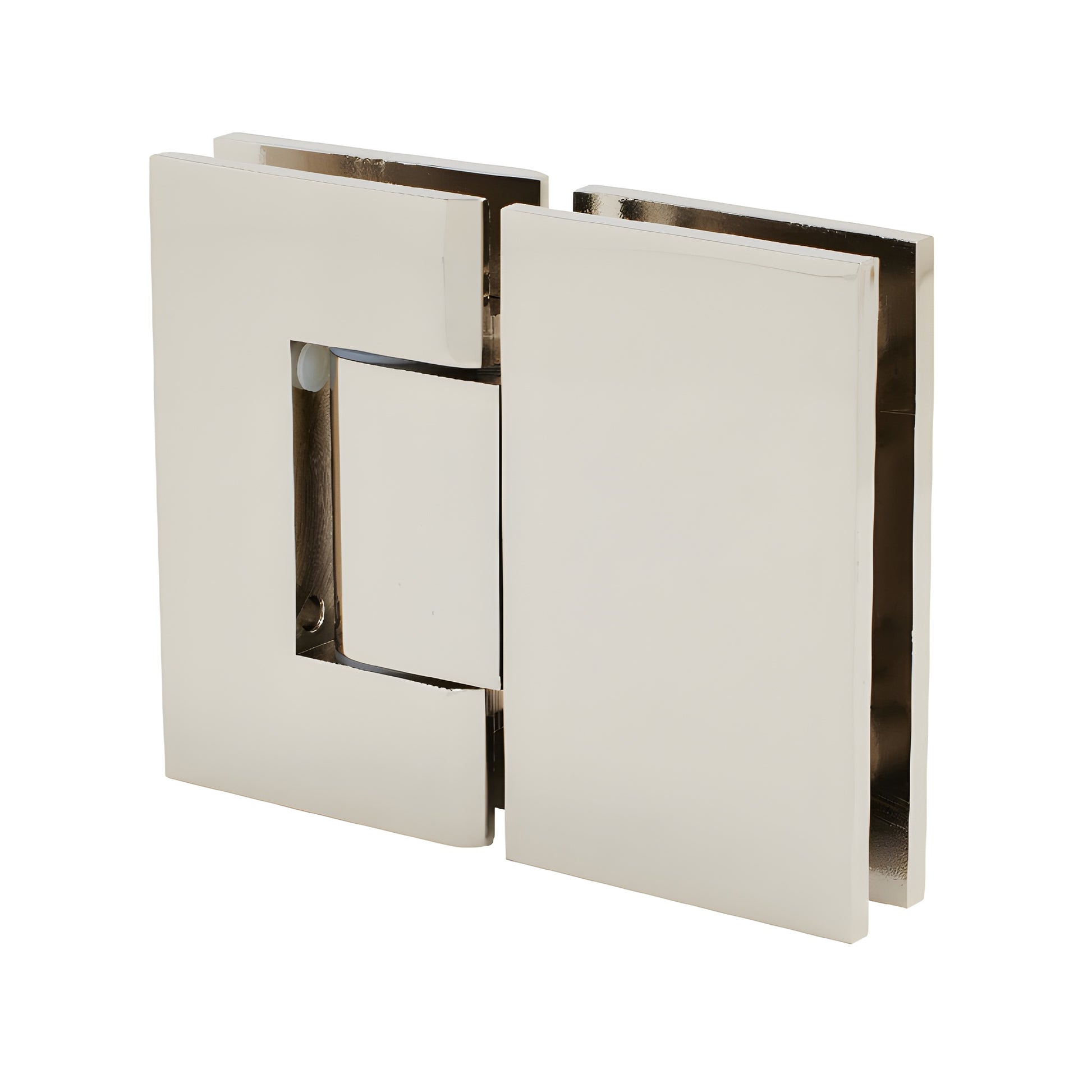

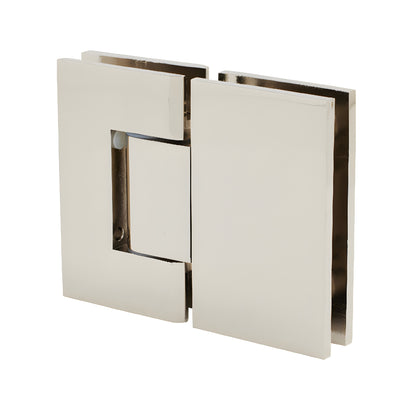

CRL Geneva 380 Polished Nickel 180° Adjustable Glass-to-Glass Hinge

• Adjustable to any angle up to 90 degrees without removing door
• Glass-to-glass adjustable hinge — ideal for frameless shower enclosures
• Available in several durable finishes
• Three-year warranty
• Use with monolithic tempered safety glass

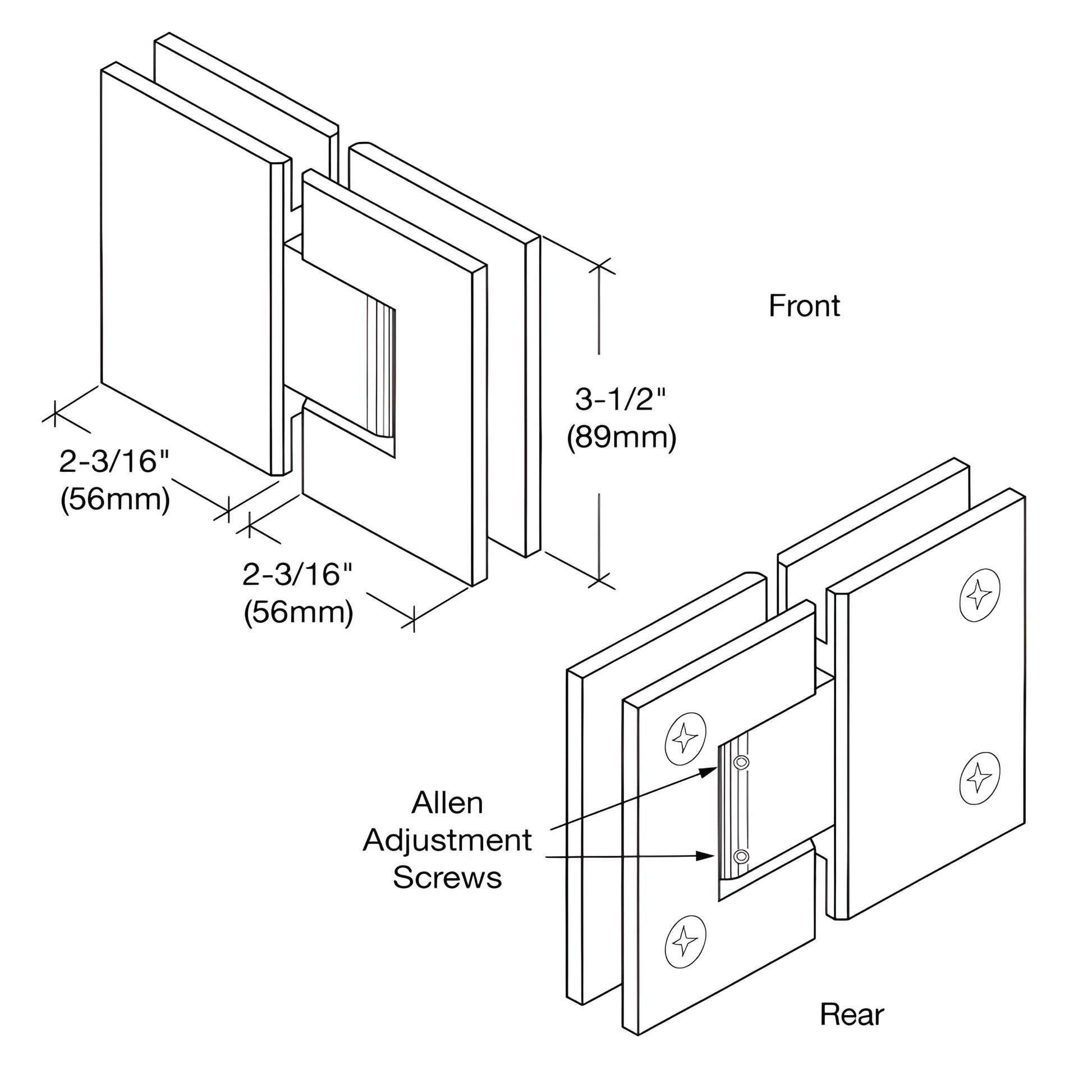

CRL Adjustable Geneva Series (SKU: GEN380PN) updates our popular Geneva hinge into an adjustable shower door hinge that lets you set the closing angle after installation. Loosen the Allen set screws, rotate the door to the desired closed position, then tighten — the hinge self-centers within 15° of closed. The door can swing up to 90° inward and 90° outward (note: adjusting away from factory position reduces swing in that direction). For outward-swinging doors on a clear jamb, you can set the hinge to close 5° into the shower for a snug jamb seal.

Capacity & glass

Using two hinges: Fits 5/16"–1/2" (8–12 mm) tempered glass; supports up to 80 lb (36 kg) with max door width 28" (711 mm).

Using three hinges: Fits 5/16"–1/2" (8–12 mm) tempered glass; supports up to 120 lb (54 kg) with max door width 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
Special Features: Adjustable to any angle up to 90° without removing door; self-centers when within 15° of closed
Construction: Solid brass
Hinge Swings: 90° in and 90° out (at factory set position)
Cut-Out Required Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. GEN13 gasket pack required separately for use with 5/16" (8 mm) glass.

NOTE: Door glass width may require alteration from standard clearance deductions when adjusting angles. Call for details.

Custom finishes available on request. Contact the CRL Technical Sales Shower Door Department for custom finish options and ordering.

Product Warning:
CRL shower door hinges are designed for residential and hotel shower use only. For other applications, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge — cut-out dimensions may not match other brands.
