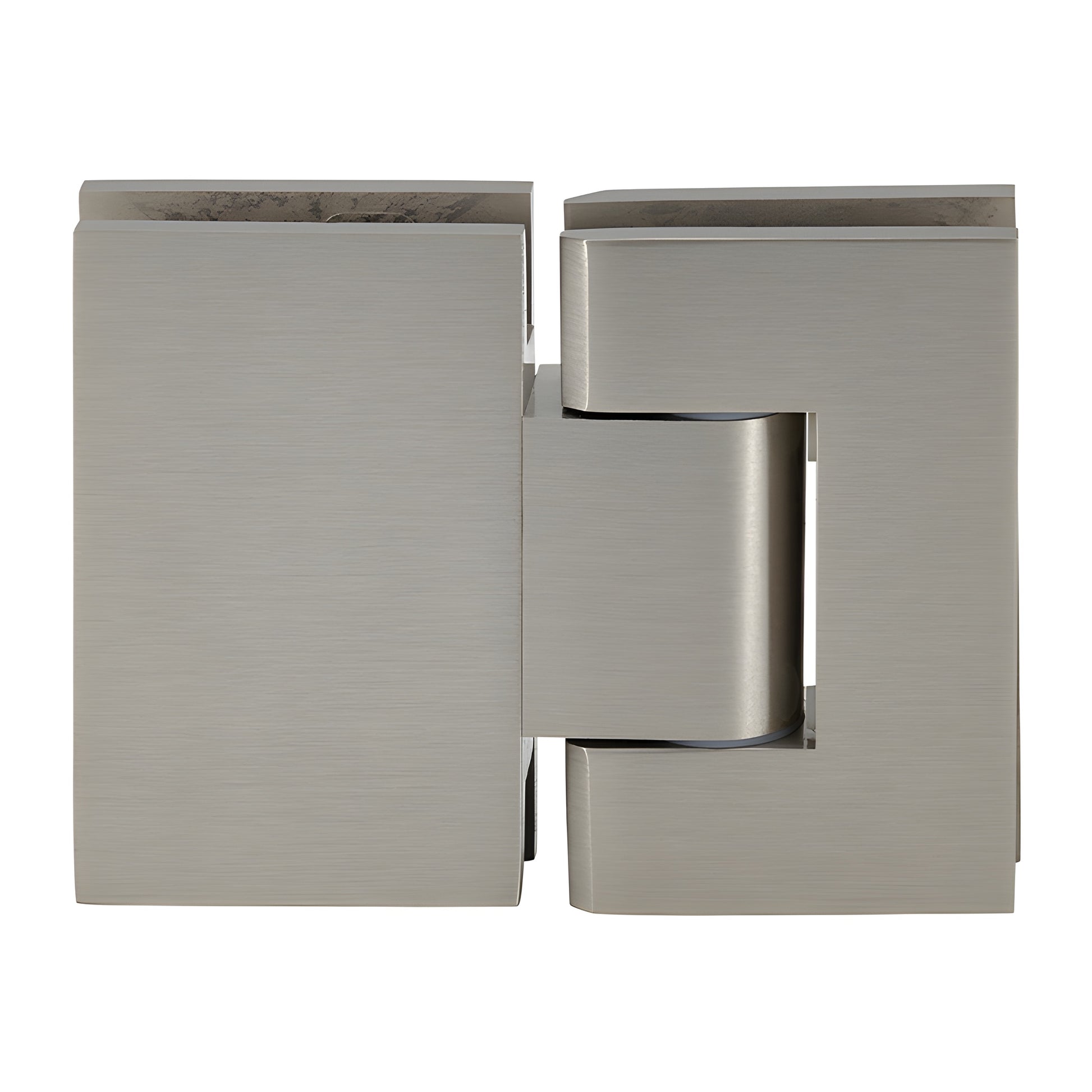

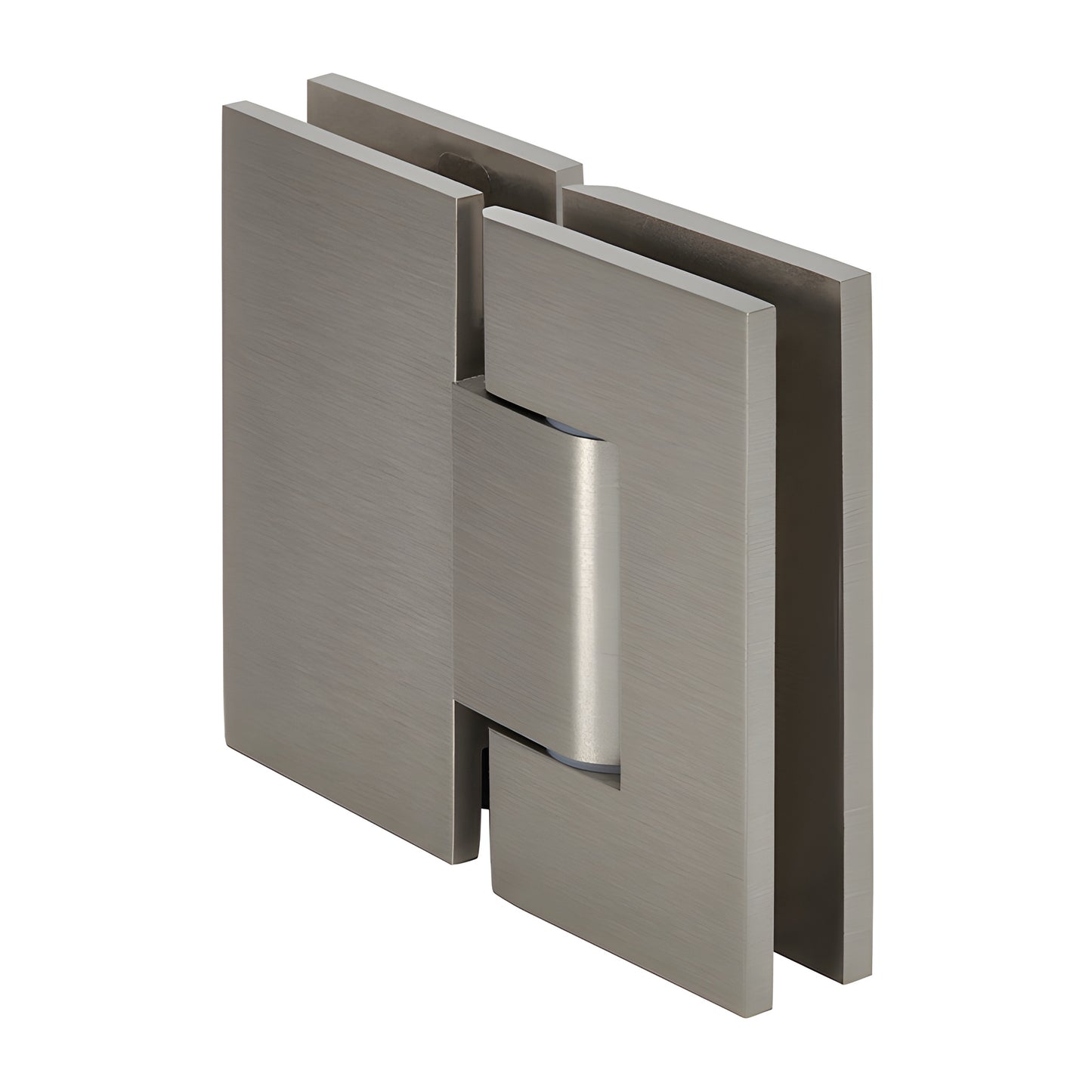

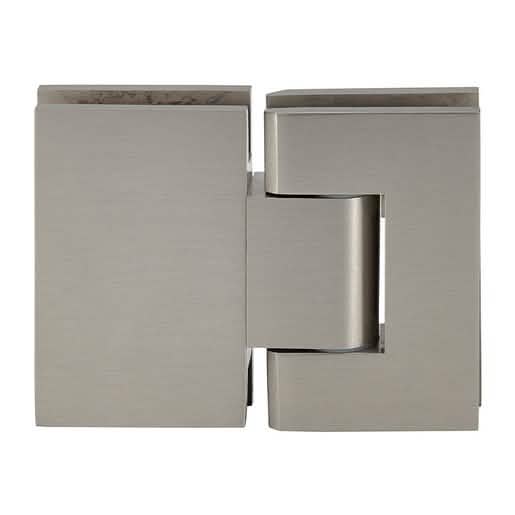

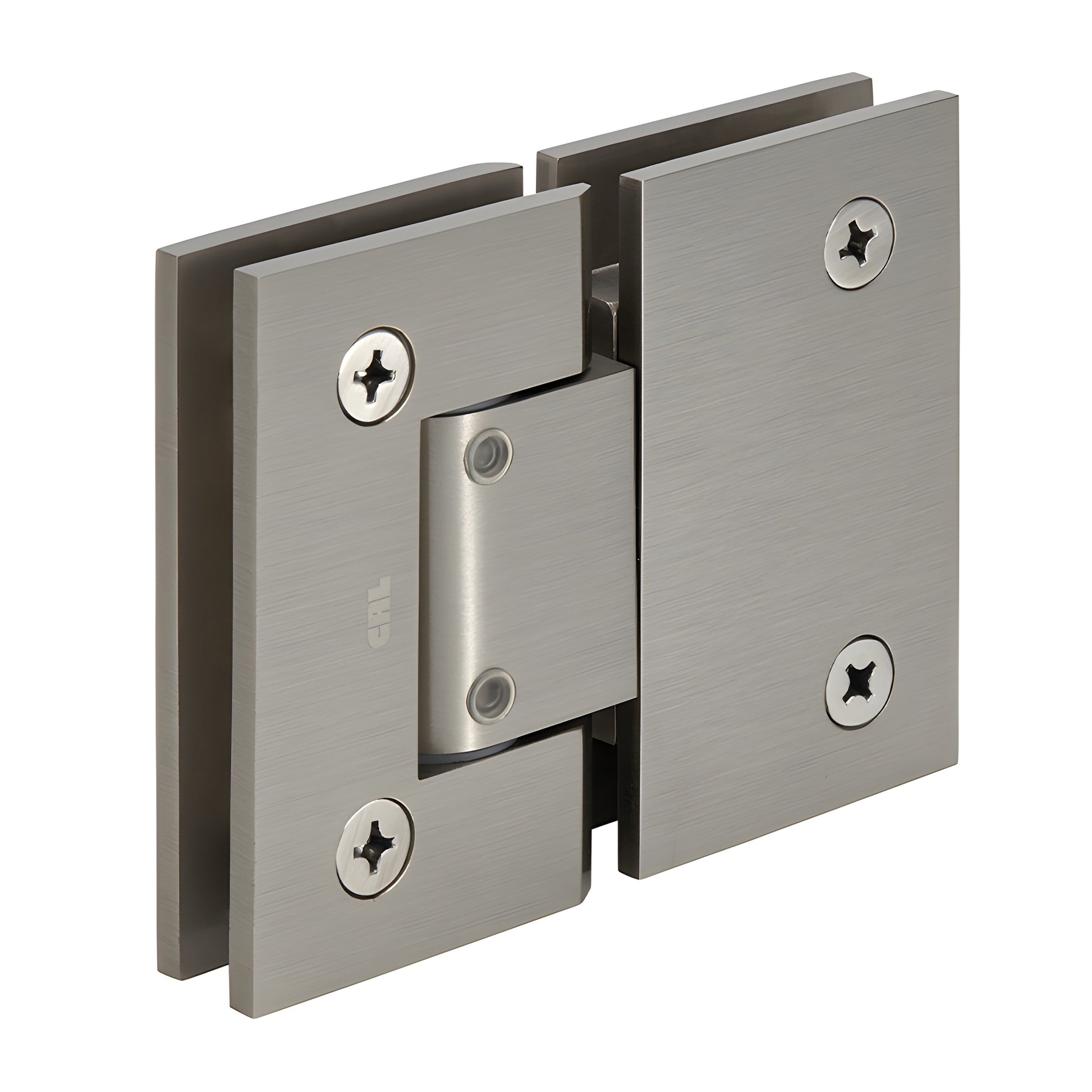

CRL Geneva 380 Brushed Nickel 180° Adjustable Frameless Shower Hinge

• Adjustable to any angle up to 90 degrees without removing the door
• Available in several beautiful finishes
• Three year warranty
• Adjustable 180° glass-to-glass
• For use with monolithic tempered glass

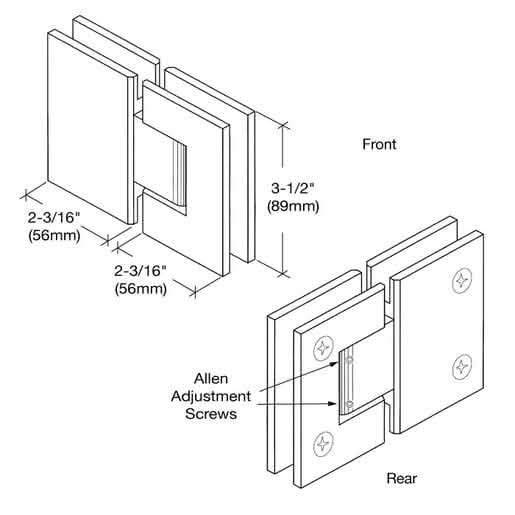

The CRL Adjustable Geneva Series (SKU: GEN380BN) updates our popular Geneva hinge into a fully adjustable shower door hinge. Final angle adjustment—up to 90°—is performed after installation: loosen the Allen set screws, rotate the door to the desired position, then re-tighten. The hinge self-centers when the door is within 15° of closed. The door swings 90° inward and 90° outward at factory set position; adjusting the hinge will reduce swing on the adjusted side. For outward-swinging doors (clear jamb), you can set the hinge to close 5° inside the shower for a snug fit against the jamb. These features make this an ideal adjustable shower door hinge for custom frameless and semi-frameless shower enclosures.

Capacity & usage:
Using two hinges: for 5/16"–1/2" (8–12 mm) tempered glass, supports up to 80 lbs (36 kg) with a maximum door width of 28" (711 mm).

Using three hinges: for 5/16"–1/2" (8–12 mm) tempered glass, supports up to 120 lbs (54 kg) with a maximum door width of 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
Special Features: Adjustable to any angle up to 90° without removing the door; self-centering closing action within 15°
Construction: Solid brass
Hinge Swings: 90° in and 90° out (at factory set position)
Cut-Out Required Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. GEN13 gasket pack must be purchased separately for use with 5/16" (8 mm) glass.

NOTE: Door glass width may require alteration from standard clearance deductions when adjusting angles. Call for details.

Custom finishes available on request. Contact the CRL Technical Sales Shower Door Department.

Product Warning:

CRL shower door hinges are designed for residential or hotel shower use only. For other applications, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge—cut-out dimensions may not match other brands.
