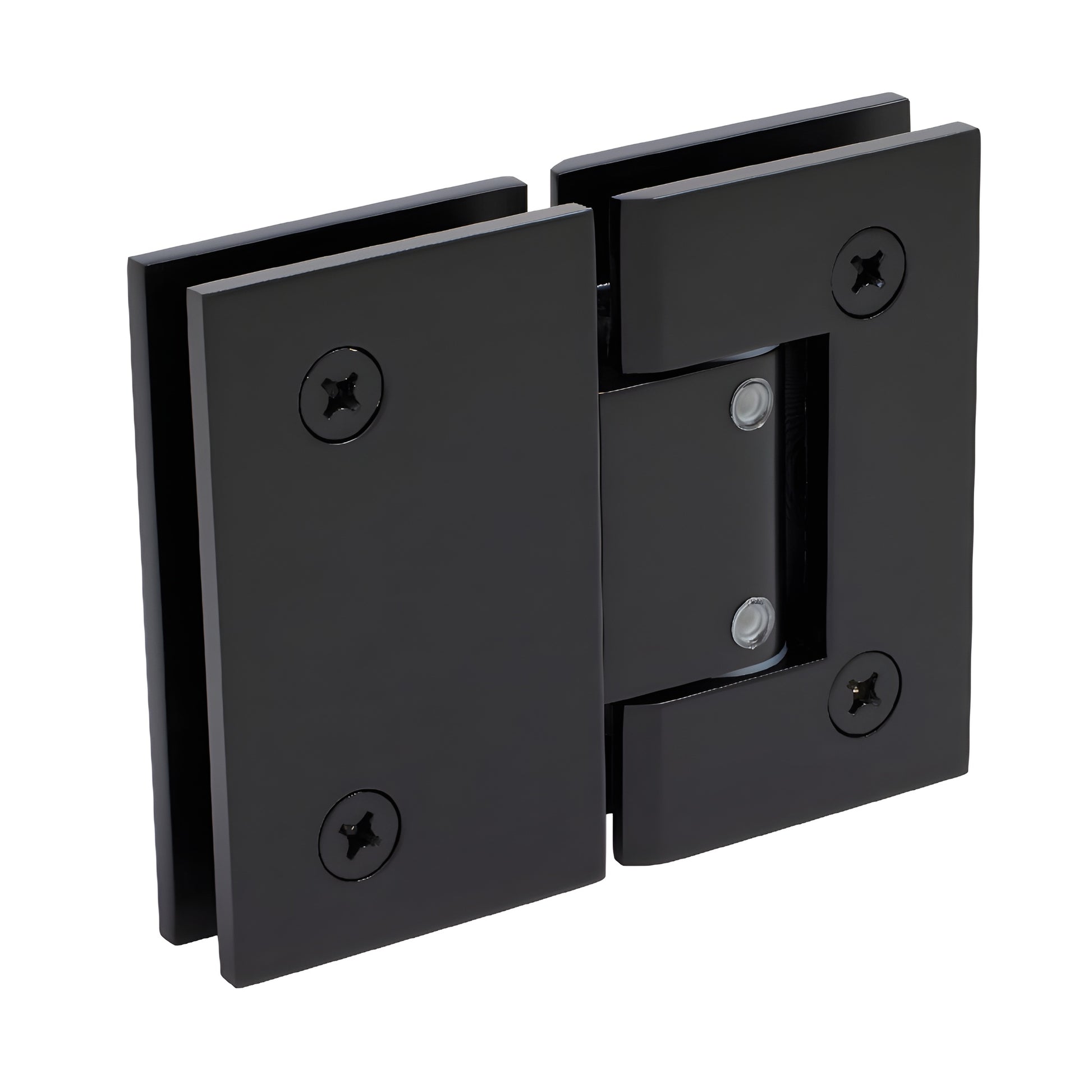

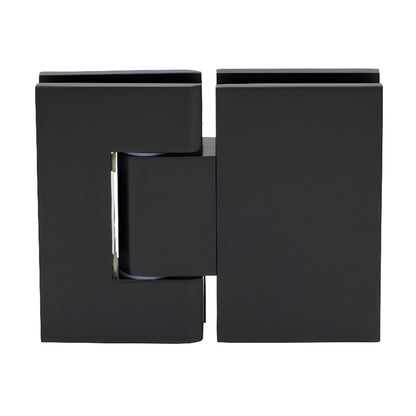

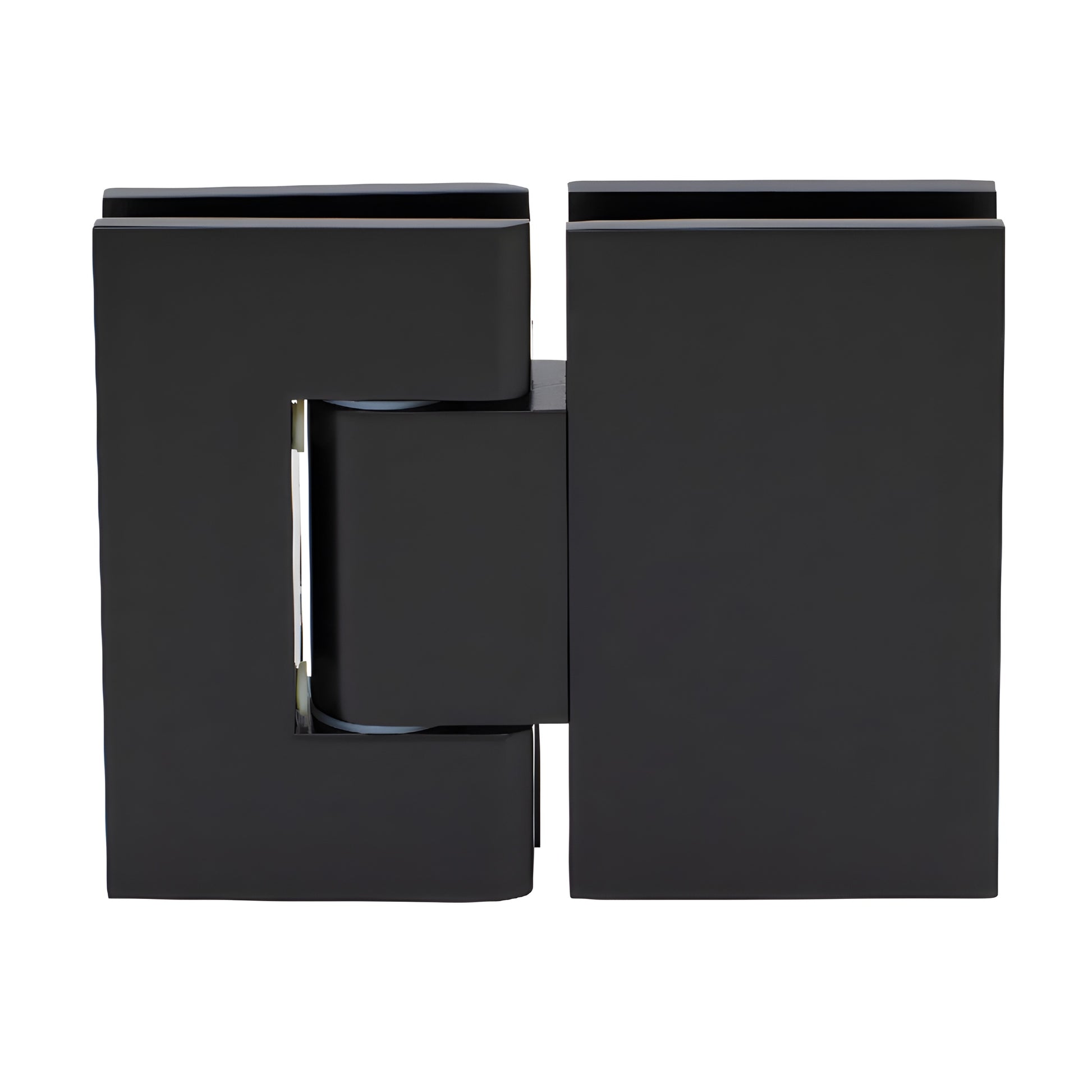

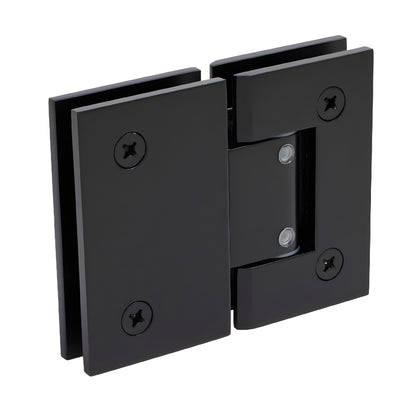

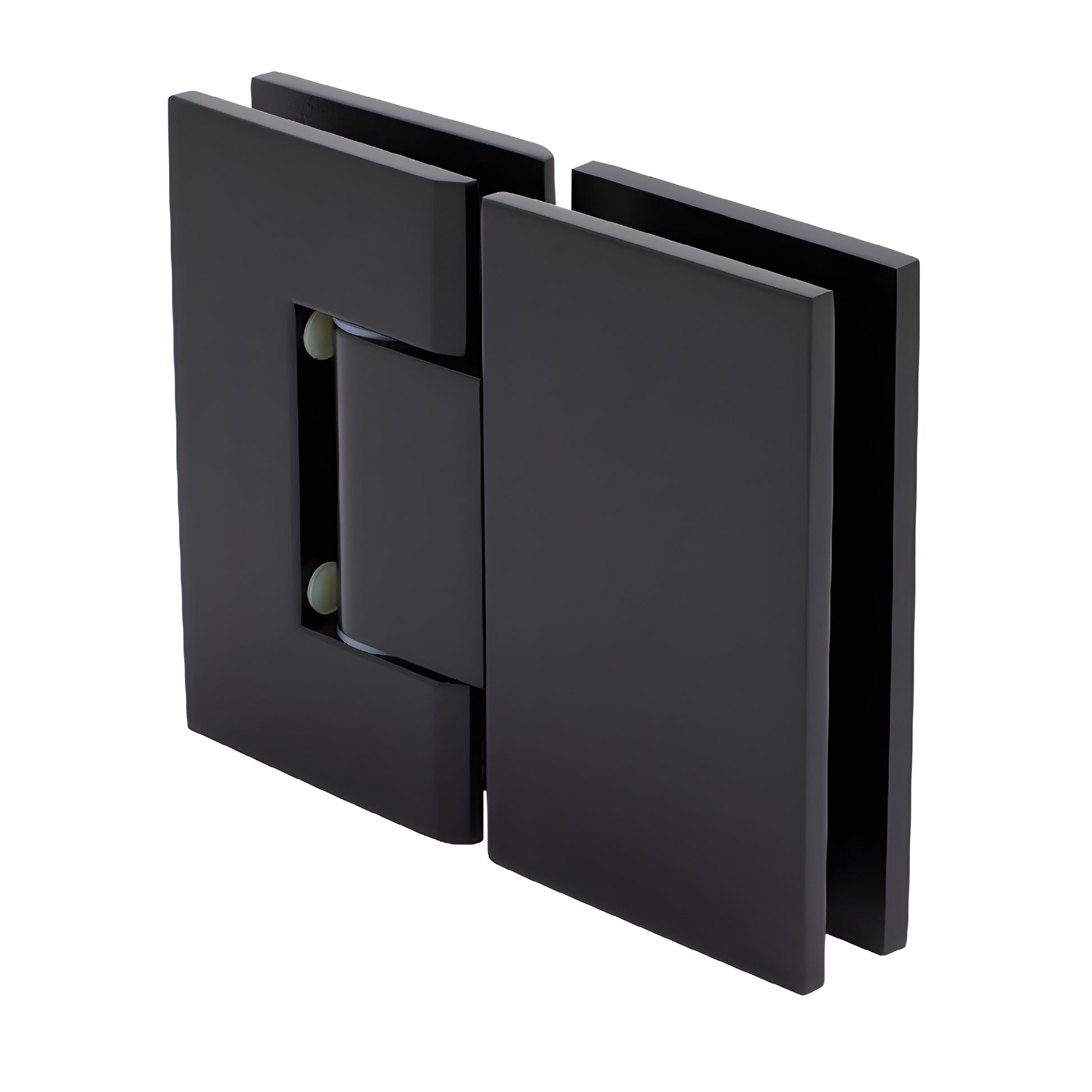

CRL Geneva 380 Matte Black 180° Adjustable Glass-to-Glass Shower Hinge

• Adjustable to any angle up to 90° after installation (no door removal)
• Available in multiple decorative finishes
• Three-year warranty
• Adjustable 180° glass-to-glass capability
• For monolithic tempered glass

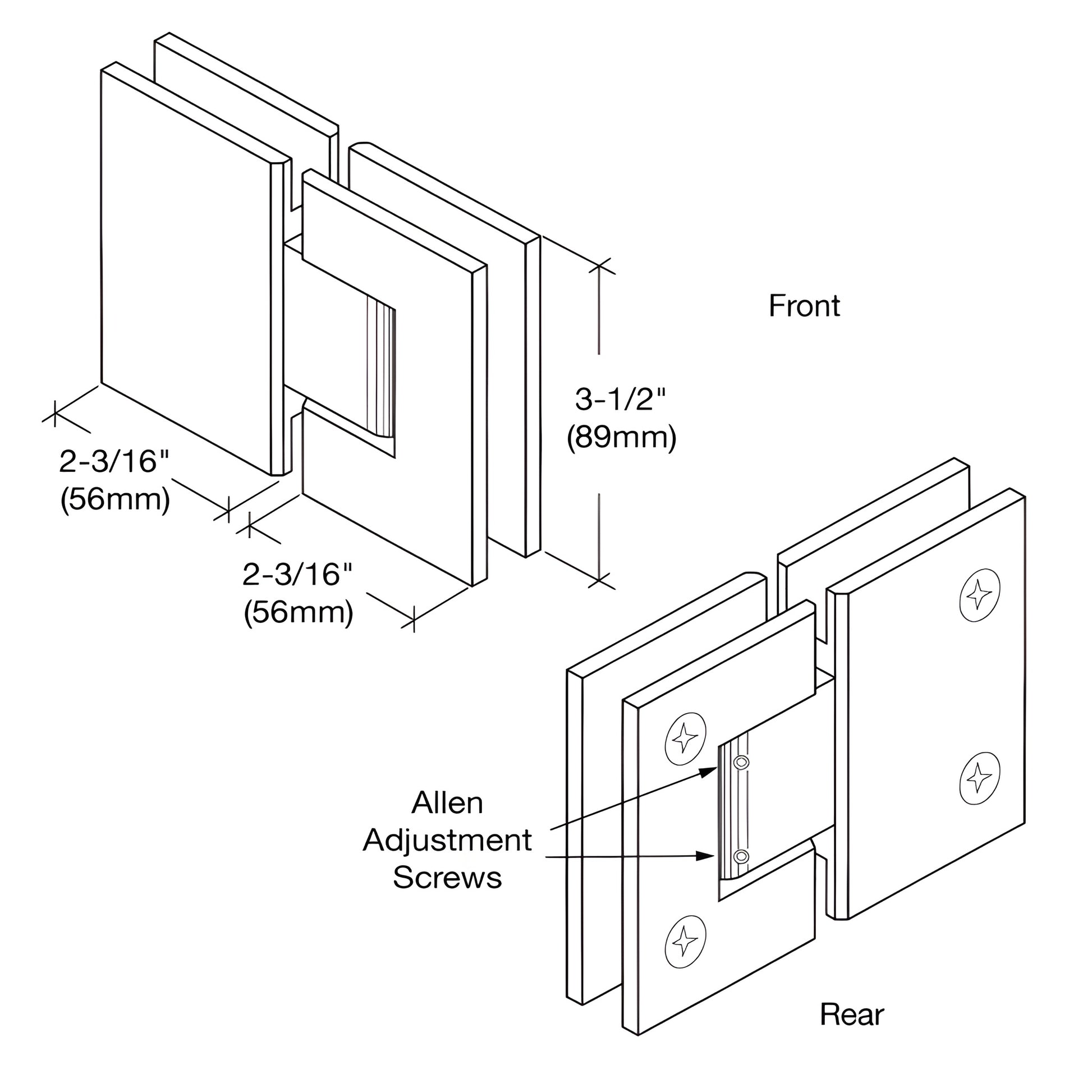

The CRL Adjustable Geneva Series (SKU: GEN380MBL) upgrades the popular Geneva hinge into a versatile, field-adjustable shower door hinge. Fine-tune the closing angle up to 90° after the door is hung—simply loosen the Allen set screws, rotate the door to the desired position, then retighten. The self-centering hinge pulls the door closed when within 15° of the shut position. Ideal as an adjustable shower door hinge for frameless and clear-jamb installations, it allows a 90° swing inward and outward (adjusting away from factory position reduces swing range in that direction). For outward-swing doors with a clear jamb, you can set the hinge to close 5° inside the shower for a snug jamb seal.

Load Capacity & Glass Size
Using two hinges with 5/16" to 1/2" (8–12 mm) tempered safety glass: holds up to 80 lbs (36 kg); max door width 28" (711 mm).
Using three hinges with 5/16" to 1/2" (8–12 mm) tempered safety glass: holds up to 120 lbs (54 kg); max door width 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
Special Features: Field-adjustable to any angle up to 90° without removing the door — excellent for adjustable shower door installations
Construction: Solid brass
Hinge Swings: 90° in and 90° out (at factory set position)
Closing Type: Self-centering when within 15° of closed position
Cut-Out Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. GEN13 gasket pack must be purchased separately for use with 5/16" (8 mm) glass.

NOTE: Door glass width or standard clearance deductions may require alteration when adjusting angles—contact CRL Technical Sales for details.

Custom finishes available on request. Contact the CRL Technical Sales Shower Door Department.

Product Warning:

CRL shower door hinges are designed for residential and hotel shower use. For other applications, obtain approval from CRL Shower Door Technical Sales. Use only the included template; cut-out dimensions for CRL hinges may differ from other brands.
