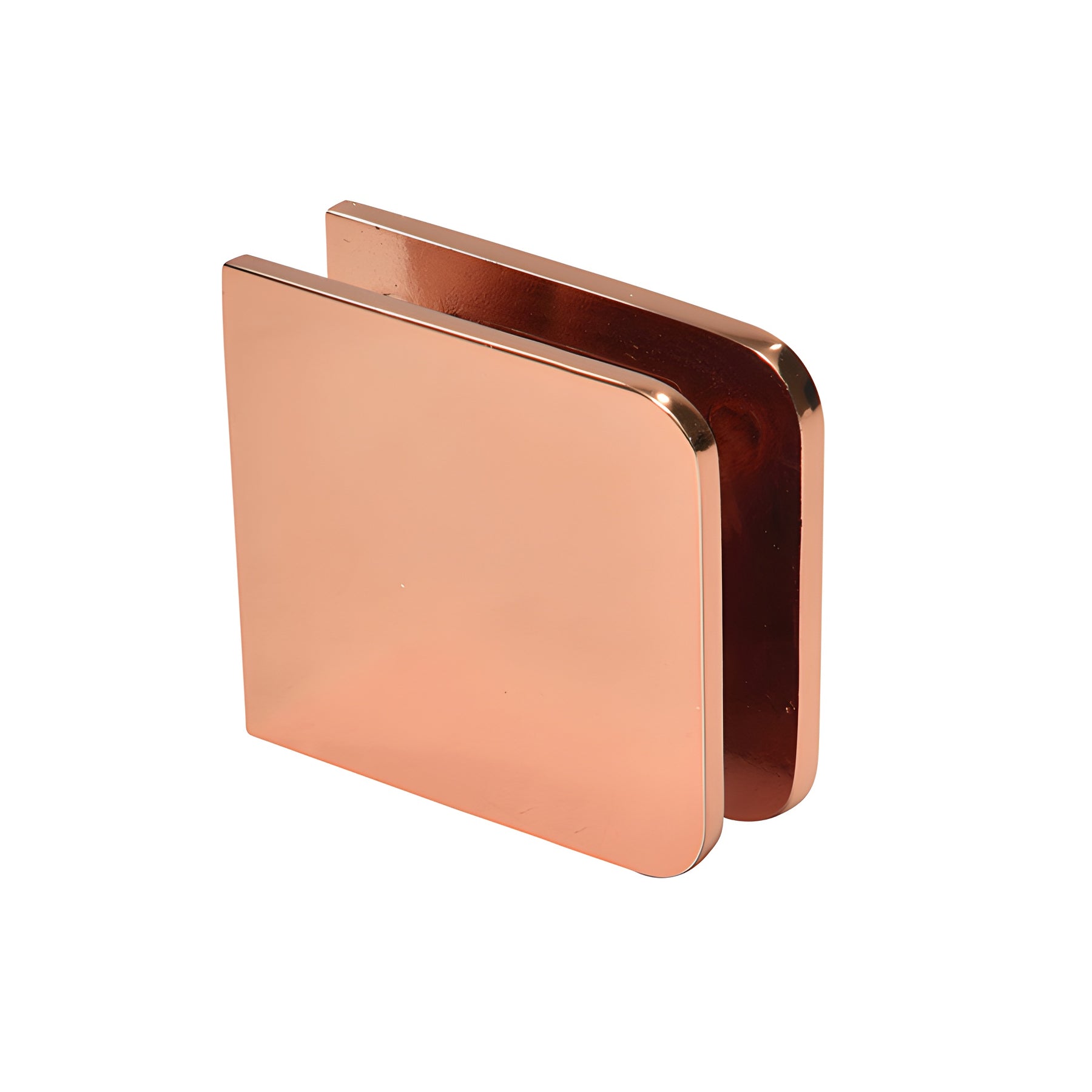

CRL Polished Copper Oversized U-Clamp for Fixed Tempered Glass Panels

• Recommended for 1/2" (12 mm) glass installations
• Use monolithic tempered glass
• Secures fixed panels for frameless shower enclosures
• Solid brass construction
• Provides an all-glass look as an alternative to U-channel
• Glass fabrication required to accommodate clamps (hole drilling)

CRL Oversized Fixed Panel U-Clamps (SKU: UC79PC0) perform the same function as standard fixed panel U-clamps but are optimized for thicker glass. These oversized U-clamps are recommended when the temperer requires a hole-drilling measurement of 1.5× the glass thickness—ideal for 1/2" (12 mm) frameless shower glass installations.

Our solid brass traditional glass clamps secure fixed panels in contemporary frameless shower enclosures, helping preserve a clean, all-glass aesthetic. Each clamp includes appropriate mounting screws and one set of clear gaskets; extra clear gaskets (Cat. No. UCG77) are available separately. Available finishes coordinate with CRL shower door hinges.

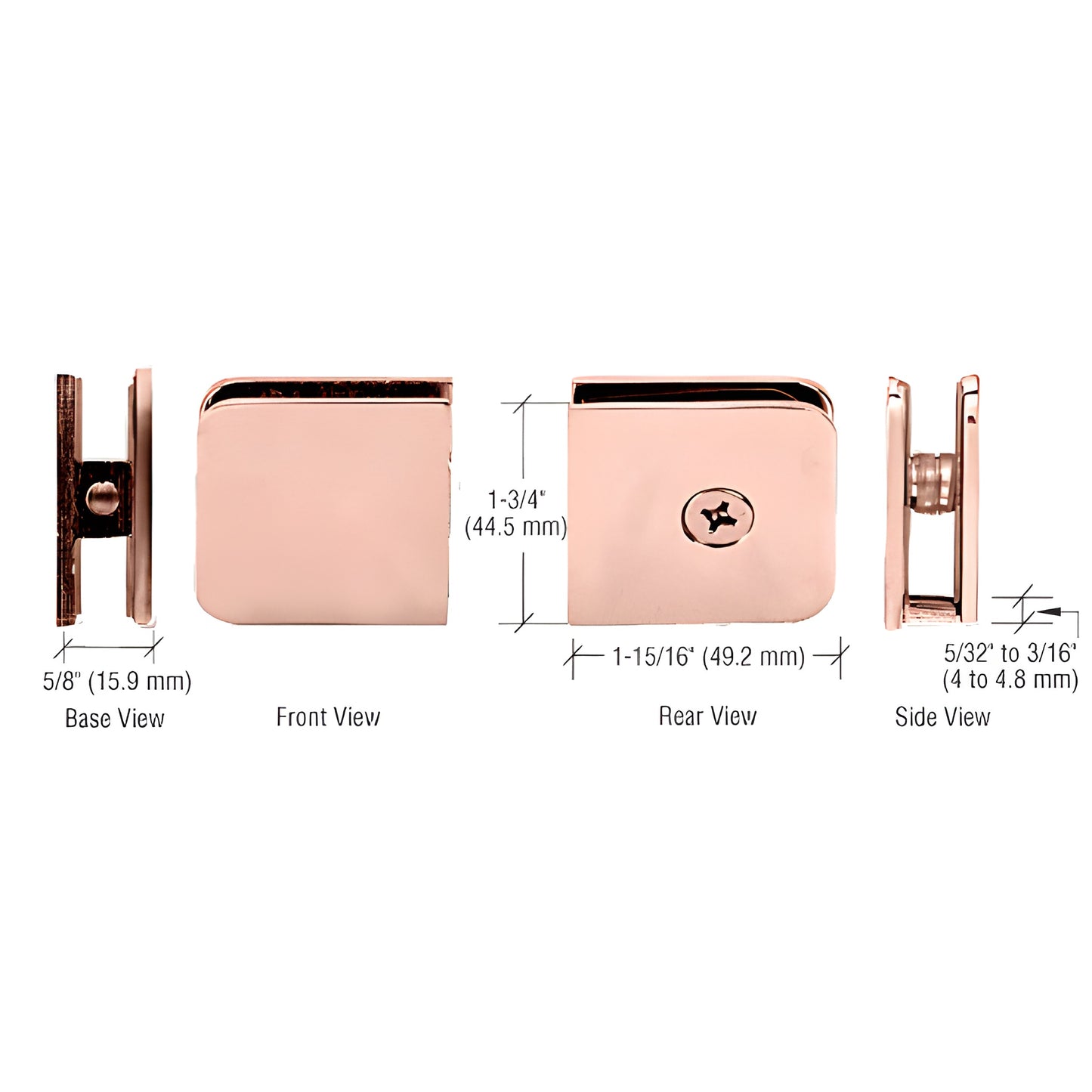

SPECIFICATIONS:
Material: Solid Brass
Glass Thickness Range: 5/16" to 1/2" (8 to 12 mm)
Hole Diameter Required: 5/8" or 3/4" (16 or 19 mm)
Includes: Mounting screw and clear gaskets

NOTE: An additional set of clear gaskets (Cat. No. UCG77) is required for 5/16" (8 mm) glass.

Order CRL oversized solid brass U-clamps (UC79PC0) for a durable, frameless shower glass clamp solution—contact us to check finish availability and lead time.
