CRL Satin Anodized 10" Square Glass Door Rail 3/4" - 35-3/4" No Lock

• 35-3/4" (908 mm) length for 3/4" (19 mm) glass
• Use monolithic tempered glass
• Patented Wedge-Lock® glass securing system
• Models to fit from 1/2" to 3/4" (12 to 19 mm) glass
• Available in several stock architectural finishes; custom finishes available
• Available with and without locks
• Matching sidelite rails available

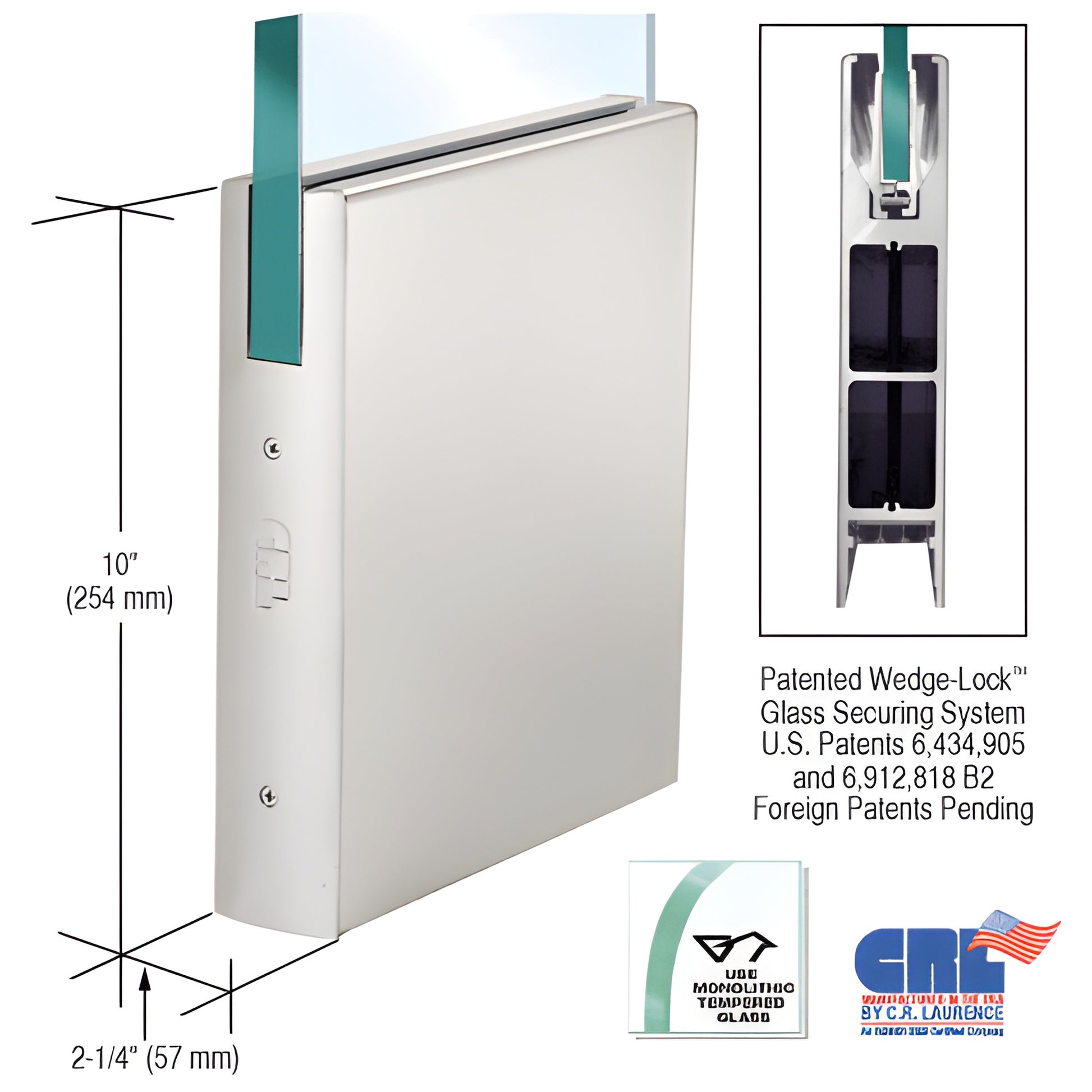

Our innovative glass entrance solution, the CRL Wedge-Lock® Door Rail System (SKU: DR10SSA34S), features the exclusive CRL Wedge-Lock® Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). This glass door rail system secures glass by applying downward wedge pressure from two retaining aluminum extrusions via a flat stainless steel bar. As the bar is tensioned with socket head cap bolts, angled extrusions engage an angled groove in the rail to pull the retaining pieces together, delivering extraordinary clamping force (more than 900 lbs. in the 9" corner rail) — and even greater force across the full 35-3/4" door rail length.

NOTE: Actual product height: 10" (254 mm)

The Wedge-Lock® system delivers fast installation and reliable long-term performance. Experienced installers can prepare a door in under ten minutes. Rails arrive fully fabricated and ready-to-install with end caps installed. After mounting the rail, simply attach your door arm or pivot (not included) to the adjustable door alignment slide already assembled in the rail.

The standard Adjustable Door Alignment System lets you fine-tune the door 1/8" (3 mm) toward or away from the jamb without removing the door (standard on both top and bottom rails). To adjust after installation, remove the end cap to access three socket head cap bolts: the center bolt secures the slide; the two outer bolts adjust the slide 1/8" (3 mm) in or out. The low-profile slide also allows pivots with slotted grooves to be positioned off the American Standard setback (2-3/4" / 69.8 mm), enabling fabrication for vertically out-of-square openings.

Other reasons to choose Wedge-Lock® Door Rails:

• Accepts 3/8" to 3/4" (10 to 19 mm) glass
• Rigid, single-component housing that resists shifting and loss of adjustment over time
• Internal components remain in place during installation — no pre-removal required
• Durable glass securing pads designed for longevity in extreme environments

NOTE: All Wedge-Lock® Door Rails feature the built-in jamb alignment block; arms and pivots must be ordered separately.

CRL Wedge-Lock® Door Rails are available in several
