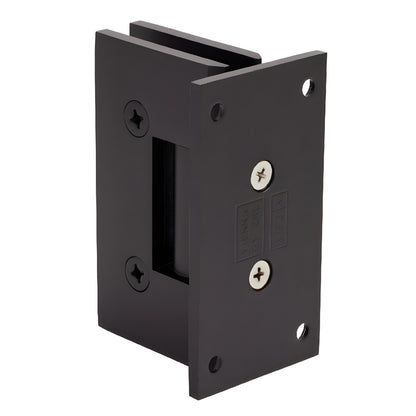

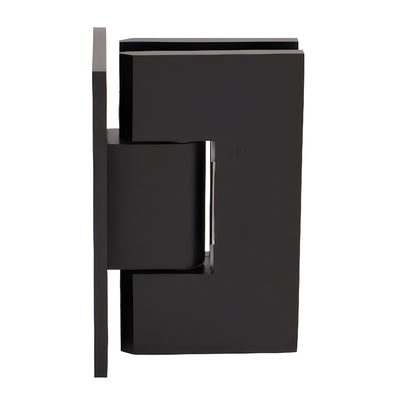

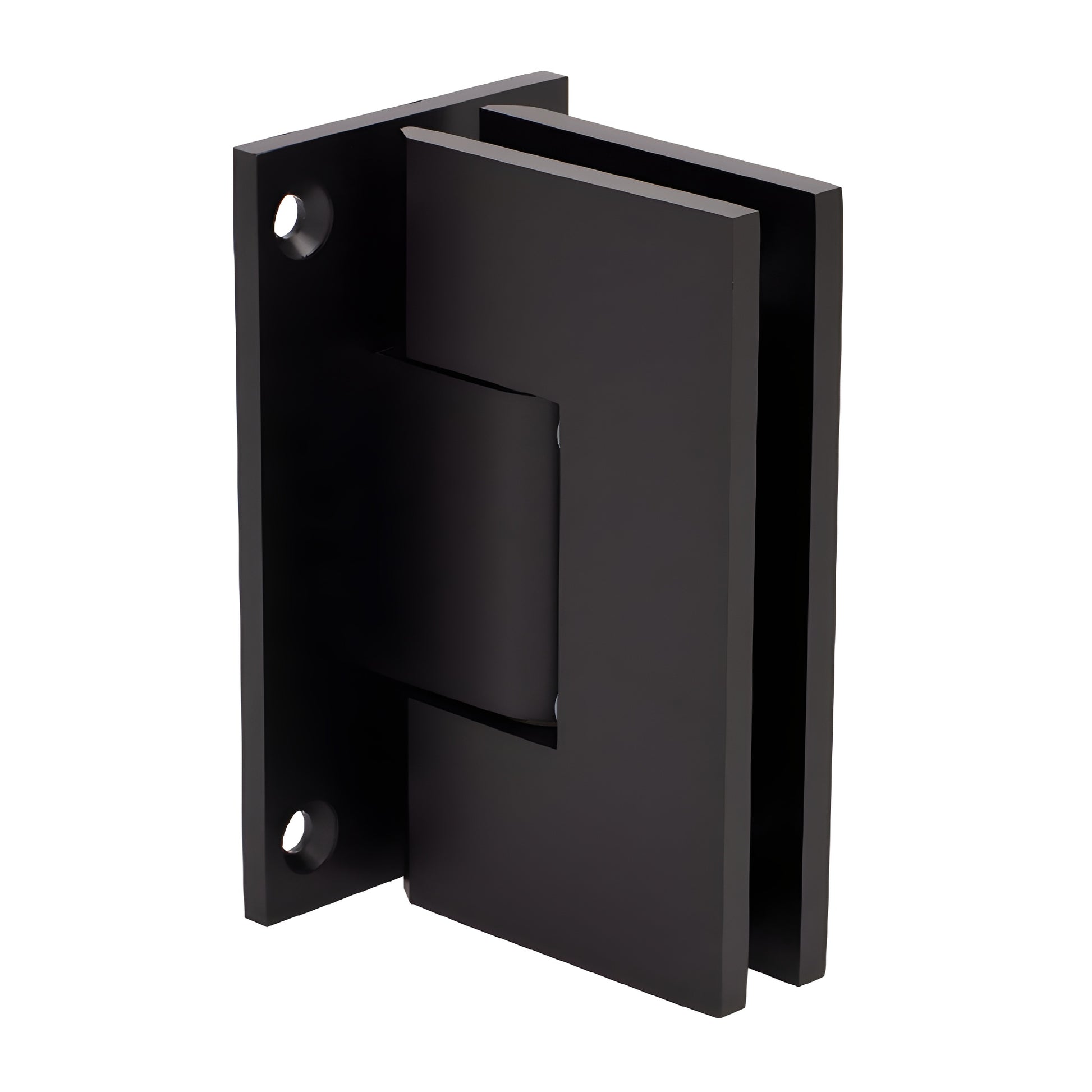

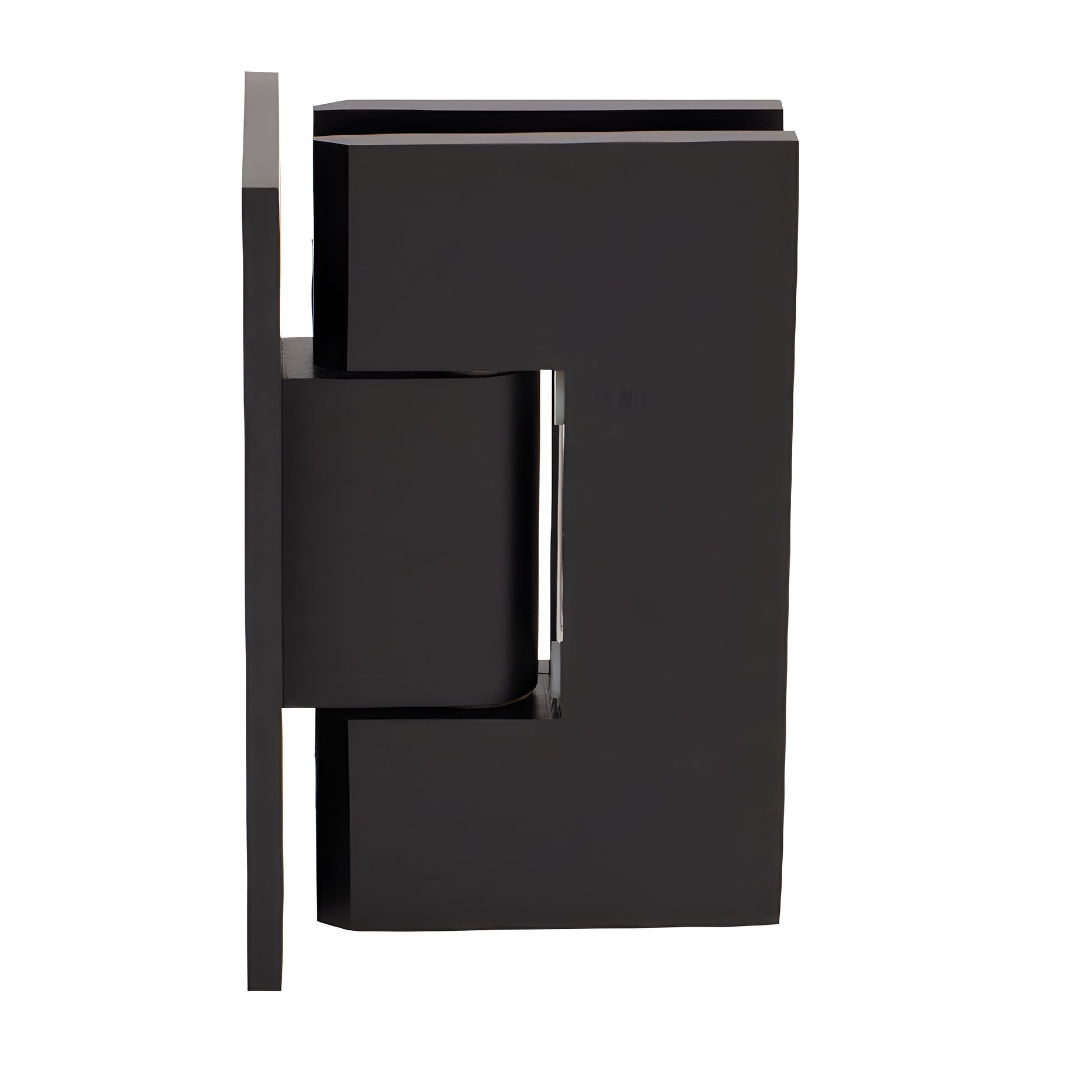

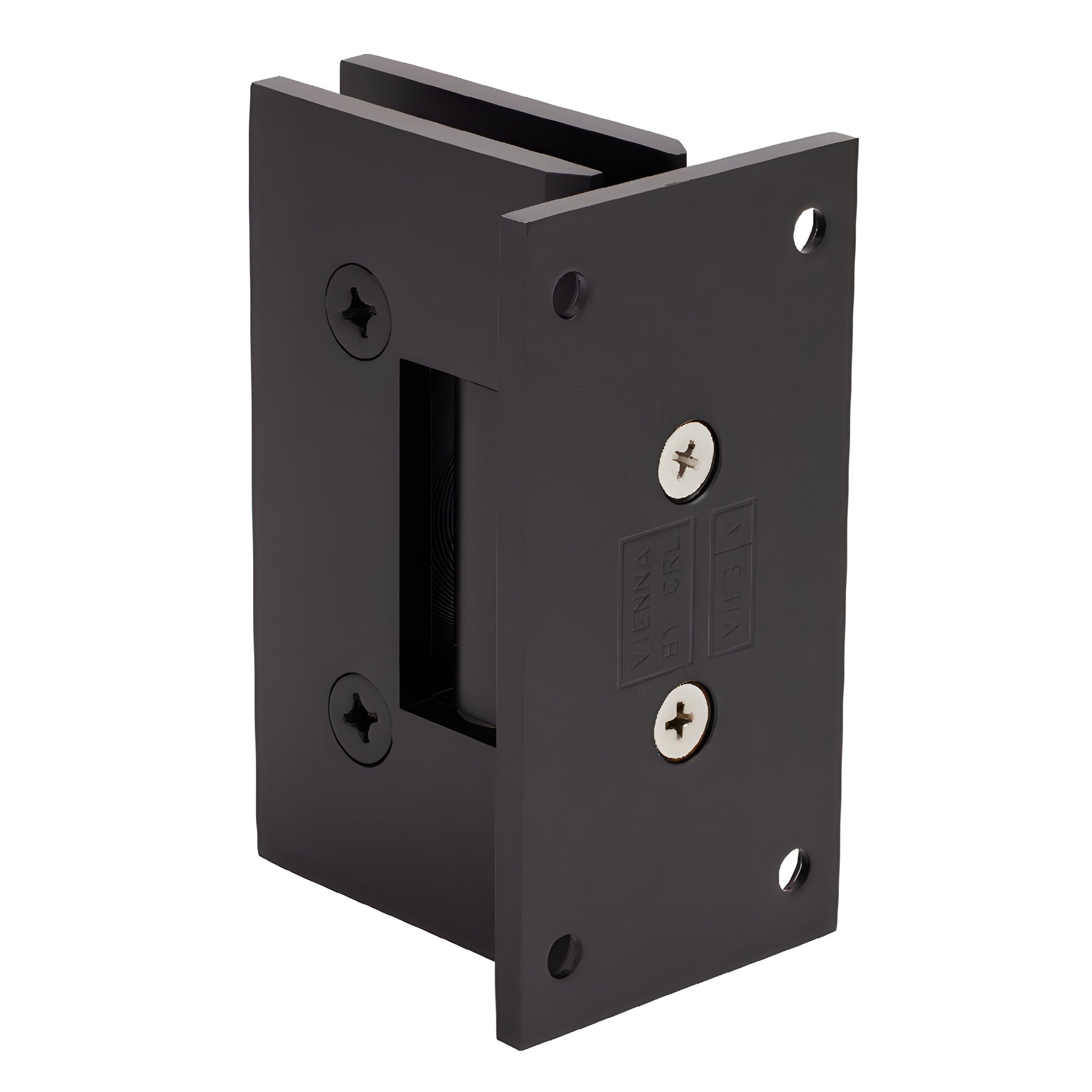

CRL Vienna Wall Mount Positive Close Glass Hinge Oil Rubbed Bronze
CRL Vienna Wall Mount Positive Close Glass Hinge Oil Rubbed Bronze
Regular price
$178.31 CAD
Regular price
Sale price
$178.31 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# V1E0670RB
Shipping Weight: 2.09 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 2.09 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
5 Degree Pre-Set
No
Adjustable
No
Back Plate
Full
Design Style
Squared
Enclosure Type
Corner, Niche, Bathtub, Tailor Made Solutions
Finish/Color
Oil Rubbed Bronze
Glazing Thickness
1/2 in. (12 mm)

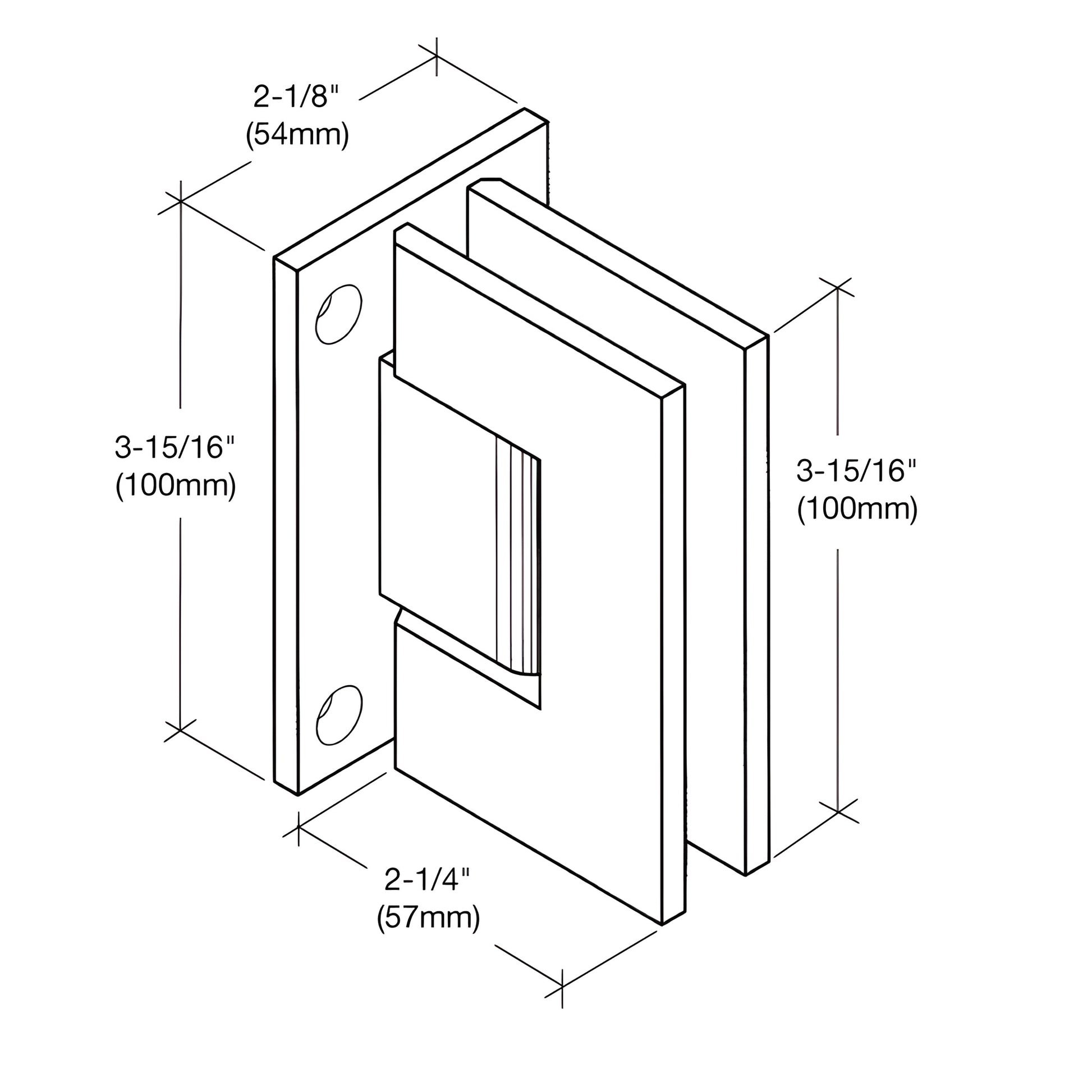

Height
3-15/16 in. (100 mm)
Material
Brass
Maximum Clamping Screw Torque
60 lbf.in (677.9 cN.m)
Maximum Door Weight - 2 Hinges
110 lbs. (49.9 kg)
Maximum Door Weight - 3 Hinges
140 lbs. (63.5 kg)
Maximum Door Width
36 in. (914 mm)
Mounting Type
Wall Mount
Opening Style
Swing(side)
Positive Close
Yes
Series
Vienna
Width
2-1/4 in. (57 mm)
Overview
- Special grooved internal pivot pin for a precise, positive closing action
- Available in wall-mount and 180° glass-to-glass Vienna hinge models
- Stocked in four popular finishes; custom finishes available by special order
- Designed for monolithic tempered safety glass
The Positive Close Vienna Hinge (SKU: V1E0670RB) features an internal grooved pivot pin that delivers a positive-to-zero-degree close—distinct from typical self-centering Vienna hinges. Engineered for glass shower doors, this positive close shower hinge provides reliable, repeatable performance and smooth operation for residential and hotel applications.
Load capacity & glass compatibility
Using two hinges with 3/8" to 1/2" (10–12 mm) tempered glass: holds up to 110 lbs (50 kg); maximum door width 36" (914 mm).
Using three hinges with 3/8" to 1/2" (10–12 mm) tempered glass: holds up to 140 lbs (63 kg); maximum door width 36" (914 mm).
Specifications
Glass Thickness: 3/8" to 1/2" (10–12 mm) tempered safety glass
Construction: Solid brass
Hinge Swings: 90° inwards and outwards (glass shower door hinge)
Closing Type: Positive closing to zero degrees
Cut-Out: Required (use included template; cut-out dimensions may differ from other brands)
Includes: gaskets, Phillips screws, Allen screws, and glass fabrication dimensions
Maximum clamping screw torque: 60 lbf·in (677.9 cN·m)
Custom finishes are available on request. For finish options or technical approval for non-standard uses, contact CRL Technical Sales Shower Door Department.
Product Warning
CRL Shower Door Hinges are intended for residential or hotel shower use only. For other applications, obtain approval from CRL Shower Door Technical Sales. Use only the template included with this hinge; cut-out dimensions for CRL hinges may not match other brands.
Why choose this hinge? Durable solid-brass construction, positive-close reliability, and compatibility with standard 10–12 mm tempered glass make the V1E0670RB an ideal glass shower door hinge for high-use residential and hotel installations.
Ready to order or need technical help? Contact CRL Customer Service or the Shower Door Technical Sales Department today.
