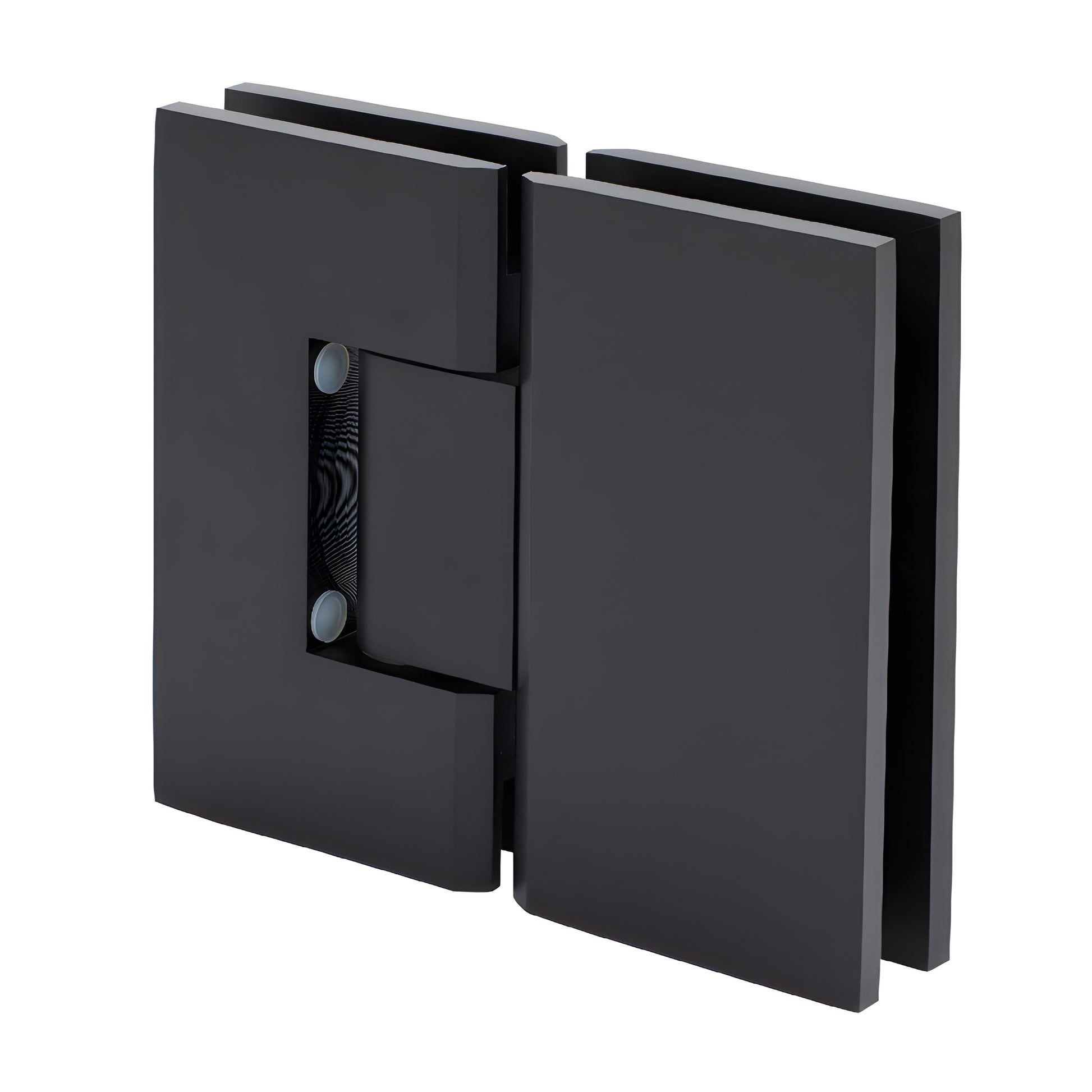

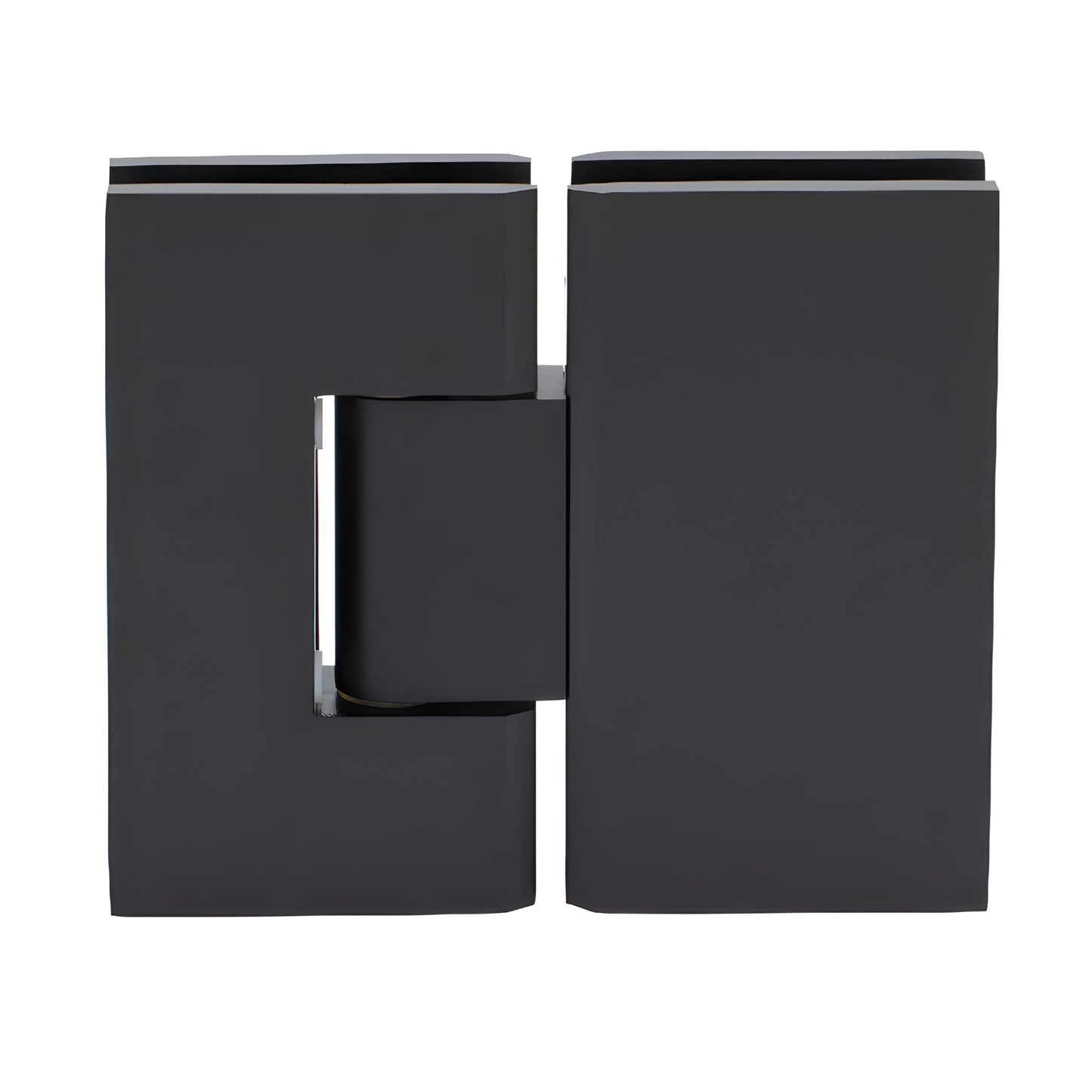

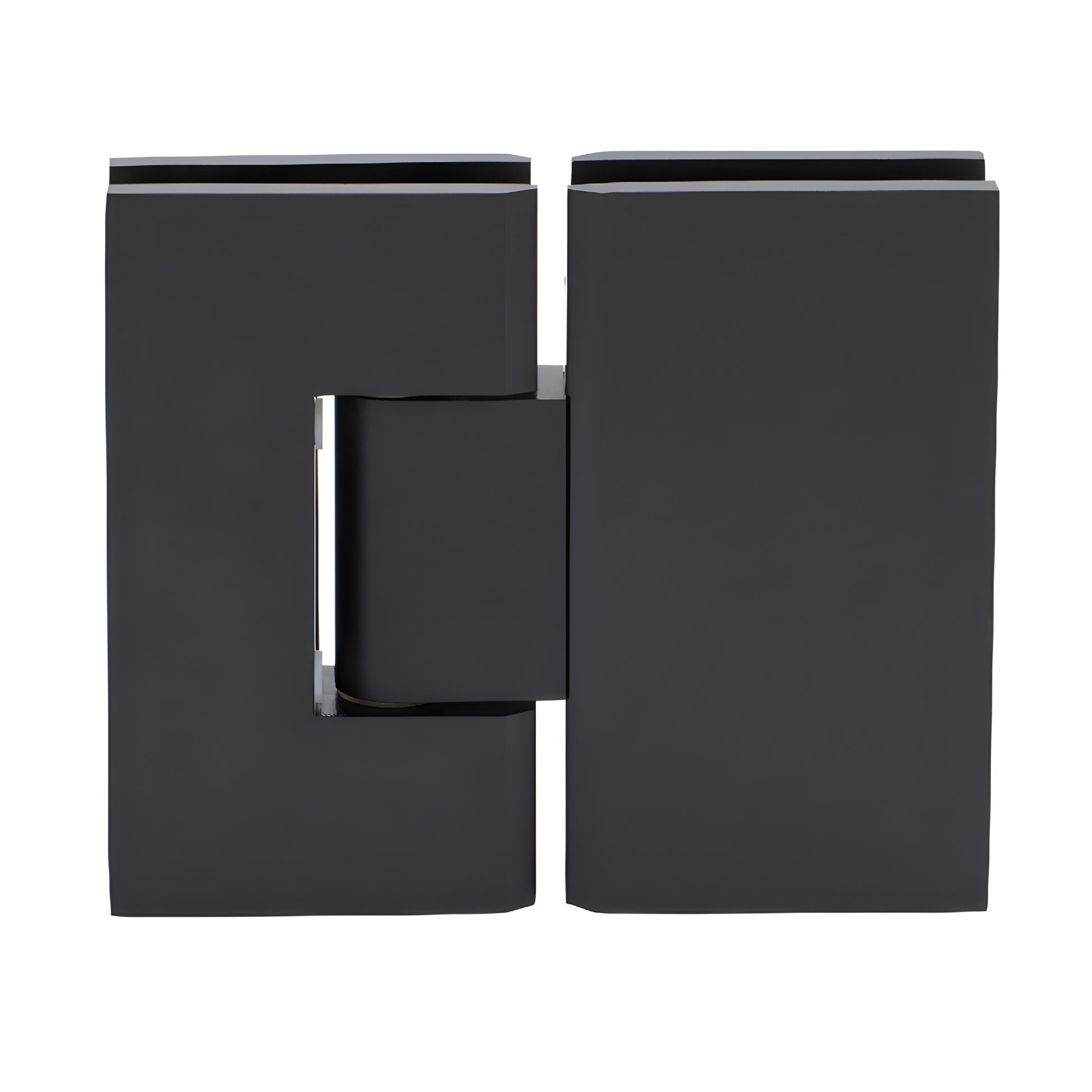

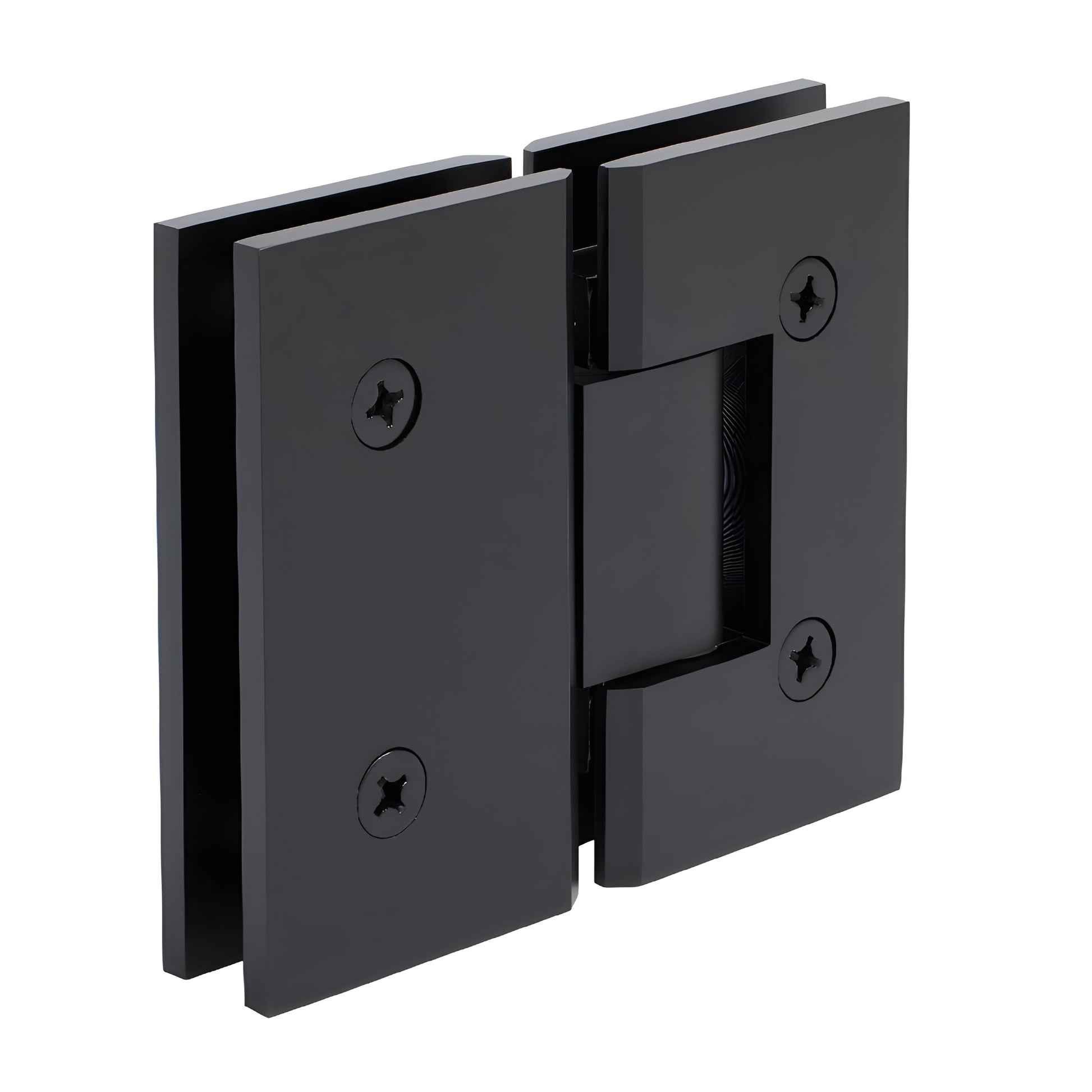

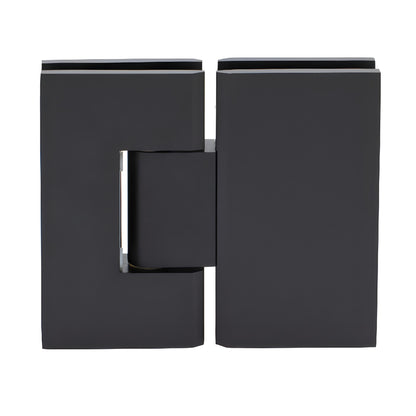

CRL Vienna 180° Oil-Rubbed Bronze Positive-Close Glass Shower Hinge

• Special grooved internal pivot pin for precise, positive closing action
• Positive Close Vienna hinge — different from typical self-centering Vienna hinges
• Stocked in wall-mount and 180° glass-to-glass configurations
• Available in the four most popular finishes; other finishes available by special order
• Designed for monolithic tempered safety glass

The Positive Close Vienna Hinge (SKU V1E7800RB) features an internal grooved pivot pin that provides a precise, positive closing action to zero degrees—ideal for glass shower door hinge applications where reliable shut is critical. Stocked in our most popular finishes; custom finishes available on request.

Load Capacity
Using two hinges with 3/8" to 1/2" (10–12 mm) tempered glass: holds up to 110 lbs (50 kg), maximum door width 36" (914 mm).
Using three hinges with 3/8" to 1/2" (10–12 mm) tempered glass: holds up to 140 lbs (63 kg), maximum door width 36" (914 mm).

Specifications
Glass Thickness: 3/8" to 1/2" (10–12 mm) tempered safety glass
Construction: Solid brass (solid brass shower hinge)
Hinge Swing: 90° inward and outward
Closing Type: Positive closing to zero degrees (positive close hinge for shower doors)
Includes: gaskets, Phillips screws, Allen screws, and glass fabrication dimensions
Maximum clamping screw torque: 60 lbf·in (677.9 cN·m)
Cut-out required — use only the template included with this hinge

Custom finishes available on request. Contact CRL Technical Sales (Shower Door Department) for special orders or alternative finishes.

Product Warning
CRL shower door hinges are designed for residential or hotel shower use only. For other uses, obtain approval from CRL Shower Door Technical Sales. Cut-out dimensions for CRL hinges may not match other brands—use only the supplied template.

Ready to specify? Order SKU V1E7800RB or contact CRL Technical Sales for quotes and finish options.
