Most shipping weights are approximate. If exact weight is required for shipping cost calculation, request verification from CRL Customer Service before ordering. Product images are representative; colors may vary by monitor.
CRL

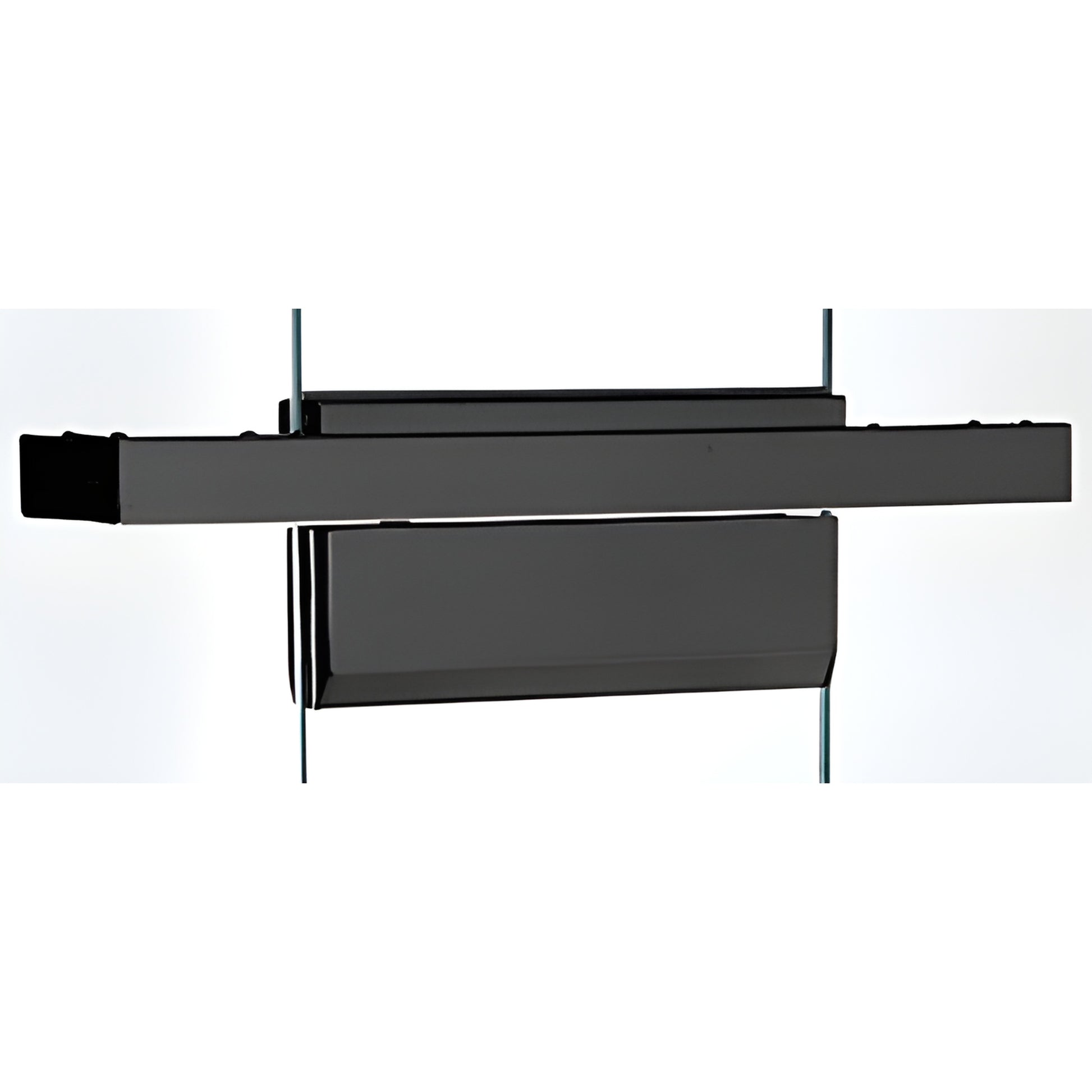

CRL 36" Black Powder-Coated Floating Header for Overhead Door Closers
CRL 36" Black Powder-Coated Floating Header for Overhead Door Closers
Regular price
$1,997.73 CAD
Regular price
Sale price
$1,997.73 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# FH4BLS
Shipping Weight: 11.285 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 11.285 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Configuration
Glass To Glass
Finish/Color
Gloss Black
Glazing Thickness
1/2 in. (12 mm)
Height
1-3/4 in. (44 mm)
Width
4 in. (102 mm)
Overview
- For use with 1/2" (12 mm) glass only
- Ideal where cutting into the floor for a floor closer is not an option
- Available for glass-to-glass or glass-to-wall installations with overhead concealed door closers or pivots
- Six standard architectural finishes
- Custom headers available on special order
These CRL Floating Headers for Overhead Concealed Door Closers (SKU: FH4BLS) mount single or double doors off glass sidelites with a 1/2" (12 mm) glass transom above. Stock floating headers are designed for 1/2" (12 mm) glass-to-glass installations and are prepped to accept CRL overhead concealed door closers.
Custom floating headers support additional configurations — various glass thicknesses, custom lengths, glass-to-wall installations, and headers prepped for surface-mounted magnetic locks, magnetic shear locks, surface-mounted top pivots, walking beam pivots, or overhead concealed door closers.
Note: If the transom above the header exceeds 100 lbs. (45.4 kg), ceiling support is required to prevent header bowing. Use Cat. No. B5BC Smoke Baffle Channel or PH94 Patch Fittings, or contact Technical Sales for assistance.
Application tip: Use this floating header when floor closers are not an option due to delicate finishes or minimal floor thickness — a preferred solution for frameless glass door systems requiring overhead concealed closers.
Stock floating headers: Designed for 1/2" (12 mm) glass-to-glass installations and prepped for overhead concealed door closers.
Product warning:
STRUCTURAL DISCLAIMER — Consult a structural engineer to confirm suitability for your site conditions. Installers must be qualified and ensure compliance with local, state, and federal regulations, safety factors, and correct fixing materials and procedures.
If the transom exceeds 100 lbs. (45.4 kg), provide ceiling support (B5BC Smoke Baffle Channel or PH94 Patch Fittings) and contact Technical Sales for guidance.
Contact CRL Technical Sales to order SKU FH4BLS or request a custom header quote.
