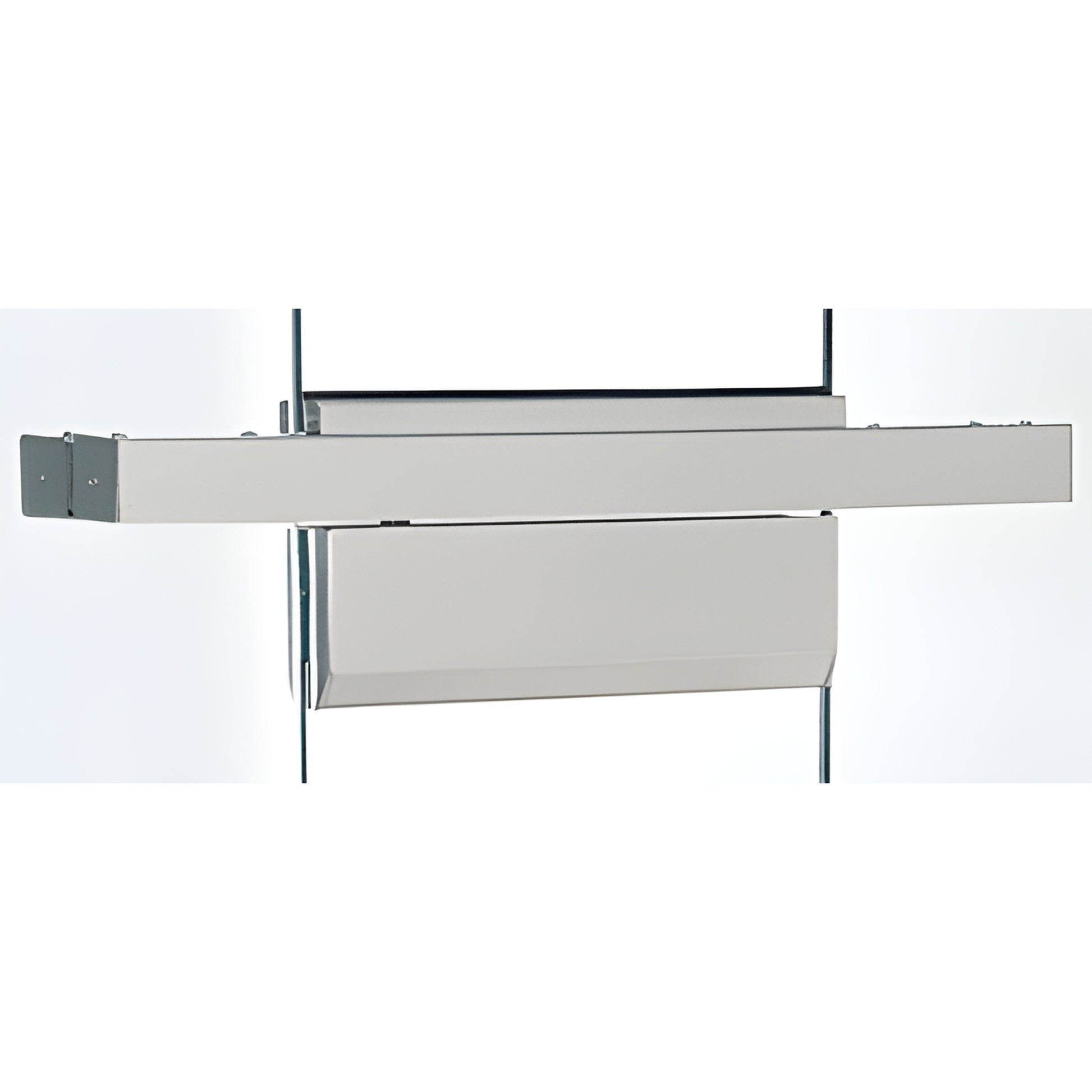

CRL Brushed Stainless Door Header for 36-inch Concealed Closers

• For use with 1/2" (12 mm) glass only
• Ideal where cutting into the floor for a floor closer is not an option
• Available for glass-to-glass or glass-to-wall installations with overhead concealed door closers or pivots
• Six standard architectural finishes
• Custom headers available on special order

These CRL Floating Headers for Overhead Concealed Door Closers (SKU: FH4BSS) mount single or double doors off glass sidelites with a transom above. Stock floating headers are designed for 1/2" (12 mm) glass-to-glass installations and are prepped to accept CRL overhead concealed door closers and a 1/2" (12 mm) thick glass transom.

Custom floating headers cover additional configurations: various glass thicknesses, headers in custom lengths, glass-to-wall installations, and headers prepped for surface-mounted magnetic locks, magnetic shear locks, surface-mounted top pivots, walking beam pivots, or overhead concealed door closers.

Important: If the transom above the header exceeds 100 lbs (45.4 kg), it must be supported from the ceiling to prevent header bowing. Use Cat. No. B5BC Smoke Baffle Channel or PH94 Patch Fittings. Contact Technical Sales for assistance.

Application tip: For projects with protected or thin floors where floor closers are not possible, the CRL floating header provides a reliable overhead concealed door closer solution for glass storefronts and interior glass doors.

Stock floating headers: For 1/2" (12 mm) glass-to-glass installations, prepped for overhead concealed door closers.

Product Warning:

Structural disclaimer: Customers must consult a structural engineer to confirm suitability for site conditions. Installers must be qualified and comply with local, state, and federal regulations, safety standards, and appropriate fixing materials and procedures.

If the transom weight exceeds 100 lbs (45.4 kg), support from the ceiling is required. Use Cat. No. B5BC Smoke Baffle Channel or PH94 Patch Fittings. Contact our Technical Sales Department for assistance.

Stainless Steel Advisory:
