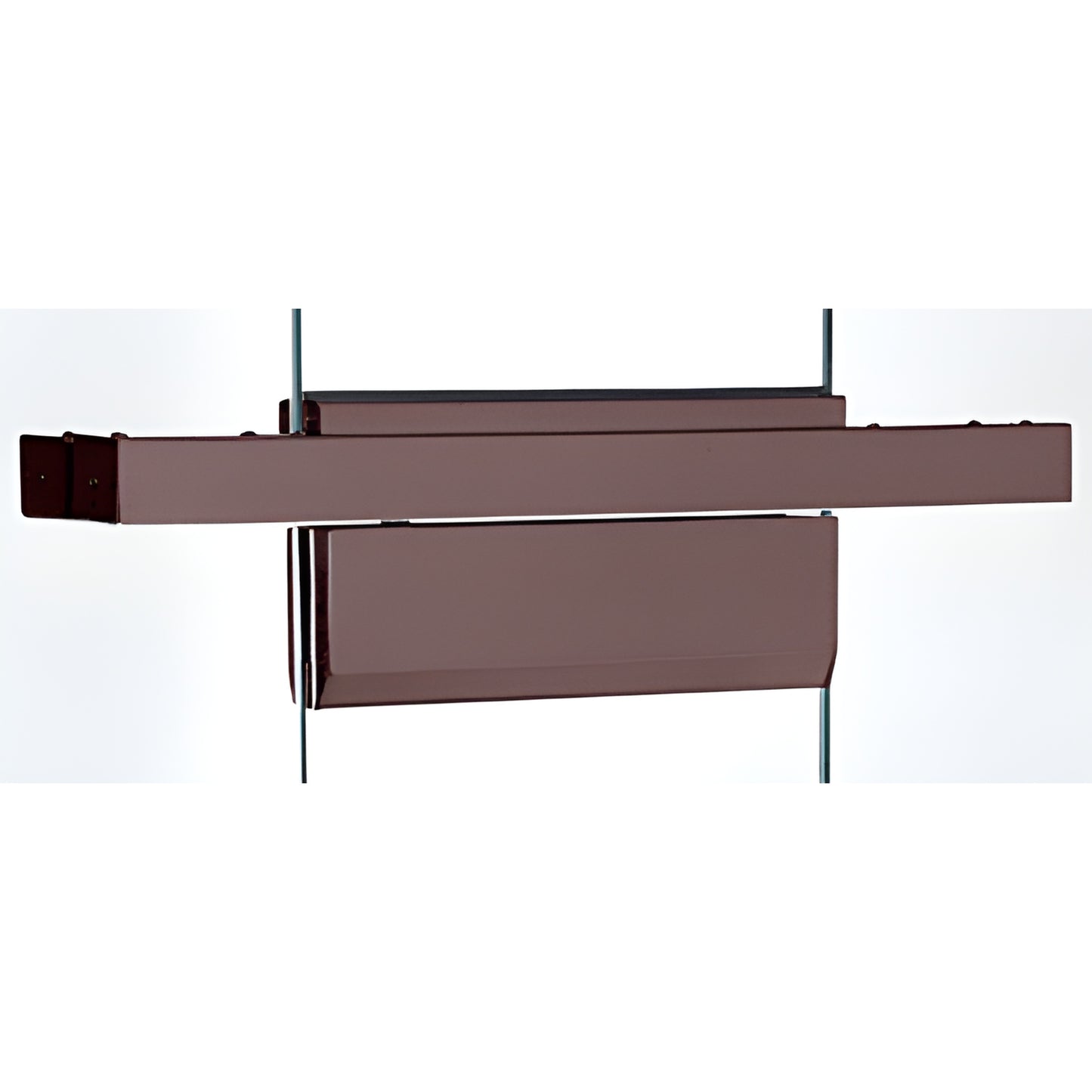

CRL Black Bronze 36" Single Header for Overhead Concealed Door Closer

• For use with 1/2" (12 mm) glass only
• Ideal where cutting into the floor for a floor closer is not an option
• Available for glass-to-glass or glass-to-wall installations with overhead concealed door closers or pivots
• Six standard architectural finishes
• Custom headers available on special order

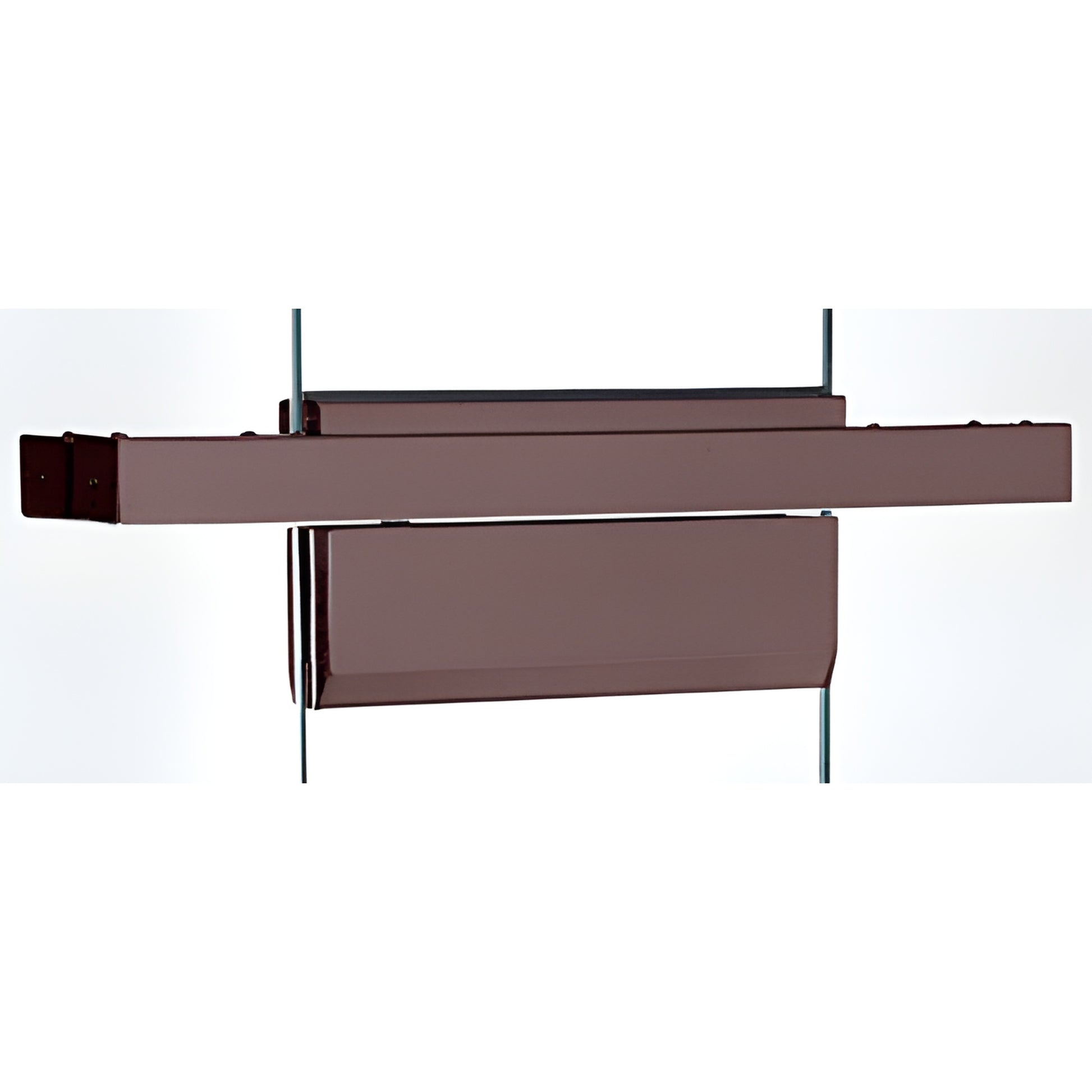

CRL Floating Header for Overhead Concealed Door Closers (SKU: FH4DUS) — engineered to mount single or double doors off glass sidelites with a transom above. Stock floating headers are configured for 1/2" (12 mm) glass-to-glass installations and are prepped to accept CRL overhead concealed door closers and a 1/2" (12 mm) thick glass transom. These floating headers provide a no-floor-cut solution for frameless glass doors and commercial glass installations.

Custom Floating Headers cover additional configurations, including other glass thicknesses, custom lengths, glass-to-wall layouts, and headers prepped for surface-mounted magnetic locks, magnetic shear locks, surface-mounted top pivots, walking beam pivots, or overhead concealed door closers.

Important load note: If the transom above the header exceeds 100 lbs (45.4 kg), the transom must be supported from the ceiling to prevent bowing. Recommended supports include Cat. No. B5BC Smoke Baffle Channel or PH94 Patch Fittings. Contact Technical Sales for assistance.

Application tip: Use the CRL floating header for overhead concealed door closers on projects with delicate floor finishes or limited floor thickness where floor closers are impractical.

Product Warning:

STRUCTURAL DISCLAIMER — Customers must consult a structural engineer to confirm suitability for intended use and site conditions. Installers must be qualified and ensure compliance with local, state, and federal codes, safety factors, and appropriate fixing materials and procedures. If the transom weight exceeds 100 lbs (45.4 kg), support from the ceiling is required; see B5BC or PH94 and contact Technical Sales for help.

Ordering note: Six standard finishes available; custom headers and finishes available on request. Contact Sales to spec FH4DUS for your glass-to-glass or glass-to-wall project.
