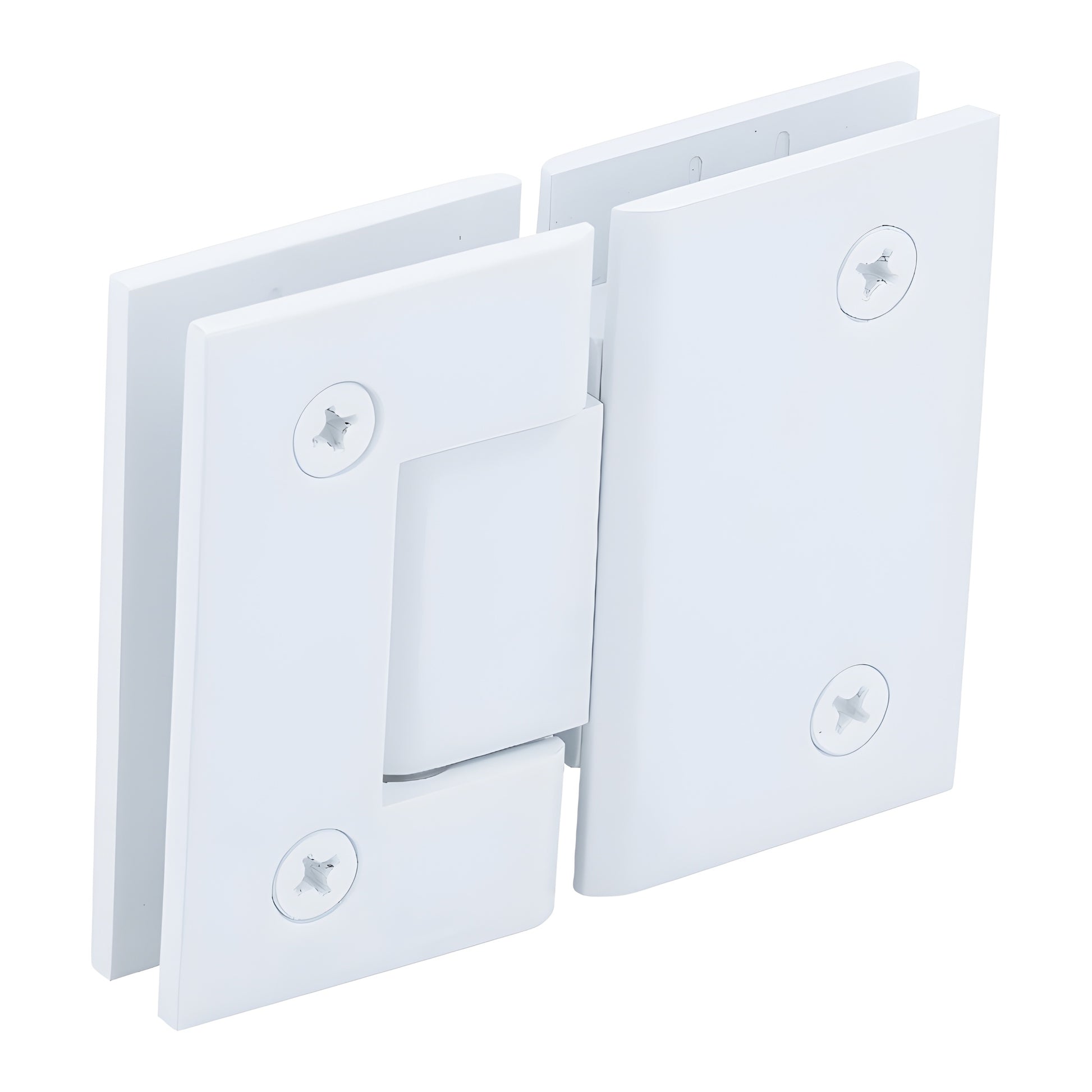

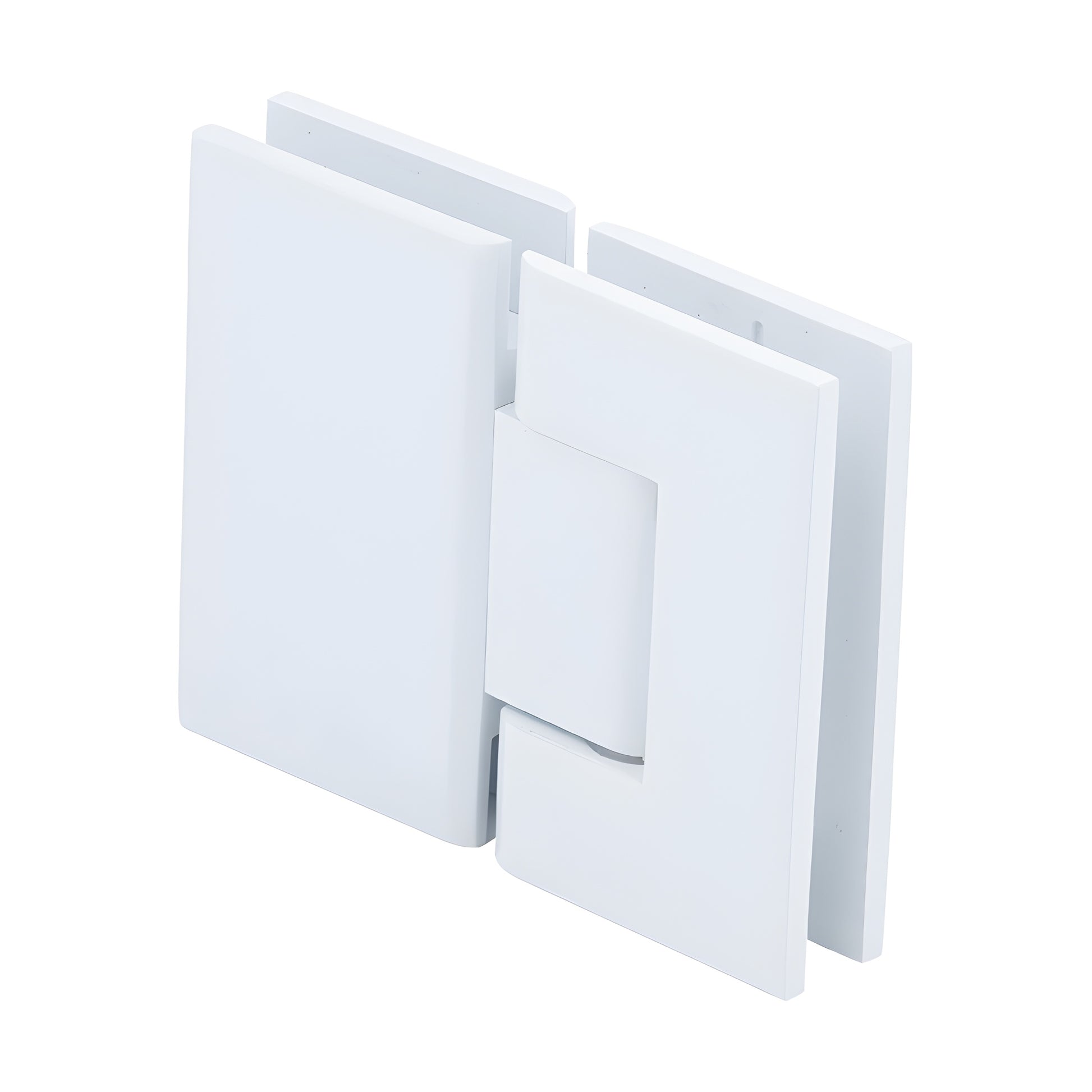

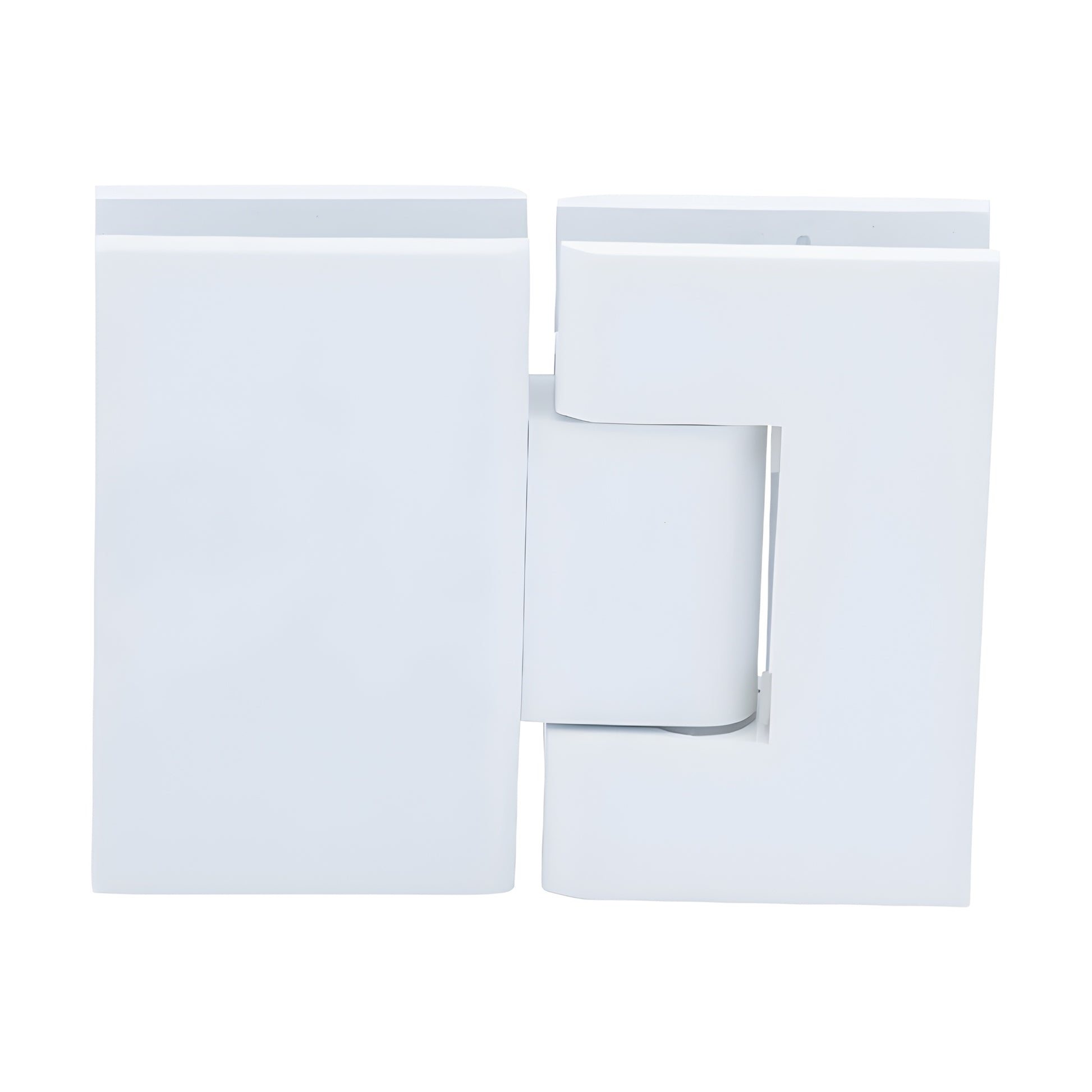

CRL Geneva 180 Series All-White Glass-to-Glass 180° Shower Hinge

• Self-Centering with Reversible 5 Degree Pivot Pin
• Available in several beautiful finishes
• Three year warranty
• 180 Degree glass-to-glass standard model (factory set for standard closing position)
• Use monolithic tempered glass

The CRL Geneva Series professional hinges (SKU: GEN180AW) fit 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass and are available in six styles — three wall-mount and three glass-to-glass configurations — for flexible shower enclosure design. Made from solid brass with stainless-steel pins and springs, Geneva Hinges are self-centering and include a reversible 5° pivot pin. Custom pivot pins are available for off-angle installations.

Standard Reversible Pivot Pin: Each hinge includes a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship with the 90° side activated; offset models are preset to 85° for a tighter closure into the shower interior. The pin can be rotated to change the active side.

Custom Pivot Pin: Custom Pivot Pins (Cat. No. GENP1N) can be specified up to 45° for non-standard closing angles. Using a custom pin may affect glass sizes and enclosure aesthetics; contact our Technical Sales Shower Door Department for assistance.

Weight capacity:

• Two hinges: holds up to 80 lbs. (36 kg) with maximum door width 28" (711 mm).
• Three hinges: holds up to 120 lbs. (54 kg) with maximum door width 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
Special Feature: Choice of standard model (factory-set at 0° closing) or 5° pre-set model for tighter closure into shower interior
Construction: Solid brass with stainless-steel hardware
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering within 15° of closed position
Cut-Out Required Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. GEN13 gasket pack must be purchased separately for use with 5/16" (8 mm) glass.

Custom finishes available on request — contact Technical Sales Shower Door Division for options.

Product Warning:
CRL shower door hinges are designed for residential or hotel shower use only. For other applications, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this
