CRL Brushed Stainless Door Rail for 1/2" Glass 35-3/4" No Lock

• 35-3/4" (908 mm) length for 1/2" (12 mm) glass
• Use monolithic tempered glass
• Patented Wedge-Lock® glass securing system (U.S., Canadian & European patents)
• Models to fit 3/8" to 3/4" (10 to 19 mm) glass
• Available in several stock architectural finishes — custom finishes available
• Available with and without locks
• Matching sidelite rails available

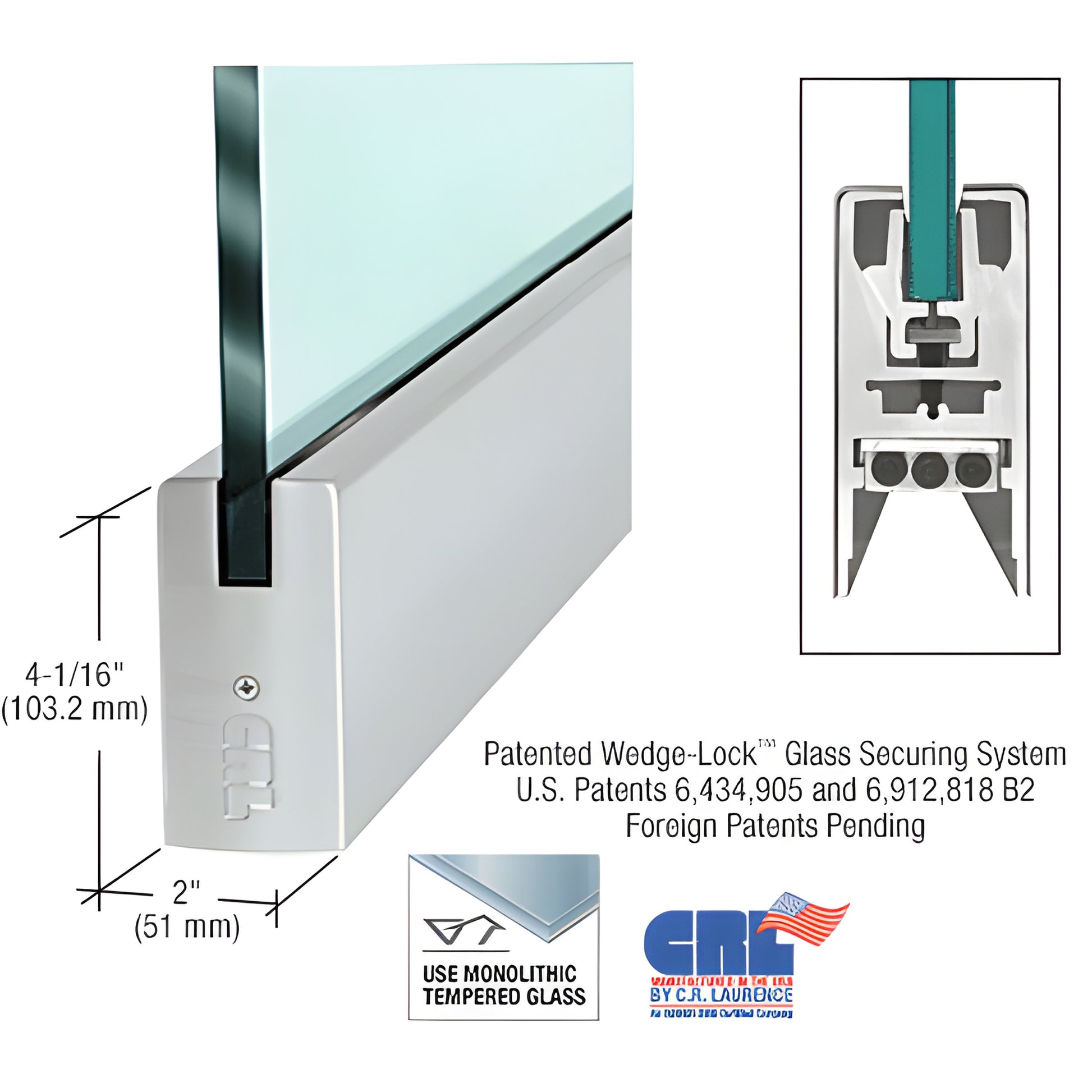

Our innovative glass entrance solution, the CRL Wedge-Lock® Door Rail System (SKU: DR4SBS12S) is a commercial-grade door rail engineered for 1/2" tempered glass. The exclusive Wedge-Lock® Securing System applies downward wedge pressure via two glass-retaining aluminum extrusions and a stainless steel bar to create extremely high retention force (over 900 lbs. in a 9" corner rail). This robust glass securing approach produces reliable, long-term performance for storefronts, office entrances, and other architectural glass doors.

Key differentiators:

• Patented wedge-action clamp: fast, secure glass retention without split housings
• Fast installation: experienced installers can prepare a door in under ten minutes
• Adjustable Door Alignment System: ±1/8" (3.2 mm) adjustment on top and bottom without removing the door
• Rigid single-component housing that resists shifting or loss of adjustment over time
• Durable glass-securing pads rated for extreme environments
• Built-in jamb alignment block (arms and pivots ordered separately)

Product details:
• Actual product height: 4-1/16" (103 mm).
• Rails come fully fabricated with end caps installed; only arm or pivot attachment is required before hanging (arm/pivot not included).
• Models with locks include the lock mechanism; keyed cylinders or thumbturns ordered separately.
• Available finishes: standard architectural finishes; custom finishes and widths quoted on request.
• Templates, rail specifications, and hardware packages available from CRL Technical Sales e-mail.

Ordering information:
• All door rails include the Kwik-Adjust™ Pivot Alignment System; closer arms and floor/overhead pivots must be ordered separately.
• Specify door rail length (including end caps) when ordering custom lengths.

Product warning:
Comes standard with jamb alignment block. Arms and pivots must be ordered separately to meet job requirements.
