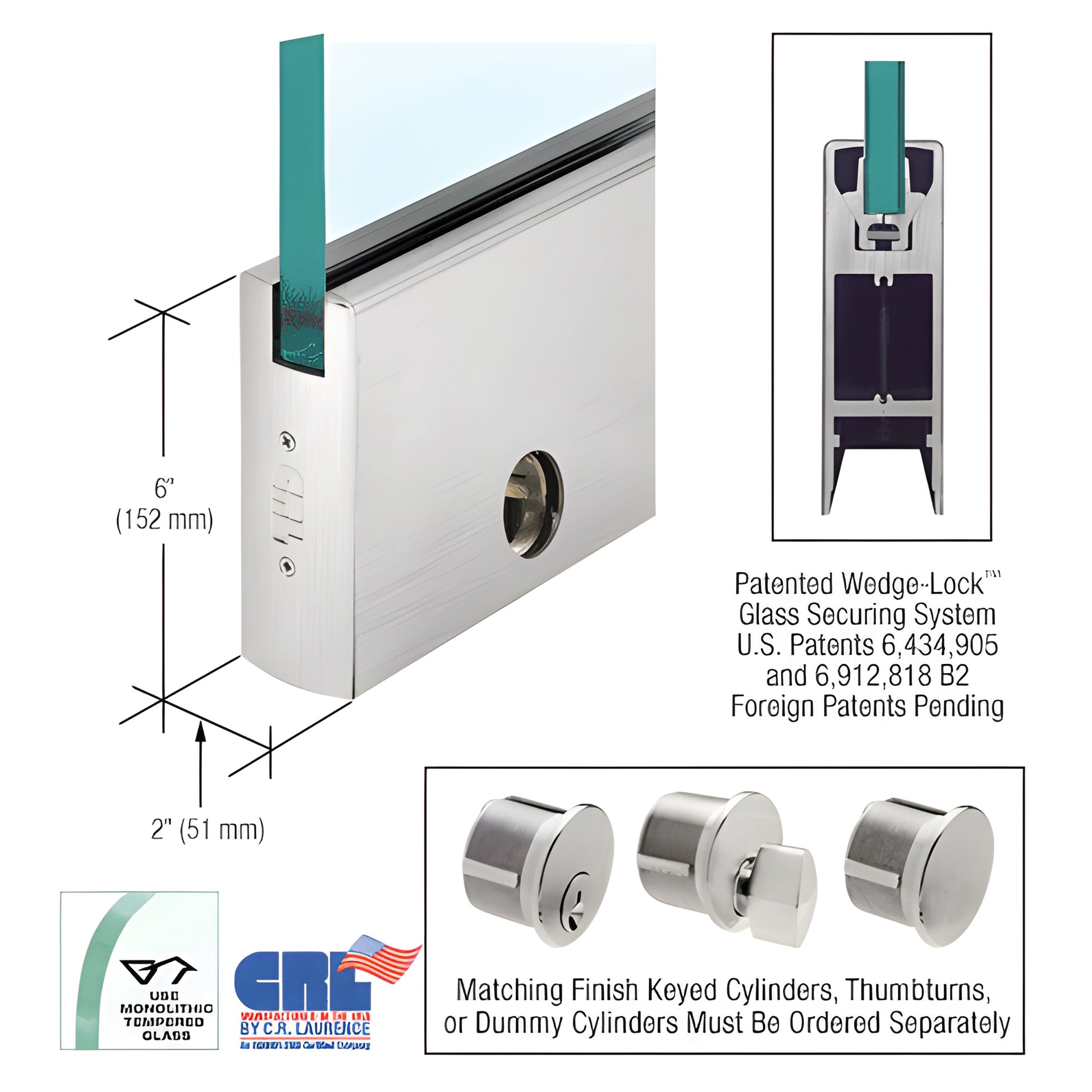

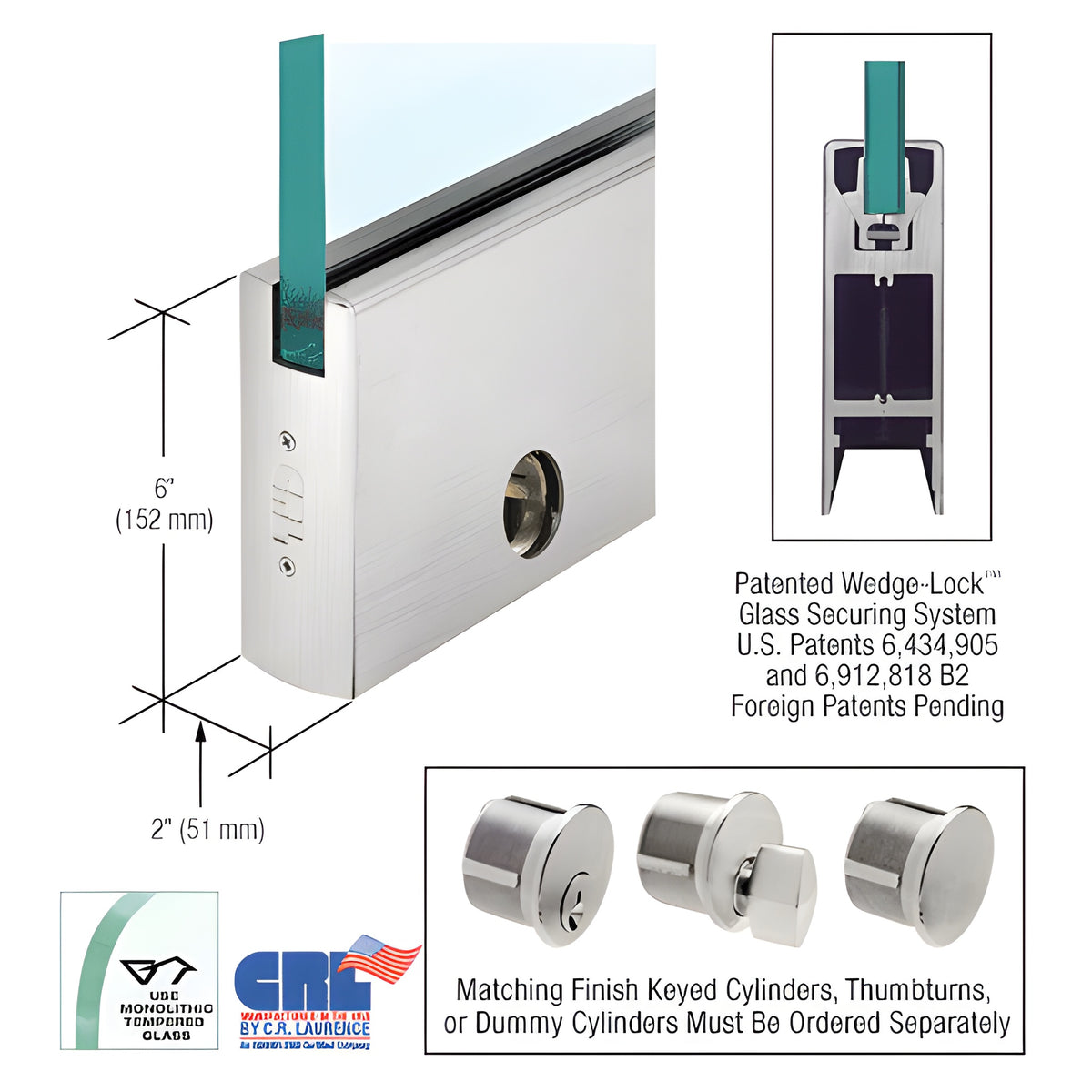

CRL Brushed Stainless Steel 1/2" Glass Door Rail w/ Lock - 35-3/4"

• 35-3/4" (908 mm) length — fits 1/2" (12 mm) monolithic tempered glass
• Patented Wedge-Lock® Glass Securing System — proven high-pressure glass retention
• Models available for 3/8" to 3/4" (10 to 19 mm) glass
• Multiple stock architectural finishes; custom finishes available
• Available with or without locks; matching sidelite rails available

SKU: DR6SBS12SL

An innovative glass entrance solution, the CRL Wedge-Lock® Door Rail System secures glass from the bottom using two glass-retaining aluminum extrusions and a flat stainless steel bar. As the bar is tightened with socket head cap bolts, angled wedges draw the extrusions together, producing exceptional clamping force (over 900 lbs. in the 9" Corner Rail). Designed for Wedge-Lock door rails for 1/2" glass, this system delivers a reliable, long-lasting hold without disassembling internal components.

Key differentiators

• Fast installation — experienced installers can prepare a door in under 10 minutes
• Completely fabricated and ready-to-install with end caps installed
• Built-in adjustable door alignment slide (±1/8" / 3.2 mm) on both top and bottom rails — adjust without removing the door
• Rigid single-component housing resists shifting and maintains alignment over time
• Durable glass-securing pads engineered for extreme environments
• Includes built-in jamb alignment block; arms, pivots, closer arms, and keyed cylinders ordered separately

Specifications & notes

• Actual product height: 6" (152 mm)
• Accepts 3/8" or 1/2" (10 or 12 mm) monolithic tempered glass
• Low-profile adjustable slide allows pivot placement other than the American Standard setback (2-3/4" / 69.8 mm) — useful for out-of-square openings
• Door rails supplied with standard Kwik-Adjust™ Pivot Alignment System; floor or overhead pivots and closer arms must be ordered separately
• Models with locks include the lock mechanism; keyed cylinders or thumbturns sold separately
• End caps included; for replacement end caps search part DREC6S

CRL Wedge-Lock® Door Rails are available in several standard finishes and can be quoted in custom finishes and widths. Rail specifications, templates, and hardware packages are available from CRL Technical Sales.

Product warning: Comes standard with jamb alignment block. Arms and pivots must be ordered separately to meet job requirements.
